O'rnatish va foydalanishO'tish joyining guruch armaturalari misdan, o'rnatilgan nazorat klapanlaridan, noyob muhr dizaynidan va nazorat klapanlarida rezina materiallarni tanlashdan iborat bo'lib, mahsulot yanada og'ir ish sharoitlariga va yanada qattiqroq sharoitlarga moslashtiriladi. Doimiy bosimning transformatsion tizimi uchun maxsus mo'ljallangan beshta tuzilma, shuningdek, o'rnatishni yanada qulayroq qilish uchun bosim sezgichlari, bosim tanklari, manometrlar tomonidan juda integratsiyalangan bo'ladi va tizim yanada toza bo'ladi. Ell va AQSh kabi mamlakatlarda yuqori standartlar va ekologik xavfsizlik talablariga to'liq muvofiqlik, foydalanuvchilarning xavfsizlik va sog'liq haqidagi qo'rquvlarini yo'q qiladi va hayotni qo'llab-quvvatlash tizimlarida noyob salohiyatga ega.

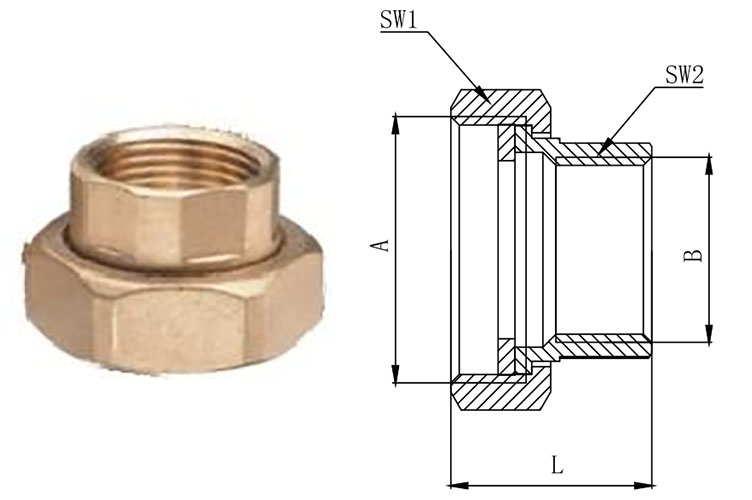

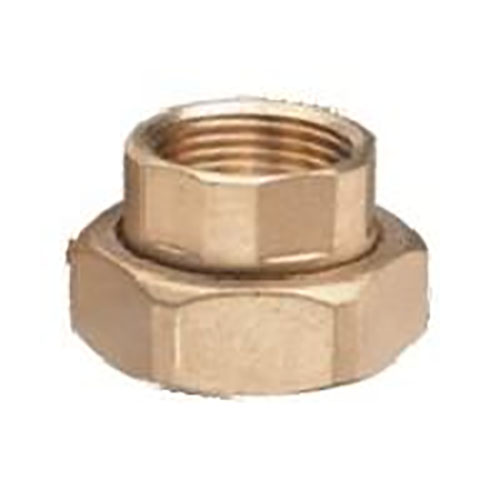

| To'g'ridan-to'g'ri birlashma (FF) | ||||||
| Model | A | B | Sw1 | Sw2 | L | Massa (gram) |
| F-C3011 | F 1-½" | F ¾" | 52 | 31 | 32 | 155 |
| F 1-½" | F 1" | 52 | 37 | 36 | 165 | |
| F 2" | F 1-¼" | 63 | 46 | 30 | 241 | |

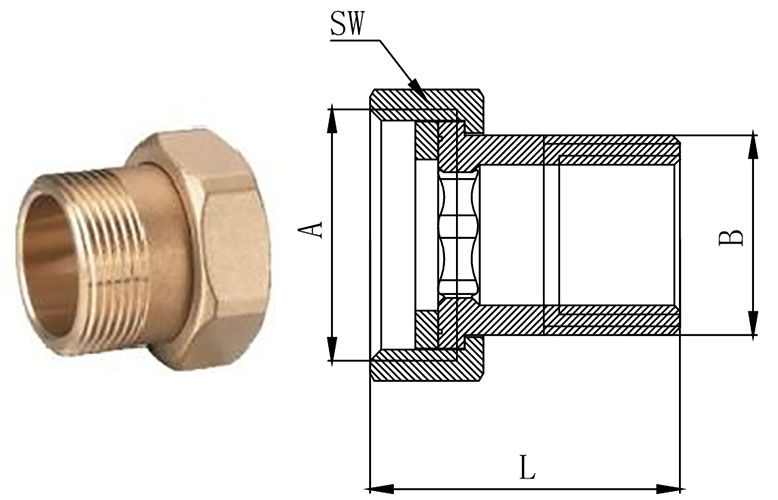

| To'g'ridan-to'g'ri ittifoq (MF) | |||||
| Model | A | B | Sw1 | L | Massa (gram) |
| F-C3012 | F 1" | M ½" | 36.5 | 34 | 85 |
| F 1" | M ¾" | 36.5 | 41 | 105 | |
| F 1-½" | M 1" | 52 | 34 | 175 | |

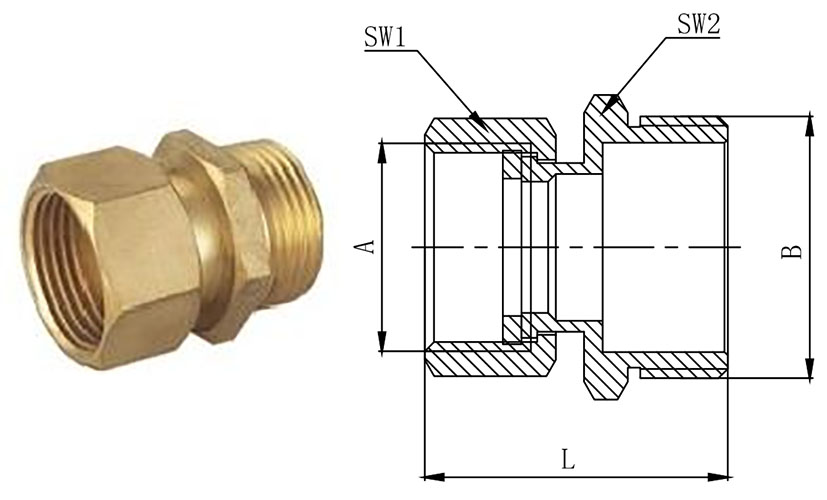

| To'g'ridan-to'g'ri ulanish (mm) | ||||||
| Model | A | B | Sw1 | Sw2 | L | Massa (gram) |
| F-C3013 | M 1" | M 1" | 36 | 37 | 48.5 | 150 |
| M 1" | M 1-¼" | 36 | 42 | 48.5 | 180 | |

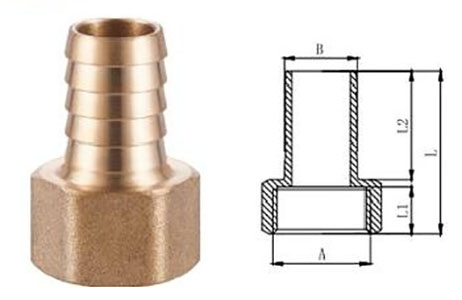

| Nipel shlangi (f) | ||||||
| Model | A | B | C | L2 | L | Massa (gram) |
| F-C3014 | F ½" | 8 | 12.5 | 23 | 38 | 35 |
| F ½" | 9 | 12.5 | 23 | 38 | 36 | |
| F ½" | 10 | 12.5 | 23 | 38 | 37 | |
| F ½" | 12 | 12.5 | 23 | 38 | 38 | |
| F ½" | 14 | 12.5 | 23 | 38 | 39 | |
| F ½" | 16 | 12.5 | 23 | 38 | 42 | |
| F ½" | 18 | 12.5 | 23 | 38 | 44 | |
| F ½" | 20 | 12.5 | 23 | 38 | 48 | |
| F ¾" | 14 | 14 | 23 | 39.5 | 57 | |
| F ¾" | 16 | 14 | 23 | 39.5 | 58 | |
| F ¾" | 18 | 14 | 23 | 39.5 | 59 | |
| F ¾" | 20 | 14 | 23 | 39.5 | 71 | |
| F ¾" | 25 | 14 | 23 | 39.5 | 78 | |
| F1 " | 20 | 15 | 23 | 41 | 94 | |
| F1 " | 25 | 15 | 23 | 41 | 94 | |
| F1 ¼ ” | 32 | 16 | 33 | 52 | 159 | |
| F1-½” | 40 | 15.5 | 44.5 | 63 | 213 | |
| F2" | 50 | 20 | 55.5 | 75.5 | 372 | |

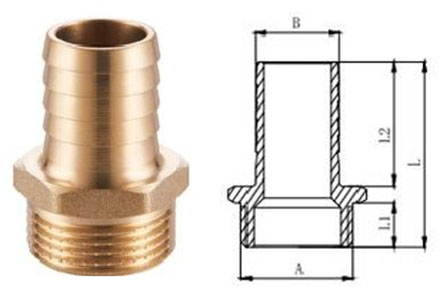

| Nipel shlangi (m) | ||||||
| Model | A | B | L1 | L2 | L | Massa (gram) |
| F-C3015 | M ¼" | 10 | 10 | 23 | 38 | 20 |
| M ¼" | 12 | 10 | 23 | 38 | 22 | |
| M ¼" | 14 | 10 | 23 | 38 | 23 | |
| M ½" | 8 | 11 | 23 | 40 | 28 | |
| M ½" | 9 | 11 | 23 | 40 | 32 | |
| M ½" | 10 | 11 | 23 | 40 | 32 | |
| M ½" | 12 | 11 | 23 | 40 | 32 | |
| M ½" | 14 | 11 | 23 | 40 | 34 | |
| M ½" | 16 | 11 | 23 | 40 | 37 | |
| M ½" | 18 | 11 | 23 | 40 | 40 | |
| M ½" | 20 | 11 | 23 | 40 | 43 | |
| M ¾" | 14 | 11 | 23 | 40 | 48 | |
| M ¾" | 16 | 11 | 23 | 40 | 49 | |
| M ¾" | 18 | 11 | 23 | 40 | 54 | |
| M ¾" | 20 | 11 | 23 | 40 | 55 | |
| M ¾" | 25 | 11 | 23 | 40 | 61 | |
| M 1" | 20 | 15 | 23 | 45 | 89 | |
| M 1" | 25 | 15 | 23 | 45 | 90 | |
| M 1" | 32 | 15 | 23 | 45 | 112 | |
| M 1-¼" | 25 | 15 | 23 | 45 | 130 | |
| M 1-½" | 40 | 19 | 44.5 | 69.5 | 255 | |
| M 2" | 50 | 21 | 55.5 | 82.5 | 396 | |

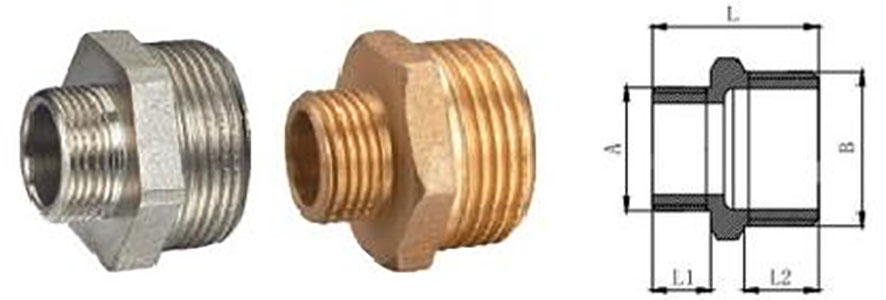

| Flanger vilkasi |
|||||
| Model | A | B | L1 | L2 | L |
| F-C3016 | M ¼" | M ⅜" | 7.5 | 9 | 21 |
| M ¼" | M ½" | 7.5 | 11 | 23 | |
| M ⅜" | M ½" | 9 | 11 | 24.5 | |
| M ⅜" | M ¾" | 9 | 12.5 | 26.5 | |
| M ½" | M ¾" | 11.5 | 12.5 | 29 | |
| M ½" | M 1" | 11.5 | 14 | 30 | |
| M ¾" | M 1" | 12 | 14 | 31 | |
| M ½" | M 1-¼" | 11.5 | 16 | 33 | |
| M ¾" | M 1-¼" | 13 | 16 | 34.5 | |
| M 1" | M 1-¼" | 13.5 | 16 | 35 | |
| M ½" | M 1-½" | 11.5 | 16.5 | 33.5 | |
| M ¾" | M 1-½" | 13 | 16.5 | 35 | |
| M 1" | M 1-½" | 13 | 16.5 | 35 | |
| M 1-¼" | M 1-½" | 16 | 16.5 | 38 | |
| M ¾" | M 2" | 13 | 20 | 39 | |
| M 1" | M 2" | 14 | 20 | 40 | |
| M 1-¼" | M 2" | 16 | 20 | 42 | |
| M 1-½" | M 2" | 16.5 | 20 | 42.5 | |
| M 2" | M 2-½" | 20 | 25 | 54 | |
| M 2" | M 3" | 20 | 27 | 57 | |
| M 2-½" | M 3" | 27 | 25 | 62 | |

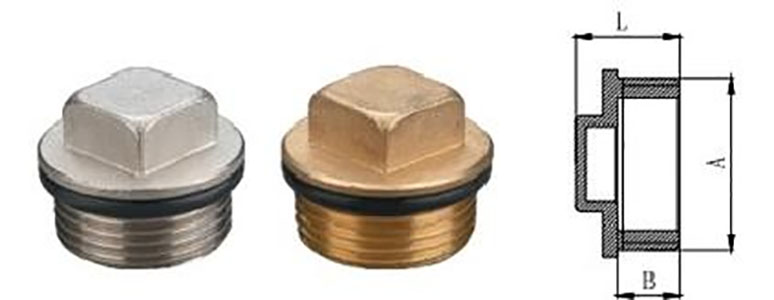

| Flanger vilkasi |
||||
| Model | Hajmi | A | B | L |
| F-C3017 | ⅛" | M ⅛" | 7 | 14 |
| ¼" | M ¼" | 7 | 14 | |
| ⅜" | M ⅜" | 7 | 14 | |
| ½" | M ½" | 9 | 17 | |
| ¾" | M ¾" | 11 | 19.5 | |
| 1" | M 1" | 11.5 | 21.5 | |
| 1-¼" | M1-¼" | 12.5 | 25.5 | |
| 1-½" | M1-½" | 13 | 28.5 | |
| 2" | M 2" | 17 | 34.5 | |
| 2-¼" | M2-¼ | 18.5 | 36 | |
| 2-½" | M2-½" | 20 | 39.5 | |
| 3" | M 3" | 24 | 46.5 | |
| 4" | M 4" | 28 | 55.5 | |

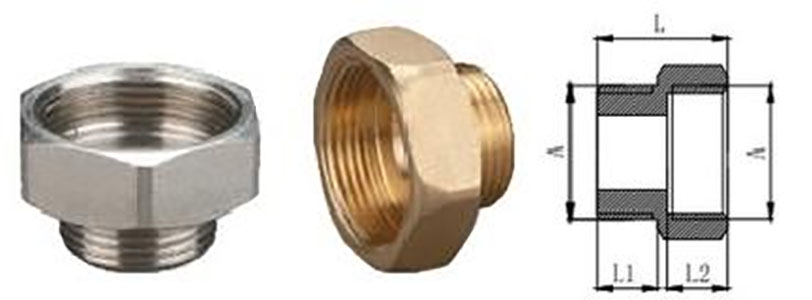

| Teng tekis (mf) | |||||
| Model | A | B | L1 | L2 | L |
| F-C3018 | ¼" | M ¼" | 8 | 9 | 18.5 |
| ⅜" | M ⅜" | 8.5 | 9 | 18 | |
| ½" | M ½" | 10.5 | 11 | 22.5 | |
| ¾" | M ¾" | 12 | 12.5 | 26.5 | |
| 1" | M 1" | 13 | 15 | 30.5 | |
| 1-¼" | M1-¼" | 15 | 16 | 33 | |
| 1-½" | M1-½" | 15.5 | 17 | 35 | |
| 2" | M 2" | 19.5 | 20 | 42.5 | |

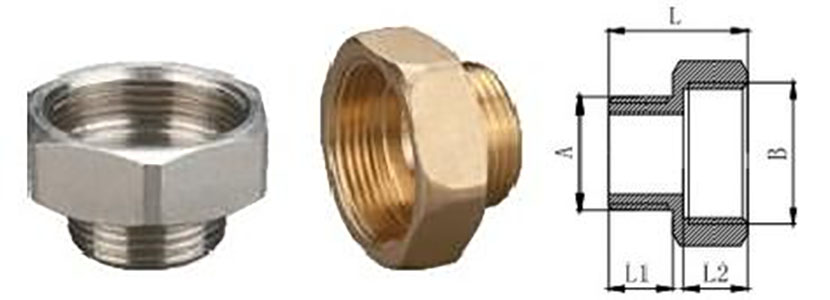

| To'g'ri qisqartirish (MF) | |||||
| Model | A | B | L1 | L2 | L |
| F-C3019 | M ¼" | M ⅜" | 8 | 10 | 20 |
| M ¼" | M ½" | 8 | 11 | 21 | |
| M ⅜" | M ¼" | 8.5 | 9 | 19 | |
| M ⅜" | M ½" | 8.5 | 11 | 21.5 | |
| M ½" | M ⅜" | 11 | 8.5 | 21.5 | |
| M ½" | M ¾" | 11 | 12 | 25 | |
| M ½" | M 1" | 11 | 15 | 28 | |
| M ½" | M1-¼" | 11 | 16 | 30 | |
| M ¾" | M ½" | 12 | 11 | 24 | |
| M ¾" | M 1" | 12 | 14.5 | 29 | |
| M ¾" | M1-¼" | 12 | 16 | 31 | |
| M 1" | M ¾" | 13 | 12 | 27 | |
| M 1" | M1-¼" | 13 | 16 | 32 | |
| M 1" | M1-½" | 13 | 17 | 34 | |
| M 1" | M 2" | 13 | 19.5 | 38 | |
| M 1-¼" | M1-½" | 16 | 17 | 36 | |
| M 1-¼" | M 2" | 16 | 19.5 | 40 | |
| M 1-½" | M 2" | 17 | 19.5 | 40.5 | |
| M 2" | M1-½" | 19 | 17 | 34 | |
| M 2" | M2-½" | 19 | 25.5 | 19 | |

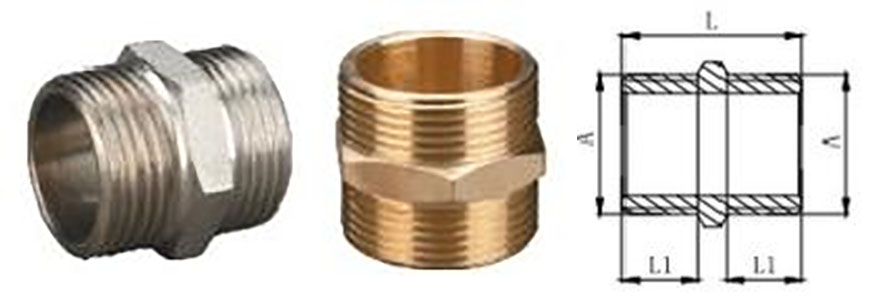

| Teng nipel | ||||
| Model | Hajmi | A | L | L |
| F-C3020 | ⅛" | M ⅛" | 8 | 19.5 |
| ¼" | M ¼" | 8.5 | 21 | |
| ⅜" | M ⅜" | 9 | 22.5 | |
| ½" | M ½" | 10.5 | 25.5 | |
| ¾" | M ¾" | 12 | 29 | |
| 1" | M 1" | 13 | 31.5 | |
| 1-¼" | M1-¼" | 15 | 35.5 | |
| 1-½" | M1-½" | 16.5 | 39 | |
| 2" | M 2" | 19 | 45 | |
| 2-½" | M2-½" | 25 | 58 | |
| 3" | M3 | 27 | 63 | |
| 4" | M4 " | 35 | 81 | |
