ZEN Machinery tomonidan moslashtirilgan WPP2 Vanna nasoslari nasos ishlab chiqarilgan materiallarga kimyoviy jihatdan agressiv bo'lmagan abraziv zarralar va suyuqliklarsiz toza suvni quyish uchun tavsiya etiladi. Ushbu seriyali nasos uzluksiz ishlashi mumkin. Bu kichik hovuzlar, mariculture uchun aylanma filtrlar, vannalar suv qayta ishlash va kurort uskunalarida suv qayta ishlash uchun javob beradi, va hokazo. D. Uni ishlatish va saqlash oson.

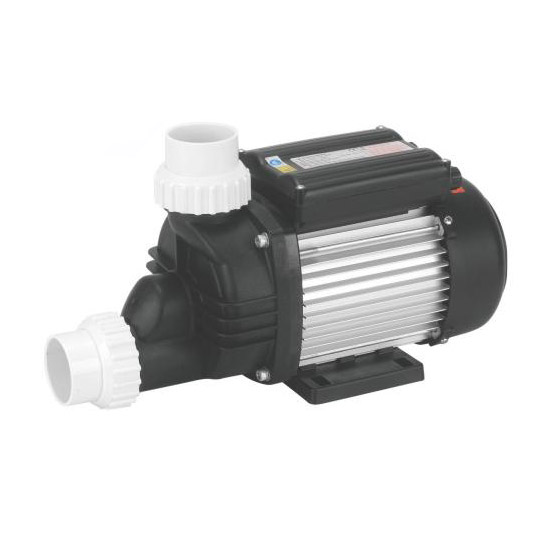

(vanna pompasi)

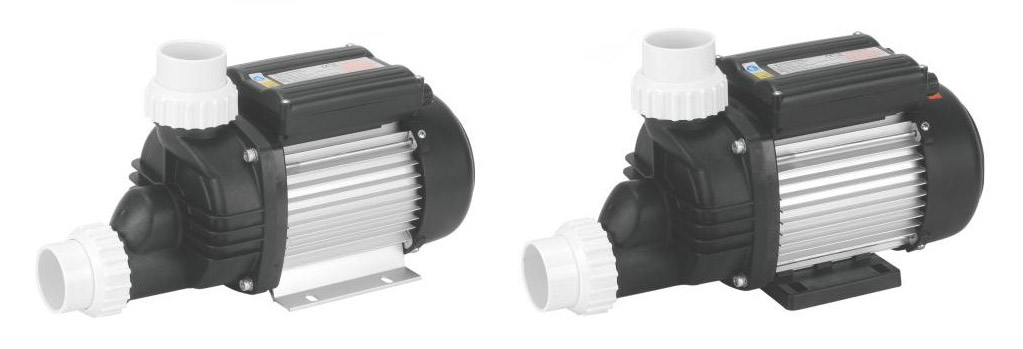

(WPP seriyasi)
● Himoya kiritish: 2-tur
● Avtomatik drenaj
● Kam tebranishlar
● Anodli oksidlanish elektr motorining uyi
● ortiqcha yukdan himoya qilish
● pnevmatik kalitlar (ixtiyoriy)
● f darajasi
● suyuqlik harorati ≤ 50 ° C
● Mec71

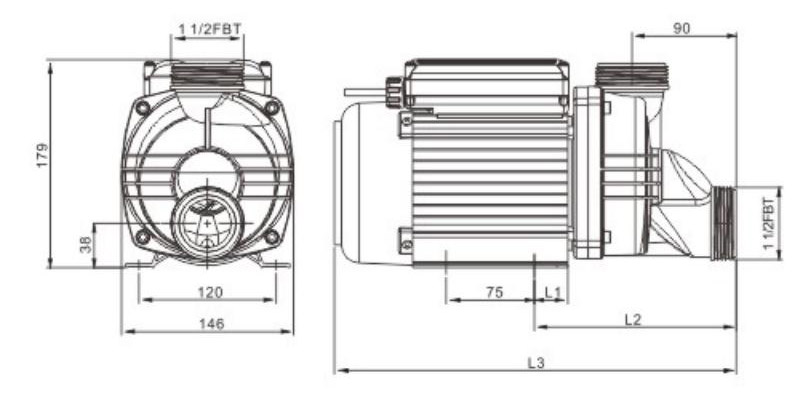

| Model | WPP370E WPP550E WPP750E WPP900E WPP1100E | WPP1500E |
| L1(mm) | 28.5 | 37.5 |
| L2(mm | 172 | 181 |
| L3(mm) | 341 | 359 |
| Model | Quvvat | Stress / chastota V/Hz |
Maks. Oqim | Maks | O'rnatish hajmi | G.V | Paket hajmi | Yuklash miqdori (Miqdor/20') |
| L/min | Oddiy | mm | kg | mm | ||||
| WPP370E | 370 Vt/0,5 HP | 220-240V /60Hz |
250 | 7 | 48,5/50 | 5.7 | 360x160x205 (1 dona) 375x355x220 (2 dona) |
2455 |
| WPP550E | 550 Vt/0,75 ot kuchi | 260 | 8 | 6.3 | ||||
| WPP750E | 750 Vt/1,0 ot kuchi | 320 | 11.5 | 6.7 | ||||
| WPP900E | 900 Vt/1,2 ot kuchi | 340 | 12 | 7 | ||||
| WPP1100E | 1100 Vt/1,5 ot kuchi | 375 | 13.0 | 8.1 | ||||
| WPP1500E | 1500 Vt/2,0 ot kuchi | 450 | 14.5 | 9 |
