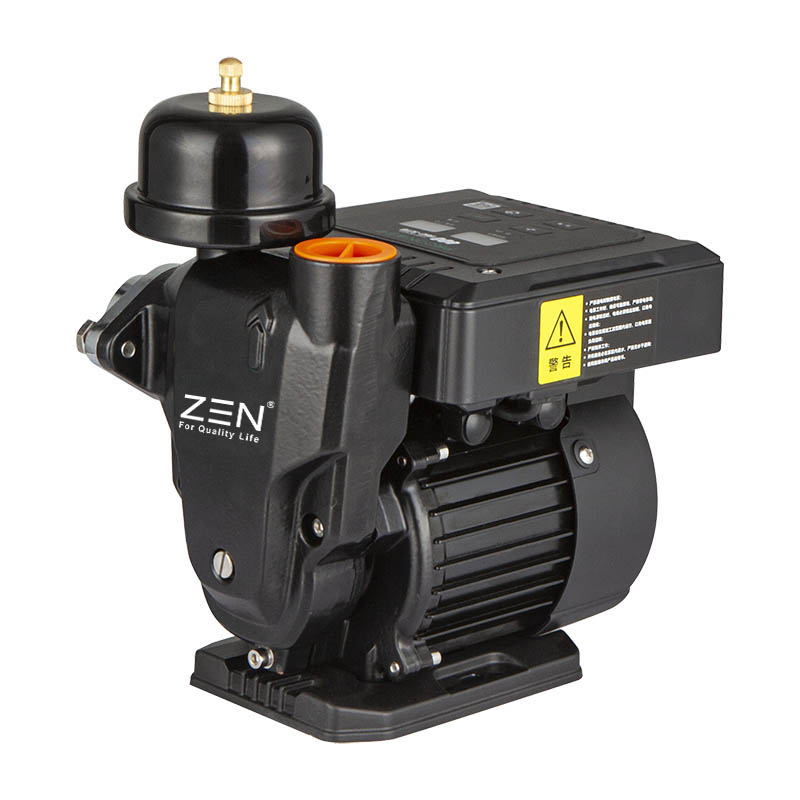

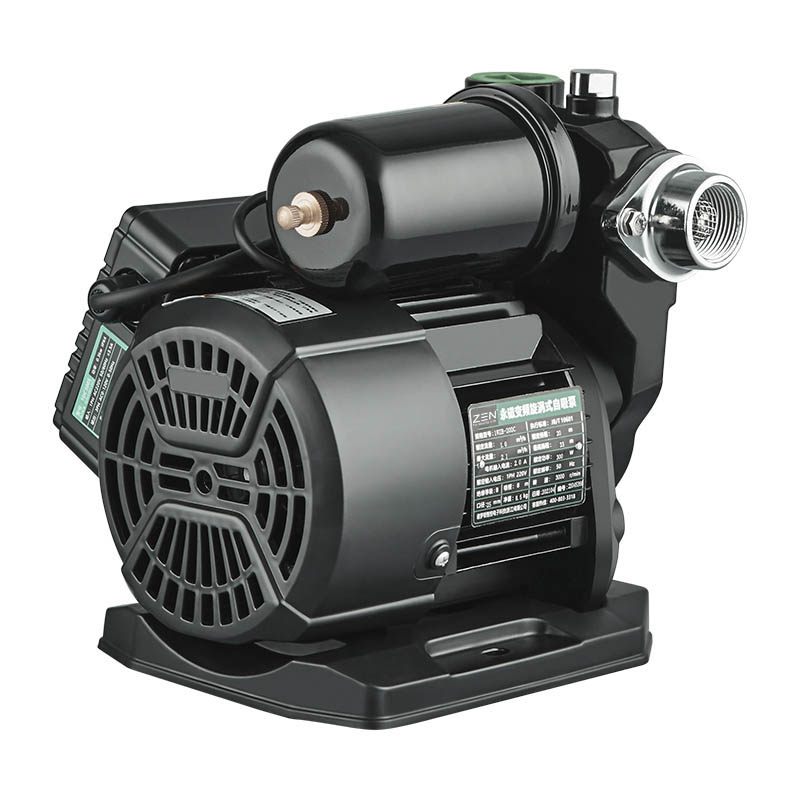

WZB Intelligent chastotali o'z-o'zidan ishlaydigan nasos

Xitoyda professional ishlab chiqaruvchi ZEN Machinery kompaniyasining yuqori sifatli WZB Intelligent chastotali o'z-o'zidan ishlaydigan nasosi turli xil stsenariylar, tijorat turar-joy binolari, aqlli nasoslar turli stsenariylar, tijorat turar-joy binolari, tekis pollar, villalar va boshqalar uchun javob beradi. 40% energiya tejash effektiga erisha oladi. doimiy suv bilan ham samarali ishlashi mumkin.

So'rov yuborish

Mahsulot tavsifi

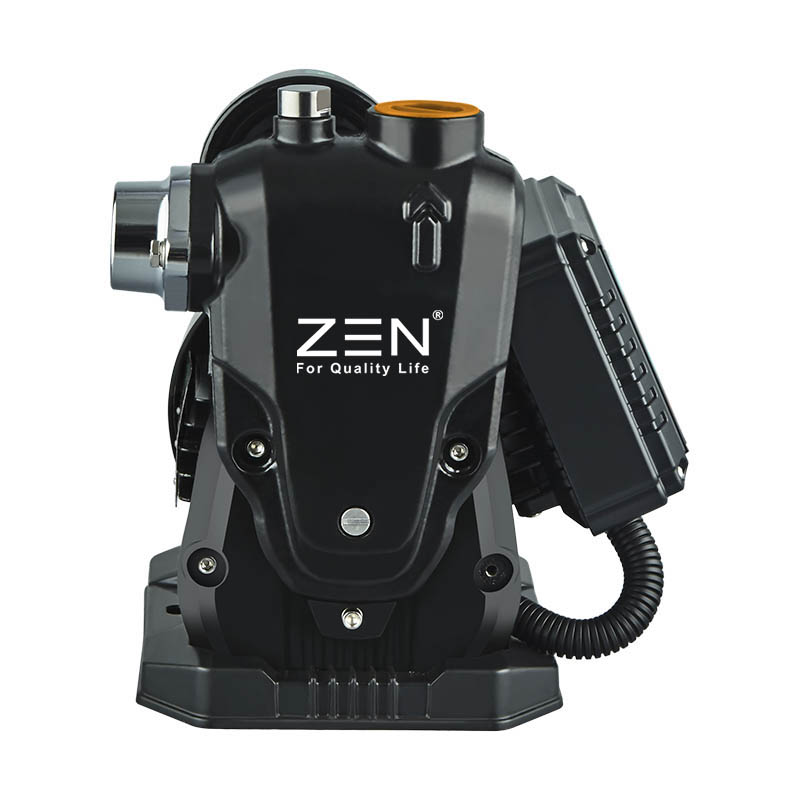

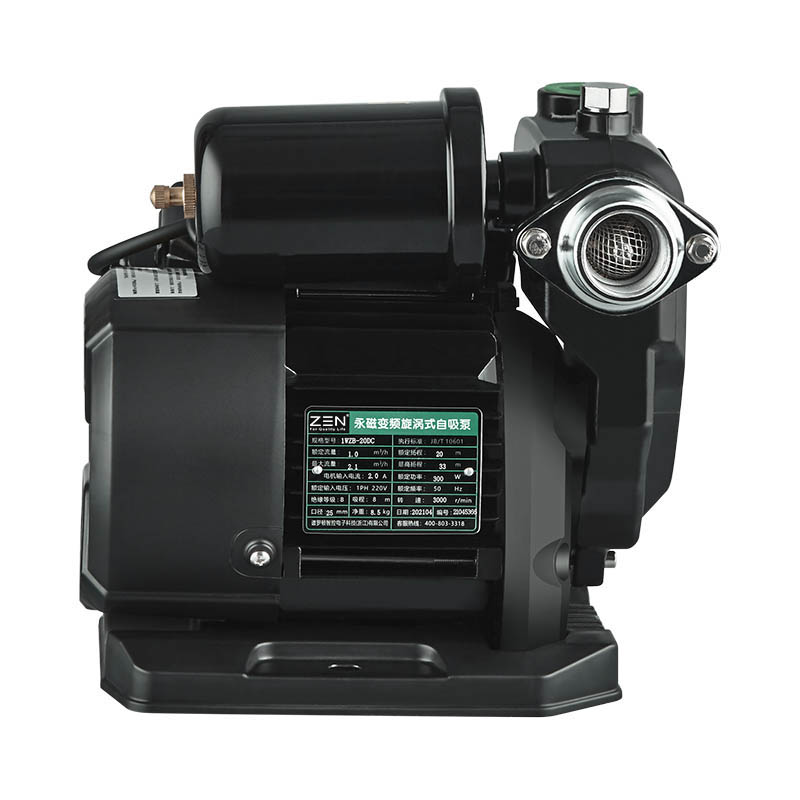

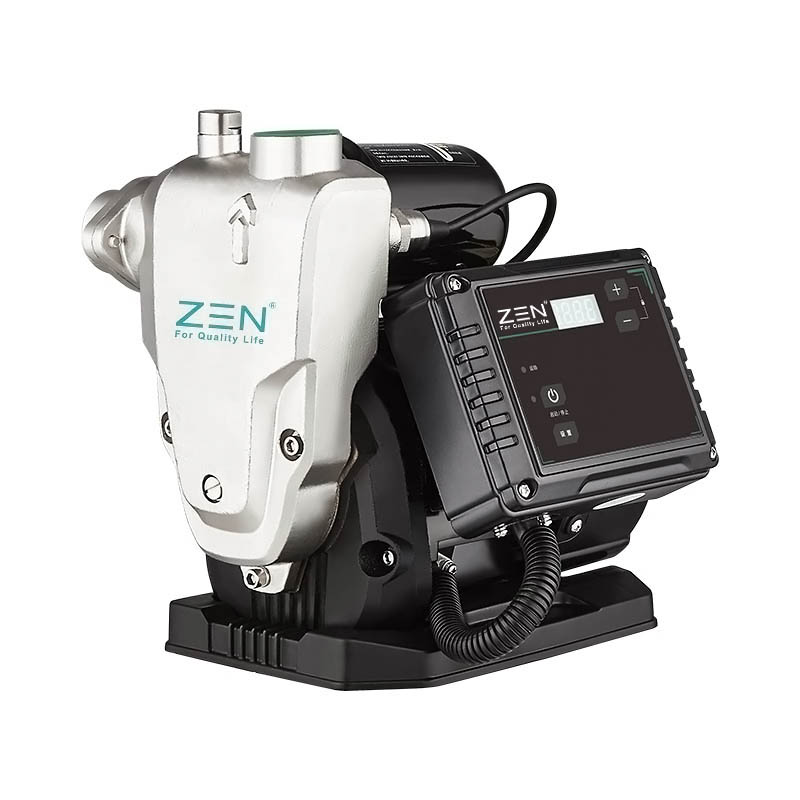

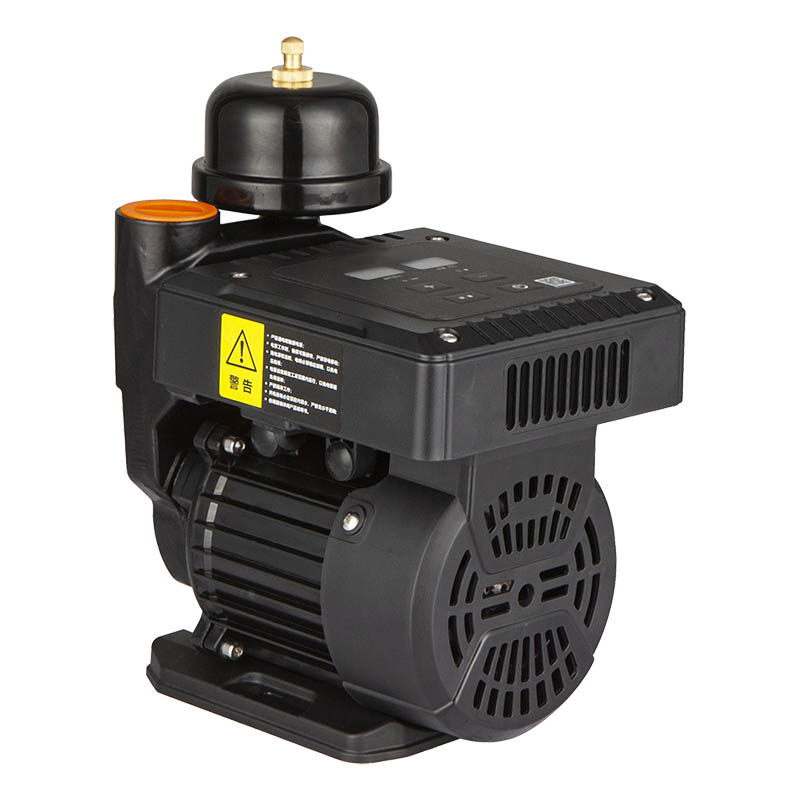

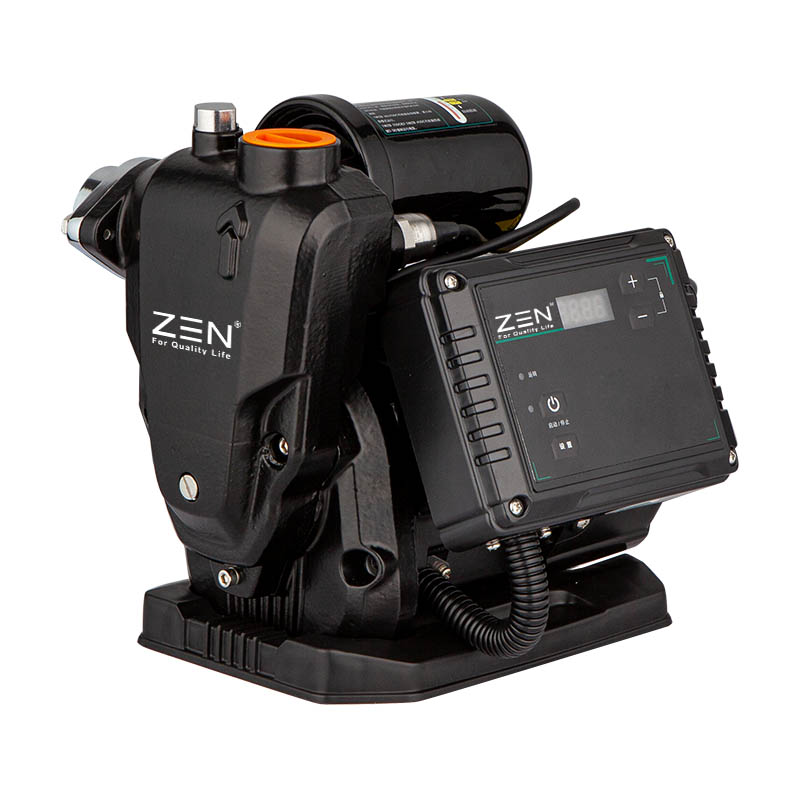

WZB Intelligent chastotali o'z-o'zidan ishlaydigan nasos

Ish sharoitlari

Sovuqdan himoya qilish

Suyuqlik harorati: 0°C ~ 60°C

Atrof-muhit harorati: < 40°C

Maksimal bosim: 10 bar

Uzluksiz xizmat: S1

Izolyatsiya: B

Himoya: IP X4

Ilova

Maishiy suv ta'minoti

Suv ta'minoti tizimi

Sovutish tizimi

Super zaryadlash tizimi

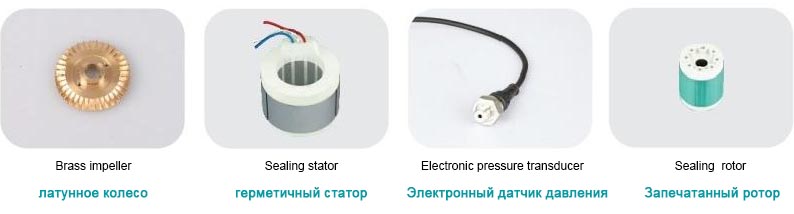

Doimiy magnitlangan vosita

Doimiy bosim

Sozlanishi bosim

Yuqori oqim tezligi

Energiyani tejash

Ko'p funksiyalilik

O'z-o'zidan ishlov berish

Antifriz

Kam shovqin

Ko'p himoya

Kengroq kuchlanish

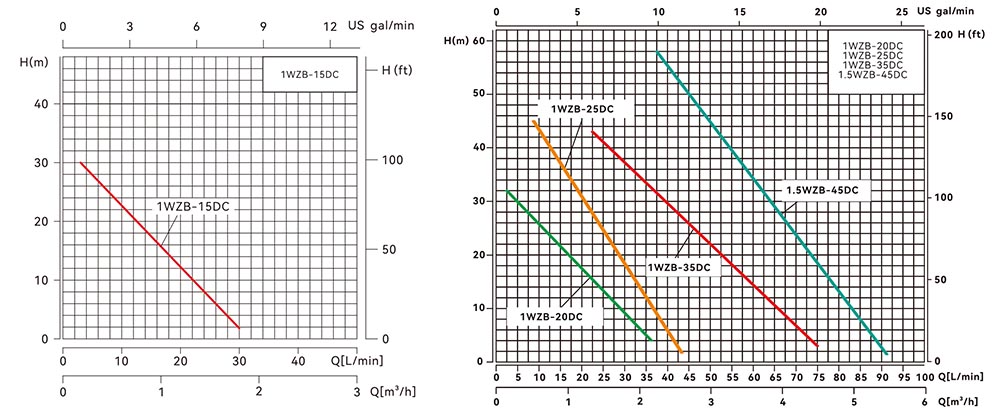

Ishlash egri chizig'i

Ishlash ma'lumotlari

Model	Quvvat		Hozirgi	Tezlik	Oqim (m³/soat)		Bosh (m)		So‘rish	Kirish/chiqish	Volt/Hz
Model	HP	KVt	A	RPM	Maks	Reyting	Maks	Reyting	m	Kirish/chiqish	Volt/Hz
1WZB-15DC	0.33	0.25	1.2	3000	1.8	1.0	30	15	6	1"x1"	220V 50/60Hz
1WZB-20DC	0.4	0.3	2.0	3000	2.1	1.0	33	20	8	1"x1"	220V 50/60Hz
1WZB-25DC	0.8	0.6	3.6	3500	2.6	1.5	45	25	8	1"x1"	220V 50/60Hz
1WZB-35DC	1.2	0.9	4.8	4000	4.5	2.0	43	35	8	1"x1"	220V 50/60Hz
1,5WZB-45DC	2.0	1.5	6.5	4000	5.5	3.0	57	45	8	1½"x1½"	220V 50/60Hz
1W7B-35SDC	1.2	0.9	4.8	4000	4.5	2.0	43	35	8	1"x1"	220V 50/60Hz
1,5WZB-45SDC	2.0	1.5	6.5	4000	5.5	3.0	57	45	8	1½"×1½"	220V 50/60Hz

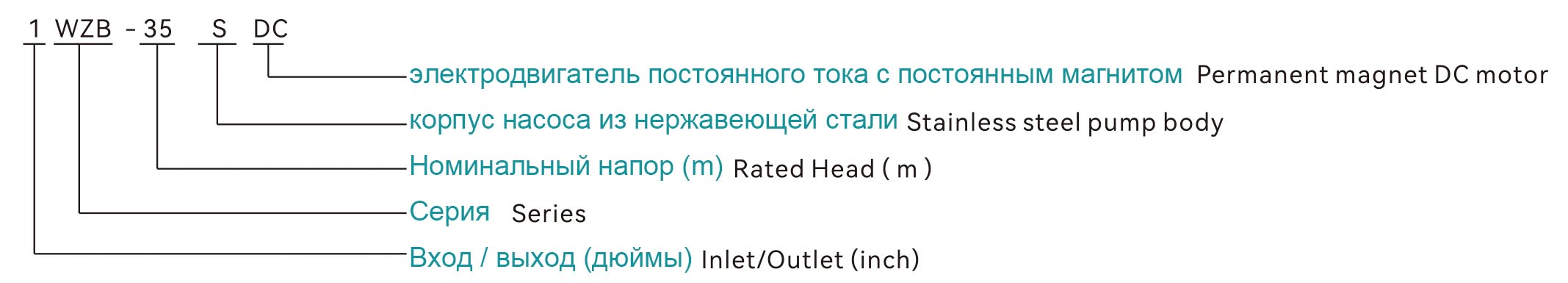

Model jamoasi

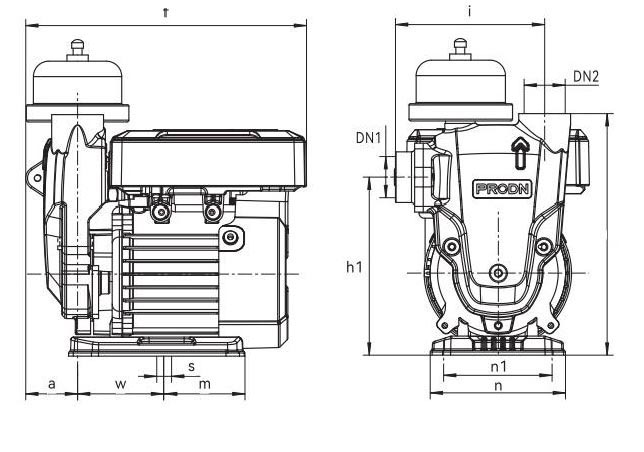

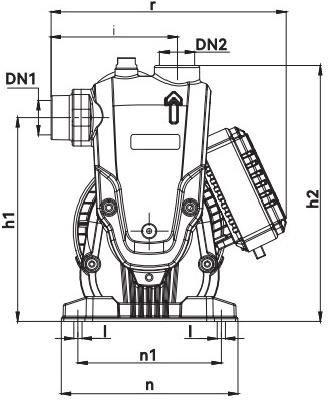

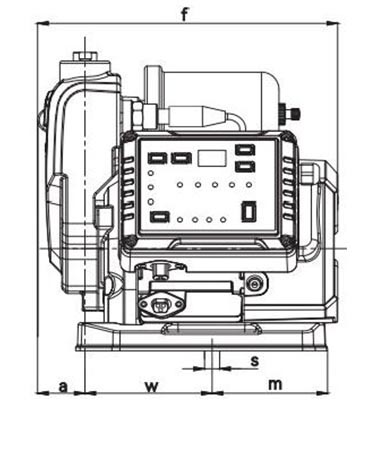

O'rnatish hajmi

Model

DN1

DN2

Olchamlari (mm)

Quti hajmi

(mm)

G.V

1WZB-15DC

227

144

120

195

109

265x200x300

6.4

Model	DN1	DN2	Olchamlari (mm)												Quti hajmi (mm)
Model	DN1	DN2	a	f	h1	i	h2	m	n	n1	W	S	l	r	Quti hajmi (mm)
1WZB-20DC	G1	G1	40.5	250.8	187.5	119	237	98.8	170.1	138	104.6	13	8	228	312x237x310
1WZB-25DC	G1	G1	40.5	250.8	187.5	119	237	98.8	170.1	138	104.6	13	8	228	312x237x310
1WZB-35DC	G1	G1	40.5	255.7	196.5	121.5	247	98.8	170.1	138	107.8	13	8	226.8	322x237x310
1,5WZB-45DC	G1½	G1½	53.5	267	206.5	132	257	98.8	170.1	138	106	13	8	243.7	325x275x355
