10'' Cast Iron Deep Well Pump

Chuqur quduqning mosligi: ZN 10'' quyma temir chuqur quduq nasosi chuqur quduqlarda ishlash uchun maxsus ishlab chiqilgan va sezilarli chuqurliklardan osongina suv ishlab chiqarishi mumkin.
Chuqur quduqli quyma nasos - bu suv olish moslamasi bo'lib, u suv osti dvigatelini va suv osti nasosini birlashtiradi.
To'plamga to'g'ridan-to'g'ri integratsiya, chuqur suvda ishlash. Asosan qishloq xoʻjaligi yerlarini sugʻorish, shaharlarni suv taʼminoti va kanalizatsiya, sanoat va togʻ-kon korxonalari uchun ishlatiladi.
Issiqlikka chidamliligi, korroziyaga chidamliligi, qarish qarshiligi va boshqa xususiyatlar bilan 100 ° C dan past er osti issiq suvini ishlab chiqish uchun ishlatilishi mumkin.

So'rov yuborish

Mahsulot tavsifi

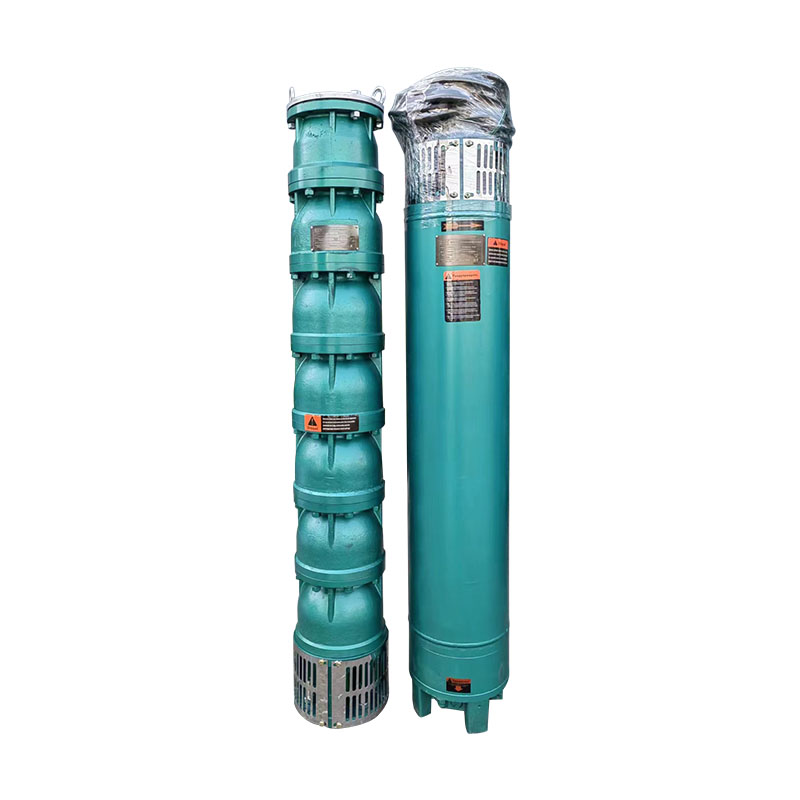

10'' quyma temir chuqur quduq nasosi

Xususiyatlari:

Oqim: 2 - 1000 m³/h

Yuklash: 10 m - 1000 m

Dvigatel quvvati: 0,55-600 kVt

Nominal kuchlanish: 380V/660V

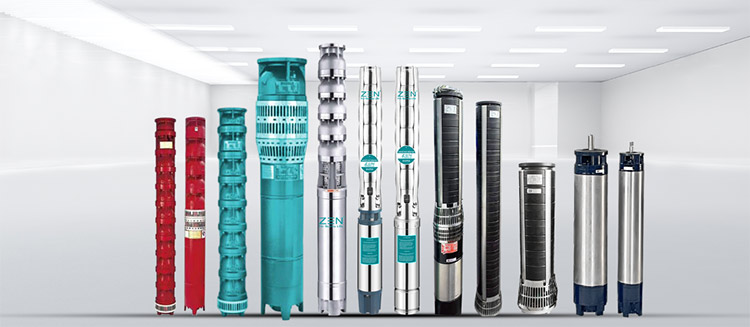

Deep Well Pump

asosiy maqsad

Strukturaning tavsifi

1. Suv osti elektr nasosi besh qismdan iborat: suv pompasi, vosita, suv liniyasi, suv o'tkazmaydigan kabel va boshqaruv tugmasi. Nasoslar bir so'rg'ichli ko'p bosqichli vertikal santrifüjli uch silindrli nasoslardir.

2. The submersible motor uses YQS type water-filled wet design, filled with clean water in the cavity, mainly for cooling the motor and lubricating the bearings. During operation, since changes in temperature may cause changes in water filling, pressure regulators are installed in the engine for calibration.

3. To prevent sand from entering the motor, the upper motor is equipped with a sandproof sealing mechanism, consisting of a sand punch and a mechanical seal, which forms a sandproof structure, and the entire motor is well sealed through its sealed structure.

4. Dvigatelning yuqori qismida suv quyish teshiklari va egzoz teshiklari, pastki qismida esa drenaj teshiklari mavjud.

5. Dvigatelning pastki qismida rulmanlar va tortish halqalari o'rnatiladi va asosan elektr nasosning eksenel kuchini ko'taradi.

6. Dvigatel stator sargisi yaxshi izolyatsiya va suv o'tkazmaydigan ishlashi bilan suv o'tkazmaydigan elektromagnit chiziqdan foydalanadi, rotor sichqonchani qafas tuzilishidan foydalanadi.

7. Korroziv suv sifati uchun zanglamas po'latdan yasalgan suv osti nasoslari ishlatiladi.

Elektr dizayni

Nasos dizayni

O'rnatish diagrammasi

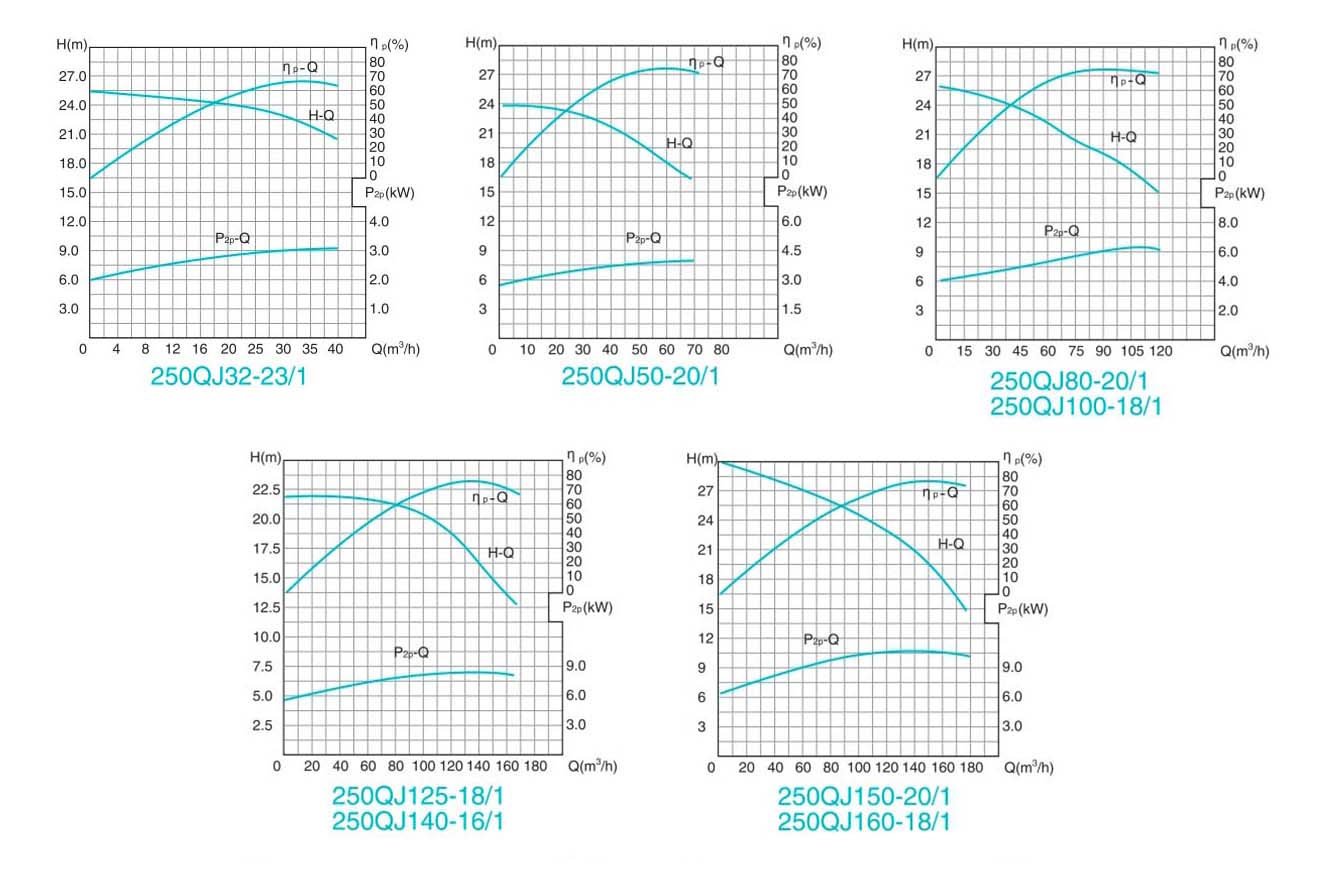

Ishlash egri chizig'i

Tushuntirish turi

Raqam	Model Minimal quduq diametri (mm) QJ (oqim tezligi (m3/soat) - oqim bosimi (m)/pervanel darajasi	Chuqur quduq nasosi		Suv osti elektr motori			Aylanish tezligi	chiqish trubkasi diametri	Kabel spetsifikatsiyasiga muvofiqligi	Maksimal nasosning tashqi diametri
Raqam		Balandligi	Og'irligi	Quvvat	Balandligi	Og'irligi	Aylanish tezligi	chiqish trubkasi diametri	Kabel spetsifikatsiyasiga muvofiqligi	Maksimal nasosning tashqi diametri
		(mm)	(kg)	(kVt)	(mm)	(kg)	(devr/daq)	(")		(mm)
1	250QJ32-138/6	1125	110	22	981	143.6	2875	2.5	3×10	233
2	250QJ32-161/7	1260	125	25	1001	149.6			3×16
3	250QJ32-184/8	1395	140	30	1036	160.6			3×16
4	250QJ32-207/9	1530	155	37	1076	165.6	2875	2.5	3×25	233
5	250QJ32-230/10	1665	170	37	1076	165.6			3×25
6	250QJ32-253/11	1800	185	45	1141	170.6			3×35
7	250QJ32-276/12	1935	200	45	1141	170.6			3×50
8	250QJ32-300/13	2070	215	55	1644	200.6		3	3×50
9*	250QJ32-322/14	2205	230	55	1644	200.6			3×50
10*	250QJ32-345/15	2340	245	63	1889	241			3×70
11*	250QJ32-368/16	2475	260	63	1889	241			3×70
12*	250QJ32-391/17	2610	275	63	1889	241			3×95
13*	250QJ32-414/18	2880	290	75	2039	296			3×95
14*	250QJ32-437/19	3015	305	75	2039	296			3×95
15*	250QJ32-460/20	3150	320	75	2039	296			3×120
16*	250QJ32-483/21	3285	335	90	2159	310			3×120
17*	250QJ32-506/22	3420	350	90	2159	310			3×150
18*	250QJ32-529/23	3555	365	110	2349	345			3×185
19*	250QJ32-552/24	3690	380	110	2349	345			3×185
20*	250QJ32-575/25	3825	395	110	2349	345			3×185
21*	250QJ32-598/26	3960	410	110	2349	345			3×185
22*	250QJ32-621/27	4095	425	110	2349	345			3×240
23*	250QJ32-644/28	4230	440	110	2349	345			3×240
24*	250QJ32-667/29	4395	455	125	2561	597			3×240
25*	250QJ32-690/30	4500	470	125	2561	597			3×240
26*	250QJ32-713/31	4635	485	125	2561	597			3×240
27*	250QJ32-736/32	4770	500	140	2731	602			3×300
28*	250QJ32-759/33	4905	515	140	2731	602			3×300
29*	250QJ32-782/34	5040	530	140	2731	602			3×300
30*	250QJ32-805/35	5310	545	140	2731	602			3×400
31*	250QJ32-828/36	5445	560	160	2821	612			3×400
32*	250QJ32-851/37	5580	575	160	2821	612			3×400
33*	250QJ32-874/38	5714	590	160	2821	612			3×400
34*	250QJ32-897/39	5850	605	160	2821	612			3×400
35*	250QJ32-920/40	5985	620	160	2821	612			3×400
36	250QJ40-126/6	1125	117	25	1001	150.6			3×10
37	250QJ40-147/7	1260	135	30	1036	160.6			3×16
38	250QJ40-168/8	1395	153	37	1076	165.6			3×25
39	250QJ40-189/9	1530	171	37	1076	165.6			3×25
40	250QJ40-210/10	1665	189	45	1141	170.6	2875	3	3×35	233
41	250QJ40-231/11	1800	207	45	1141	170.6			3×35
42	250QJ40-252/12	1935	225	55	1216	180.6			3×50
43	250QJ40-273/13	2070	243	55	1216	180.6			3×50
44*	250QJ40-294/14	2205	261	63	1889	241			3×70
45*	250QJ40-315/15	2340	279	63	1889	241			3×70
46*	250QJ40-336/16	2475	297	75	2039	296			3×95
47*	250QJ40-357/17	2610	315	75	2039	296			3×95
48*	250QJ40-378/18	2880	333	75	2039	296			3×95
49*	250QJ40-399/19	3015	351	90	2159	310			3×120
50*	250QJ40-420/20	3150	369	90	2159	310			3×120
51*	250QJ40-441/21	3285	387	90	2159	310			3×120
52*	250QJ40-462/22	3420	405	110	2349	345			3×150
53*	250QJ40-483/23	3555	423	110	2349	345			3×185
54*	250QJ40-504/24	3690	441	110	2349	345			3×185
55*	250QJ40-525/25	3825	459	125	2561	597			3×185
56*	250QJ40-546/26	3960	477	125	2561	597			3×240
57*	250QJ40-567/27	4095	495	125	2561	597			3×240
58*	250QJ40-588/28	4230	513	140	2731	602			3×240
59*	250QJ40-609/29	4395	531	140	2731	602			3×240
60*	250QJ40-630/30	4500	549	140	2731	602			3×300
61*	250QJ40-651/31	4635	567	140	2731	602			3×300
62*	250QJ40-672/32	4770	585	160	2821	612			3×300
63*	250QJ40-693/33	4905	603	160	2821	612			3×400
64*	250QJ40-714/34	5040	621	160	2821	612			3×400
65*	250QJ40-735/35	5310	639	160	2821	612			3×400
66	250QJ50-20/1	316	33	5.5	690	70			3×4
67	250QJ50-40/2	476	48	9.2	750	79			3×4
68	250QJ50-60/3	636	63	13	780	87			3×6
69	250QJ50-80/4	994	88	18.5	961	135.6			3×6
70	250QJ50-100/5	1154	104	22	981	143.6			3×10
71	250QJ50-120/6	1314	119	25	1001	150.6			3×16
72	250QJ50-140/7	1474	135	30	1036	160.6			3×16
73	250QJ50-160/8	1634	150	37	1076	165.6			3×25
74	250QJ50-180/9	1794	166	45	1141	170.6			3×25
75	250QJ50-200/10	1954	181	45	1141	170.6			3×25
76	250QJ50-220/11	2114	197	55	1216	180.6	2875	3	3×35	233
77	250QJ50-240/12	2274	212	55	1216	180.6			3×50
78	250QJ50-260/13	2434	228	63	1461	231			3×50
79	250QJ50-280/14	2594	243	63	1461	231			3×50
80	250QJ50-300/15	2754	258	63	1461	231			3×70
81*	250QJ50-320/16	3074	273	75	2039	396			3×70
82*	250QJ50-340/17	3234	288	90	2159	310			3×95
83*	250QJ50-360/18	3394	303	90	2159	310			3×95
84*	250QJ50-380/19	3554	318	110	2349	396			3×120
85*	250QJ50-400/20	3714	333	110	2349	396			3×120
86*	250QJ50-420/21	3874	348	110	2349	396		4	3×150
87*	250QJ50-440/22	4034	363	110	2349	396			3×150
88*	250QJ50-460/23	4194	378	110	2349	396			3×150
89*	250QJ50-480/24	4354	393	125	2561	597			3×185
90*	250QJ50-500/25	4514	408	125	2561	597			3×185
91*	250QJ50-520/26	4674	423	125	2561	597			3×185
92*	250QJ50-540/27	4834	438	140	2731	602			3×240
93*	250QJ50-560/28	5154	453	140	2731	602			3×240
94*	250QJ50-580/29	5314	468	140	2731	602			3×240
95*	250QJ50-600/30	5474	483	160	2821	612			3×300
96*	250QJ50-620/31	5634	498	160	2821	612			3×300
97*	250QJ50-640/32	5794	513	160	2821	612			3×300
98*	250QJ50-660/33	5954	528	160	2821	612			3×400
90*	250QJ50-680/34	6114	543	160	2821	612			3×400
100	250QJ80-20/1	285	22.2	7.5	705	72			3×4
101	250QJ80-40/2	420	38.6	15	815	90			3×6
102	250QJ80-60/3	555	55	22	981	143.6			3×10
103	250QJ80-80/4	860	88.6	30	1036	160.6			3×16
104	250QJ80-100/5	995	105	37	1076	165.6			3×16
105	250QJ80-120/6	1130	121.4	45	1141	170.6			3×16
106	250QJ80-140/7	1265	137.8	55	1216	180.6			3×25
107	250QJ80-160/8	1400	154.2	55	1216	180.6			3×25
108	250QJ80-180/9	1535	170.6	63	1461	231			3×35
109	250QJ80-200/10	1670	187	75	1611	274			3×50
110*	250QJ80-220/11	1805	203.4	90	2159	310			3×70
112*	250QJ80-240/12	1940	219.8	90	2159	310			3×70
113*	250QJ80-260/13	2075	236.2	90	2159	310	2875	4	3×70	233
114*	250QJ80-280/14	2210	252.6	110	2349	345			3×95
115*	250QJ80-297/11	3060	269	110	2349	345			3×95
116*	250QJ80-324/12	3280	285.4	125	2561	597			3×120
117*	250QJ80-351/13	3500	301.8	125	2561	597			3×150
118*	250QJ80-378/14	3720	318.2	140	2731	602			3×150
119*	250QJ80-405/15	3940	334.6	160	2821	312			3×185
120*	250QJ80-432/16	4160	351	160	2821	312			3×240
121*	250QJ80-459/17	4380	367.4	185	2931	626			3×240
122*	250QJ80-486/18	4600	383.8	185	2931	626			3×240
123*	250QJ80-513/19	4820	400.2	220	3091	660			3×300
124*	250QJ80-540/20	5040	416.6	220	3091	660			3×300
125*	250QJ80-567/21	5260	433	220	3091	660			3×300
126*	250QJ80-594/22	5480	449.4	220	3091	660			3×300
127	250QJ100-18/1	285	20	7.5	705	72			3×4
128	250QJ100-36/2	420	35	15	815	90			3×6
129	250QJ100-54/3	555	50	25	1001	150.6			3×16
130	250QJ100-72/4	860	65	30	1036	160.6			3×16
131	250QJ100-90/5	995	98	45	1141	170.6			3×25
132	250QJ100-108/6	1130	117	45	1141	170.6			3×25
133	250QJ100-126/7	1365	136	55	1216	180.6			3×25
134	250QJ100-144/8	1400	155	63	1461	231			3×35
135	250QJ100-162/9	1535	174	75	1611	274			3×35
136*	250QJ100-180/10	1670	193	90	2159	310			3×50
137*	250QJ100-198/11	1805	212	90	2159	310			3×50
138*	250QJ100-216/12	1940	231	110	2349	345			3×70
139*	250QJ100-225/9	2400	250	110	2349	345		5	3×70
140*	250QJ100-250/10	2620	269	110	2349	345			3×95
141*	250QJ100-275/11	3060	288	125	2561	597			3×95
142*	250QJ100-300/12	3280	307	140	2731	602			3×120
143*	250QJ100-325/13	3500	326	160	2821	612			3×150
144*	250QJ100-350/14	3720	345	160	2821	612			3×185
145*	250QJ100-375/15	3940	364	185	2931	626			3×240
146*	250QJ100-400/16	4160	383	185	2931	626			3×240
147*	250QJ100-425/17	4380	402	220	3091	660			3×240
148*	250QJ100-450/18	4600	421	220	3091	660			3×240
149*	250QJ100-475/19	4820	440	220	3091	660	2875	5	3×240	233
150	250QJ125-16/1	315	29.4	9.2	750	79			3×4
151	250QJ125-32/2	480	44.4	18.5	961	135.6			3×6
152	250QJ125-48/3	645	59.4	25	1001	150.6			3×16
153	250QJ125-64/4	810	74.4	37	1076	165.6			3×16
154	250QJ125-80/5	1145	109	45	1141	170.6			3×16
155	250QJ125-96/6	1310	124	55	1216	180.6			3×25
156	250QJ125-112/7	1475	139	63	1461	231			3×35
157	250QJ125-128/8	1640	154	75	1611	274			3×35
158	250QJ125-144/9	1805	169	90	1731	299			3×50
159	250QJ125-160/10	1970	184	90	1731	299			3×50
160	250QJ125-176/11	2135	199	110	1921	324			3×70
161*	250QJ125-202/9	2400	214	110	2349	345			3×70
162*	250QJ125-225/10	2620	229	125	2561	597			3×95
163*	250QJ125-247/11	3060	244	140	2731	602			3×95
164*	250QJ125-270/12	3280	259	160	2821	612			3×120
165*	250QJ125-292/13	3500	274	160	2821	612			3×150
166*	250QJ125-315/14	3720	289	185	2931	626			3×185
167*	250QJ125-338/15	3940	304	185	2931	626			3×185
168*	250QJ125-360/16	4160	319	220	3091	660			3×240
169*	250QJ125-383/17	4380	334	220	3091	660			3×240
170	250QJ140-15/1	315	28	9.2	815	79			3×6
171	250QJ140-30/2	480	48	18.5	961	135.6			3×6
172	250QJ140-45/3	645	68	30	1036	160.6			3×16
173	250QJ140-60/4	810	88	37	1076	165.6			3×16
174	250QJ140-75/5	1145	108	45	1141	170.6			3×16
175	250QJ140-90/6	1310	128	55	1216	180.6			3×25
176	250QJ140-105/7	1475	148	63	1461	231			3×35
177	250QJ140-120/8	1640	168	75	1161	274			3×35
178	250QJ140-135/9	1805	188	90	1731	299			3×50
179	250QJ140-150/10	1970	208	90	1731	299			3×50
180*	250QJ140-165/11	2135	228	110	2349	345			3×50
181*	250QJ140-180/12	2300	248	110	2349	345			3×70
182*	250QJ140-189/9	2400	268	110	2349	345			3×70
183*	250QJ140-210/10	2620	288	125	2561	597			3×95
184*	250QJ140-231/11	3060	308	140	2731	602			3×95
185*	250QJ140-252/12	3280	328	160	2821	612	2875	5	3×120	233
186*	250QJ140-273/13	3500	348	185	2931	626			3×150
187*	250QJ140-294/14	3720	368	185	2931	626			3×185
188*	250QJ140-315/15	3940	388	220	3091	660			3×240
189*	250QJ140-336/16	4160	408	220	3091	660			3×240
190	250QJ150-20/1	420	52	15	815	90			3×6
191	250QJ150-40/2	640	70	30	1036	160.6			3×16
192	250QJ150-60/3	860	88	45	1141	170.6			3×25
193	250QJ150-80/4	1300	144	55	1216	180.6			3×25
194	250QJ150-100/5	1520	162	63	1461	231			3×35
195	250QJ150-120/6	1740	180	75	1611	274			3×35
196	250QJ150-140/7	1960	198	90	1731	299			3×50
197	250QJ150-160/8	2180	216	110	1921	324			3×50
198*	250QJ150-180/9	2400	234	125	2561	597			3×70
199*	250QJ150-200/10	2620	252	140	2731	602			3×95
200*	250QJ150-220/11	3060	270	160	2821	612			3×95
201*	250QJ150-240/12	3280	288	160	2821	612			3×120
202*	250QJ150-260/13	3500	306	185	2931	626			3×150
203*	250QJ150-280/14	3720	324	185	2931	626			3×150
204*	250QJ150-300/15	3940	342	220	3091	660			3×185
205	250QJ160-15/1	420	50	11	765	85			3×6
206	250QJ160-30/2	640	70	22	981	143.6			3×16
207	250QJ160-45/3	860	120	37	1076	165.6			3×25
208	250QJ160-60/4	1080	140	45	1141	170.6			3×25
209	250QJ160-75/5	1520	160	55	1216	180.6			3×25
210	250QJ160-18/1	420	180	13	780	87			3×6
211	250QJ160-36/2	640	200	25	1001	150.6			3×16
212	250QJ160-54/3	860	220	37	1076	165.6			3×16
213	250QJ160-72/4	1300	240	55	1216	180.6			3×25
214	250QJ160-90/5	1520	260	63	1461	231			3×35

Hot Tags: 10'' quyma temir chuqur nasos, Xitoy, ishlab chiqaruvchi, yetkazib beruvchi, zavod, moslashtirilgan, sifat, so'nggi sotuvlar, stokda, brendlar, Idoralar, Taizhou
