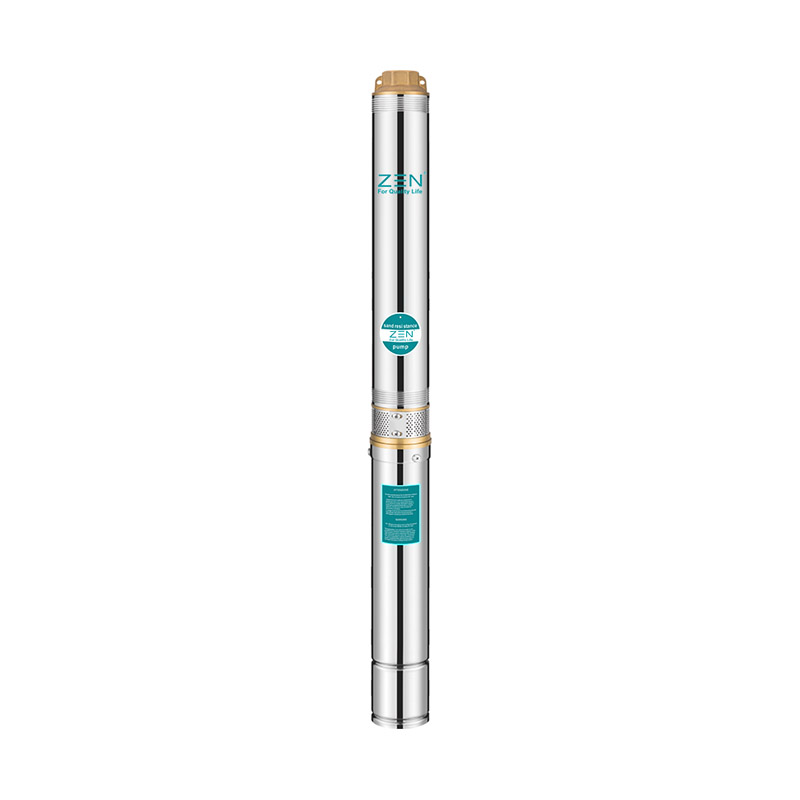

3SDM zanglamaydigan po'latdan yasalgan chuqur quduq pompasi

Zen 3SDM zanglamas po'latdan yasalgan chuqur quduq pompasi brendlari yuqori sifati va ishonchliligi bilan mashhur bo'lib, ularni turar-joy va sanoat ilovalari uchun mashhur tanlovga aylantiradi.
Identifikator3SD
3: Quduq diametri: 78mm (3")
* SD: SD seriyali suv osti nasoslari
* M: bir fazali vosita (Msiz uch fazali)
2: Imkoniyatlar (m³/h)
8: Sahna
* 0,18: Dvigatel quvvati (KVt)

So'rov yuborish

Mahsulot tavsifi

3SDM zanglamaydigan po'latdan yasalgan chuqur quduq pompasi

Ilova

1. Quduqlardan yoki suv omborlaridan suv berish uchun.

2. Maishiy, fuqarolik va sanoat maqsadlarida foydalaniladi.

3. Bog'lardan foydalanish va sug'orish uchun.

foydalanish shartlari

1. Maksimal suyuqlik harorati + 35 ° C gacha.

2. Qumning maksimal miqdori: 0,25%.

3. Maksimal sho'ng'in chuqurligi: 100 metr.

4. Quduqning minimal diametri: 3".

Elektr dvigatellari va nasoslar

1. Bir nechta o'ralgan yoki to'liq yopiq ekranli elektr motor

2. Uch faza: 380V - 415V / 50Hz

3. Bir fazali: 220V - 240V / 50Hz

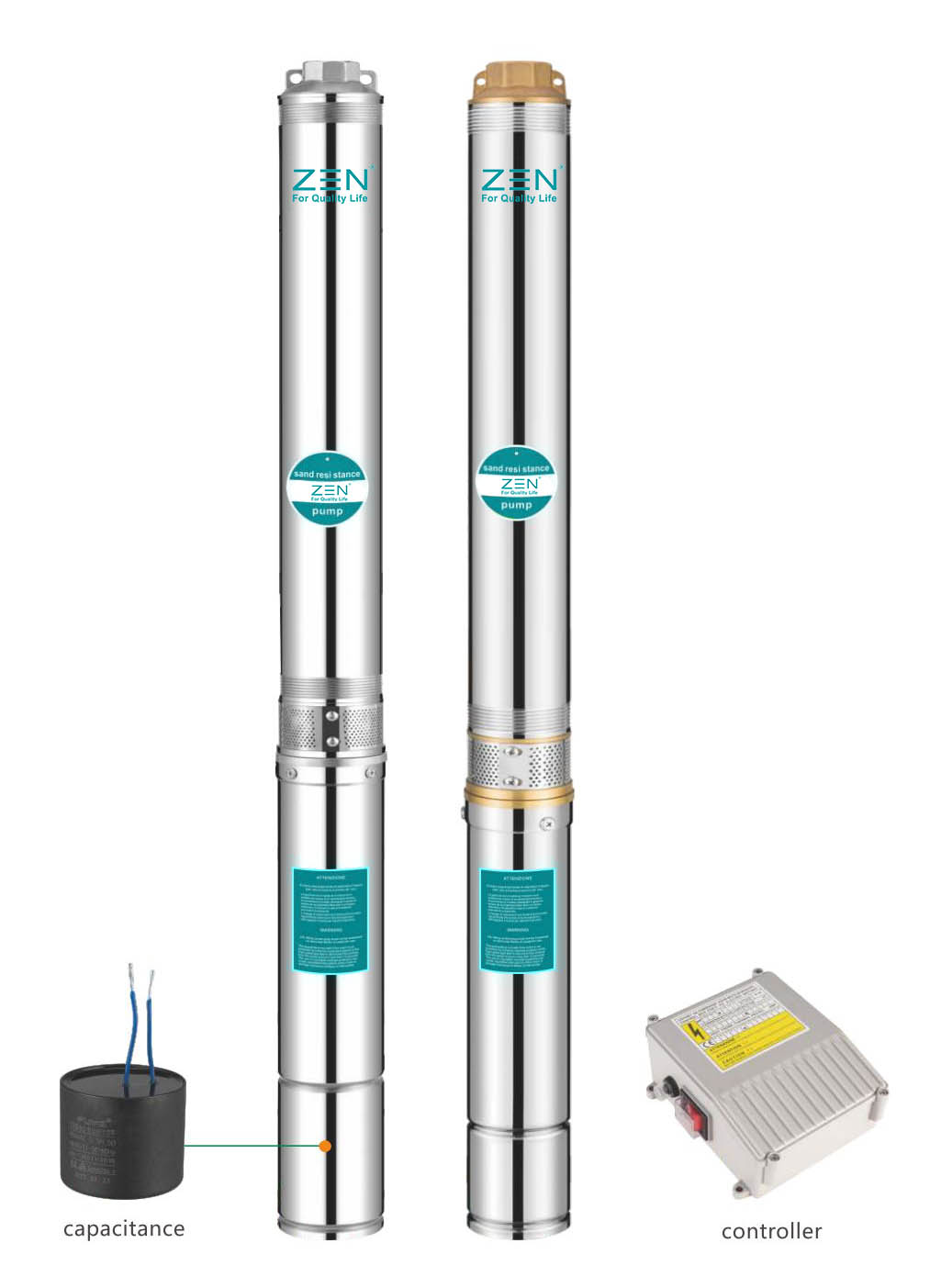

4. Ishga tushirishni boshqarish qutisi yoki raqamli avtomatik boshqaruv qutisi bilan jihozlangan

5. Nasos korpus stressi uchun mo'ljallangan

6. NEMA hajmi standartlari

So'rov bo'yicha variantlarni taqdim etish

1. Maxsus mexanik muhr

2. Boshqa kuchlanish yoki chastotalar 60Hz

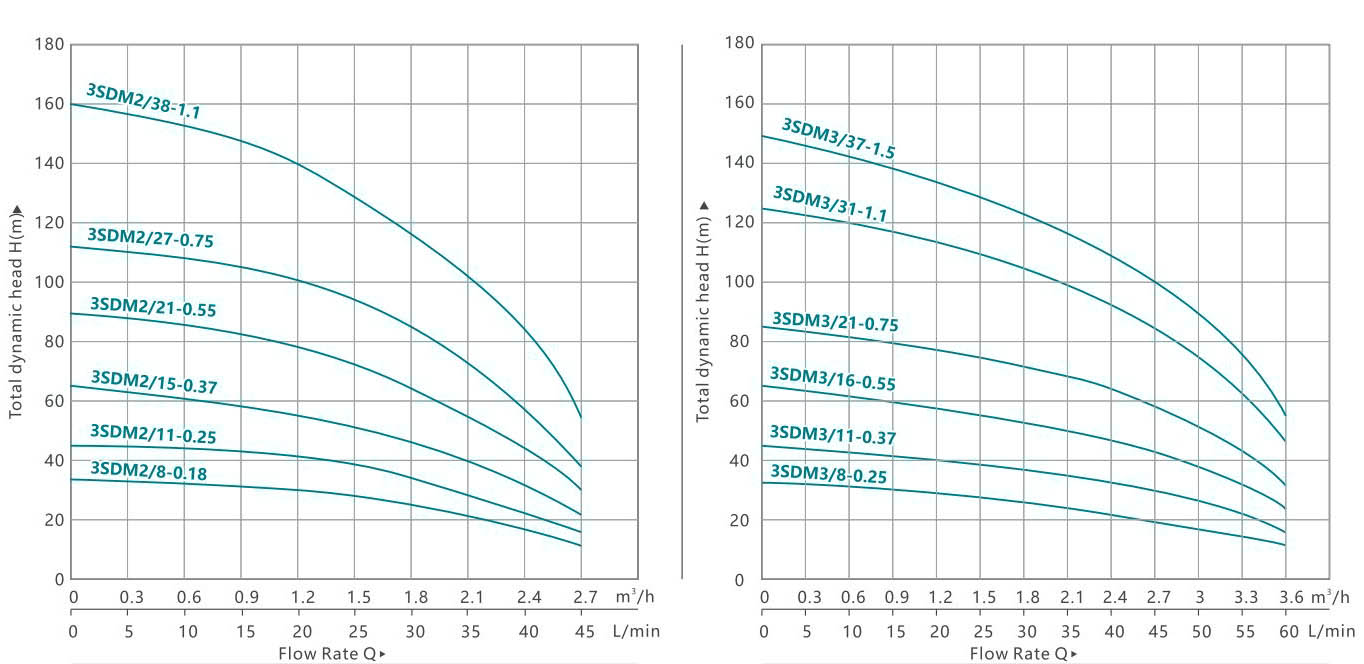

Ishlash egri chizig'i

50Hz ishlash ma'lumotlari

Model		P2		Etkazib berish n = 2850 rpm
1~220V/240V	3~380V/415V	KVt	HP	Q l/min m³/h	0	5	10	15	20	25	30	35	40	45
1~220V/240V	3~380V/415V	KVt	HP	Q l/min m³/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7
3SDM2/8-0,18	3SD2/8-0,18	0.18	0.25	H(m)	34	33	32	31	30	27	25	21	17	11
3SDM2/11-0,25	3SD2/11-0,25	0.25	0.33		46	45	44	43	41	37	34	29	24	16
3SDM2/15-0,37	3SD2/15-0,37	0.37	0.5		63	62	60	59	56	51	47	40	32	21
3SDM2/21-0,55	3SD2/21-0,55	0.55	0.75		88	86	84	82	78	71	65	56	45	30
3SDM2/27-0,75	3SD2/27-0,75	0.75	1		113	111	108	105	100	92	84	72	58	39
3SDM2/38-1.1	3SD2/38-1.1	1.1	1.5		160	156	152	148	141	129	118	101	82	54

MODEL		P2		Etkazib berish n=2850 rpm
1~220V/240V	3~380V/415V	KVt	HP	Q l/min m³/h	0	5	10	15	20	25	30	35	40	45	50	55	60
1~220V/240V	3~380V/415V	KVt	HP	Q l/min m³/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3	3.3	3.6
3SDM3/8-0,25	3SD3/8-0,25	0.25	0.33	H(m)	32	32	31	30	29	28	27	26	24	22	19	16	12
3SDM3/11-0,37	3SD3/11-0,37	0.37	0.5		44	43	43	41	40	39	37	35	34	30	26	22	17
3SDM3/16-0,55	3SD3/16-0,55	0.55	0.75		64	63	62	60	58	57	54	51	49	43	38	32	24
3SDM3/21-0,75	3SD3/21-0,75	0.75	1		84	83	82	79	76	75	71	67	64	57	50	42	32
3SDM3/31-1.1	3SD3/31-1.1	1.1	1.5		124	122	121	117	112	110	104	99	95	84	74	62	47
3SDM3/37-1,5	3SD3/37-1,5	1.5	2		148	146	144	139	133	132	124	118	113	100	89	74	56

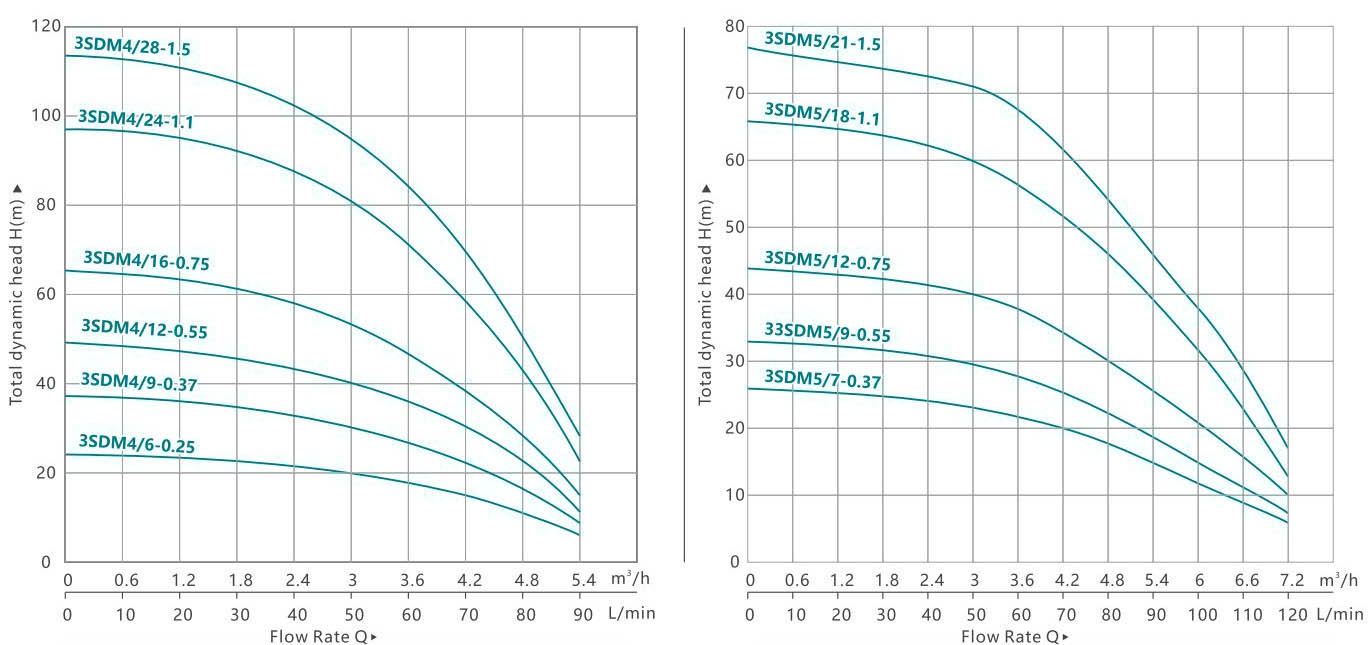

Ishlash egri chizig'i

50Hz ishlash ma'lumotlari

Model		P2		Etkazib berish n=2850 rpm
1~220V/240V	3~380V/415V	KVt	HP	Q l/min m³/h	0	10	20	30	40	50	60	70	80	90
1~220V/240V	3~380V/415V	KVt	HP	Q l/min m³/h	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8	5.4
3SDM4/6-0,25	3SD4/6-0,25	0.25	0.33	H(m)	24	24	24	23	22	20	18	15	11	6
3SDM4/9-0,37	3SD4/9-0,37	0.37	0.5		37	37	36	35	33	30	27	22	16	9
3SDM4/12-0,55	3SD4/12-0,55	0.55	0.75		49	49	48	46	44	40	36	30	22	11
3SDM4/16-0,75	3SD4/16-0,75	0.75	1		65	65	64	62	58	54	48	39	29	15
3SDM4/24-1.1	3SD4/24-1.1	1.1	1.5		97	97	96	92	87	81	71	59	44	23
3SDM4/28-1,5	3SD4/28-1,5	1.5	2		114	114	112	108	102	94	83	69	51	27

Model		P2		Etkazib berish n=2850 rpm
1~220V/240V	3~380V/415V	KVt	HP	Q l/min m³/h	0	10	20	30	40	50	60	70	80	90	100	110	120
1~220V/240V	3~380V/415V	KVt	HP	Q l/min m³/h	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8	5.4	6	6.6	7.2
3SDM5/7-0,37	3SD5/7-0,37	0.37	0.5	H(m)	26	25	25	24	24	24	22	20	18	15	FROM	9	6
33SDM5/9-0,55	33SD5/9-0,55	0.55	0.75		33	32	32	31	31	31	28	26	23	19	16	12	7
3SDM5/12-0,75	3SD5/12-0,75	0.75	1		44	43	42	42	41	41	38	35	31	26	21	16	10
3SDM5/18-1.1	3SD5/18-1.1	1.1	1.5		66	64	63	63	62	61	57	52	47	20	32	23	14
3SDM5/21-1,5	3SD5/21-1,5	1.5	2		77	75	74	73	72	71	66	61	55	45	37	27	17

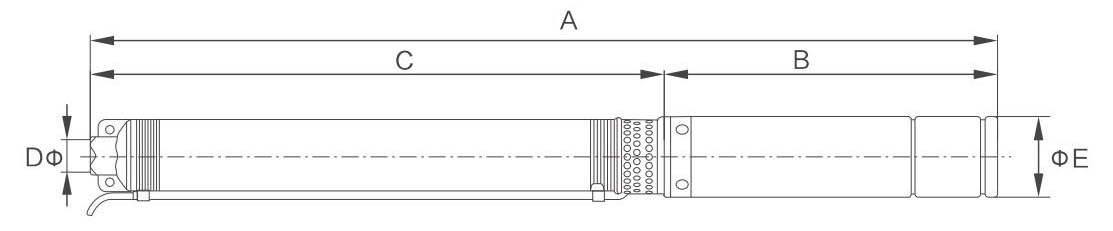

Hajmi

Parashutchilar shkalasi
Model	A	B	C	D	E
3SDM2/8-0,18	637	283	354	1"-11/4"	f73
3SDM2/11-0,25	726	303	423	1" - 1¼"	f73
3SDM2/15-0,37	885	333	552	1" - 1¼"	f73
3SDM2/21-0,55	1100	373	727	1" - 1¼"	f73
3SDM2/27-0,75	1305	403	902	1" - 1¼"	f73
3SDM2/38-1.1	1680	488	1192	1" - 1¼"	f73
3SDM3/8-0,25	680	303	377	1" - 1¼"	f73
3SDM3/11-0,37	824	333	491	1" - 1¼"	f73
3SDM3/16-0,55	993	373	620	1" - 1¼"	f73
3SDM3/21-0,75	1189	403	786	1" - 1¼"	f73
3SDM3/31-1.1	1570	488	1082	1" - 1¼"	f73
3SDM3/37-1,5	1811	538	1273	1" - 1¼"	f73
3SDM4/6-0,25	661	303	358	1¼" - 1½"	f73
3SDM4/9-0,37	786	333	453	1¼" - 1½"	f73
3SDM4/12-0,55	956	373	583	1¼" - 1½"	f73
3SDM4/16-0,75	1149	403	746	1¼" - 1½"	f73
3SDM4/24-1.1	1522	488	1034	1¼" - 1½"	f73
3SDM4/28-1,5	1698	538	1160	1¼" - 1½"	f73
3SDM5/7-0,37	800	333	467	1¼" - 1½"	f73
3SDM5/9-0,55	961	373	588	1¼" - 1½"	f73
3SDM5/12-0,75	1119	403	716	1¼" - 1½"	f73
3SDM5/18-1.1	1496	488	1008	1¼" - 1½"	f73
3SDM5/21-1,5	1674	538	1136	1¼" - 1½"	f73

SD(M)/QJD

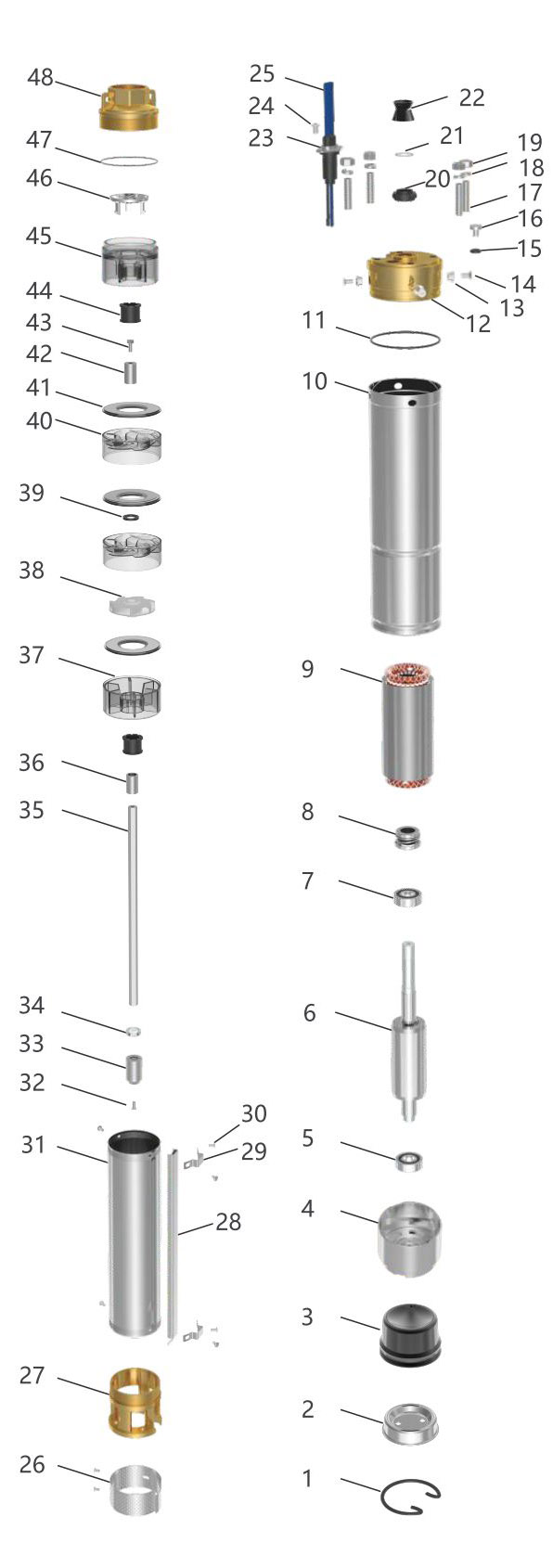

Portlovchi VIEV

Raqamlar	Ism
1	Siqish bahori
2	Yakuniy qopqoq
3	kengaytirish ushlagichi
4	Rulman
5	Aloqa
6	motor rotori
7	Aloqa
8	Mexanik muhr
9	elektr motor statori
10	Elektr simi
11	"O" shaklidagi muhrlangan halqa
12	Yoqilg'i kamerasi
13	Kir yuvish mashinasi
14	Vida
15	"O" shaklidagi muhrlangan halqa
16	Vida
17	Ikki boshli murvat
18	Kir yuvish mashinasi
19	Yong'oq
20	Mahkamlash halqasi
21	Kir yuvish mashinasi
22	Qum qopqog'i
23	Kabelni himoya qiluvchi vtulka
24	Vida
25	Qanot
26	Ekran
27	assimilyatsiya ushlagichi
28	Kabel qisqichi
29	Qisqich.
30	Vida
31	Nasos korpusi
32	Vida
33	ulash
34	Bushing
35	Bu yerga
36	Bir naycha
37	O'rta
38	G'ildirak
39	Kir yuvish mashinasini sozlash
40	Diffuzor qopqog'i
41	Diffuzor
42	Bir naycha
43	Vida
44	Kauchuk podshipnik
45	Qo'llab-quvvatlash
46	nazorat valfi
47	"O" shaklidagi muhrlangan halqa
48	Eksport

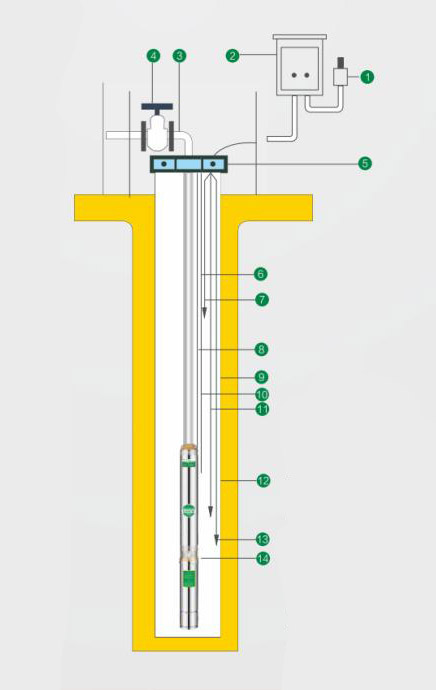

Uch fazali asenkron suv osti dvigateli 380 - 415V ~ 50Hz

1. Quvvat kalitlari

2. Kassetalarni avtomatik boshqarish

3. Quvur liniyasi

4. Vana

5. Shlangi

6. Statik daraja

7. Yuqori qutb

8. Kabel

9. Xo'sh

10. Aralashtirish darajasi

11. O'rta tayoq

12. Nasos korpusi

13. Pastki qutb

14. Suv osti elektr motorlari

220-240V/50Hz qo'shimcha kabel

hajmi	Voltaj（v)	Quvvat (kw）	Kabel kesimi (mm²)	0,7 mm²	1 mm²	1,5 mm²	2 mm²	2,5 mm²	3 mm²	4 mm²	6 mm²	10 mm²	16 mm²	25 mm²	35 mm²	50 mm²
4"	220	0.37	Kabel uzunligi (m)	50	80	100
		0.55		35	55	80	105	130
		0.75		20	35	55	75	90	110	150
		0.95			32	52	70	85	105	140
		1.1			30	48	60	79	100	127	190
		1.5			25	34	50	57	80	92	137	228
		1.8			23	32	48	55	78	90	135	226
		2.2				22	30	43	50	68	102	170	230
		3.0					25	30	45	60	80	120	200	330
		3.5						25	30	45	60	100	180	290
		4.0							25	35	55	90	150	220	300

380V/50Hz qo'shimcha kabel

hajmi	Voltaj（v)	Quvvat (kw）	Kabel kesimi (mm²)	0,7 mm²	1 mm²	1,5 mm²	2 mm²	2,5 mm²	3 mm²	4 mm²	6 mm²	10 mm²	16 mm²	25 mm²	35 mm²	50 mm²
4"	380	0.37	Kabel uzunligi (m)	200	315
		0.55		100	210	320
		0.75		80	165	280
		1.1			120	180	250	308
		1.5			90	150	200	250	300	400
		2.2			65	114	150	191	250	305	457
6"		3.0				77	100	128	170	205	307	390
		4.0				61	80	102	120	153	244	406
		5.5				47	60	70	90	110	165	312
		7.5							65	80	130	200	320
		9.2								72	108	178	282	432
		11								63	94	155	246	370
		13									78	129	205	314
		15									69	114	180	277
		18.5									55	91	145	222	305
		22									49	81	128	196	290
		25										68	107	165	226	314
		30										60	95	145	200	275
		37										52	82	125	170	234
		45.0										45	71	108	147	203
