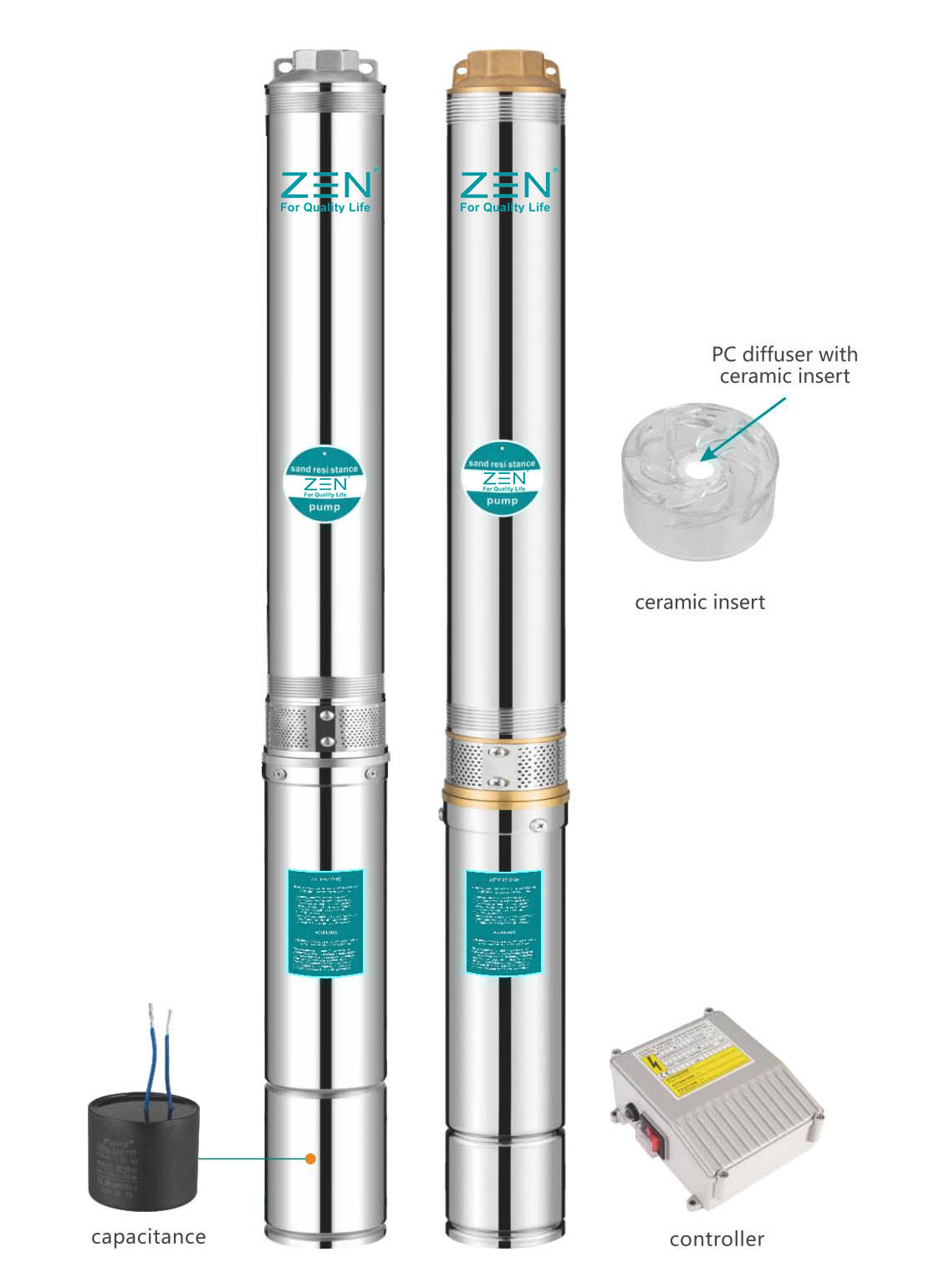

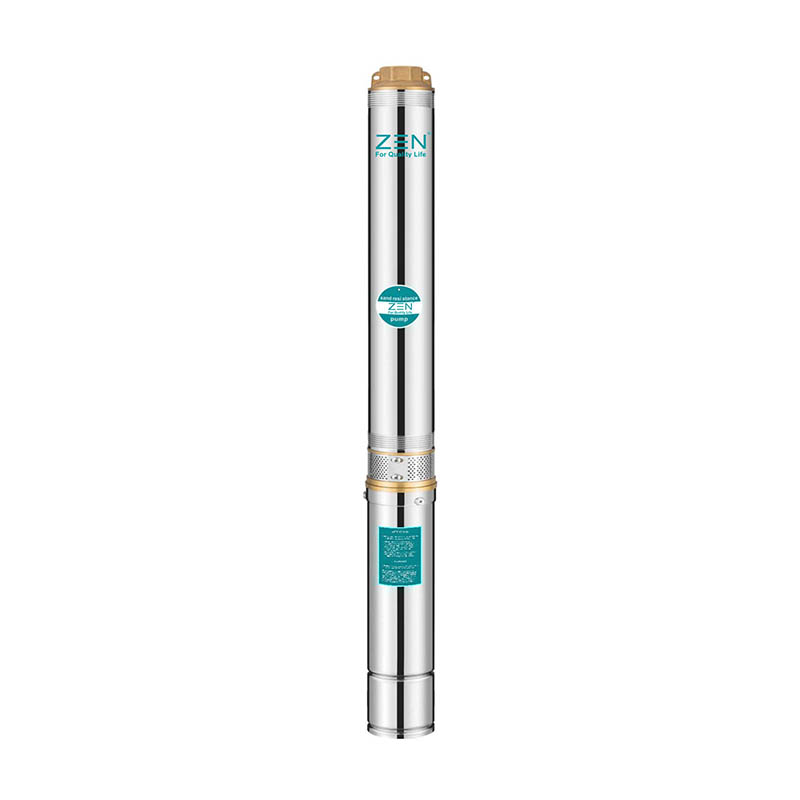

Chuqur quduqlar uchun 100QJD suv osti nasosi

ZIMN brendi ostida yaratilgan va innovatsiyalar va ilg'or texnologiyalarga yo'naltirilgan chuqur quduqlar uchun 100QJD suv osti nasosimiz chuqur quduqlardan samarali va barqaror suv ta'minotini ta'minlash uchun mo'ljallangan.
Identifikator* 100QJD
100: borehole diameter: 100mm (4")
QJ: QJ suv osti nasoslari seriyasi
D: bir fazali vosita (Dsiz uch fazali)
2: Imkoniyat (m³/soat)
* 6: Sahna
* 0,37: Dvigatel quvvati (KVt)

So'rov yuborish

Mahsulot tavsifi

Chuqur quduqlar uchun 100QJD suv osti nasosi

Ilova

1. Quduqlardan yoki suv omborlaridan suv berish uchun.

2. Maishiy, fuqarolik va sanoat maqsadlarida foydalanish uchun.

3. Bog'da foydalanish va sug'orish uchun.

foydalanish shartlari

1. Maksimal suyuqlik harorati + 35 ° C ga yetishi mumkin.

2 Maksimal qum miqdori: 0,25%.

3 Maksimal sho'ng'in chuqurligi: 100 m.

4. Quduqning minimal diametri: 4 ".

Elektr dvigatellari va nasoslar

1. Bir nechta o'ralgan yoki to'liq yopiq ekranli elektr motor

2. Uch fazali: 380V - 415V / 50Hz

3. Bir fazali: 220V - 240V / 50Hz

4. Ishga tushirishni boshqarish qutisi yoki raqamli avtomatik boshqaruv qutisi bilan jihozlangan

5. Nasoslar korpus tarangligi yordamida ishlab chiqilgan

6. NEMA hajmi standartlari

So'rov bo'yicha variantlarni taqdim etish

1. Maxsus mexanik muhr

2. Boshqa kuchlanish yoki chastotalar 60Hz

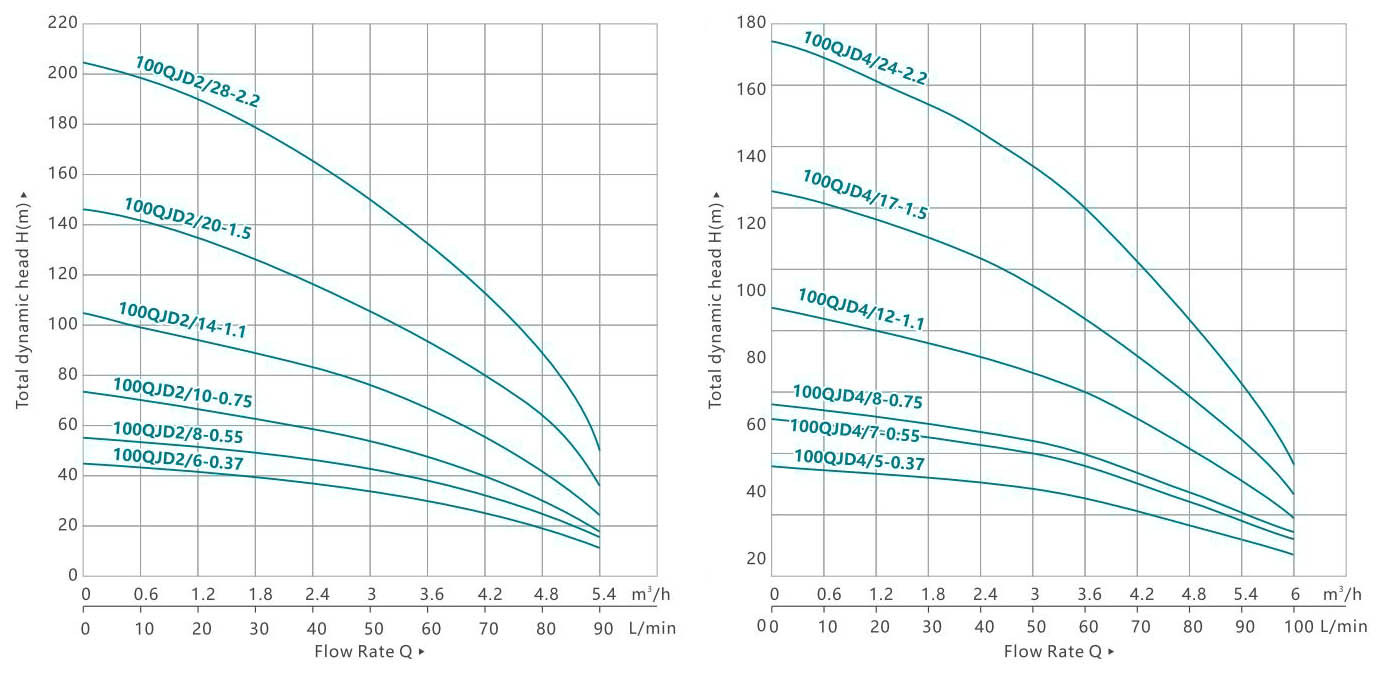

Ishlash egri chizig'i

50Hz ishlash ma'lumotlari

Model		P2		Etkazib berish n = 2850 rpm
1~220V/240V	3~380V/415V	KVt	HP	Q L/min m³/soat	0	10	20	30	40	50	60	70	80	90
1~220V/240V	3~380V/415V	KVt	HP	Q L/min m³/soat	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8	5.4
100QJD2/6-0,37	100QJ2/6-0,37	0.37	0.5	H(m)	44	43	41	38	35	32	29	24	19	11
100QJD2/8-0,55	100QJ2/8-0,55	0.55	0.75		58	57	54	51	46	43	38	32	26	14
100QJD2/10-0,75	100QJ2/10-0,75	0.75	1		73	71	68	64	58	54	48	40	32	18
100QJD2/14-1.1	100QJ2/14-1,1	1.1	1.5		102	99	95	90	81	75	67	56	45	25
100QJD2/20-1,5	100QJ2/20-1,5	1.5	2		146	142	136	128	116	107	96	80	64	36
100QJD2/28-2.2	100QJ2/28-2,2	2.2	3		204	199	190	179	162	150	134	112	90	50

Model		P2		Etkazib berish n = 2850 rpm
1~220V/240V	3~380V/415V	KVt	HP	Q L/min m³/soat	0	10	20	30	40	50	60	70	80	90	100
1~220V/240V	3~380V/415V	KVt	HP	Q L/min m³/soat	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8	5.4	6
100QJD4/5-0,37	100QJ4/5-0,37	0.37	0.5	H(m)	37	36	34	33	31	29	25	21	17	13	8
100QJD4/7-0,55	100QJ4/7-0,55	0.55	0.75		51	50	47	46	43	40	35	29	24	18	11
100QJD4/8-0,75	100QJ4/8-0,75	0.75	1		58	57	54	52	49	46	40	34	27	21	13
100QJD4/12-1.1	100QJ4/12-1,1	1.1	1.5		88	85	80	78	73	68	60	50	41	31	19
100QJD4/17-1,5	100QJ4/17-1,5	1.5	2		124	121	114	111	104	97	85	71	58	44	27
100QJD4/24-2.2	100QJ4/24-2.2	2.2	3		175	170	161	156	146	137	120	101	82	62	38

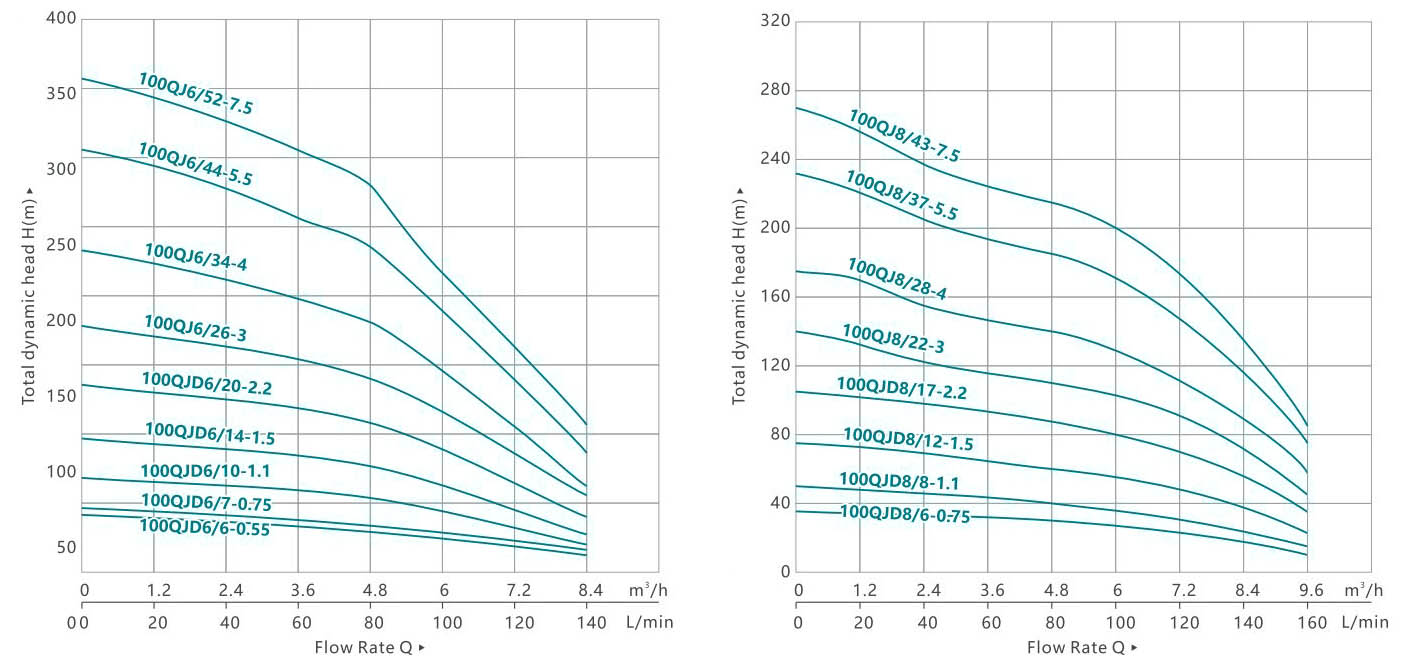

Ishlash egri chizig'i

50Hz ishlash ma'lumotlari

Model		P2		Etkazib berish n = 2850 rpm
1~220V/240V	3~380V/415V	KVt	HP	Q L/min m³/soat	0	20	40	60	80	100	120	140
1~220V/240V	3~380V/415V	KVt	HP	Q L/min m³/soat	0	1.2	2.4	3.6	4.8	6	7.2	8.4
100QJD6/6-0,55	100QJ6/6-0,55	0.55	0.75	H(m)	41	40	38	35	32	25	19	12
100QJD6/7-0,75	100QJ6/7-0,75	0.75	1		48	47	44	41	38	29	22	14
100QJD6/10-1,1	100QJ6/10-1,1	1.1	1.5		69	67	63	58	54	42	32	20
100QJD6/14-1,5	100QJ6/14-1,5	1.5	2		97	94	88	81	76	59	45	28
100QJD6/20-2,2	100QJ6/20-2,2	2.2	3		138	134	126	116	108	84	64	40
	100QJ6/26-3	3	4		179	174	164	151	140	109	83	52
/	100QJ6/34-4	4	5.5		235	228	214	197	184	143	109	68
/	100QJ6/44-5,5	5.5	7.5		304	295	277	255	238	185	141	88
/	100QJ6/52-7,5	7.5	10		359	348	328	302	281	218	166	104

Model		P2		Etkazib berish n = 2850 rpm
1~220V/240V	3~380V/415V	KVt	HP	Q L/min m³/soat	0	20	40	60	80	100	120	140	160
1~220V/240V	3~380V/415V	KVt	HP	Q L/min m³/soat	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6
100QJD8/6-0,75	100QJ8/6-0,75	0.75	1	H(m)	38	36	33	31	30	28	25	19	12
100QJD8/8-1.1	100QJ8/8-1.1	1.1	1.5		50	48	44	42	40	38	33	25	16
100QJD8/12-1,5	100QJ8/12-1,5	1.5	2		76	72	66	62	60	56	49	37	24
100QJD8/17-2.2	100QJ8/17-2.2	2.2	3		107	102	94	88	85	80	70	53	34
/	100QJ8/22-3	3	4		139	132	121	114	110	103	90	68	44
/	100QJ8/28-4	4	5.5		176	168	154	146	140	132	115	87	56
/	100QJ8/37-5,5	5.5	7.5		233	222	204	192	185	174	152	115	74
/	100QJ8/43-7,5	7.5	10		271	258	237	224	215	202	176	133	86

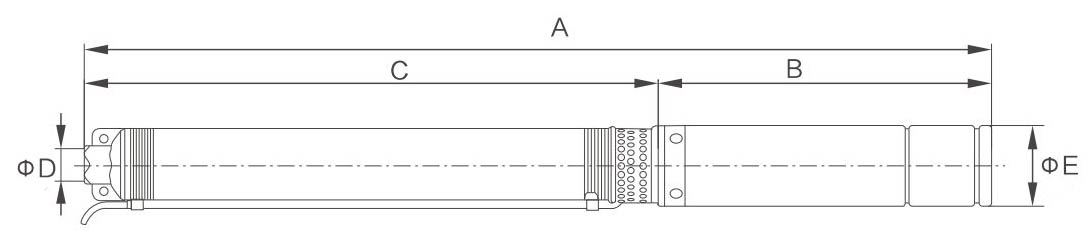

Hajmi

Parashutchilar shkalasi
Model	A	B	C	D	E
100QJD2/6-0,37	632	292	340	1¼"-1½"	f95
100QJD2/8-0,55	711	312	399	1¼"-1½"	f95
100QJD2/10-0,75	790	332	458	1¼"-1½"	f95
100QJD2/14-1.1	1024	412	612	1¼"-1½"	f95
100QJD2/20-1,5	1266	442	824	1¼"-1½"	f95
100QJD2/28-2.2	1686	590	1096	1¼"-1½"	f95
100QJD4/5-0,37	600	292	308	1¼"-1½"	f95
100QJD4/7-0,55	677	312	365	1¼"-1½"	f95
100QJD4/8-0,75	726	332	394	1¼"-1½"	f95
100QJD4/12-1.1	958	412	546	1¼"-1½"	f95
100QJD4/17-1,5	1168	442	726	1¼"-1½"	f95
100QJD4/24-2.2	1554	590	964	1¼"-1½"	f95
100QJD6/6-0,55	682	312	370	1¼"-1½"-2"	f95
100QJD6/7-0,75	736	332	404	1¼"-1½"-2"	f95
100QJD6/10-1,1	919	412	507	1¼"-1½"-2"	f95
100QJD6/14-1,5	1122	442	680	1¼"-1½"-2"	f95
100QJD6/20-2,2	1512	590	922	1¼"-1½"-2"	f95
100QJ6/26-3	1769	605	1164	1¼"-1½"-2"	f95
100QJ6/34-4	2120	645	1475	1¼"-1½"-2"	f95
100QJ6/44-5,5	2650	789	1861	1¼"-1½"-2"	f95
100QJ6/52-7,5	3011	840	2171	1¼"-1½"-2"	f95
100QJD8/6-0,75	731	332	399	1½"-2"	f95
100QJD8/8-1.1	889	412	477	1½"-2"	f95
100QJD8/12-1,5	1076	442	634	1½"-2"	f95
100QJD8/17-2.2	1455	590	865	1½"-2"	f95
100QJ8/22-3	1702	605	1097	1½"-2"	f95
100QJ8/28-4	2013	645	1368	1½"-2"	f95
100QJ8/37-5,5	2545	789	1756	1½"-2"	f95
100QJ8/43-7,5	2873	840	2033	1½"-2"	f95

SD(M)/QJD
Portlovchi VIEV

Raqamlar	Ism
1	Siqish bahori
2	Yakuniy qopqoq
3	kengaytirish ushlagichi
4	Rulman
5	Aloqa
6	motor rotori
7	Aloqa
8	Mexanik muhr
9	elektr motor statori
10	Elektr simi
11	"O" shaklidagi muhrlangan halqa
12	Yoqilg'i kamerasi
13	Kir yuvish mashinasi
14	Vida
15	"O" shaklidagi muhrlangan halqa
16	Vida
17	Ikki boshli murvat
18	Kir yuvish mashinasi
19	Yong'oq
20	Mahkamlash halqasi
21	Kir yuvish mashinasi
22	Qum qopqog'i
23	Kabelni himoya qiluvchi vtulka
24	Vida
25	Qanot
26	Ekran
27	assimilyatsiya kronshteri
28	Kabel qisqichi
29	Qisqich.
30	Vida
31	Nasos korpusi
32	Vida
33	ulash
34	Bushing
35	Bu yerga
36	Bir naycha
37	O'rta
38	G'ildirak
39	Yuvish moslamasini sozlash
40	Diffuzor qopqog'i
41	Diffuzor
42	Bir naycha
43	Vida
44	Kauchuk podshipnik
45	Qo'llab-quvvatlash
46	nazorat valfi
47	"O" shaklidagi muhrlangan halqa
48	Eksport

Uch fazali asenkron suv osti dvigateli 380 - 415V ~ 50Hz

1. Quvvat kalitlari

2. Kassetalarni avtomatik boshqarish

3. Quvur liniyasi

4. Vana

5. Shlangi

6. Statik daraja

7. Yuqori qutb

8. Kabel

9. Xo'sh

10. Aralashtirish darajasi

11. O'rta tayoq

12. Nasos korpusi

13. Pastki qutb

14. Suv osti elektr motorlari

220-240V/50Hz qo'shimcha kabel

hajmi	Voltaj（v)	Quvvat (kw）	Kabel kesimi (mm²)	0,7 mm²	1 mm²	1,5 mm²	2 mm²	2,5 mm²	3 mm²	4 mm²	6 mm²	10 mm²	16 mm²	25 mm²	35 mm²	50 mm²
4"	220	0.37	Kabel uzunligi (m)	50	80	100
		0.55		35	55	80	105	130
		0.75		20	35	55	75	90	110	150
		0.95			32	52	70	85	105	140
		1.1			30	48	60	79	100	127	190
		1.5			25	34	50	57	80	92	137	228
		1.8			23	32	48	55	78	90	135	226
		2.2				22	30	43	50	68	102	170	230
		3.0					25	30	45	60	80	120	200	330
		3.5						25	30	45	60	100	180	290
		4.0							25	35	55	90	150	220	300

380V/50Hz qo'shimcha kabel

hajmi	Voltaj（v)	Quvvat (kw）	Kabel kesimi (mm²)	0,7 mm²	1 mm²	1,5 mm²	2 mm²	2,5 mm²	3 mm²	4 mm²	6 mm²	10 mm²	16 mm²	25 mm²	35 mm²	50 mm²
4"	380	0.37	Kabel uzunligi (m)	200	315
		0.55		100	210	320
		0.75		80	165	280
		1.1			120	180	250	308
		1.5			90	150	200	250	300	400
		2.2			65	114	150	191	250	305	457
6"		3.0				77	100	128	170	205	307	390
		4.0				61	80	102	120	153	244	406
		5.5				47	60	70	90	110	165	312
		7.5							65	80	130	200	320
		9.2								72	108	178	282	432
		11								63	94	155	246	370
		13									78	129	205	314
		15									69	114	180	277
		18.5									55	91	145	222	305
		22									49	81	128	196	290
		25										68	107	165	226	314
		30										60	95	145	200	275
		37										52	82	125	170	234
		45.0										45	71	108	147	203
