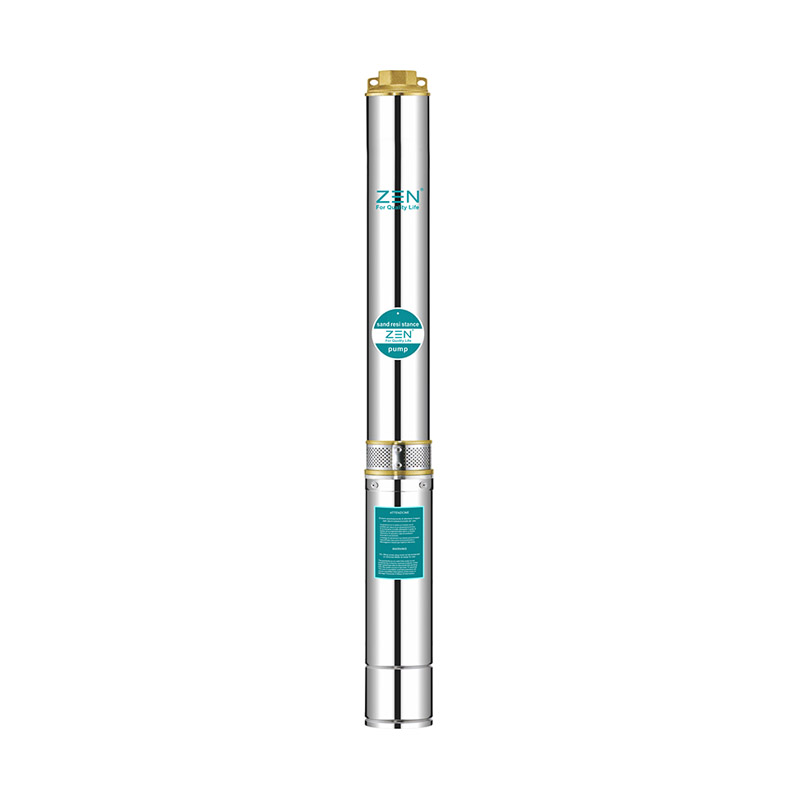

Chuqur quduqlar uchun 5SD suv osti nasosi

ZEN brendi ko'p yillar davomida yoritishga ixtisoslashgan. Chuqur quduqlar uchun 5SD suv osti nasosimiz yaxshi narx ustunligiga ega va Evropa va Amerikadagi bozorlarning aksariyat qismini qamrab oladi. Biz sizning Xitoyda uzoq muddatli hamkoringiz bo'lishni intiqlik bilan kutamiz.
Identifikator* 5SD
5: Quduq diametri: 128mm (5")
SD: nasos nomi
8: Imkoniyat (m³/soat)
06: Sahna
* 1.1: Dvigatel quvvati (KVt)

So'rov yuborish

Mahsulot tavsifi

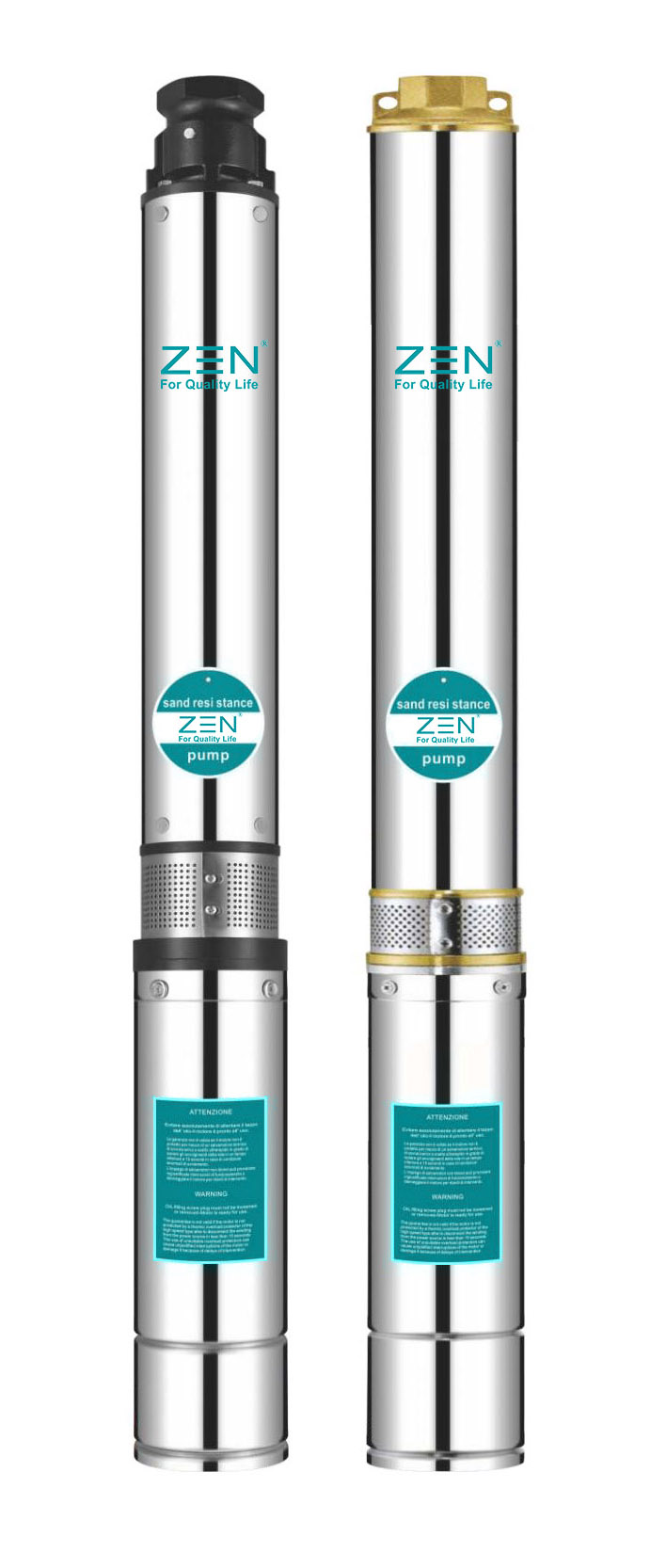

Chuqur quduqlar uchun 5SD suv osti nasosi

Ilova

1. Quduqlardan yoki suv omborlaridan suv berish uchun.

2. Maishiy, fuqarolik va sanoat maqsadlarida foydalanish uchun.

3. Bog'da foydalanish va sug'orish uchun.

foydalanish shartlari

1. Maksimal suyuqlik harorati + 35 ° C ga yetishi mumkin.

2. Qumning maksimal miqdori: 0,25%.

3. Maksimal sho'ng'in chuqurligi: 100m.

4. Quduqning minimal diametri: 5".

Elektr dvigatellari va nasoslar

1. Bir nechta o'ralgan yoki to'liq yopiq ekranli elektr motor

2. Uch fazali: 380V - 415V / 50Hz

3. Ishga tushirishni boshqarish qutisi yoki raqamli avtomatik boshqaruv qutisi bilan jihozlangan

4. Nasos korpus tarangligi yordamida ishlab chiqilgan

5. NEMA hajmi standartlari

So'rov bo'yicha variantlarni taqdim etish

1. Maxsus mexanik muhr

2. Boshqa kuchlanish yoki chastotalar 60Hz

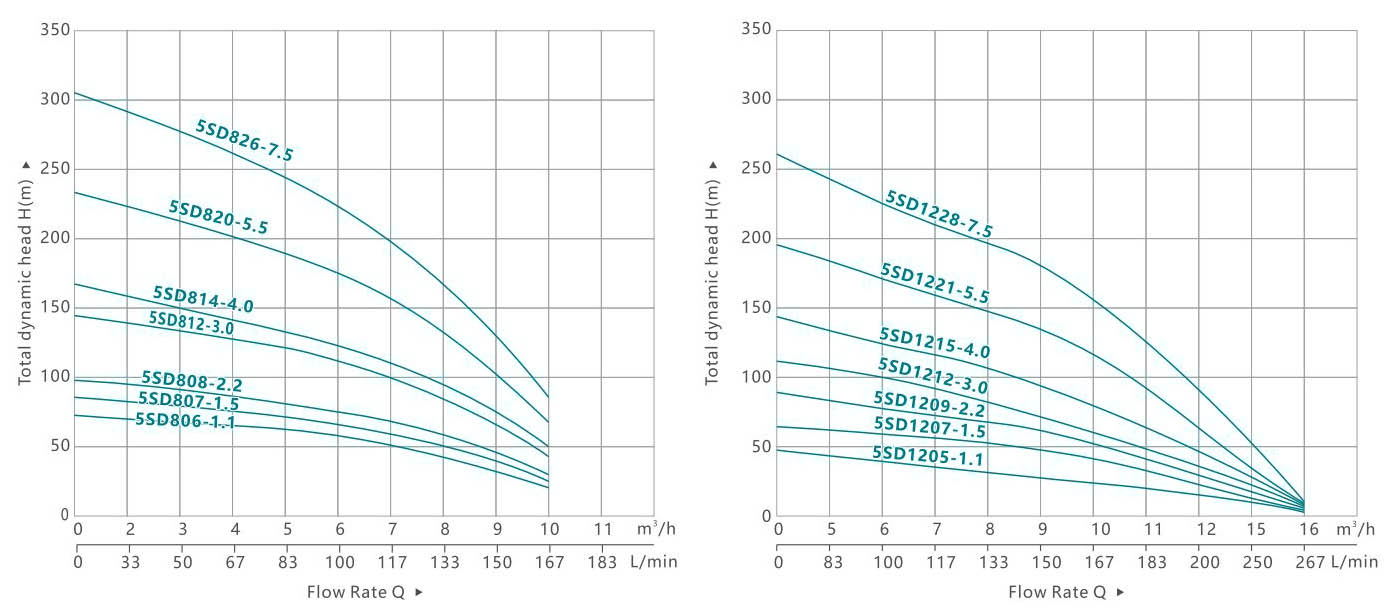

Ishlash egri chizig'i

50Hz ishlash ma'lumotlari

Model	P2		Etkazib berish n = 2850 rpm
3~380v/415v	KVt	HP	Q L/min m³/soat	0	33	50	67	83	100	117	133	150	167	183
3~380v/415v	KVt	HP	Q L/min m³/soat	0	2	3	4	5	6	7	8	9	10	11
5SD806-1.1	1.1	1.5	H(m)	70	66	63	60	57	51	45	39	30	20	4
5SD807-1.5	1.5	2.0		82	77	74	70	67	60	53	46	35	23	4
5SD808-2.2	2.2	3.0		95	88	84	80	76	68	60	52	40	26	5
5SD812-3.0	3.0	4.0		140	132	126	120	114	102	90	78	60	40	6
5SD814-4.0	4.0	5.5		165	154	147	140	133	119	105	91	70	46	7
5SD820-5,5	5.5	7.5		235	220	210	200	190	170	150	130	100	66	8
5SD826-7.5	7.5	10		305	286	273	260	247	221	195	169	130	86	9

Model	P2		Etkazib berish n = 2850 rpm
3~380v/415v	KVt	HP	Q L/min m³/soat	0	83	100	117	133	150	167	183	200	250	267
3~380v/415v	KVt	HP	Q L/min m³/soat	0	5	6	7	8	9	10	11	12	15	16
5SD1205-1.1	1.1	1.5	H(m)	47	42	40	37	35	33	28	23	20	11	2
5SD1207-1.5	1.5	2.0		65	59	56	52	49	46	39	32	28	15	3
5SD1209-2.2	2.2	3.0		85	76	72	67	63	59	50	41	36	19	3
5SD1212-3.0	3.0	4.0		112	101	96	89	84	78	66	54	48	25	4
5SD1215-4.0	4.0	5.5		140	126	120	111	105	98	83	68	60	32	5
5SD1221-5.5	5.5	7.5		195	176	168	156	147	137	116	95	84	45	6
5SD1228-7.5	7.5	10		260	235	224	207	196	182	154	126	112	60	7

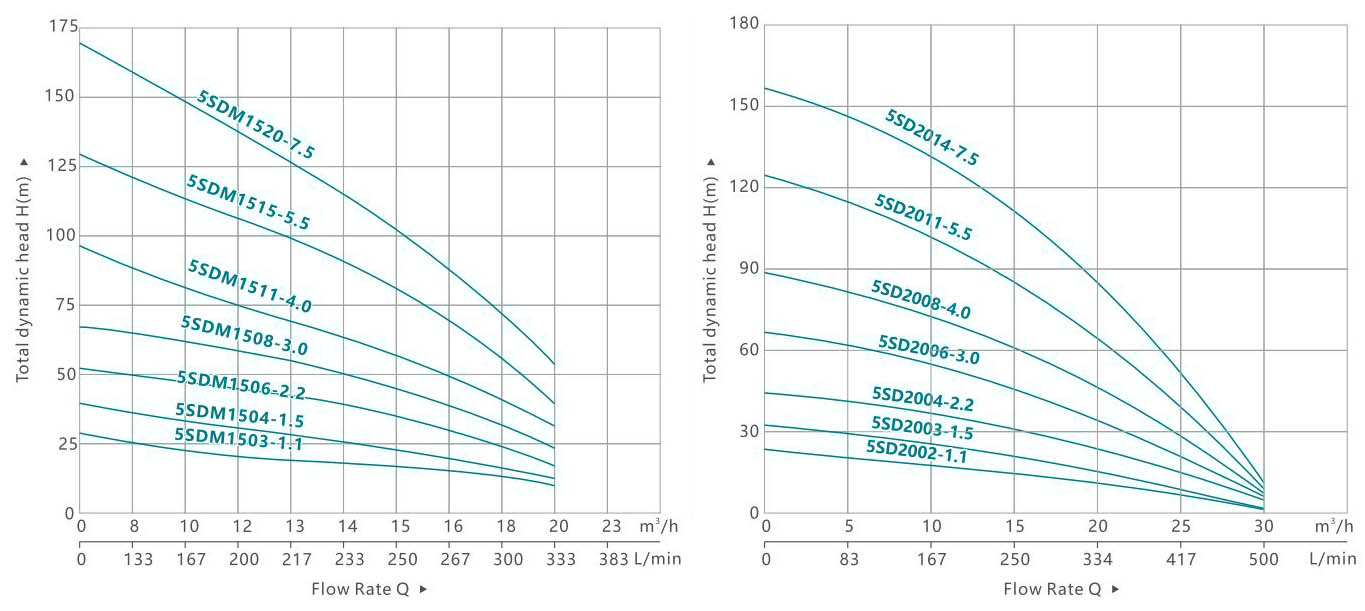

Ishlash egri chizig'i

50Hz ishlash ma'lumotlari

Model	P2		Etkazib berish n = 2850 rpm
3~380v/415v	KVt	HP	Q L/min m³/soat	0	133	167	200	217	233	250	267	300	333	383
3~380v/415v	KVt	HP	Q L/min m³/soat	0	8	10	12	13	14	15	16	18	20	23
5SD1503-1.1	1.1	1.5	H(m)	26	23	22	20	19	18	17	15	12	8	4
5SD1504-1.5	1.5	2.0		35	31	30	27	26	24	23	20	16	10	4
5SD1506-2.2	2.2	3.0		51	46	44	41	38	37	35	30	24	16	5
5SD1508-3.0	3.0	4.0		68	62	59	54	51	49	46	40	32	21	5
5SD1511-4.0	4.0	5.5		95	85	81	74	70	67	64	55	44	29	6
5SD1515-5.5	5.5	7.5		128	116	111	101	96	92	87	75	60	39	7
5SD1520-7,5	7.5	10		170	155	148	135	128	122	116	100	80	52	8

Model	P2		Etkazib berish n = 2850 rpm
3~380v/415v	KVt	HP	Q L/min m³/soat	0	83	167	250	334	417	500	533
3~380v/415v	KVt	HP	Q L/min m³/soat	0	5	10	15	20	25	30	32
5SD2002-1.1	1.1	1.5	H(m)	22	20	18	16	12	6	3	1
5SD2003-1.5	1.5	2.0		33	29	27	23	18	10	3	1
5SD2004-2.2	2.2	3.0		45	39	38	31	24	15	4	1
5SD2006-3.0	3.0	4.0		67	62	55	47	35	19	5	1
5SD2008-4.0	4.0	5.5		89	80	74	62	47	29	6	1
5SD2011-5.5	5.5	7.5		123	114	100	86	65	35	7	1
5SD2014-7.5	7.5	10		156	145	129	109	83	40	8	1

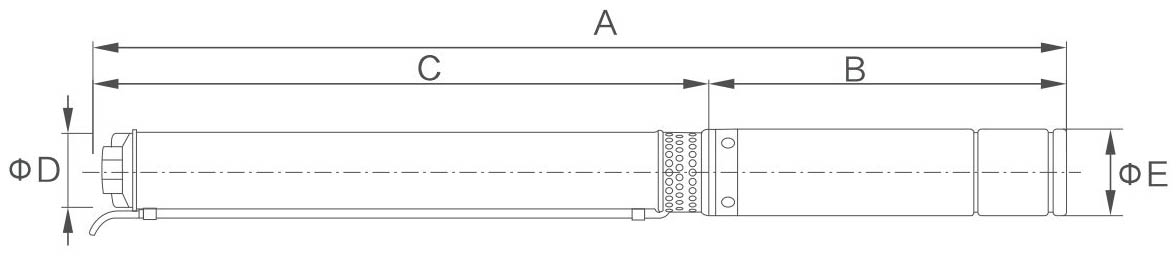

Hajmi

Parashutchilar shkalasi
Model	A	B	C	D	E
5SD806-1.1	824	383	441	2"	f123
5SD807-1.5	866	393	473	2"	f123
5SD808-2.2	909	403	506	2"	f123
5SD812-3.0	1165	488	677	2"	f123
5SD814-4.0	1306	563	743	2"	f123
5SD820-5,5	1643	663	980	2"	f123
5SD826-7.5	1965	748	1217	2"	f123
5SD1205-1.1	827	383	444	2"	f123
5SD1207-1.5	917	393	524	2"	f123
5SD1209-2.2	1007	403	604	2"	f123
5SD1212-3.0	1212	488	724	2"	f123
5SD1215-4.0	1446	563	883	2"	f123
5SD1221-5.5	1786	663	1123	2"	f123
5SD1228-7.5	2190	748	1442	2"	f123
5SD1503-1.1	770	383	387	2"	f123
5SD1504-1.5	828	393	435	2"	f123
5SD1506-2.2	935	403	532	2"	f123
5SD1508-3.0	1116	488	628	2"	f123
5SD1511-4.0	1336	563	773	2"	f123
5SD1515-5.5	1668	663	1005	2"	f123
5SD1520-7,5	2032	748	1284	2"	f123
5SD2002-1.1	728	383	345	2"	f123
5SD2003-1.5	790	393	397	2"	f123
5SD2004-2.2	852	403	449	2"	f123
5SD2006-3.0	1041	488	553	2"	f123
5SD2008-4.0	1220	563	657	2"	f123
5SD2011-5.5	1514	663	851	2"	f123
5SD2014-7.5	1754	748	1006	2"	f123

Uch fazali asenkron suv osti dvigateli 380 - 415V ~ 50Hz

1. Quvvat kalitlari

2. Kassetalarni avtomatik boshqarish

3. Quvur liniyasi

4. Vana

5. Shlangi

6. Statik daraja

7. Yuqori qutb

8. Kabel

9. Xo'sh

10. Aralashtirish darajasi

11. O'rta tayoq

12. Nasos korpusi

13. Pastki qutb

14. Suv osti elektr motorlari

220-240V/50Hz qo'shimcha kabel

hajmi	Voltaj（v)	Quvvat (kw）	Kabel kesimi (mm²)	0,7 mm²	1 mm²	1,5 mm²	2 mm²	2,5 mm²	3 mm²	4 mm²	6 mm²	10 mm²	16 mm²	25 mm²	35 mm²	50 mm²
4"	220	0.37	Kabel uzunligi (m)	50	80	100
		0.55		35	55	80	105	130
		0.75		20	35	55	75	90	110	150
		0.95			32	52	70	85	105	140
		1.1			30	48	60	79	100	127	190
		1.5			25	34	50	57	80	92	137	228
		1.8			23	32	48	55	78	90	135	226
		2.2				22	30	43	50	68	102	170	230
		3.0					25	30	45	60	80	120	200	330
		3.5						25	30	45	60	100	180	290
		4.0							25	35	55	90	150	220	300

380V/50Hz qo'shimcha kabel

hajmi	Voltaj（v)	Quvvat (kw）	Kabel kesimi (mm²)	0,7 mm²	1 mm²	1,5 mm²	2 mm²	2,5 mm²	3 mm²	4 mm²	6 mm²	10 mm²	16 mm²	25 mm²	35 mm²	50 mm²
4"	380	0.37	Kabel uzunligi (m)	200	315
		0.55		100	210	320
		0.75		80	165	280
		1.1			120	180	250	308
		1.5			90	150	200	250	300	400
		2.2			65	114	150	191	250	305	457
6"		3.0				77	100	128	170	205	307	390
		4.0				61	80	102	120	153	244	406
		5.5				47	60	70	90	110	165	312
		7.5							65	80	130	200	320
		9.2								72	108	178	282	432
		11								63	94	155	246	370
		13									78	129	205	314
		15									69	114	180	277
		18.5									55	91	145	222	305
		22									49	81	128	196	290
		25										68	107	165	226	314
		30										60	95	145	200	275
		37										52	82	125	170	234
		45.0										45	71	108	147	203
