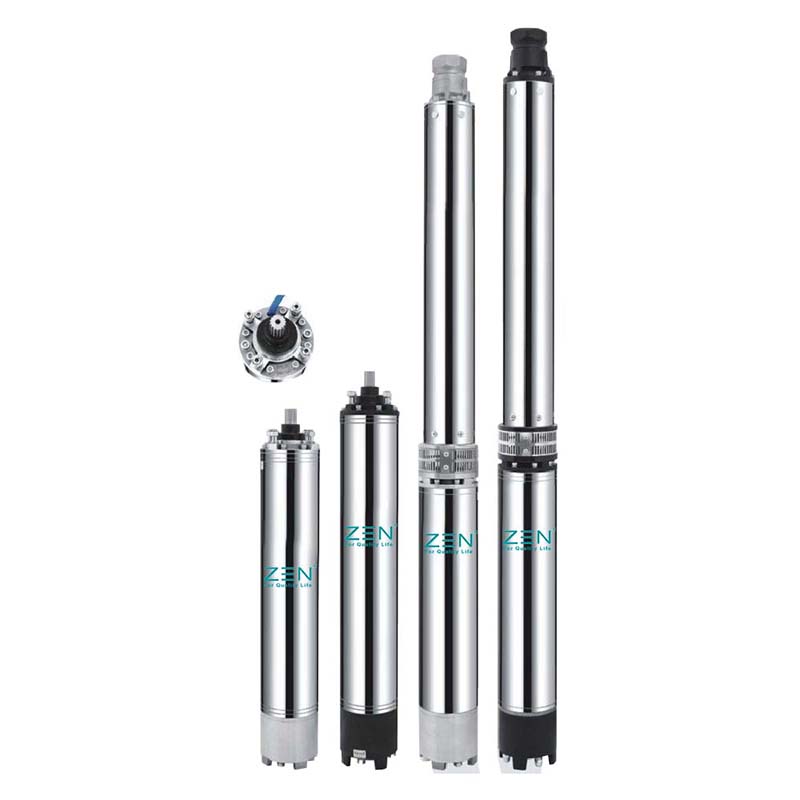

5SDM suv bilan to'ldirilgan zanglamaydigan po'latdan yasalgan chuqur quduq pompasi 50TW 400-600 darajali silikon po'latdan yasalgan bo'lib, u kichik harorat ko'tarilishi, yaxshi energiya tejovchi effekti va uzoq xizmat muddati bilan ajralib turadi.
1. Diametri 135 mm dan ortiq bo'lgan chuqur quduqlar uchun javob beradi.
2. Nasos komponentlari: keramika vtulka, keramik surish diski, bir bosqichli suzuvchi pervanel.
Xususiyatlari: qumga qarshi kuchli ta'sirga ega.
3. Dvigatel o'rashiga zarar bermasdan chastota konvertori ishga tushirish va ishga tushirish uchun javob beradi.
4. Elektr dvigateli: NIMA xalqaro standarti
5. Butun mashina zanglamaydigan po'latdan yasalgan quyma qismlardan iborat bo'lib, barchasi silikon nozik quyma eritmasidan foydalanadi.
Oqim: 40 m³/soatgacha
Balandligi: 600 m
* Keng kuchlanishli dizayn, 300V - 420V xavfsiz va barqaror ishlash.
* Elektr dvigateli: 50TW 400 - 600 silikon po'lat plitalar, kichik harorat ko'tarilishi, yaxshi energiya tejovchi effekt, uzoq xizmat muddati.
* Dvigatel elektromagnit ulanishi: 180C. Izolyatsiya sinfi: H darajasi
* Elektr liniyalari: F46 Yuqori haroratli suv o'tkazmaydigan materiallar.
* Asosiy podshipnik qistirmalari: Morgan brendi (Buyuk Britaniyadan), material: yuqori tozalikdagi grafit qotishmasi, 80 000 soat uzluksiz ishlaydi.
* Elektromagnit dizayn: o'q yuki o'q quvvatidan 1,35 marta o'rnatiladi.
*Dvigatelning asosiy o'qi: 40Cr/42Cr - Dvigatel shikastlanmasligi uchun Mo.
* Qayta ishlash aniqligi klassi: birinchi aniqlik darajasi B.
| Model | G'ildirak |
Nominal iste'mol m³/soat |
Nominal inkor (m) |
Maksimal kurs m³/soat |
Maksimal harakat (m) |
Quvvat dvigatel |
Maksimal nasos O.D |
Eksport hajmi | ||
| KVt | HP | mm | dyuym | mm | ||||||
| 5SDM10-60/7 | 7 | 10 | 60 | 17 | 70 | 1.5 | 2 | 130 | 1,5" | 40 |
| 5SDM10-80/9 | 9 | 10 | 80 | 17 | 90 | 2.2 | 3.0 | 1,5" | 40 | |
| 5SDM10-100/12 | 12 | 10 | 100 | 17 | 125 | 3 | 4 | 1,5" | 40 | |
| 5SDM10-120/15 | 15 | 10 | 120 | 17 | 150 | 4 | 5.5 | 1,5" | 40 | |
| 5SDM10-160/20 | 20 | 10 | 160 | 17 | 200 | 5.5 | 7.5 | 1,5" | 40 | |
| 5SDM10-220/28 | 28 | 10 | 220 | 17 | 270 | 7.5 | 10.0 | 1,5" | 40 | |
| 5SDM10-250/34 | 34 | 10 | 250 | 17 | 320 | 9.2 | 12.5 | 1,5" | 40 | |
| 5SDM10-300/40 | 40 | 10 | 300 | 17 | 370 | 11 | 15 | 1,5" | 40 | |
| 5SDM10-350/48 | 48 | 10 | 350 | 17 | 450 | 13 | 17.5 | 1,5" | 40 | |
| 5SDM10-400/54 | 54 | 10 | 400 | 17 | 500 | 15 | 20 | 1,5" | 40 | |
| 5SDM10-450/60 | 60 | 10 | 450 | 17 | 550 | 18.5 | 25 | 1,5" | 40 | |
| 5SDM10-500/70 | 70 | 10 | 500 | 17 | 600 | 22 | 30 | 1,5" | 40 | |
| 5SDM15-40/5 | 5 | 15 | 40 | 25 | 55 | 1.5 | 2 | 1,5" | 40 | |
| 5SDM15-50/7 | 7 | 15 | 50 | 25 | 65 | 2.2 | 3.0 | 1,5" | 40 | |
| 5SDM15-60/9 | 9 | 15 | 60 | 25 | 80 | 3 | 4 | 1,5" | 40 | |
| 5SDM15-80/11 | 11 | 15 | 80 | 25 | 100 | 4 | 5.5 | 1,5" | 40 | |
| 5SDM15-105/15 | 15 | 15 | 105 | 25 | 140 | 5.5 | 7.5 | 1,5" | 40 | |
| 5SDM15-150/20 | 20 | 15 | 150 | 25 | 180 | 7.5 | 10.0 | 1,5" | 40 | |
| 5SDM15-160/24 | 24 | 15 | 160 | 25 | 210 | 9.2 | 12.5 | 1,5" | 40 | |
| 5SDM15-200/29 | 29 | 15 | 200 | 25 | 160 | 11 | 15 | 1,5" | 40 | |
| 5SDM15-230/34 | 34 | 15 | 230 | 25 | 300 | 13 | 17.5 | 1,5" | 40 | |
| 5SDM15-250/37 | 37 | 15 | 250 | 25 | 325 | 15 | 20 | 1,5" | 40 | |
| 5SDM15-300/44 | 44 | 15 | 300 | 25 | 400 | 18.5 | 25.0 | 1,5" | 40 | |
| 5SDM15-350/50 | 50 | 15 | 350 | 25 | 450 | 22 | 30 | 1,5" | 40 | |
| 5SDM20-30/5 | 5 | 20 | 30 | 35 | 50 | 2.2 | 3 | 2” | 50 | |
| 5SDM20-42/7 | 7 | 20 | 42 | 35 | 55 | 3 | 4 | 2” | 50 | |
| 5SDM20-54/9 | 9 | 20 | 54 | 35 | 75 | 4 | 5.5 | 2” | 50 | |
| 5SDM20-65/11 | 11 | 20 | 65 | 35 | 85 | 5.5 | 7.5 | 2” | 50 | |
| 5SDM20-85/14 | 14 | 20 | 85 | 35 | 105 | 7.5 | 10 | 2” | 50 | |
| 5SDM20-110/18 | 18 | 20 | 110 | 35 | 130 | 9.2 | 12.5 | 2” | 50 | |
| 5SDM20-128/21 | 21 | 20 | 128 | 35 | 155 | 11 | 15 | 2” | 50 | |
| 5SDM20-145/24 | 24 | 20 | 145 | 35 | 170 | 13 | 17.5 | 2” | 50 | |
| 5SDM20-164/27 | 27 | 20 | 164 | 25 | 200 | 15 | 20 | 130 | 2” | 50 |
| 5SDM20-182/30 | 30 | 20 | 182 | 25 | 250 | 18.5 | 25.0 | 2” | 50 | |
| 5SDM20-208/34 | 34 | 20 | 208 | 25 | 300 | 22 | 30 | 2” | 50 | |
| 5SDM25-35/6 | 6 | 25 | 35 | 40 | 55 | 3 | 4 | 2,5" | 65 | |
| 5SDM25-40/7 | 7 | 25 | 40 | 40 | 60 | 4 | 5.5 | 2,5" | 65 | |
| 5SDM25-52/9 | 9 | 25 | 52 | 40 | 80 | 5.5 | 7.5 | 2,5" | 65 | |
| 5SDM25-70/12 | 12 | 25 | 70 | 40 | 100 | 7.5 | 10 | 2,5" | 65 | |
| 5SDM25-85/15 | 15 | 25 | 85 | 40 | 135 | 9.2 | 12.5 | 2,5" | 65 | |
| 5SDM25-105/18 | 18 | 25 | 105 | 40 | 160 | 11 | 15 | 2,5" | 65 | |
| 5SDM25-120/21 | 21 | 25 | 120 | 40 | 195 | 13 | 17.5 | 2,5" | 65 | |
| 5SDM25-140/24 | 24 | 25 | 140 | 40 | 210 | 15 | 20 | 2,5" | 65 | |
