Faoliyat sohasiNominal iste'mol: 100 m³ / hm
Qiymatni baholash. Suv sathi: 33 m

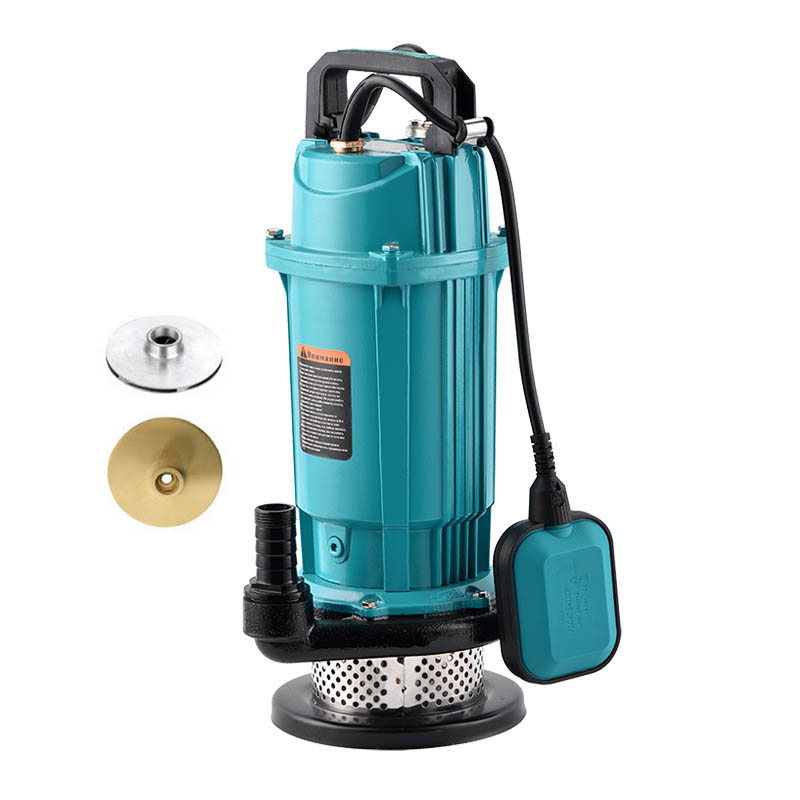

Ko'chma elektr drenaj va sug'orish moslamalari sifatida, suv iste'moli kam bo'lgan QDX-L suv osti nasosi suv qutilari, qishloq xo'jaligi erlari, sanoat va tog'-kon korxonalari, qurilish maydonchalari, kemalar va oilalar uchun keng qo'llaniladi va past hajmli, engil va foydalanish qulayligi va boshqalar bilan ajralib turadi. Agar nasos yukni avtomatik boshqarish bilan jihozlangan bo'lsa, u mumkin. Ushbu nasos bir fazali kondansatör asinxron yoki uch fazali asenkron dvigatelga ega bo'lib, u o'rnatilgan termal sug'urta bilan o'rnatiladi va haddan tashqari qizib ketish yoki ortiqcha yuklanish holatlarida avtomatik ravishda o'chadi va shu bilan eng qiyin sharoitlarda xavfsiz va ishonchli ishlashni ta'minlaydi.
● maksimal suyuqlik harorati + 40 ° S
● PH 6,5 - 8,5
● Qumning maksimal miqdori 0,1% ni tashkil qiladi.
● muvozanatli qattiq jism 0,2 mm dan o'tadi
● Quvvat tezligi 50 Hz.
● bir fazali nominal kuchlanish 180 - 230 Oliy attestatsiya komissiyasi, uch fazali nominal kuchlanish - 360 - 380 Oliy attestatsiya komissiyasi, diapazoni - 10% - 10%.
● 0,5 dan 5 m gacha bo'lgan sho'ng'in chuqurligi
Q (D) X - L nasoslari hajmi va og'irligi jihatidan kichik bo'lib, ayniqsa, qishloq quduqlaridan suv olish, qishloq xo'jaligi erlarini sug'orish, bog'larni sug'orish, suv va oilaviy hayotni purkash uchun, shuningdek, sanoat, qurilish, suv xo'jaligi, baliq hovuzlari va boshqalar uchun juda mos keladi.
Dvigatel dizayni yangi, xizmat muddati uzoqroq.
Alyuminiy qotishmalaridan portativ bardoshli dizaynlar.
Yuqori samarali muhandislik plastmassalari yoki alyuminiy g'ildiraklar.
Zanglamaydigan po'latdan yasalgan qopqoq
bir fazali lenta suzuvchi kalit
Boshqa kuchlanish yoki chastotalar 60 Hz
| Quvvat (KVt) |
0.25 (220V/50Hz) |
0.37 (220V/50Hz) |
0.55 (220V/50Hz) |
0.75 (220V/50Hz) |
1.1 (220V/50Hz) |
0.75 (380V/50Hz) |
1.1 (380V/50Hz) |
1.5 (380V/50Hz) |
|

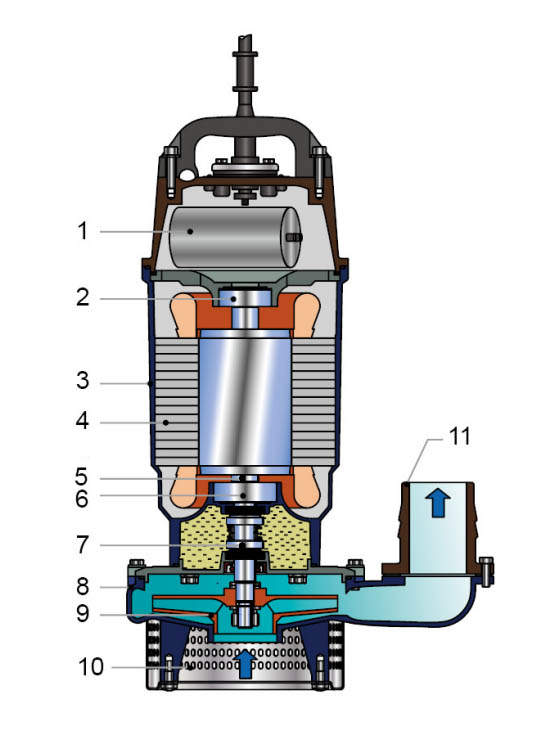

| 1 | Kondensator | 10 uF/450V AC | 12 uF/450V AC | 18 uF/450V AC | 25 uF/450V AC | 30 uF/450V AC | / | / | / |
| 2 | Yuqori podshipnik | 6201-2Rz | 6201-2Rz | 6202-2Rz | 6202-2Rz | 6202-2Rz | 6202-2Rz | 6202-2Rz | 6202-2Rz |
| 3 | Hull | Alyuminiy yl102 | |||||||
| 4 | Dvigatel | Quruq suv osti dvigateli | |||||||
| 5 | Dvigatelning o'qi | Chelik 45# | |||||||
| 6 | Pastki rulman | 6201-2Rz | 6202-2Rz | 6302-2Rz | 6302-2Rz | 6204-2Rz | 6302-2Rz | 6204-2Rz | 6204-2Rz |
| 7 | Mexanik muhr | 208-12/30 B:A/B:A(PTC) |
208-14/35 B:A/B:A(PTC) |
208-14/35 B:A/B:A(PTC) 208-14/35(2) B:A/B:S(PTC) |
208-14/35 B:A/B:A(PTC) 208-14/35(2) B:A/B:S(PTC) |
208-18/38 B:A/B:A(PTC) |
208-14/35 B:A/B:A(PTC |
208-18/38 B:A/B:A(PTC) |
208-18/38 B:A/B:A(PTC) |
| A: grafit, B: Keramika, p: nbr | |||||||||
| 8 | Nasos tanasi | Alyuminiy Zl102 / HT200 | |||||||
| 9 | G'ildirak | Alyuminiy ZL102 yoki PPO-G3 | |||||||
| 10 | O'rnatish ekrani | galvanizli po'lat Q235A/430 | |||||||
| 11 | Eksport | HT200 pardasi | |||||||

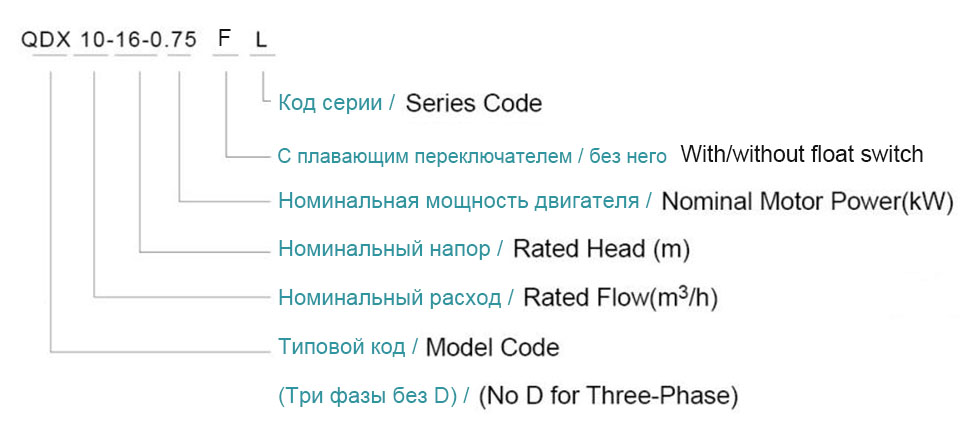

| Raqamlar | Model | Quvvat | Qiymatni baholash. Bosh | Xarajatlarni baholash.q | Chiqish hajmi | Tezlik | Simlarni o'rnatish | Kabel spetsifikatsiyasi | |
| kVt | HP | M | m3/soat | MM | r/min | m | Elektr kabeli | ||
| 1 | QDX1.5-12-025F | 0.25 | 0.34 | 12 | 1.5 | 25 | 2900 | 8 | 3*0,5*8 |
| 2 | QDX1.5-17-0.37F | 0.37 | 0.5 | 17 | 1.5 | 25 | 2900 | 8 | 3*0,5*8 |
| 3 | QDX1.5-25-0.55F | 0.55 | 0.75 | 25 | 1.5 | 25 | 2900 | 8 | 3*0,75*8 |
| 4 | QDX3-20-0,55 | 0.55 | 0.75 | 20 | 3 | 32 | 2900 | 8 | 3*0,75*8 |
| 5 | QDX10-12-0,55F | 0.55 | 0.75 | 12 | 10 | 40 | 2900 | 8 | 3*0,75*8 |
| 6 | QDX15-7-0,55F | 0.55 | 1 | 7 | 15 | 50 | 2900 | 8 | 3*0,75*8 |
| 7 | QDX1.5-32-0.75F | 0.75 | 1 | 32 | 1.5 | 25 | 2900 | 8 | 3*1*8 |
| 8 | Qdx3-24-0.75f | 0.75 | 1 | 24 | 3 | 32 | 2900 | 8 | 3*1*8 |
| 9 | Qdx8-18-0,75f | 0.75 | 1 | 18 | 8 | 40 | 2900 | 8 | 3*1*8 |
| 10 | QDX10-16-0,75F | 0.75 | 1 | 16 | 10 | 50 | 2900 | 8 | 3*1*8 |
| 11 | QDX15-10-0,75F | 0.75 | 1 | 10 | 15 | 65 | 2900 | 8 | 3*1*8 |
| 12 | QDX30-6-0.75f | 0.75 | 1 | 5 | 30 | 80 | 2900 | 8 | 3*1*8 |
| 13 | QDX3-30-1.1F | 1.1 | 1.5 | 30 | 3 | 25 | 2900 | 8 | 3*1,5*8 |
| 14 | QDX7-26-1.1F | 1.1 | 1.5 | 50 | 2900 | 8 | 3*1,5*8 | ||
| 15 | QDX15-15-1.1F | 1.1 | 1.5 | 15 | 15 | 50 | 2900 | 8 | 3*1,5*8 |
| 16 | QDX18-14-1.1F | 1.1 | 1.5 | 14 | 18 | 65 | 2900 | 8 | 3*1,5*8 |
| 17 | QDX40-7-1.1F | 1.1 | 1.5 | 7 | 40 | 80 | 2900 | 8 | 3*1,5*8 |
| 18 | QDX7-33-1.5F | 1.5 | 2 | 33 | 7 | 50 | 2900 | 8 | 3*1,5*8 |
| 19 | Qdx6-26-1.5f | 1.5 | 2 | 28 | 18 | 50 | 2900 | 8 | 3*1,5*8 |
| 20 | QDX15-18-1.5F | 1.5 | 2 | 18 | 15 | 50 | 2900 | 8 | 3*1,5*8 |
| 21 | QDX18-16-1.5F | 1.5 | 2 | 16 | 18 | 65 | 2900 | 8 | 3*1,5*8 |
| 22 | QDX40-9-1.5F | 1.5 | 2 | 9 | 40 | 80 | 2900 | 8 | 3*1,5*8 |
| 23 | QDX50-7-1.5F | 1.5 | 2 | 7 | 50 | 100 | 2900 | 8 | 3*1,5*8 |
| 24 | QDX20-26-2.2F | 2.2 | 3 | 26 | 20 | 65 | 2900 | 8 | 3*2*8 |
| 25 | QDX40-15-2.2f | 2.2 | 3 | 15 | 40 | 80 | 2900 | 8 | 3*2*8 |
| 26 | QDX65-8-2.2F | 2.2 | 3 | 8 | 65 | 100 | 2900 | 8 | 3*2*8 |
| 27 | QDX100-6-2.2F | 2.2 | 3 | 6 | 100 | 150 | 2900 | 10 | 3*2,5*8 |
