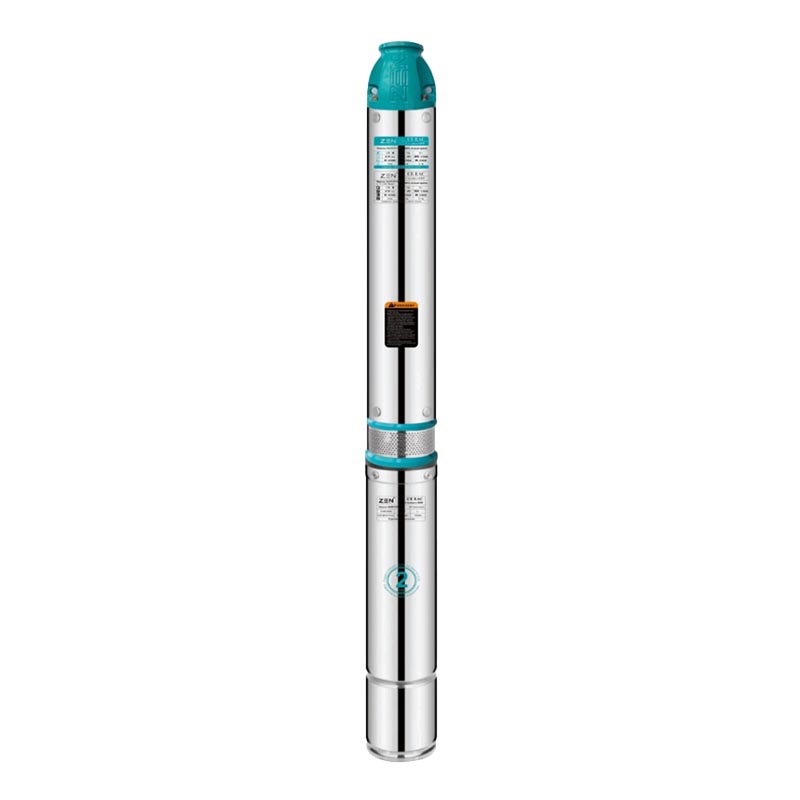

Qjm chuqur dengiz zanglamaydigan po'latdan yasalgan nasos

O'rnatish va foydalanishQJM chuqur dengiz zanglamaydigan po'latdan yasalgan nasos ko'p bosqichli pervanel tuzilishi, yuqori bosim, keng ko'lamli ilovalardan foydalanadi. Quduqlarni burg'ulash, suv havzalari va ko'llardan suv olish, maysazorlarni sug'orish, hayot uchun vodoprovod suvi, hovuzlarga suv ta'minoti, suv qo'shinlari va rezervuarlari, favvoralar, qishloq xo'jaligida sug'orish va boshqalar uchun javob beradi.

So'rov yuborish

Mahsulot tavsifi

Qjm chuqur dengiz zanglamaydigan po'latdan yasalgan nasos

Ilova cheklovlari

Muhitning harorati + 40 ° C dan oshmaydi;

Atrof muhitning PH qiymati 6,5 dan 8,5 gacha;

Atrof muhitdagi qattiq aralashmalar hajmining nisbati 0,1% dan oshmaydi va zarrachalarning diametri 0,2 mm dan oshmaydi;

Suvga cho'mish chuqurligi 70 metrdan oshmaydi;

Quduqning minimal qo'llaniladigan diametri: 4.

Qurilish

Nasos korpusi: zanglamaydigan po'lat

Barg g'ildiragi: pom, qum qurish g'ildiragi

Diffuzer: Kompyuter

Dvigatel o'qi: zanglamaydigan po'lat yoki po'lat 45 #

Mexanik muhr: keramik grafit yoki silikon karbid - grafit

Elektr dvigateli: moylash moyi x005f

Oziq-ovqat bilan ishlatiladigan yog'lar). Bir fazali 150V - 240V - 50Hz / 60Hz, mis o'rashda ishga tushirishni boshqarish qutisi bilan termal ortiqcha yukdan himoya qiluvchi o'rnatilgan kondansatör mavjud. Uch fazali 300V - 400V

Izolyatsiya: b darajasi

Himoya: IP X8

Model	Quvvat	Maks. Napal (m)	MAX. Oqim (l/min)	Chiqish (dyuym)	Q	L/min	0	17	34	50	66	83	100	Kalibr
Model	Quvvat	Maks. Napal (m)	MAX. Oqim (l/min)	Chiqish (dyuym)	Q	m³/soat	0	1	2	3	4	5	6	dyuym
4QJm4/7-0,37	0.37	46	6.5	1,5"	H(m)		46	39	35	31	24	16	5	1,5"
4QJm4/9-0,55	0.55	59	6.3	1,5"			59	50	45	40	31	21	6	1,5"
4QJm4/11-0,75	0.75	72	6.5	1,5"			72	62	55	48	37	25	8	1,5"
4QJm4/16-1,1	1.1	104	6.5	1,5"			104	90	80	70	54	37	12	1,5"
4QJm4/20-1,5	1.5	130	6.7	1,5"			130	112	100	88	68	46	15	1,5"
4QJm4/23-1,8	1.8	150	6.4	1,5"			150	129	115	101	78	53	17	1,5"
4QJm4/26-2,2	2.2	189	6.5	1,5"			189	164	144	122	87	60	20	1,5"

Model	Quvvat	Maks. Napal (m)	MAX. Oqim (l/min)	Chiqish (dyuym)	Q	L/min	0	20	40	60	80	100	120	140	Kalibr
Model	Quvvat	Maks. Napal (m)	MAX. Oqim (l/min)	Chiqish (dyuym)	Q	m³/soat	0	1.2	2.4	3.6	4.8	6	7.2	8.4	dyuym
4QJM6/7-0,75	0.75	48	9	1,5"	H(m)		48	47	44	41	38	29	22	14	1,5"
4QJM6/10-1.1	1.1	69	9.1	1,5"			69	67	63	58	54	42	32	20	1,5"
4QJM6/14-1,5	1.5	97	8.8	1,5"			97	94	88	81	76	59	45	28	1,5"
4QJM6/17-1,8	1.8	117	9	1,5"			117	114	107	99	92	71	54	34	1,5"

Model	Quvvat	Maks. Napal (m)	MAX. Oqim (l/min)	Chiqish (dyuym)	Q	L/min	0	20	40	60	80	100	120	140	160	Kalibr
Model	Quvvat	Maks. Napal (m)	MAX. Oqim (l/min)	Chiqish (dyuym)	Q	m³/soat	0	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6	dyuym
4QJm8/6-0,75	0.75	38	12.5	2"	H(m)		38	36	33	31	30	28	25	19	12	2"
4QJm8/8-1,1	1.1	50	12.5	2"			50	48	44	42	40	38	33	25	16	2"
4QJm8/12-1,5	1.5	76	12.5	2"			76	72	66	62	60	56	49	37	24	2"
4QJm8/14-1,8	1.8	88	12.5	2"			88	84	77	73	70	66	57	43	28	2"

Model	Quvvat	Maks. Napal (m)	MAX. Oqim (l/min)	Chiqish (dyuym)	Q	L/min	0	30	60	90	120	150	180	210	240	Kalibr
Model	Quvvat	Maks. Napal (m)	MAX. Oqim (l/min)	Chiqish (dyuym)	Q	m³/soat	0	1.8	3.6	5.4	7.2	9	10.8	12.6	14.4	dyuym
4QJM10/7-1.1	1.1	43	15.3	2"	H(m)		43	43	40	38	35	32	25	15	4	2"
4QJM10/9-1,5	1.5	56	15.3	2"			56	55	51	48	45	41	32	19	5	2"
4QJM10/11-1,8	1.8	68	15.3	2"			68	67	63	59	55	50	39	24	7	2"

Model	Quvvat	Maks. Napal (m)	MAX. Oqim (l/min)	Chiqish (dyuym)	Q	L/min	0	50	100	150	200	250	300	350	400	Kalibr
Model	Quvvat	Maks. Napal (m)	MAX. Oqim (l/min)	Chiqish (dyuym)	Q	m³/soat	0	3	6	9	12	15	18	21	24	dyuym
4QJm16-16/5-1.1	1.1	29	27	2"	H(m)		29	28	27	26	22	19	16	11	9	2"
4QJm16-19/6-1,5	1.5	35	27	2"			35	34	32	31	26	22	19	13	11	2"
4QJm16-22/7-1,8	1.8	41	27	2"			41	40	37	36	30	26	22	15	13	2"

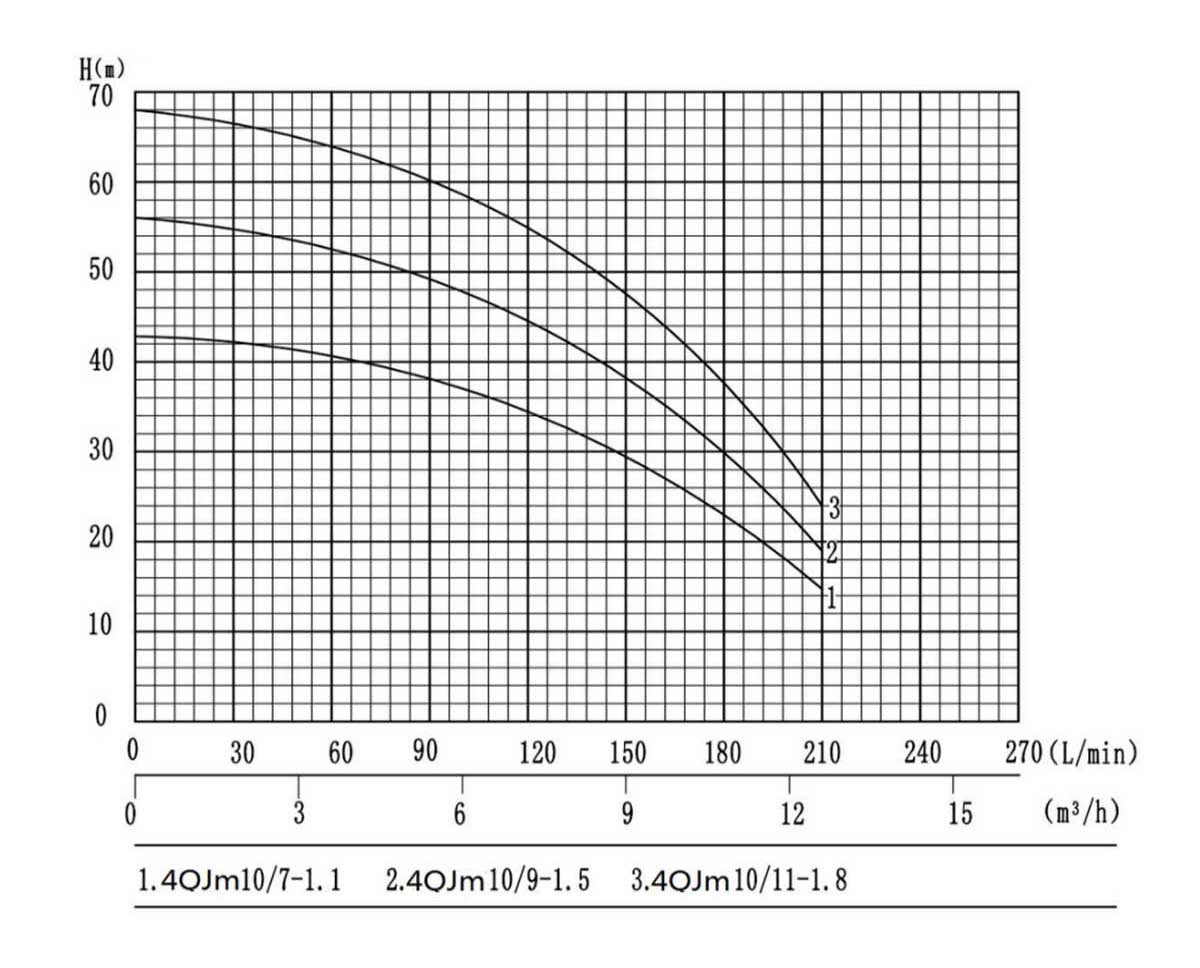

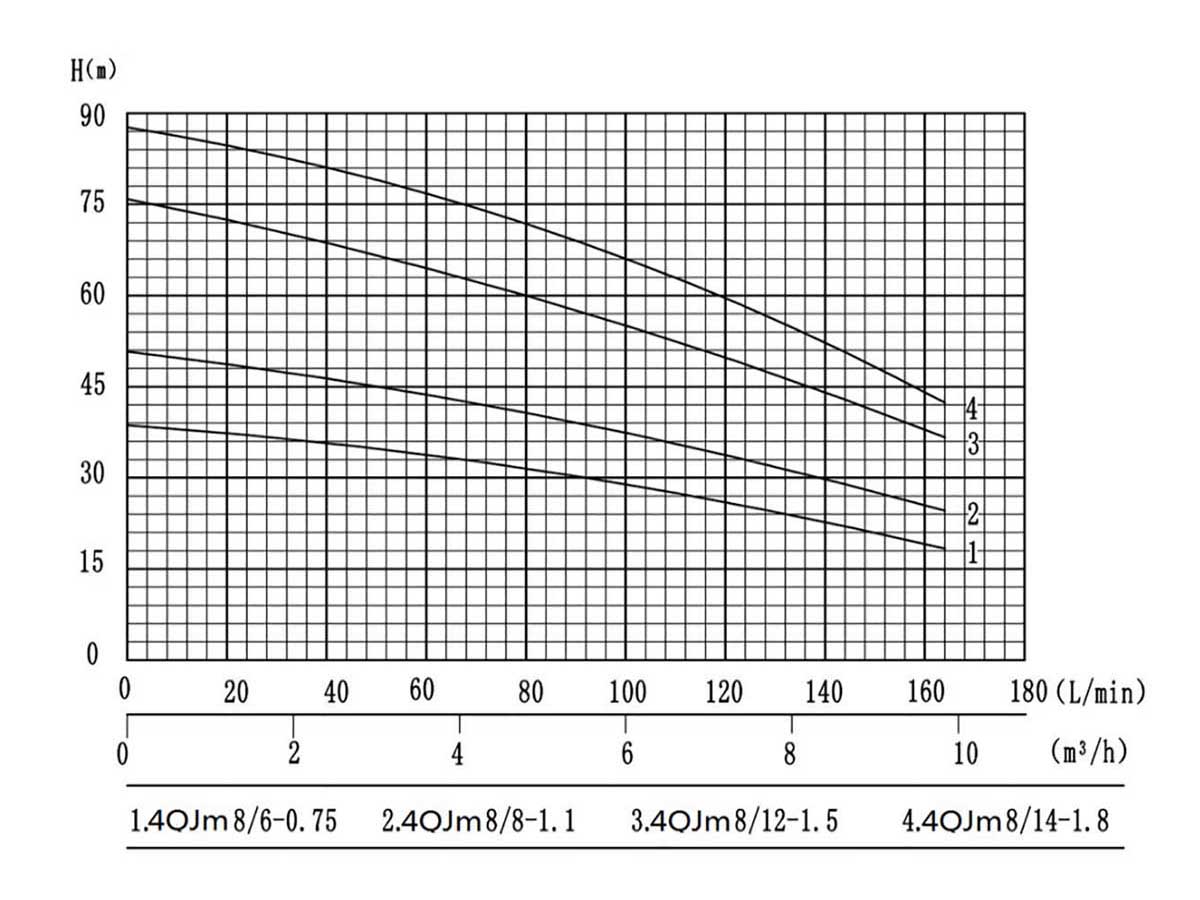

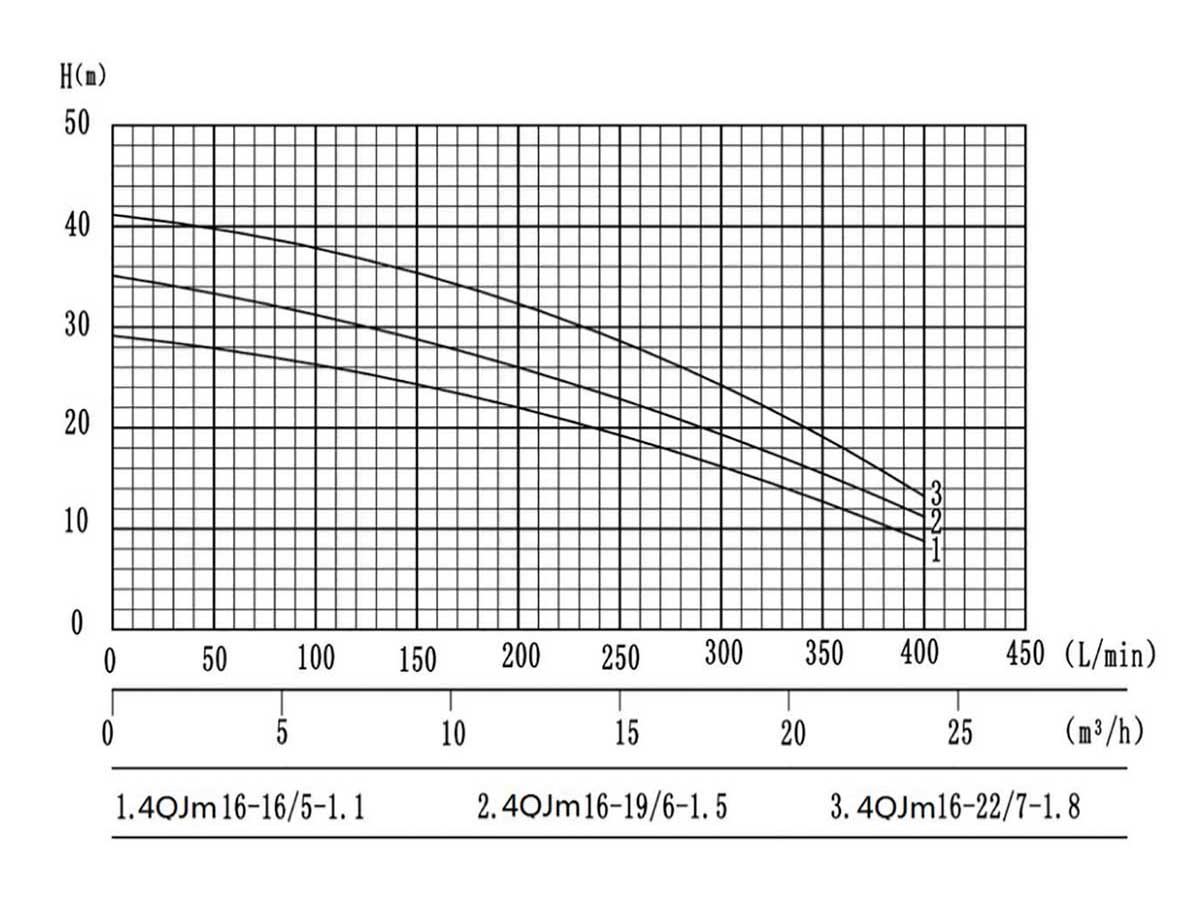

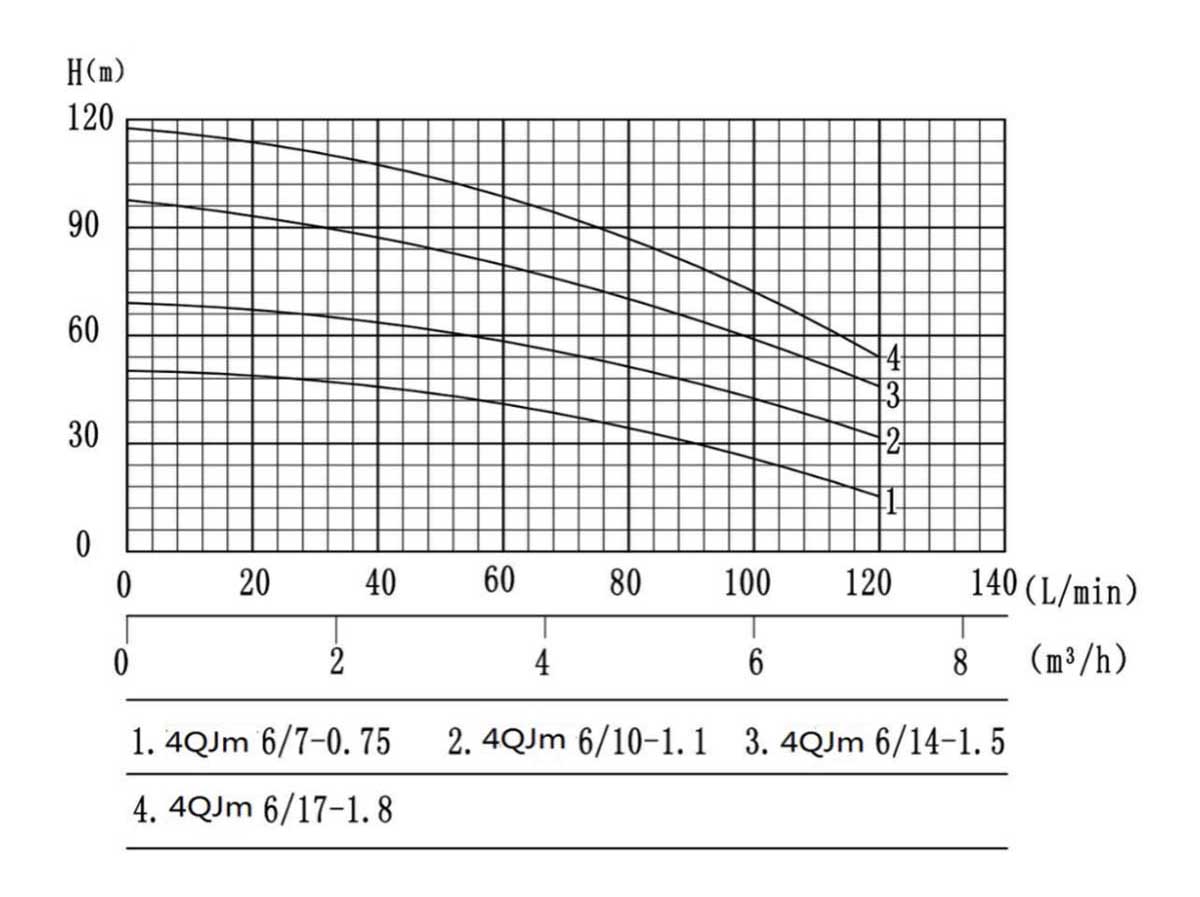

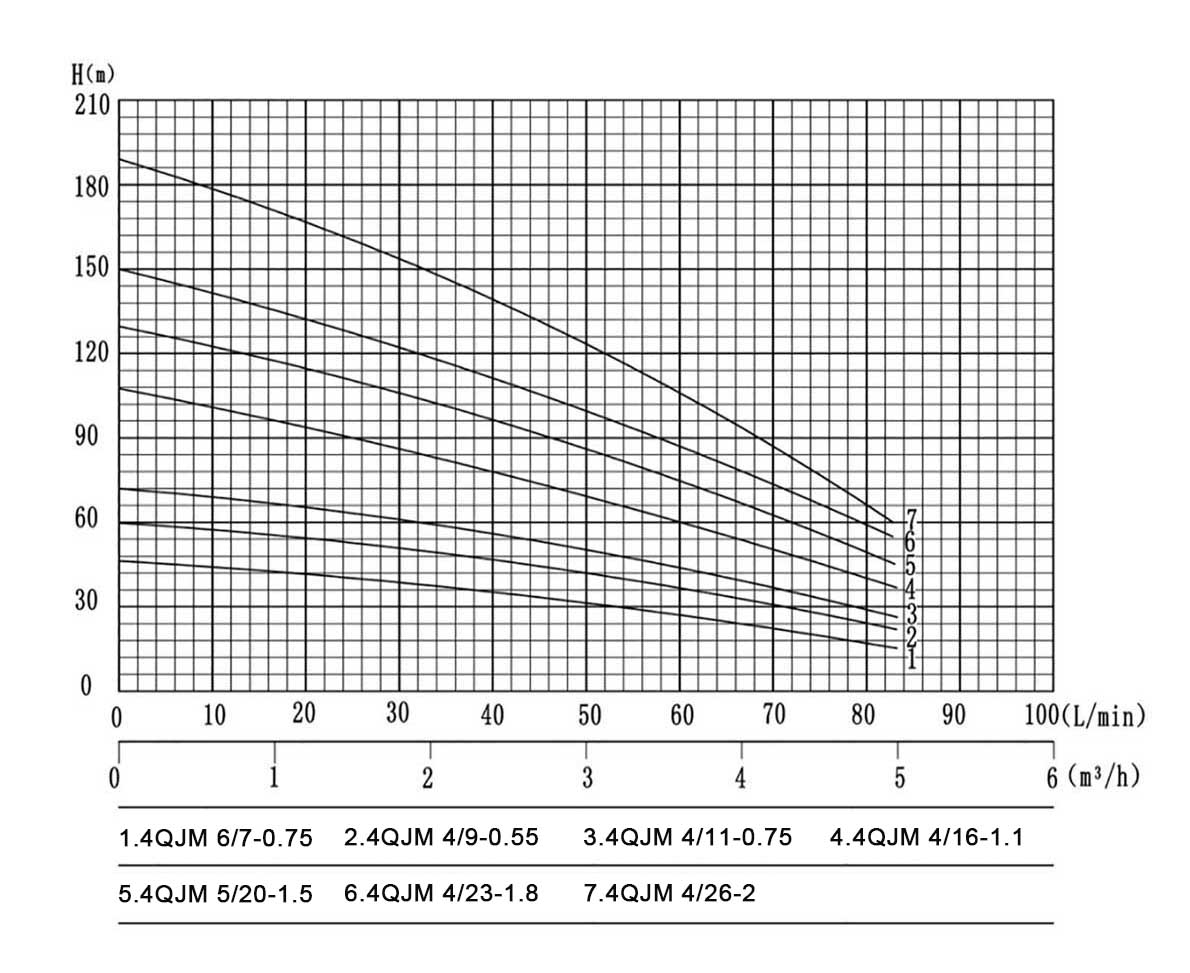

Ishlash jadvali
