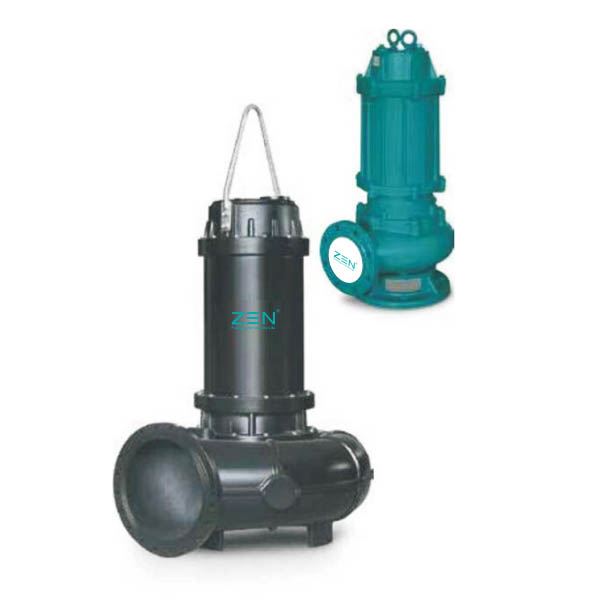

WQ quyma temir kanalizatsiya nasosi

Faoliyat sohasi• 91 667 l/min (5500 m3/soat) gacha oqim
• Suv balandligi 100 metrgacha
Ushbu WQ quyma temir kanalizatsiya nasosi nasos komponentlari uchun kimyoviy jihatdan agressiv bo'lmagan iflos suvni ko'tarish uchun mo'ljallangan ikki tomonlama turdagi vorteks g'ildiragi bilan jihozlangan. Shuning uchun tavsiya etilgan qo'llash sohalari erto'lalar va garajlar kabi cheklangan joylarda suv toshqini drenajini, shuningdek, maishiy chiqindilarni nasos bilan to'ldirish va tolali moddalarni o'z ichiga olgan oqava suvlarni qayta ishlashni o'z ichiga oladi va ko'plab zavodlarda keng qo'llaniladi. Ushbu nasoslarni o'rnatish oson va avtomatik statsionar qurilmalarda foydalanilganda ishonchli. Ta'minot quvur liniyasiga mos keladigan nazorat valfini o'rnatish nasos to'xtaganida qaytib oqimning oldini olishi mumkin.

So'rov yuborish

Mahsulot tavsifi

WQ quyma temir kanalizatsiya nasosi

Foydalanish cheklovlari

• Maksimal dafn chuqurligi: 40m

• suyuqlik harorati + 40 ° C gacha

• Atrof-muhit harorati + 40 ° C gacha

Maqsad va o'rnatish

Nasosda iflos suvni ko'tarish uchun mo'ljallangan, nasosning tarkibiy qismlari uchun kimyoviy jihatdan agressiv bo'lmagan vorteksli ikki tomonlama pervanel ishlatiladi. Shu sababli, tavsiya etilgan foydalanish turlari yopiq joylarda, masalan, podvallar va garajlar kabi drenajlarni, shuningdek, ko'plab o'simliklarda keng qo'llaniladigan tolalarni o'z ichiga olgan nasos nasosi va oqava suvlarni tozalash nasosini o'z ichiga oladi. Ushbu nasoslarni o'rnatish oson va gibrid qurilmalarda avtomatik foydalanish bilan ishonchli. Quvur liniyasiga mos keladigan nazorat valfini o'rnatish nasosni to'xtatganda hisoblagichni oldini oladi.

Strukturaviy xususiyatlar

• Nasos korpusi: quyma temir

• Elektr tayanchi: quyma temir

• Qanot: Temir

• dvigatel o'qi: # 45 karbonli po'lat

• Mexanik muhr: keramik grafit yoki sic - grafit

• Elektr dvigateli: bir fazali 220 / 240V - 50 Gts, o'rnatilgan kondansatkichli mis o'rash va termal haddan tashqari yuklanishdan himoya.

• Uch fazali 380 / 415V - 50HZ.

• izolyatsiya: F darajasi.

• Himoya: IPX8.

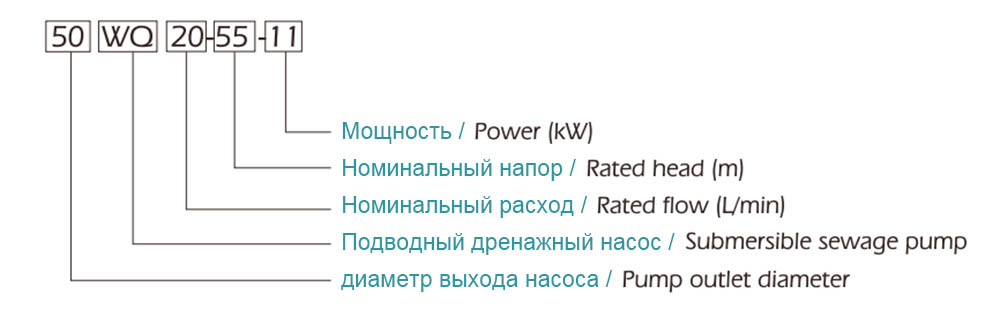

Modelning nomi

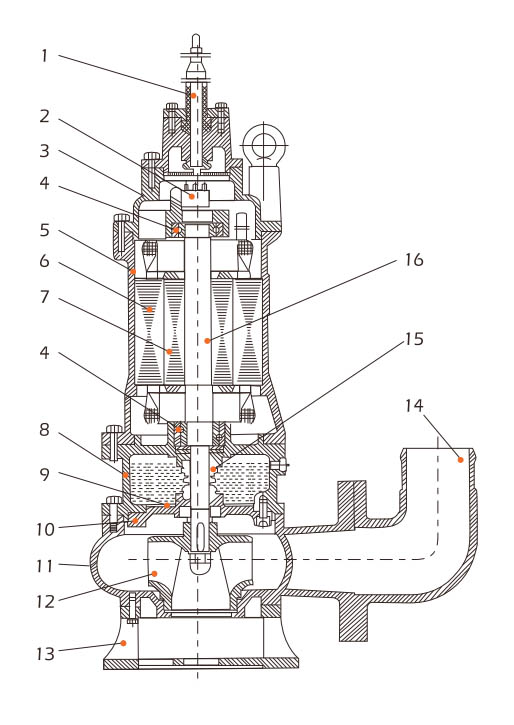

Raqamlar	Ism
1	Qanot
2	Elektr protektori
3	Rulman braketi
4	Aloqa
5	Ramkalar
6	Qattiq
7	Rotor
8	Yoqilg'i kamerasi

Raqamlar	Ism
9	Muhrning qavs
10	Kema
11	Nasos tanasi
12	G'ildirak
13	Oyoqlaringiz bilan turing
14	Tuproq adapteri
15	Mexanik muhr
16	Bu yerga

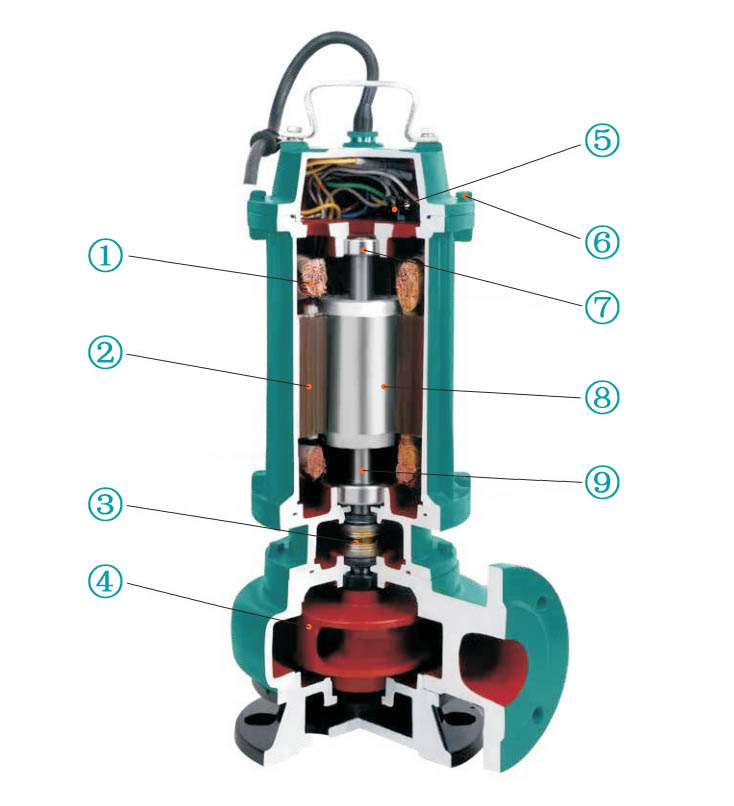

① 100% mis o'rash

② Yuqori sifatli sovuq prokatlangan silikon po'lat

③ Oqish 0, nasosning ishonchli ishlashini ta'minlash uchun yuqori sifatli silikon karbid + grafit mexanik muhr

④ SS 304 bilan yuqori sifatli quyma temir pervanel

⑤ Haddan tashqari yuklanishdan o'rnatilgan himoya + so'rov bo'yicha fazali o'chirishdan himoya ham taqdim etiladi

⑥ zanglamaydigan po'latdan so'rov bo'yicha taqdim etilishi mumkin

⑦ C& Us eng yuqori sifat, NSK, SKF

⑧ Yuqori aniqlikdagi rotorni qayta ishlash texnologiyasi

⑨ Yuqori sifatli po'lat mil 45 #, so'rov bo'yicha 2CR13 o'qi bo'yicha etkazib berilishi mumkin

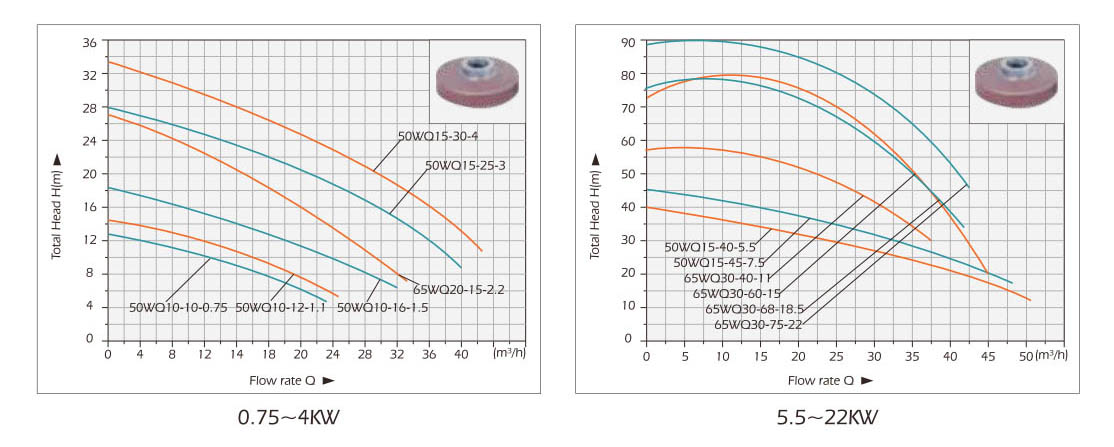

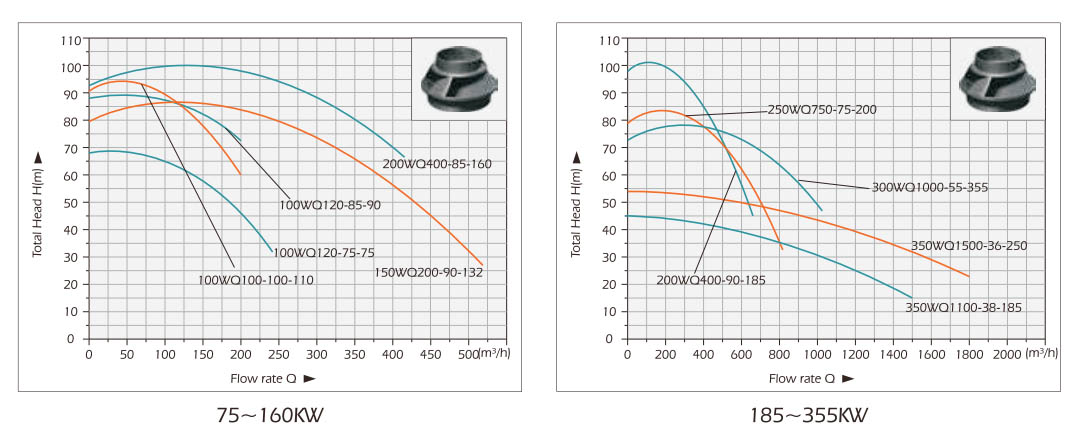

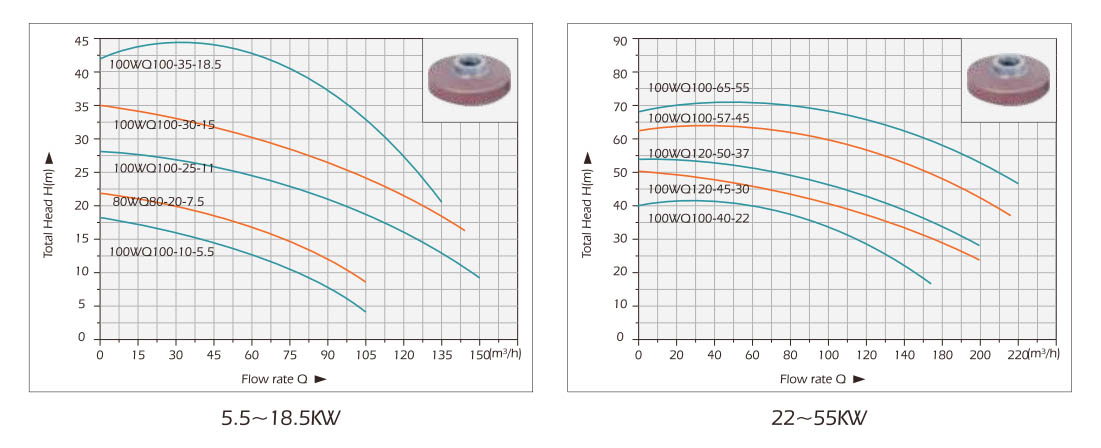

Hosildorlik egri chizig'i

Texnik jadvallar

Model	Nominal iste'mol	Nominal bosim	Quvvat		Kuchlanishi	Eksport	Tezlik	Paket hajmi
	(m³/soat)	(m)	(kVt)	(HP)	(V)	(mm)	(d/daq)	L×W×Y(sm)
50WQ(D)10-10-0,75A	10	10	0.75	1	380/220	50	2900	55×23×25
50WQ(D)7-15-1,1A	7	15	1.1	1.5	380/220	50	2900	55×23×25
50WQ(D)10-12-1,1A	10	12	1.5	2	380/220	50	2900	55×23×25
50WQ(D)10-15-1,5A	10	15	1.5	2	380/220	50	2900	55×23×25
25WQ(D)5-22-1.1	5	22	1.1	1.5	380/220	25	2900	57×23×27
32WQ (d) 6-20-1.1	6	20	1.1	1.5	380/220	32	2900	57×23×27
40WQ (d) 7-18-1.1	7	18	1.1	1.5	380/220	40	2900	57×23×27
50WQ(D)10-12-1.1	10	12	1.1	1.5	380/220	50	2900	57×23×27
65WQ (D) 15-1.1.1	15	9	1.1	1.5	380/220	65	2900	57×23×27
40WQ (d) 8-18-1,5	8	18	1.5	2	380/220	40	2900	60×25×28
50WO(D)10-16-1,5	10	16	1.5	2	380/220	50	2900	60×25×28
50WQ(D)15-15-1,5	15	15	1.5	2	380/220	50	2900	60×25×28
65WQ (D) 20-10-1,5	20	10	1.5	2	380/220	65	2900	60×25×28
80WQ (D) 40-7-1.5	40	7	1.5	2	380/220	80	2900	60×25×28
100WQ(D)50-5-1,5	50	5	1.5	2	380/220	100	2900	60×25×28
40WQ (d) 8-24-2.2	8	24	2.2	3	380/220	40	2900	62×25×28
50WQ(D)9-22-2.2	9	22	2.2	3	380/220	50	2900	62×25×28
50WQ(D)15-20-2.2	15	20	2.2	3	380/220	50	2900	62×25×28
65WQ (D) 20-15-2.2	20	15	2.2	3	380/220	65	2900	62×25×28
80WQ (D) 40-10-2.2	40	10	2.2	3	380/220	80	2900	62×25×28
100WQ(D)50-7-2.2	50	7	2.2	3	380/220	100	2900	62×25×28
50WQ15-25-3	15	25	3	4	380	50	2900	66×28×29
65WQ25-18-3	25	18	3	4	380	65	2900	66×28×29
65wq37-13-3	37	13	3	4	380	65	2900	66×28×29
80WQ45-12-3	45	12	3	4	380	80	2900	66×28×29
80WQ43-13-3	43	13	3	4	380	80	2900	66×28×29
100WQ60-9-3	60	9	3	4	380	100	2900	66×28×29
50WQ15-30-4	15	30	4	5.3	380	50	2900	71×30×32
65WQ25-25-4	25	25	4	5.3	380	65	2900	71×30×32
80WQ40-16-4	40	16	4	5.3	380	80	2900	71×30×32
100WQ60-12-4	60	12	4	5.3	380	100	2900	71×30×32
100WQ80-10-4	80	10	4	5.3	380	100	2900	71×30×32
50WQ20-35-5.5	20	35	5.5	7.3	380	50	2900	71×30×32
65WQ25-30-5.5	25	30	5.5	7.3	380	65	2900	77×31×35
80WQ40-22-5.5	40	22	5.5	7.3	380	80	2900	77×31×35
100WQ60-18-5.5	60	18	5.5	7.3	380	100	2900	77×31×35
150WQ120-8-5.5	120	8	5.5	7.3	380	150	2900	77×31×35

Model	Nominal iste'mol	Nominal bosim	Quvvat		Kuchlanishi	Eksport	Tezlik	Paket hajmi
	(m³/soat)	(m)	(kVt)	(HP)	(V)	(mm)	(d/daq)	L×W×Y(sm)
50WQ20-42-7.5	20	42	7.5	10	380	50	2900	84×34×44
65WQ25-36-7.5	25	36	7.5	10	380	65	2900	84×34×44
80WQ40-28-7.5	40	28	7.5	10	380	80	2900	84×34×44
100WQ65-22-7.5	65	22	7.5	10	380	100	2900	84×34×44
150WQ120-10-7.5	120	10	7.5	10	380	150	2900	87×36×44
65WQ30-40-11	30	40	11	14.7	380	65	2900	38×42×100
80WQ60-30-11	60	30	11	14.7	380	80	2900	38×42×100
100WQ80-25-11	80	25	11	14.7	380	100	2900	38×42×100
150WQ100-20-11	100	20	11	14.7	380	150	2900	40×45×105
150WQ120-15-11	120	15	11	14.7	380	150	2900	40×45×105
200WQ180-11-11	180	11	11	14.7	380	200	2900	40×45×105
50WQ20-70-15	20	70	15	20	380	50	2900	38×42×100
65WQ30-60-15	30	60	15	20	380	65	2900	38×42×100
80WQ60-40-15	60	40	15	20	380	80	2900	38×42×100
100WQ80-35-15	80	35	15	20	380	100	2900	38×42×100
150WQ100-30-15	100	30	15	20	380	150	2900	40×45×105
150WQ120-25-15	120	25	15	20	380	150	2900	40×45×105
200WQ180-15-15	180	15	15	20	380	200	2900	40×45×105
50WQ20-80-18.5	20	80	18.5	24.7	380	50	2900	40×45×120
65WQ30-68-18.5	30	68	18.5	24.7	380	65	2900	40×45×120
80WQ60-45-18.5	60	45	18.5	24.7	380	80	2900	40×45×120
100WQ80-40-18.5	80	40	18.5	24.7	380	100	2900	40×45×120
150WQ100-36-18.5	100	36	18.5	24.7	380	150	2900	40×45×120
200WQ180-18-18.5	180	18	18.5	24.7	380	200	2900	40×45×120
50WQ20-90-22	20	90	22	29.3	380	50	2900	40×45×120
65WQ30-75-22	30	75	22	29.3	380	65	2900	40×45×120
80WQ60-50-22	60	50	22	29.3	380	80	2900	40×45×120
100WQ80-45-22	80	45	22	29.3	380	100	2900	40×45×120
150WQ100-40-22	100	40	22	29.3	380	150	2900	40×45×120
200WQ200-20-22	200	20	22	29.3	380	200	2900	40×45×120
100WQ110-10-5.5	110	10	5.5	7.3	380	100	1450	47×40×98
150WQ150-7-5.5	150	7	5.5	7.3	380	150	1450	47×40×98
80WQ80-20-7.5	80	20	7.5	10	380	80	1450	52×46×103
100WQ100-15-7.5	100	15	7.5	10	380	100	1450	52×46×103
150WQ145-9-7.5	145	9	7.5	10	380	150	1450	52×46×103
200WQ250-6-7.5	250	6	7.5	10	380	200	1450	52×46×103
100WQ100-25-11	100	25	11	14.7	380	100	1450	53×44×110

Model	Nominal iste'mol	Nominal bosim	Quvvat		Kuchlanishi	Eksport	Tezlik	Paket hajmi
	(m³/soat)	(m)	(kVt)	(HP)	(V)	(mm)	(d/daq)	L×W×Y(sm)
150WQ180-11-11	180	11	11	14.7	380	150	1450	53×44×110
200WQ300-7-11	300	7	11	14.7	380	200	1450	53×44×110
250WQ400-5-11	400	5	11	14.7	380	250	1450	64×60×120
100WQ100-30-15	100	30	15	20	380	100	1450	53×44×110
150WQ200-15-15	200	15	15	20	380	150	1450	53×44×110
200WQ250-11-15	250	11	15	20	380	200	1450	53×44×110
250WQ500-5-15	500	5	15	20	380	250	1450	64×60×120
100WQ100-35-18.5	100	35	18.5	24.7	380	100	1450	61×49×140
150WQ180-20-18.5	180	20	18.5	24.7	380	150	1450	61×49×140
200WQ250-15-18.5	250	15	18.5	24.7	380	200	1450	61×49×140
200WQ350-10-18.5	350	10	18.5	24.7	380	200	1450	61×49×140
250WQ500-7-18.5	500	7	18.5	24.7	380	250	1450	66×60×145
300WQ650-5-18.5	650	5	18.5	24.7	380	300	1450	74×70×145
100WQ100-40-22	100	40	22	29.3	380	100	1450	61×49×140
150WQ200-22-22	200	22	22	29.3	380	150	1450	61×49×140
200WQ300-16-22	300	16	22	29.3	380	200	1450	61×49×140
200WQ400-10-22	400	10	22	29.3	380	200	1450	61×49×140
250WQ500-9-22	500	9	22	29.3	380	250	1450	66×60×145
300WQ650-7-22	650	7	22	29.3	380	300	1450	74×70×145
100WQ120-45-30	120	45	30	40	380	100	1450	70×58×150
150WQ180-30-30	180	30	30	40	380	150	1450	70×58×150
200WQ250-22-30	250	22	30	40	380	200	1450	70×58×150
250WQ500-12-30	500	12	30	40	380	250	1450	80×70×150
250WQ600-9-30	600	9	30	40	380	250	1450	80×70×150
300WQ800-7-30	800	7	30	40	380	300	1450	80×70×150
300WQ1000-6-30	1000	6	30	40	380	300	1450	80×70×150
350WQ1500-4-30	1500	4	30	40	380	350	1450	80×70×150
100WQ120-50-37	120	50	37	49.5	380	100	1450	70×58×160
150WQ200-35-37	200	35	37	49.5	380	150	1450	70×58×160
200WQ300-28-37	300	28	37	49.5	380	200	1450	70×58×160
200WQ350-25-37	350	25	37	49.5	380	200	1450	70×58×160
250WQ600-12-37	600	12	37	49.5	380	250	1450	80×67×160
300WQ800-9-37	800	9	37	49.5	380	300	1450	80×67×160
350WQ1000-6-37	1000	6	37	49.5	380	350	1450	87×79×165
350WQ1100-6-37	1100	6	37	49.5	380	350	980	97×87×165
400WQ1300-5-37	1300	5	37	49.5	380	400	980	97×87×165
100WQ100-57-45	100	57	45	60	380	100	1450	70×58×170

Model	Nominal iste'mol	Nominal bosim	Quvvat		Kuchlanishi	Eksport	Tezlik	Paket hajmi
	(m³/soat)	(m)	(kVt)	(HP)	(V)	(mm)	(d/daq)	L×W×Y(sm)
150WQ200-40-45	200	40	45	60	380	150	1450	70×58×170
200WQ300-32-45	300	32	45	60	380	200	1450	70×58×170
200WQ400-25-45	400	25	45	60	380	200	1450	70×58×170
250WQ600-15-45	600	15	45	60	380	250	1450	80×67×170
300WQ800-12-45	800	12	45	60	380	300	1450	80×67×170
350WQ1200-8-45	1200	8	45	60	380	350	1450	87×79×175
350WQ1300-8-45	1300	8	45	60	380	350	980	87×79×175
400WQ1700-6-45	1700	6	45	60	380	400	980	97×87×175
150WQ180-50-55	180	50	55	73.5	380	150	1450	70×58×175
200WQ300-40-55	300	40	55	73.5	380	200	1450	70×58×175
200WQ400-30-55	400	30	55	73.5	380	200	1450	70×58×175
250WQ600-20-55	600	20	55	73.5	380	250	1450	80×67×175
300WQ800-15-55	800	15	55	73.5	380	300	1450	80×67×175
350WQ1000-10-55	1000	10	55	73.5	380	350	1450	87×79×180
350WQ1100-10-55	1100	10	55	73.5	380	350	980	87×79×180
400WQ1300-8-55	1300	8	55	73.5	380	400	1450	/
400WQ1500-8-55	1500	8	55	73.5	380	400	980	/
500WQ2200-5-55	2200	5	55	73.5	380	500	980	/
100WQ120-75-75	120	75	75	100	380	100	1450	80×72×170
150WQ200-60-75	200	60	75	100	380	150	1450	82×67×180
200WQ350-45-75	350	45	75	100	380	200	1450	82×67×180
250WQ600-25-75	600	25	75	100	380	250	1450	87×72×180
300WQ800-20-75	800	20	75	100	380	300	1450	80×70×180
350WQ1000-15-75	1000	15	75	100	380	350	1450	97×87×190
350WQ1500-12-75	1500	12	75	100	380	350	980	97×87×190
400WQ1300-13-75	1300	13	75	100	380	400	1450	97×92×190
400WQ1700-10-75	1700	10	75	100	380	400	980	97×92×190
500WQ2000-8-75	2000	8	75	100	380	500	980	124×107×200
500WQ2700-6-75	2700	6	75	100	380	500	740	124×107×200
100WQ120-85-90	120	85	90	120	380	100	1450	80×72×180
150WQ200-70-90	200	70	90	120	380	150	1450	77×67×190
200WQ300-60-90	300	60	90	120	380	200	1450	77×67×190
200WQ400-50-90	400	50	90	120	380	200	1450	77×67×190
250WQ600-30-90	600	30	90	120	380	250	1450	87×72×190
300WQ800-25-90	800	25	90	120	380	300	1450	80×70×190
350WQ1000-18-90	1000	18	90	120	380	350	1450	97×87×200
350WQ1200-18-90	1200	18	90	120	380	350	980	105×102×210

Model	Nominal iste'mol	Nominal bosim	Quvvat		Kuchlanishi	Eksport	Tezlik	Paket hajmi
	(m³/soat)	(m)	(kVt)	(HP)	(V)	(mm)	(d/daq)	L×W×Y(sm)
400WQ1300-16-90	1300	16	90	120	380	400	1450	97×92×200
400WQ1500-15-90	1500	15	90	120	380	400	980	97×92×200
500WQ2000-10-90	2000	10	90	120	380	500	980	/
500WQ2500-8-90	2500	8	90	120	380	500	740	/
600WQ3000-6-90	3000	6	90	120	380	500	740	/
100WQ100-100-110	100	100	110	147	380	100	1450	/
150WQ180-80-110	180	80	110	147	380	150	1450	/
200WQ300-65-110	300	65	110	147	380	200	1450	/
250WQ600-40-110	600	40	110	147	380	250	1450	82×77×205
300WQ1000-25-110	1000	25	110	147	380	300	1450	80×67×197
350WQ1300-20-110	1300	20	110	147	380	350	1450	/
350WQ1600-16-110	1600	16	110	147	380	350	980	/
400WQ1500-17-110	1500	17	110	147	380	400	1450	/
400WQ1800-15-110	1800	15	110	147	380	400	980	/
500WQ2500-10-110	2500	10	110	147	380	500	980	/
500WQ3000-8-110	3000	8	110	147	380	500	740	/
600WQ3200-7-110	3200	7	110	147	380	600	980	/
600WQ3800-6-110	3800	6	110	147	380	600	740	/
200WQ400-75-132	400	75	132	176	380	200	1450	/
250WQ600-50-132	600	50	132	176	380	250	1450	/
300WQ800-36-132	800	36	132	176	380	300	1450	/
350WQ1100-28-132	1100	28	132	176	380	350	1450	/
350WQ1500-20-132	1500	20	132	176	380	350	980	/
400WQ1700-16-132	1700	16	132	176	380	400	1450	/
400WQ2000-15-132	2000	15	132	176	380	400	980	/
500WQ2800-10-132	2800	10	132	176	380	500	980	/
500WQ3100-10-132	3100	10	132	176	380	500	740	/
600WQ3700-8-132	3700	8	132	176	380	600	980	/
600WQ4000-8-132	4000	8	132	176	380	600	740	/
150WQ220-100-160	220	100	160	214	380	150	1450	/
200WQ400-85-160	400	85	160	214	380	200	1450	/
250WQ600-60-160	600	60	160	214	380	250	1450	/
300WQ800-40-160	800	40	160	214	380	300	1450	/
350WQ1000-35-160	1000	35	160	214	380	350	1450	/
350WQ1200-35-160	1200	35	160	214	380	350	980	/
400WQ1600-20-160	1600	20	160	214	380	400	1450	/

Model	Nominal iste'mol	Nominal bosim	Quvvat		Kuchlanishi	Eksport	Tezlik
	(m³/soat)	(m)	(kVt)	(HP)	(V)	(mm)	(d/daq)
400WQ1600-22-160	1600	22	160	214	380	400	980
500WQ2600-16-160	2600	16	160	214	380	500	980
500WQ3000-14-160	3000	14	160	214	380	500	740
600WQ3700-10-160	3700	10	160	214	380	600	980
600WQ4000-10-160	4000	10	160	214	380	600	740
150WQ200-110-185	200	110	185	247	380	150	1450
200WQ400-90-185	400	90	185	247	380	200	1450
250WQ600-70-185	600	70	185	247	380	250	1450
300WQ900-40-185	900	40	185	247	380	300	1450
350WQ1100-38-185	1100	38	185	247	380	350	1450
400WQ1600-25-185	1600	25	185	247	380	400	1450
400WQ2000-20-185	2000	20	185	247	380	400	980
500WQ3000-15-185	3000	15	185	247	380	500	980
600WQ3700-12-185	3700	12	185	247	380	600	980
250WQ750-75-200	750	75	200	267	380	250	1450
300WQ1000-45-200	1000	45	200	267	380	300	1450
350WQ1300-35-200	1300	35	200	267	380	300	1450
400WQ1500-30-200	1500	30	200	267	380	400	1450
400WQ2300-22-200	2300	22	200	267	380	400	980
500WQ3500-15-200	3500	15	200	267	380	500	980
600WQ4500-12-200	4500	12	200	267	380	600	980
300WQ1200-45-250	1200	45	250	333	380	300	1450
350WQ1500-36-250	1500	36	250	333	380	350	1450
400WQ1800-30-250	1800	30	250	333	380	400	1450
400WQ2200-28-250	2200	28	250	333	380	400	980
500WQ3000-21-250	3000	21	250	333	380	500	980
600WQ4000-18-250	4000	18	250	333	380	600	980
300WQ1000-55-315	1000	55	315	420	380	300	1450
350WQ1500-45-315	1500	45	315	420	380	350	1450
400WQ2000-36-315	2000	36	315	420	380	400	1450
500WQ3500-25-315	3500	25	315	420	380	500	980
600WQ4500-20-315	4500	20	315	420	380	600	980
500WQ3000-35-400	3000	35	400	533	380	500	980
600WQ5000-22-400	5000	22	400	533	380	600	980
500WQ4000-32-550	4000	32	550	733	380	500	980
600WQ5500-25-550	5500	25	550	733	380	600	980

Hot Tags: WQ quyma temir kanalizatsiya nasosi, Xitoy, ishlab chiqaruvchi, yetkazib beruvchi, zavod, moslashtirilgan, sifat, so'nggi sotuvlar, stokda, brendlar, Idoralar, Taizhou
