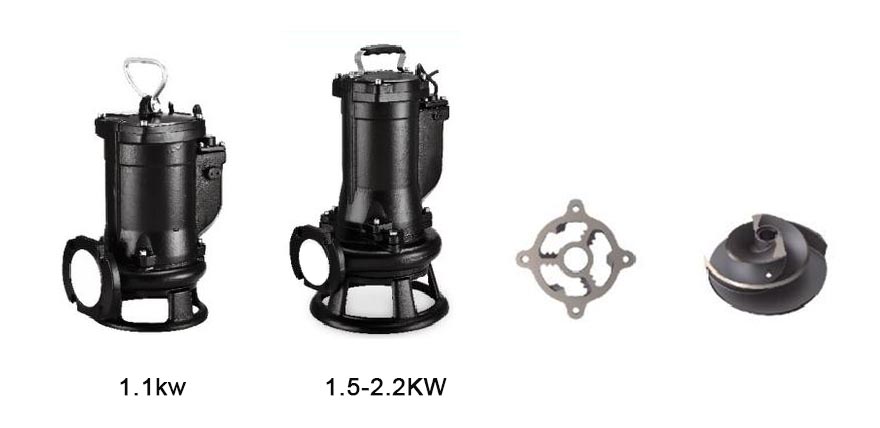

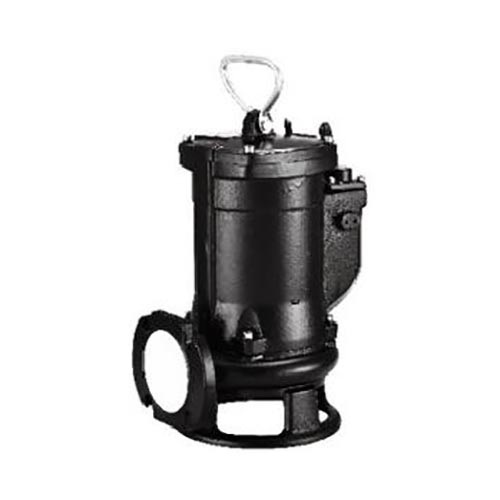

WQGT silliqlash mashinasi quyma temir kanalizatsiya nasosi kimyo sanoati, neft sanoati, farmatsevtika sanoati, tog'-kon sanoati, qog'oz sanoati, tsement zavodlari, po'lat fabrikalari, elektr stantsiyalari, ko'mirni qayta ishlash sanoati, shahar kanalizatsiya tozalash tizimlari, shahar qurilishi, qurilish maydonchalari va boshqa sohalar uchun javob beradi. U zarrachalar va toza suvni o'z ichiga olgan oqava suvlarni pompalay oladi. Maksimal qattiq o'tish o'lchami 32 mm bo'lganligi sababli, nasos katta zarracha diametrli axloqsizlik va qoldiqlarni ishlay oladi, bu uni oqava suvlarni tashish va tushirish uchun mos qiladi. Chiqindilarni quyishda nasos quyuqlashtirilgan taglik bilan jihozlangan bo'lib, u katta suvni qayta ishlash quvvatiga ega va turli kanalizatsiya tizimlarida ishlatilishi mumkin; toza suvni quyishda filtrlash yaxshi va xizmat muddati uzoq.
| 50 | WQGT | 10 | 10 | 0.75 |
| Chiqish hajmi Chiqish hajmi (mm) |
Nasos turi Nasos turi |
Reyting. Oqim Nominal oqim (m²/soat) |
Nominal bosh Nominal bosh (m) |
Quvvat Quvvat (kVt) |
| Quvvat | 0,75-2,2 kVt |
| Polyaklar/Polonyalar | 2 |
| Kalibr / tushirish | DN50-80 |
| Maks. Oqim/maksimal oqim tezligi | 56 m³/soat |
| Maks.bosim/Maks bosh | 28 m |
| Turi Turi |

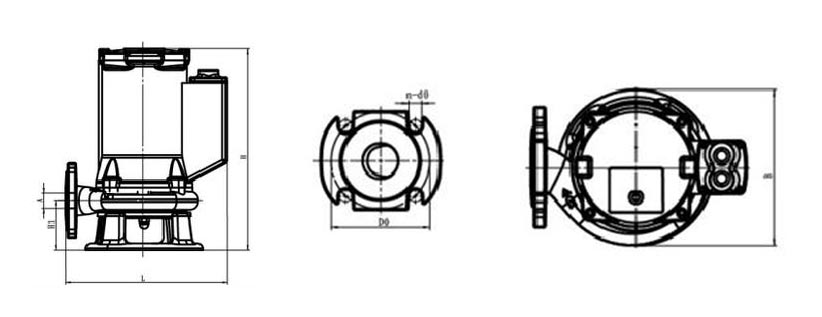

Kalibr A (mm) |
L (mm) | L1 (mm) | B (mm) | H (mm) | H1 (mm) | H2 (mm) | D0 (mm) | n-d0 (mm) |
| 50WQGT10-10-0,75 | 40 | 245 | 175 | 305 | 74 | 110 | 15 | ||
| 50WQGT12-10-1.1 | 40 | 245 | 175 | 305 | 74 | 110 | 5 | ||
| 50WQGT12-15-1.5 | 50 | 435 | 240 | 435 | 122 | 110 | 15 | ||
| 50WQGT10-20-2.2 | 50 | 450 | 270 | 450 | 128 | 110 | 15 | ||
| 65WQGT25-15-2.2 | 65 | 450 | 270 | 500 | 128 | 130 | 15 | ||
| 80WQGT35-10-2.2 | 80 | 450 | 270 | 500 | 128 | 150 | 15 |
| TYPE Turi |
Kuchlanishi (V) |
Quvvat | Chiqish | Zarrachalar hajmini o'tkazib yuboring Zarrachalar hajmini o'tkazib yuborish (mm) |
Reyting. Oqim Q.nominal (m³/soat) |
Maks. Harakat H.maks (m) |
Maks. Oqim Q.maks (m³/soat) |
Maks. Harakat H.maks (m) |
Og'irligi G.V. (kg) |
Posilka hajmi Posilka hajmi (sm) |
||
| (KVt) | (HP) | (dyuym) | (mm) | |||||||||
| 50WQGTD10-10-0,75 | 1Ph/220V | 0.75 | 1 | 2" | 50 | 20 | 10 | 10 | 20 | 14.7 | 31×19×34 | |
| 50WQGT10-10-0,75 | 3Ph/380V | 0.75 | 1 | 2" | 50 | 20 | 10 | 10 | 20 | 14.7 | ||
| 50WQGTD10-12-1.1 | 1Ph/220V | 1.1 | 1.5 | 2" | 50 | 20 | 10 | 12 | 22.5 | 16.4 | 23 | |
| 50WQGT10-12-1.1 | 3Ph/380V | 1.1 | 1.5 | 2" | 50 | 20 | 10 | 12 | 22.5 | 16.4 | 23 | |
| 50WQGTD12-15-1.5 | 1Ph/220V | 1.5 | 2 | 2" | 50 | 20 | 12 | 15 | 33.5 | 19.1 | 35 | 51×29×24,5 |
| 50WQGT12-15-1.5 | 3Ph/380V | 1.5 | 2 | 2" | 50 | 20 | 12 | 15 | 33.5 | 19.1 | 35 | |
| 65WQGTD25-10-1.5 | 1Ph/220V | 1.5 | 2 | 2,5" | 65 | 26 | 25 | 10 | 35 | 18.5 | 35 | |
| 65WQGT25-10-1.5 | 3Ph/380V | 1.5 | 2 | 2,5" | 65 | 26 | 25 | 10 | 35 | 18.5 | 35 | |
| 50WQGTD10-20-2.2 | 1Ph/220V | 2.2 | 3 | 2" | 50 | 20 | 10 | 20 | 32.7 | 28 | 41 | 53,5×31×27 |
| 50GNWO10-20-2.2 | 3Ph/380V | 2.2 | 3 | 2" | 50 | 20 | 10 | 20 | 32.7 | 28 | 41 | |
| 65WQGT25-15-2.2 | 3Ph/380V | 2.2 | 3 | 2,5” | 65 | 26 | 25 | 15 | 27 | 27.1 | 41 | |
| 80WQGT35-10-2.2 | 3Ph/380V | 2.2 | 3 | 3" | 80 | 32 | 35 | 10 | 56 | 26 | 43 | |
