Mahsulot tavsifi

KO'RSATMALAR

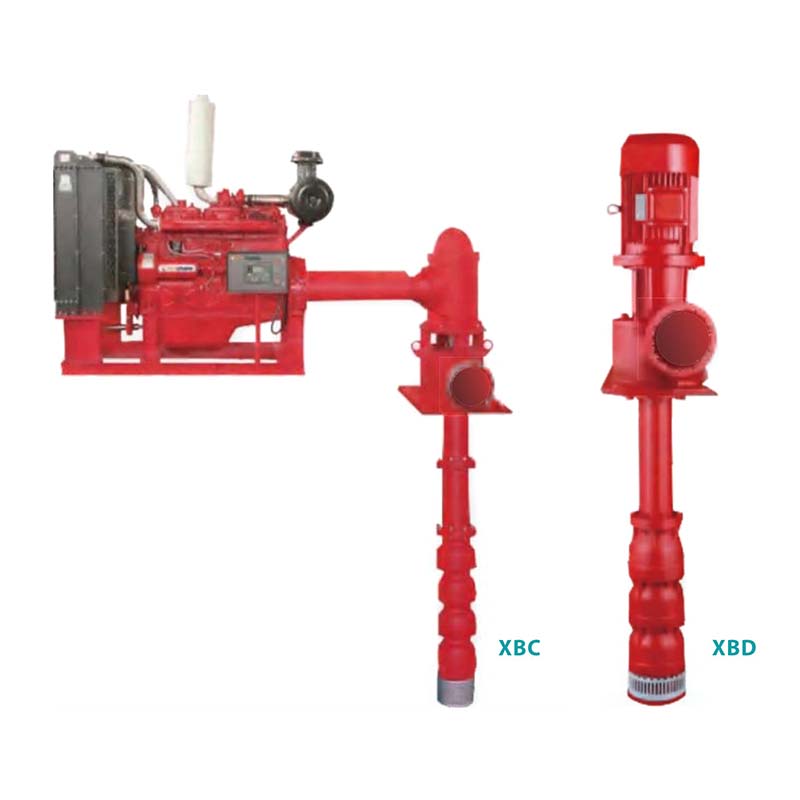

Yuqori sifatli ZEN XBD uzun milyali vertikal turbinali yong'in pompasi uch qismdan iborat: ishchi qism, sanitariya-tesisat qismi va sirt qismi.

1. Ishchi qism

Bu qism ishchi komponentlar va suv filtri qismlaridan iborat. Ishchi komponentlar hidoyat korpusi, pervanel, konusli vtulka, toymasin podshipnik, pervanel mili va boshqa qismlardan iborat. Pervanel yopiq strukturadir. Korpuslar murvat bilan bog'langan. Qo'llanma korpusi va pervanelga kompensatsion halqalarni o'rnatish mumkin.

2. Santexnika qismi

Bu qism suv quvurlari, qo'zg'aysan vallar, muftalar va qavslardan iborat. Suv trubkasi gardish bilan bog'langan va transmisyon mili 2Cr13 po'latdan yoki zanglamaydigan po'latdan yasalgan.

3. Yuzaki qism

Nasos bazasi komponentlari, dvigatel, vosita braketi, mufta va boshqa qismlardan iborat.

ILOVA

Uzun valli XBD vertikal turbinali yong'in pompasi asosan sanoat va tog'-kon sanoati korxonalarida, muhandislik inshootlarida, ko'p qavatli binolarda, shuningdek, shahar suv ta'minoti va drenajlarida yong'in gidrantlari, avtomatik purkagichli yong'in o'chirish va boshqa yong'in o'chirish tizimlaridan foydalangan holda yong'inni o'chirish uchun ishlatiladi.

QO'LLANISH SHARTLARI

1. Qoida tariqasida, toza, agressiv bo'lmagan suv.

2. Suvdagi qattiq moddalar miqdori (og'irlik bo'yicha) 0,01% dan ko'p emas.

3. 6,5-8,5 oralig'ida pH qiymati.

4. Vodorod sulfidi miqdori 1,5 mg/l dan oshmaydi.

5. Suv harorati 40 ° C dan oshmasligi kerak.

MA'LUMOTLAR ARASASI

OQIM tezligi: 5–110 (l/s)

BOSHI: 32–200 (m)

Quvvat: 3–200 (kVt)

Ishlash tezligi: 3000 rpm

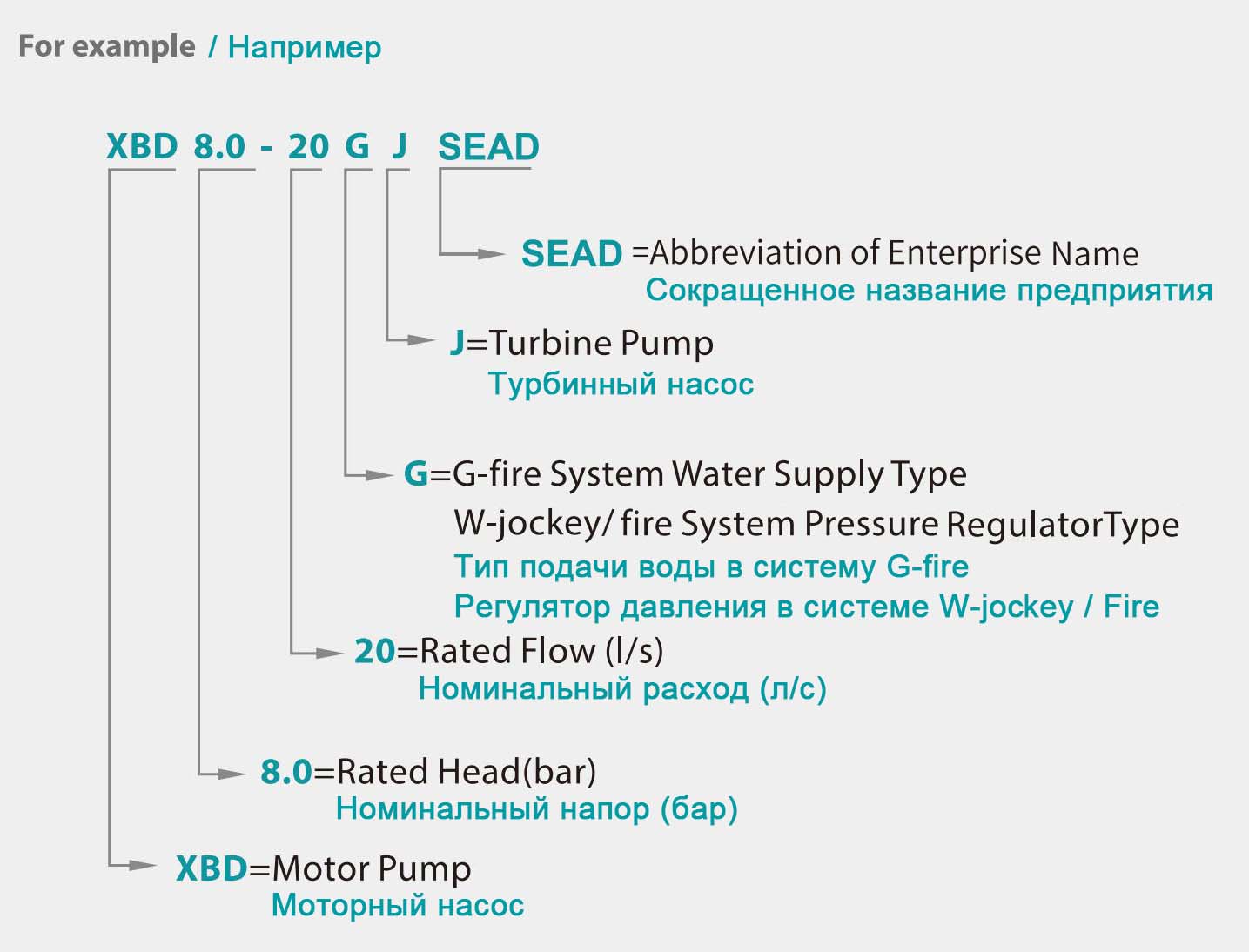

KOD MODELLARI

KO'RSATMALAR

Turbinali yong'in pompasi uch qismdan iborat: ishchi qism, suv ta'minoti qismi va sirt qismi.

1. Ishchi qism

Bu qism ishchi qismlardan va suv filtri qismlaridan iborat. Ishchi qismlar yo'naltiruvchi korpus, pervanel, konusli vtulka, tekis podshipnik, pervanel vali va boshqa qismlardan iborat. Pervanel yopiq strukturadir. Korpuslar murvat bilan bog'langan. Qo'llanma korpusi va pervanelga kompensatsiya halqalari o'rnatilishi mumkin.

2. Santexnika qismi

Bu qism suv quvurlari, qo'zg'aysan vallar, muftalar va braket qismlaridan iborat.

Suv ta'minoti bo'limi gardish bilan bog'langan va transmisyon mili materiali 2Cr13 yoki zanglamaydigan po'latdir.

3. Yuzaki qism

Bu qism nasos bazasi, dvigatel, vosita braketi, mufta va boshqa qismlardan iborat.

QO'LLANISH SHARTLARI

1. Qoida tariqasida, toza, agressiv bo'lmagan suv.

2. Suvdagi qattiq moddalar miqdori (massa bo'yicha) - 0,01% dan ko'p emas.

3. PH qiymati - 6,5-8,5 oralig'ida.

4. Vodorod sulfidi miqdori - 1,5 mg / l dan oshmasligi kerak.

5. Suv harorati 40 ° C dan oshmasligi kerak.

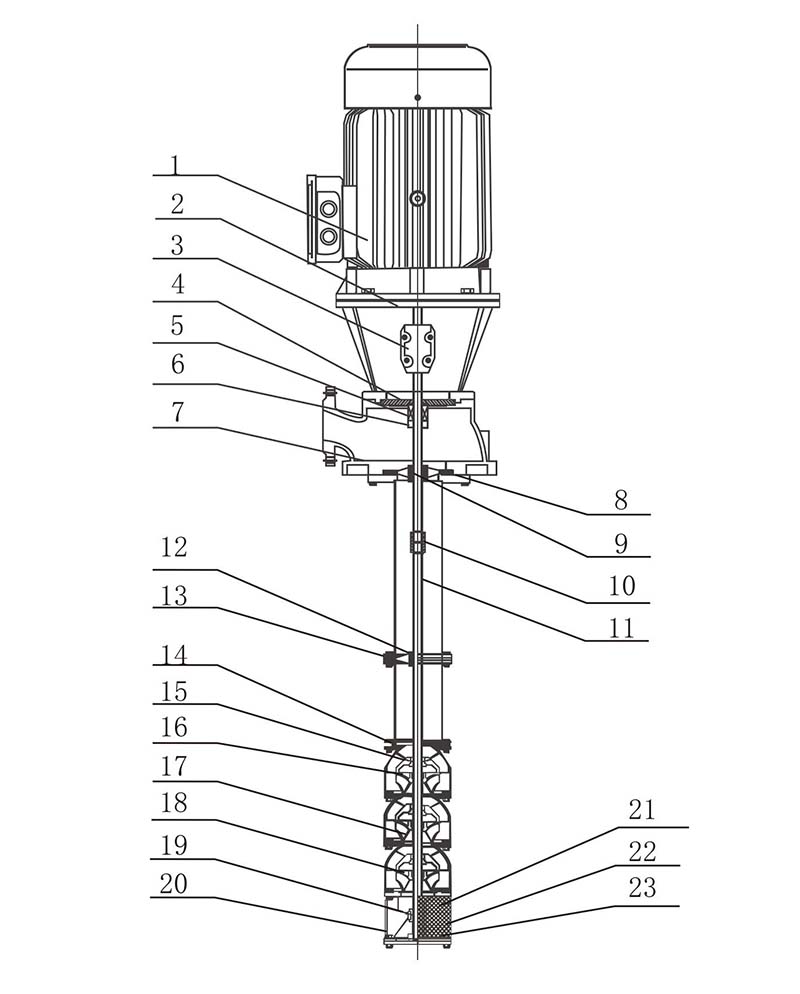

№	ELEMENT	Material
1	Dvigatel	YIG'LASH
2	Dvigatel moslamasi	QT400-18
3	ulash	ZG235-150
4	Qopqoqni yopish	QT100-18
5	Mexanik muhr	KARBON-SIC-NBR
6	Muhr ushlagich	ZG235-450
7	Chiqish trubkasi	QT400-18
8	Chiqish trubkasi	QT400-18
9	Qo'llab-quvvatlash mili	COTTO NIRON
10	ulash	ZG235-150
11	Mil	20CR13
12	Yordamchi podshipnik	COTTO NIRON
13	Qavs	QT100-18
14	Yuqori idish	QT100-18
15	PRulmanli stakan	KAZINA
16	Kubok	20CR13
17	Pervane	06CR19N110
18	O'rta idish	QT400-18
19	Rulman	KAZINA
20	So'rish qo'ng'irog'i	QT100-18
21	Filtr	O6CR19NI10
22	Bosim diski	20CR13
23	Old yuklama plitasi	TEFLON ARAMASI

TEXNIK MA'LUMOTLAR

Raqam	Turi	Nominal oqim (L/S)	Harakat (m)	Quvvat (kVt)	Tezlik (d/daq)	Kalibr (mm)	Maksimal ish bosimi (≤Mpa)	Nominal oqim bosimining 150% (≥Mpa)
1	XBD4.0/1WJ-SEAD	1	40	3	3000	50	0.560	0.260
2	XBD5.0/1WJ-SEAD	1	50	4	3000	50	0.700	0.325
3	XBD6.0/1WJ-SEAD	1	60	4	3000	50	0.840	0.390
4	XBD7.0/1WJ-SEAD	1	70	5.5	3000	50	0.980	0.455
5	XBD8.0/1WJ-SEAD	1	80	7.5	3000	50	1.120	0.520
6	XBD9.0/1WJ-SEAD	1	90	7.5	3000	50	1.260	0.585
7	XBD10.0/1WJ QURILMA	1	100	11	3000	50	1.400	0.650
8	XBD11.0/1WJ QURILMA	1	110	11	3000	50	1.540	0.715
9	XBD12.0/1WJ-SEAD	1	120	11	3000	50	1.680	0.780
10	XBD13.0/1WJ-SEAD	1	130	11	3000	50	1.820	0.815
11	XBD14.0/1WJ QURILMA	1	140	15	3000	50	1.960	0.910
12	XBD15.0/1WJ-SEAD	1	150	15	3000	50	2.100	0.975
13	XBD16.0/1WJ-SEAD	1	160	15	3000	50	2.240	1.040
14	XBD16.8.0/1WJ-SEAD	1	168	3	3000	50	2.352	1.092
15	XBD4.0/3WJ-SEAD	3	40	4	3000	50	0.560	0.260
16	XBD5.0/3WJ-SEAD	3	50	5.5	3000	50	0.700	0.325
17	XBD6.0/3WJ QURILMA	3	60	7.5	3000	50	0.840	0.390
18	XBD7.0/3WJ-SEAD	3	70	7.5	3000	50	0.980	0.455
19	XBD8.0/3WJ-SEAD	3	80	7.5	3000	50	1.120	0.520
20	XBD9.0/3WJ-SEAD	3	90	7.5	3000	50	1.260	0.585
21	XBD10.0/3WJ-SEAD	3	100	11	3000	50	1.400	0.650
22	XBD11.0/3WJ-SEAD	3	110	11	3000	50	1.540	0.715
23	XBD12.0/3WJ-SEAD	3	120	11	3000	50	1.680	0.780
24	XBD13.0/3WJ-SEAD	3	130	11	3000	50	1.820	0.815
25	XBD14.0/3WJ-SEAD	3	140	15	3000	50	1.960	0.90
26	XBD15.0/3WJ-SEAD	3	150	15	3000	50	2.100	0.975
27	XBD16.0/3WJ-SEAD	3	160	15	3000	50	2.240	1.040
28	XBD16.8/3WJ-SEAD	3	168	15	3000	50	2.352	1.092
29	XBD4.0/5WJ-SEAD	5	40	4	3000	50	0.560	0.260
30	XBD5.0/5WJ-SEAD	5	50	5.5	3000	50	0.700	0.325
31	XBD6.0/5WJ-SEAD	5	60	7.5	3000	50	0.840	0.390
32	XBD7.0/5WJ-SEAD	5	70	7.5	3000	50	0.980	0.455
33	XBD8.0/5WJ QURILMA	5	80	11	3000	50	1.120	0.520
34	XBD9.0/5WJ QURILMA	5	90	11	3000	50	1.260	0.585
35	XBD10.0/5WJ QURILMA	5	100	11	3000	50	1.400	0.650
36	XBD11.0/5WJ QURILMA	5	110	15	3000	50	1.540	0.780
37	XBD12.0/5WJ-SEAD	5	120	15	3000	50	1.680	0.845

Raqam	Turi	Nominal oqim (L/S)	Harakat (m)	Quvvat (kVt)	Tezlik (d/daq)	Kalibr (mm)	Maksimal ish bosimi (≤Mpa)	Nominal oqim bosimining 150% (≥Mpa)
38	XBD13.0/5WJ-SEAD	5	130	15	3000	50	1.820	0.845
39	XBD14.0/5WJ-SEAD	5	140	15	3000	50	1.960	0.910
40	XBD15.0/5WJ-SEAD	5	150	18.5	3000	50	2.100	0.975
41	XBD16.0/5WJ-SEAD	5	160	18.5	3000	50	2.240	1.040
42	XBD16.8/5WJ-SEAD	5	168	30	3000	50	2.352	1.092
43	XBD3.3/5GJ-SEAD	5	33	3	3000	50	0.462	0.215
44	XBD4.0/5GJ QURILMA	5	40	4	3000	50	0.560	0.260
45	XBD6.0/5GJ QURILMA	5	60	5.5	3000	50	0.840	0.390
46	XBD8.0/5GJ QURILMA	5	80	7.5	3000	50	1.120	0.520
47	XBD10.0/5GJ-SEAD	5	100	11	3000	50	1.400	0.650
48	XBD12.0/5GJ QURILMA	5	120	15	3000	50	1.680	0.780
49	XBD14.0/5GJ-SEAD	5	140	15	3000	50	1.960	0.910
50	XBD16.3/5GJ QURILMA	5	163	18.5	3000	50	2.282	1.060
51	XBD3.2/10GJ-SEAD	10	32	5.5	3000	80	0.448	0.208
52	XBD4.2/10GJ-SEAD	10	42	7.5	3000	80	0.588	0.273
53	XBD5.0/10GJ-SEAD	10	50	11	3000	80	0.700	0.325
54	XBD6.0/10GJ-SEAD	10	60	15	3000	80	0.840	0.390
55	XBD8.4/10GJ-SEAD	10	84	15	3000	80	1.176	0.546
56	XBD9.6/10GJ-SEAD	10	96	18.5	3000	80	1.344	0.624
57	XBD10.0/10GJ QURILMA	10	100	18.5	3000	80	1.400	0.650
58	XBD11.0/10GJ-SEAD	10	110	18.5	3000	80	1.540	0.715
59	XBD12.0/10GJ-SEAD	10	120	22	3000	80	1.680	0.780
60	XBD13.0/10GJ-SEAD	10	130	22	3000	80	1.820	0.845
61	XBD14.4/10GJ-SEAD	10	144	30	3000	80	2.016	0.936
62	XBD15.6/10GJ-SEAD	10	156	30	3000	80	2.184	1.014
63	XBD17.0/10GJ-SEAD	10	170	37	3000	80	2.380	1.105
64	XBD18.0/10GJ-SEAD	10	180	37	3000	80	2.520	1.170
65	XBD3.6/15GJ-SEAD	15	36	11	3000	80	0.501	0.231
66	XBD4.0/15GJ-SEAD	15	40	11	3000	80	0.560	0.260
67	XBD5.0/15GJ-SEAD	15	50	15	3000	80	0.700	0.325
68	XBD6.0/15GJ-SEAD	15	60	15	3000	80	0.840	0.390
69	XBD7.2/15GJ-SEAD	15	72	18.5	3000	80	1.008	0.325
70	XBD8.4/15GJ-SEAD	15	84	22	3000	80	1.176	0.468
71	XBD9.6/15GJ-SEAD	15	96	22	3000	80	1.344	0.546
72	XBD10.0/15GJ-SEAD	15	100	22	3000	80	1.400	0.624
73	XBD11.0/15GJ-SEAD	15	110	30	3000	80	1540	0.650
74	XBD12.0/15GJ-SEAD	15	120	30	3000	80	1680	0.715

Raqam	Turi	Nominal oqim (L/S)	Harakat (m)	Quvvat (kVt)	Tezlik (d/daq)	Kalibr (mm)	Maksimal ish bosimi (≤Mpa)	Nominal oqim bosimining 150% (≥Mpa)
75	XBD13.0/15GJ-SEAD	15	130	37	3000	80	1.820	0.845
76	XBD14.0/15GJ-SEAD	15	140	37	3000	80	1.960	0.910
77	XBD15.6/15GJ-SEAD	15	156	37	3000	80	2.184	1.014
78	XBD17.0/15GJ-SEAD	15	170	45	3000	80	2.380	1.105
79	XBD18.2./15GJ-SEAD	15	182	45	3000	80	2.518	1.183
80	XBD20.0/15GJ QURILMA	15	200	55	3000	80	2.800	1.300
81	XBD3.3/20GJ-SEAD	20	33	11	3000	100	0.462	0.215
82	XBD4.0/20GJ QURILMA	20	40	15	3000	100	0.580	0.260
83	XBD4.4/20GJ-SEAD	20	44	15	3000	100	0.616	0.286
84	XBD5.0/20GJ QURILMA	20	50	18.5	3000	100	0.700	0.325
85	XBD5.5/20GJ-SEAD	20	55	18.5	3000	100	0.770	0.358
86	XBD6.0/20GJ-SEAD	20	50	22	3000	100	0.700	0.325
87	XBD6.6/20GJ QURILMA	20	66	22	3000	100	0.924	0.429
88	XBD7.0/20GJ-SEAD	20	70	30	3000	100	0.980	0.455
89	XBD8.0/20GJ QURILMA	20	80	30	3000	100	1.120	0.520
90	XBD9.0/20GJ-SEAD	20	90	30	3000	100	1.260	0.585
91	XBD10.0/20GJ-SEAD	20	100	37	3000	100	1.400	0.650
92	XBD11.0/20GJ QURILMA	20	110	37	3000	100	1.540	0.75
93	XBD12.1/20GJ QURILMA	20	121	45	3000	100	1.694	0.787
94	XBD14.0/20GJ-SEAD	20	140	45	3000	100	1.960	0.910
95	XBD16.0/20GJ-SEAD	20	160	55	3000	100	2.240	1.040
96	XBD18.0/20GJ QURILMA	20	180	55	3000	100	2.520	1.170
97	XBD20.0/20GJ QURILMA	20	200	75	3000	100	2.800	1.300
98	XBD3.2/25GJ-SEAD	25	32	11	3000	100	0.448	0.208
99	XBD4.2/25GJ QURILMA	25	42	15	3000	100	0.588	0.273
100	XBD5.3/25GJ-SEAD	25	53	18.5	3000	100	0.742	0.345
101	XBD6.3/25GJ-SEAD	25	63	22	3000	100	0.882	0.410
102	XBD7.3/25GJ-SEAD	25	73	30	3000	100	1.022	0.475
103	XBD8.4/25GJ-SEAD	25	84	37	3000	100	1.176	0.546
104	XBD9.0/25GJ-SEAD	25	90	37	3000	100	1.260	0.585
105	XBD10.0/25GJ-SEAD	25	100	37	3000	100	1.400	0.950
106	XBD11.0/25GJ-SEAD	25	110	45	3000	100	1.540	0.715
107	XBD12.0/25GJ-SEAD	25	120	45	3000	100	1.680	0.780
108	XBD14.0/25GJ QURILMA	25	140	55	3000	100	1.960	0.910
109	XBD16.0/25GJ SEAD	25	160	75	3000	100	2.240	1.040
110	XBD18.5/25GJ-SEAD	25	185	75	3000	100	2.590	1.203
111	XBD3.6/30GJ-SEAD	30	36	15	3000	100	0.504	0.234

Raqam	Turi	Nominal oqim (L/S)	Harakat (m)	Quvvat (kVt)	Tezlik (d/daq)	Kalibr (mm)	Maksimal ish bosimi (≤Mpa)	Nominal oqim bosimining 150% (≥Mpa)
112	XBD4.2/30GJ QURILMA	30	40	18.5	3000	100	0.560	0.260
113	XBD5.0/30GJ QURILMA	30	50	22	3000	100	0.700	0.325
114	XBD6.0/30GJ QURILMA	30	60	30	3000	100	0.840	0.390
115	XBD7.2/30GJ-CHAAD	30	72	30	3000	100	1.008	0.468
116	XBD8.0/30GJ QURILMA	30	80	37	3000	100	1.120	0.520
117	XBD9.0/30GJ-SEAD	30	90	45	3000	100	1.260	0.585
118	XBD10.0/30GJ QURILMA	30	100	45	3000	100	1.400	0.650
119	XBD11.0/30GJ QURILMA	30	110	45	3000	100	1.540	0.715
120	XBD13.0/30GJ-SEAD	30	130	55	3000	100	1.820	0.845
121	XBD14.5/30GJ-SEAD	30	145	75	3000	100	2.030	0.943
122	XBD16.2/30GJ-SEAD	30	162	75	3000	100	2.268	1.053
123	XBD18.0/30GJ-SEAD	30	180	90	3000	100	2.520	1.170
124	XBD20.0/30GJ-SEAD	30	200	90	3000	100	2.800	1.300
125	XBD3.2/35GJ-SEAD	35	32	18.5	3000	100	0.448	0.208
126	XBD4.0/35GJ QURILMA	35	40	22	3000	100	0.560	0.260
127	XBD5.0/35GJ-SEAD	35	50	30	3000	100	0.700	0.325
128	XBD6.0/35GJ-SEAD	35	60	30	3000	100	0.840	0.390
129	XBD6.5/35GJ-SEAD	35	65	37	3000	100	0.910	0.423
130	XBD7.0/35GJ-SEAD	35	70	37	3000	100	0.980	0.455
131	XBD8.0/35GJ QURILMA	35	80	45	3000	100	1.120	0.520
132	XBD9.0/35GJ-SEAD	35	90	55	3000	100	1.260	0.585
133	XBD10.0/35GJ QURILMA	35	100	55	3000	100	1.400	0.650
134	XBD11.2/35GJ-SEAD	35	112	75	3000	100	1.568	0.728
135	XBD13.0/35GJ-SEAD	35	130	75	3000	100	1.820	0.845
136	XBD15.0/35GJ-SEAD	35	150	90	3000	100	2.100	0.975
137	XBD16.0/35GJ-SEAD	35	160	90	3000	100	2.240	1.040
138	XBD18.0/35GJ-SEAD	35	180	110	3000	100	2.520	1.170
139	XBD19.2/35GJ QURILMA	35	192	110	3000	100	2.688	1.248
140	XBD20.0/35GJ-SEAD	35	200	132	3000	100	2.800	1.300
141	XBD3.2/40GJ-SEAD	40	32	22	3000	150	0.448	0.208
142	XBD4.0/40GJ-SEAD	40	40	30	3000	150	0.560	0.260
143	XBD4.8/40GJ-SEAD	40	48	30	3000	150	0.672	0.312
144	XBD5.0/40GJ QURILMA	40	50	37	3000	150	0.700	0.325
145	XBD6.0/40GJ-SEAD	40	60	45	3000	150	0.840	0.390
146	XBD7.0/40GJ-SEAD	40	70	45	3000	150	0.980	0.455
147	XBD8.0/40GJ-SEAD	40	80	55	3000	150	1.120	0.520
148	XBD9.0/40GJ QURILMA	40	90	55	3000	150	1.260	0.585

Raqam	Turi	Nominal oqim (L/S)	Harakat (m)	Quvvat (kVt)	Tezlik (d/daq)	Kalibr (mm)	Maksimal ish bosimi (≤Mpa)	Nominal oqim bosimining 150% (≥Mpa)
149	XBD10.0/40GJ-SEAD	40	100	55	3000	150	1.400	0.650
150	XBD11.0/40GJ-SEAD	40	110	75	3000	150	1.540	0.715
151	XBD12.0/40GJ QURILMA	40	120	75	3000	150	1680	0.780
152	XBD14.0/40GJ QURILMA	40	140	90	3000	150	1960	0.910
153	XBD15.0/40GJ-SEAD	40	150	90	3000	150	2100	0.975
154	XBD16.5/40GJ-SEAD	40	165	110	3000	150	2310	1.073
155	XBD18.5/40GJ QURILMA	40	180	110	3000	150	2520	1.170
156	XBD20.0/40GJ QURILMA	40	200	132	3000	150	2800	1.300
157	XBD3.0/45GJ SEAD	45	30	22	3000	150	0.420	0.195
158	XBD4.0/45GJ QURILMA	45	40	30	3000	150	0.560	0.260
159	XBD5.0/45GJ-SEAD	45	50	37	3000	150	0.700	0.325
160	XBD6.0/45GJ-SEAD	45	60	45	3000	150	0.810	0.390
161	XBD7.0/45GJ QURILMA	45	70	55	3000	150	0.980	0.455
162	XBD8.0/45GJ QURILMA	45	80	55	3000	150	1.120	0.520
163	XBD9.0/45GJ-SEAD	45	90	75	3000	150	1.260	0.585
164	XBD10.0/45GJ-SEAD	45	100	75	3000	150	1.400	0.650
165	XBD3.2/50GJ-SEAD	50	32	22	3000	150	0.448	0.208
166	XBD4.0/50GJ-SEAD	50	40	30	3000	150	0.560	0.260
167	XBD4.5/50GJ-SEAD	50	45	37	3000	150	0.630	0.293
168	XBD5.0/50GJ-SEAD	50	50	37	3000	150	0.700	0.325
169	XBD6.0/50GJ-SEAD	50	60	45	3000	150	0.840	0.390
170	XBD7.0/50GJ-CHAAD	50	70	55	3000	150	0.980	0.455
171	XBD8.0/50GJ-SEAD	50	80	55	3000	150	1.120	0.520
172	XBD9.0/50GJ-SEAD	50	90	75	3000	150	1.260	0.585
173	XBD10.5/50GJ QURILMA	50	105	75	3000	150	1.470	0.683
174	XBD12.0/50GJ-SEAD	50	120	90	3000	150	1.680	0.780
175	XBD14.0/50GJ QURILMA	50	140	110	3000	150	1.960	0.910
176	XBD15.0/50GJ-SEAD	50	150	132	3000	150	2.100	0.975
177	XBD17.0/50GJ-SEAD	50	170	160	3000	150	2.380	1.105
178	XBD18.0/50GJ-SEAD	50	180	160	3000	150	2.520	1.170
179	XBD20.0/50GJ-SEAD	50	200	200	3000	150	2.800	1.300
180	XBD4.0/55GJ-SEAD	55	40	37	3000	150	0.560	0.260
181	XBD5.0/55GJ-SEAD	55	50	45	3000	150	0.700	0.325
182	XBD6.0/55GJ-SEAD	55	60	55	3000	150	0.840	0.390
183	XBD7.0/55GJ-SEAD	55	70	55	3000	150	0.980	0.455
184	XBD8.0/55GJ-SEAD	55	80	75	3000	150	1.120	0.520
185	XBD10.0/55GJ-SEAD	55	100	90	3000	150	1.400	0.650

Raqam	Turi	Nominal oqim (L/S)	Harakat (m)	Quvvat (kVt)	Tezlik (d/daq)	Kalibr (mm)	Maksimal ish bosimi (≤Mpa)	Nominal oqim bosimining 150% (≥Mpa)
186	XBD4.0/60GJ QURILMA	60	40	37	3000	150	0.560	0.260
187	XBD5.0/60GJ-SEAD	60	50	45	3000	150	0.700	0.325
188	XBD6.0/60GJ QURILMA	60	60	55	3000	150	0.840	0.390
189	XBD7.0/60GJ-SEAD	60	70	75	3000	150	0.980	0.455
190	XBD8.0/60GJ QURILMA	60	80	75	3000	150	1.120	0.520
191	XBD9.0/60GJ-SEAD	60	90	90	3000	150	1.260	0.585
192	XBD10.0/60GJ QURILMA	60	100	90	3000	150	1.400	0.650
193	XBD12.0/60GJ-SEAD	60	120	110	3000	150	1.680	0.780
194	XBD14.0/60GJ QURILMA	60	140	131	3000	150	1.960	0.910
195	XBD16.0/60GJ QURILMA	60	160	160	3000	150	2.240	1.040
196	XBD18.0/60GJ QURILMA	60	180	160	3000	150	2.520	1.170
197	XBD20.0/60GJ QURILMA	60	200	200	3000	150	2.800	1.300
198	XBD3.0/70GJ-SEAD	70	30	37	3000	150	0.420	0.195
199	XBD4.0/70GJ-SEAD	70	40	45	3000	150	0.560	0.260
200	XBD5.0/70GJ-SEAD	70	50	55	3000	150	0.700	0.325
201	XBD6.0/70GJ QURILMA	70	60	75	3000	150	0.840	0.390
202	XBD7.2/70GJ-SEAD	70	72	90	3000	150	1.008	0.468
203	XBD8.2/70GJ QURILMA	70	82	110	3000	150	1.148	0.533
204	XBD9.0/70GJ QURILMA	70	90	110	3000	150	1.260	0.585
205	XBD10.0/70GJ-SEAD	70	100	132	3000	150	1.400	0.650
206	XBD13.0/70GJ-SEAD	70	130	160	3000	150	1.820	0.845
207	XBD15.0/70GJ-SEAD	70	150	200	3000	150	2.100	0.975
208	XBD3.0/80GJ-SEAD	80	30	37	3000	150	0.420	0.195
209	XBD4.0/80GJ-SEAD	80	40	45	3000	150	0.560	0.260
210	XBD5.0/80GJ-SEAD	80	50	55	3000	150	0.700	0.325
211	XBD6.0/80GJ QURILMA	80	60	75	3000	150	0.840	0.390
212	XBD7.2/80GJ-SEAD	80	72	90	3000	150	1.008	0.468
213	XBD8.2/80GJ QURILMA	80	82	110	3000	150	1.148	0.533
214	XBD9.0/80GJ-SEAD	80	90	110	3000	150	1.260	0.585
215	XBD10.0/80GJ QURILMA	80	100	132	3000	150	1.400	0.650
216	XBD13.0/80GJ-SEAD	80	130	160	3000	150	1.820	0.845
217	XBD15.0/80GJ QURILMA	80	150	200	3000	150	2.100	0.975
218	XBD3.0/90GJ-SEAD	90	30	55	3000	200	0.420	0.195
219	XBD4.0/90GJ-SEAD	90	40	75	3000	200	0.560	0.260
220	XBD5.0/90GJ-SEAD	90	50	75	3000	200	0.700	0.325
221	XBD6.0/90GJ-SEAD	90	60	90	3000	200	0.840	0.390
222	XBD7.0/90GJ-SEAD	90	70	110	3000	200	0.980	0.455

Raqam	Turi	Nominal oqim (L/S)	Harakat (m)	Quvvat (kVt)	Tezlik (d/daq)	Kalibr (mm)	Maksimal ish bosimi (≤Mpa)	Nominal oqim bosimining 150% (≥Mpa)
223	XBD8.0/90GJ-SEAD	90	80	110	3000	200	1.120	0.520
224	XBD9.0/90GJ QURILMA	90	90	132	3000	200	1.260	0.585
225	XBD10.2/90GJ QURILMA	90	102	160	3000	200	1.428	0.663
226	XBD12.0/90GJ-SEAD	90	120	200	3000	200	1.680	0.780
227	XBD3.0/100GJ-SEAD	100	30	55	3000	200	0.420	0.195
228	XBD4.0/100GJ-SEAD	100	40	75	3000	200	0.560	0.280
229	XBD5.0/100GJ-SEAD	100	50	75	3000	200	0.700	0.325
230	XBD6.0/100GJ QURILMA	100	60	90	3000	200	0.840	0.390
231	XBD7.0/100GJ-SEAD	100	70	110	3000	200	0.980	0.455
232	XBD8.0/100GJ QURILMA	100	80	132	3000	200	1.120	0.520
233	XBD9.0/100GJ QURILMA	100	90	160	3000	200	1.260	0.585
234	XBD9.8/100GJ-SEAD	100	98	200	3000	200	1.372	0.637
235	XBD3.0/110GJ-SEAD	100	30	55	3000	200	0.420	0.195
236	XBD4.0/110GJ-SEAD	110	40	75	3000	200	0.560	0.260
237	XBD5.0/110GJ-SEAD	110	50	90	3000	200	0.700	0.325
238	XBD6.0/110GJ-SEAD	110	60	110	3000	200	0.840	0.390
239	XBD7.0/110GJ-SEAD	110	70	132	3000	200	0.980	0.455
240	XBD8.0/110GJ-SEAD	110	80	160	3000	200	1.120	0.520
241	XBD9.0/110GJ-SEAD	110	90	160	3000	200	1.260	0.585
242	XBD10.0/110GJ-SEAD	110	100	200	3000	200	1.400	0.650

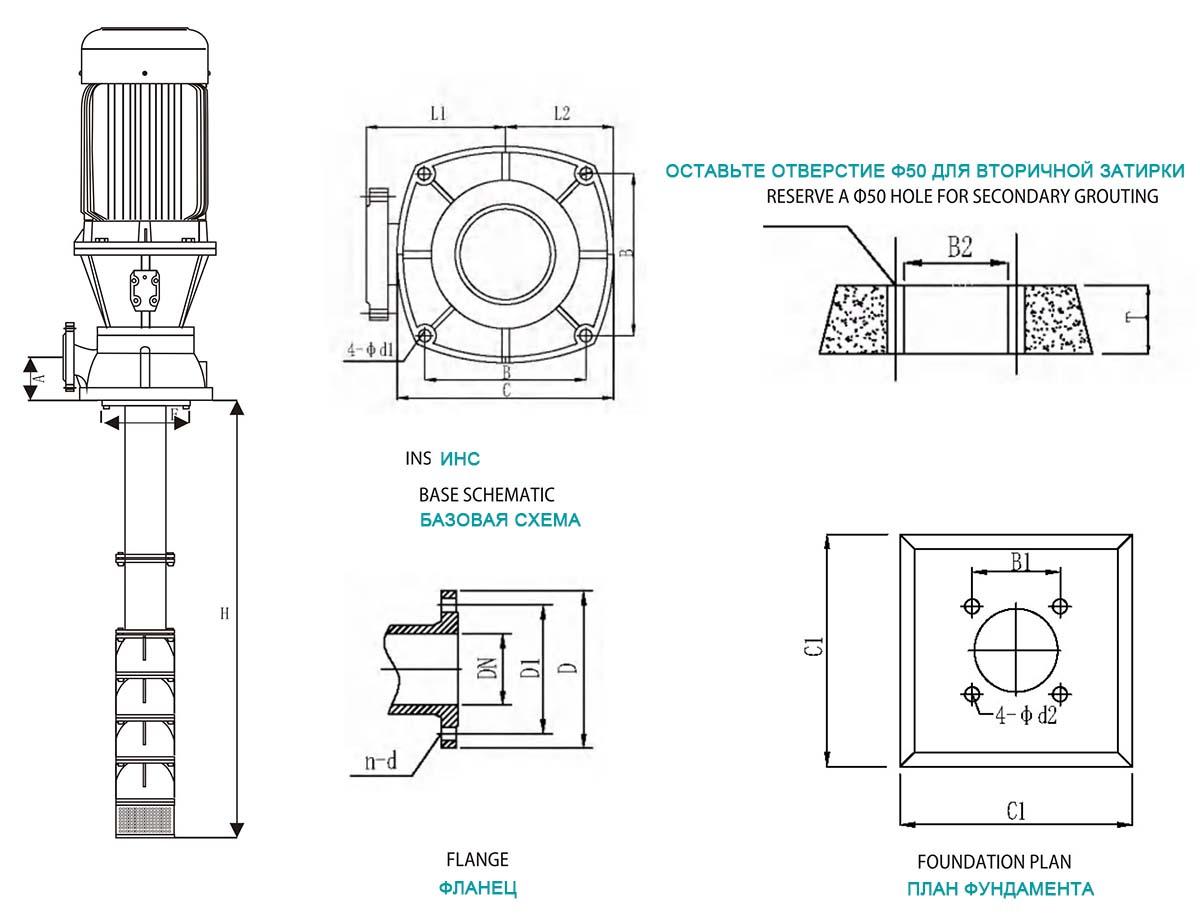

O'RNATISH O'lchami

№	O'RNATISH O'lchami								BURChAK				ERTOVAL
№	H	A	E	L1	L2	B	C	4-Pd1	D	D1	DN	n-Φd	C1	B1	B2	T	4-d2
1-5L/S	Suv chuqur	110	PH220	225	175	275	350	4-22	165	125	50	4-18	600	275	f280	300	4-P50
10-15 l/s	Suv chuqur	125	PH260	260	200	280	400	4-22	200	160	80	4-18	600	280	PH280	300	4-P50
20-15 l/s	Suv chuqur	125	ph260	260	200	280	400	4-22	220	180	100	8-18	600	280	PH280	300	4-P50
40-80L/S	Suv chuqur	180	f305	310	223	310	450	4-22	285	240	150	8-22	700	310	PH310	300	4-P50
90-110 l/s	Suv chuqur	250	F305	380	255	360	510	4-22	340	295	200	12-22	800	360	PH330	300	4-P50

Hot Tags: XBD uzun milyali vertikal turbinali yong'in pompasi, Xitoy, ishlab chiqaruvchi, yetkazib beruvchi, zavod, moslashtirilgan, sifat, so'nggi sotuvlar, stokda, brendlar, Idoralar, Taizhou
