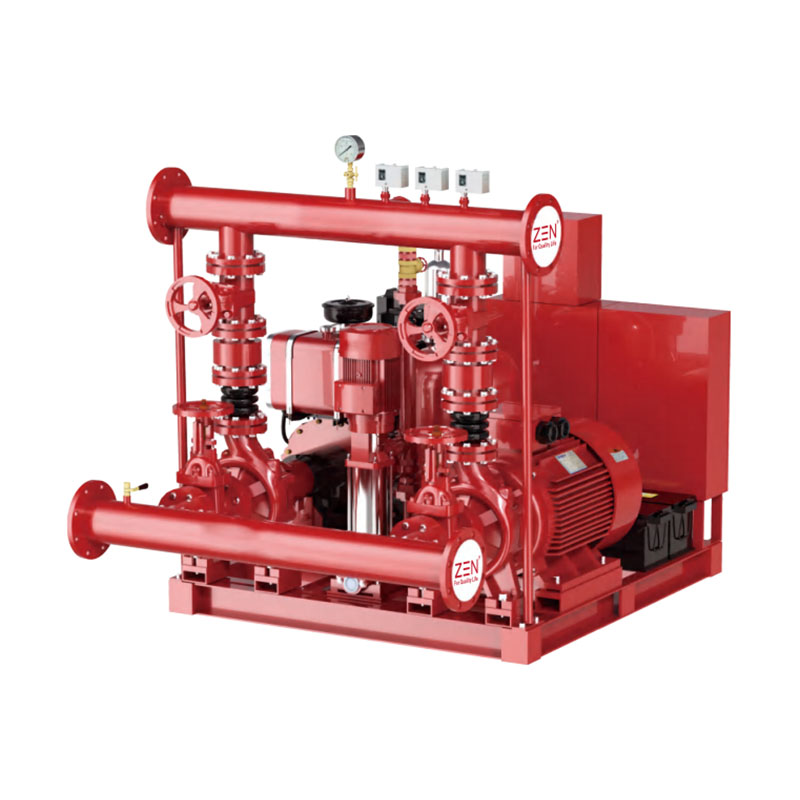

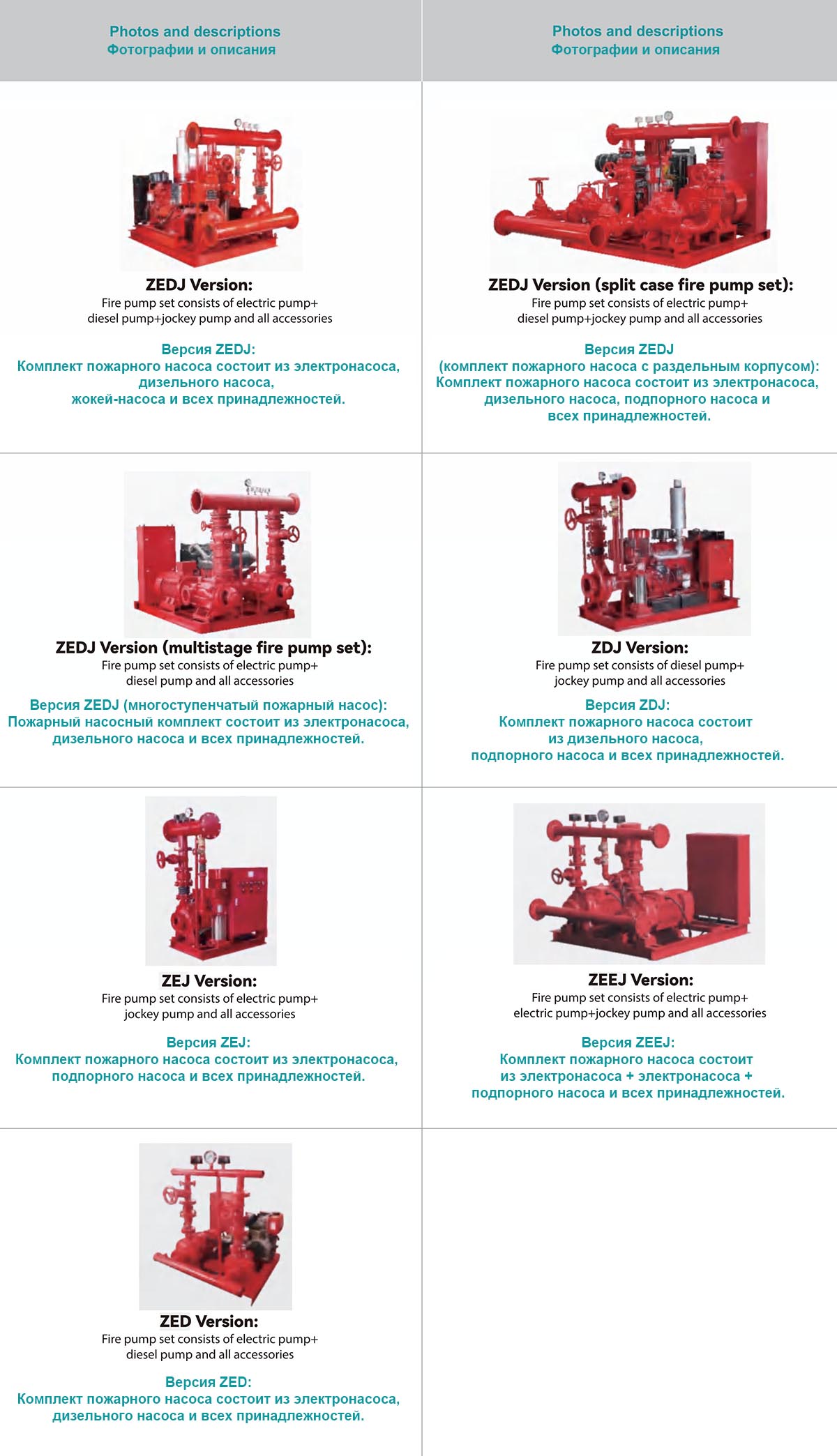

1. Komponentlar po'latdan yasalgan ramka tuzilishiga o'rnatiladi.
2. Har bir kontroller o'z bosim o'lchash liniyasiga ega.
3. Assimilyatsiya chizig'i filtrni o'z ichiga olmaydi.
4. Bo'shatish liniyasidagi valfni va gaz kelebeğini tekshiring.
5. NFPA 20 sertifikati so'nggi assimilyatsiya va split korpusli nasoslar uchun salbiy assimilyatsiya qilishga ruxsat bermaydi.

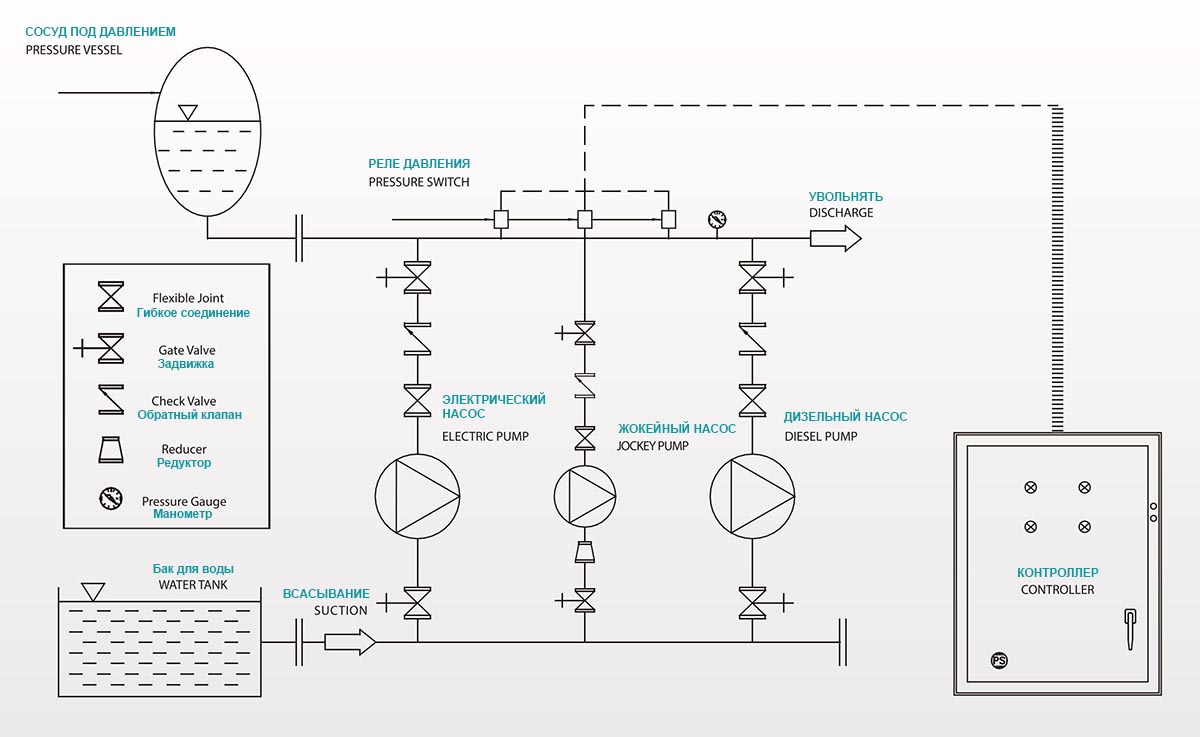

Bosim o'rnatilgan qiymatdan pastga tushganda, jokey bosim tugmasi signali bilan ishlay boshlaydi va tizim bosimi belgilangan qiymatga yetguncha 10 daqiqa ishlashni davom ettiradi. Agar bosim pasayishda davom etsa, avval asosiy nasos ishlay boshlaydi. Agar tizim bosimi ta'minlay olmasa va bosim pasayishda davom etsa, kutish nasosi ishlay boshlaydi.
 |

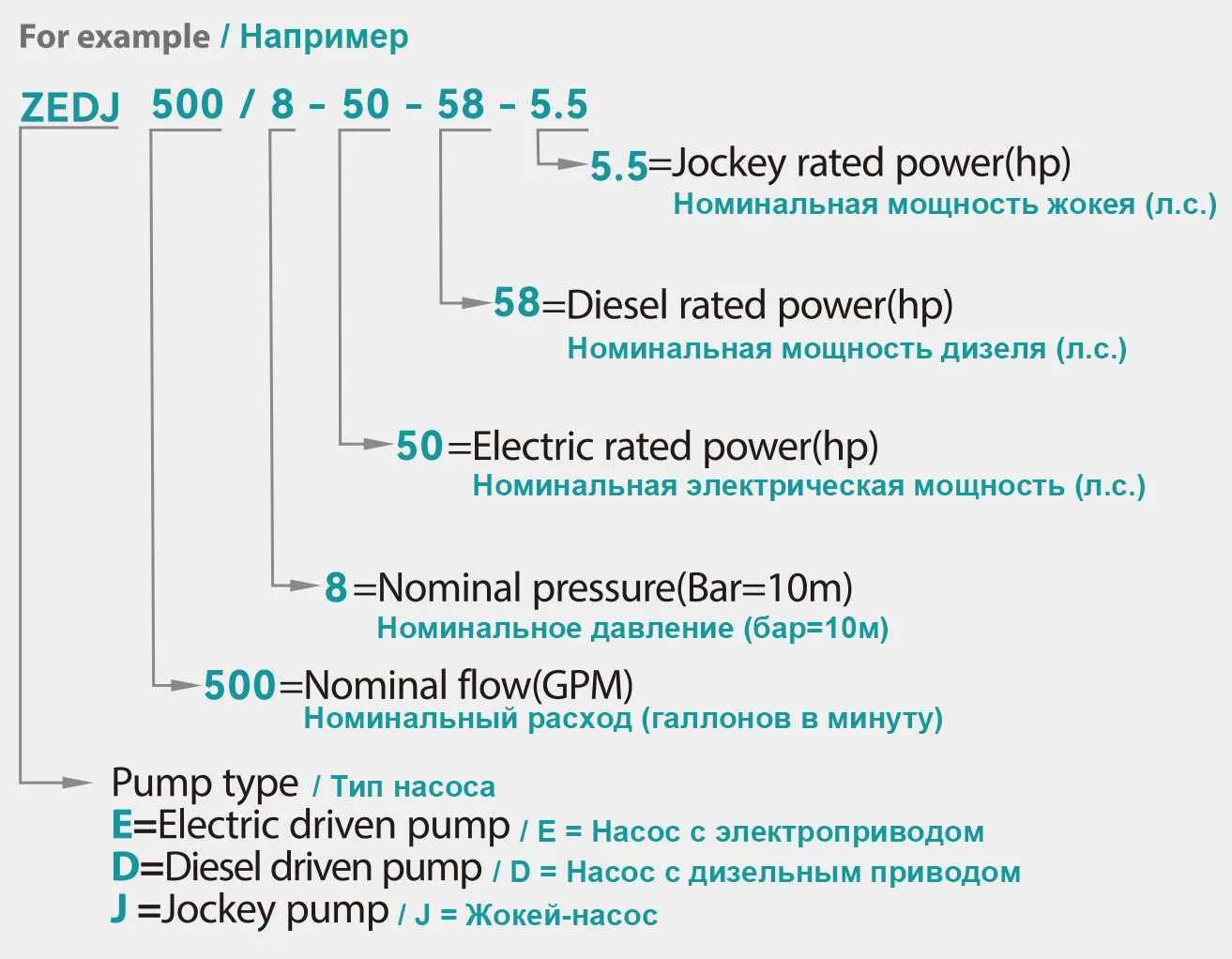

Q | H | Elektr | Dizel | Jokey | ||
| Variant 1 | Variant 2 | Variant 1 | Variant 2 | ||||
| Yaqindan bog'langan | Razdelnye sopryajennye | Debriyaj turi | Plastik pervanel | Rabochee koleso SS304 | |||
| GPM | Mavjud |
 |
 |
 |
 |
 |
|
| ZEDJ 50/6-5,5-8,6-2 | 50 | 6 | ZST 32-250/557,5 ot kuchi | XAD32-250/557,5 ot kuchi | SD 32-250/558,6 ot kuchi | SVP4-6/2HP | CDL(F)1-15/1HP |
| ZEDJ 50/7-7.5-10-2 | 50 | 7 | ZST 32-250/75 10 ot kuchi | XAD32-250/75 10 ot kuchi | SD 32-250/75 10 ot kuchi | SVP4-6/2HP | CDL(F)1-15/1HP |
| ZEDJ 50/8-10-12-3 | 50 | 8 | ZST 32-250/11015HP | XAD32-250/110 15 ot kuchi | SD 32-250/11012HP | SVP4-10/3HP | CDL(F)1-15/1HP |
| ZEDJ 50/9-10-27-3 | 50 | 9 | ZST 32-250/150 20 ot kuchi | XAD32-250/150 20 ot kuchi | SD 32-250/150 27 ot kuchi | SVP4-10/3HP | CDL(F)1-17/1,5HP |
| ZEDJ 100/7-10-10-2 | 100 | 6-7 | ZST 32-250/75 10 ot kuchi | XAD32-250/75 10 ot kuchi | SD 32-250/75 10 ot kuchi | SVP4-6/2HP | CDL(F)2-11/1,5HP |
| ZEDJ 100/8-15-27-3 | 100 | 8 | ZST 32-250/150 20 ot kuchi | XAD32-250/150 20 ot kuchi | SD 32-250/150 27 ot kuchi | SVP4-10/3HP | CDL(F)2-13/2HP |
| ZEDJ 100/9-17.5-27-3 | 100 | 9 | ZST 40-250/185 25 ot kuchi | XAD40-250/185 25 ot kuchi | SD40-250/185 27 ot kuchi | SVP4-10/3HP | CDL(F)2-13/2HP |
| ZEDJ 120/7-10-12-3 | 120 | 7 | ZST 32-250/75D 10 HP | XAD32-250/75H 10 ot kuchi | SD 32-250/75H 12HP | SVP4-10/3HP | CDL(F)2-13/2HP |
| ZEDJ 150/7-15-12-3 | 150 | 7 | ZST 40-250/110 15 ot kuchi | XAD40-250/110 15 ot kuchi | SD 40-250/110 12 ot kuchi | SVP4-10/3HP | CDL(F)4-10/3HP |
| ZEDJ 200/6-20-27-3 | 200 | 6 | ZST 50-250/150 20 ot kuchi | XAD50-250/150 20 ot kuchi | SD 50-250/150 27 ot kuchi | SVP4-10/3HP | CDL(F)4-10/3HP |
| ZEDJ 200/7-25-27-3 | 200 | 7 | ZST 50-250/185 25 ot kuchi | XAD50-250/185 25 ot kuchi | SD 50-250/185 27 ot kuchi | SVP4-10/3HP | CDL(F)4-10/3HP |
| ZEDJ 200/8-30-32-3 | 200 | 8 | ZST 50-250/220 30 ot kuchi | XAD50-250/220 30 ot kuchi | SD 50-250/220 32 ot kuchi | SVP4-10/3HP | CDL(F)4-12/3HP |
| ZEDJ 200/9-40-38-4 | 200 | 9 | - | XAD50-250/300 40 ot kuchi | SD 50-250/300 38 ot kuchi | SVP4-12/4HP | CDL(F)4-123/HP |
| ZEDJ 200/10-50-58-4 | 200 | 10 | XAD50-315/37050HP | SD 50-315/370 58 ot kuchi | SVP6-8/4HP | CDL(F)4-14/4HP | |
| ZEDJ 250/7-25-27-4 | 250 | 7 | ZST 50-250/18525HP | XAD50-250/185 25 ot kuchi | SD 50-250/185 27 ot kuchi | SVP6-8/4HP | CDL(F)4-12/3HP |
| ZEDJ 300/6-25-27-4 | 300 | 6 | ZST 50-250/185 25 ot kuchi | XAD50-250/185 25 ot kuchi | SD 50-250/185 27 ot kuchi | SVP6-8/4HP | CDL(F)8-6/3HP |
| ZEDJ 300/7-30-32-4 | 300 | 7 | ZST 50-250/220 30 ot kuchi | XAD50-250/220 30 ot kuchi | SD 50-250/220 32 ot kuchi | SVP6-8/4HP | CDL(F)8-8/4HP |
| ZEDJ 300/8-40-38-4 | 300 | 8 | - | XAD50-250/300 40 ot kuchi | SD 50-250/300 38 ot kuchi | SVP8-8/4HP | CDL(F)8-8/4HP |
| ZEDJ 300/10-50-58-5.5 | 300 | 9-10 | - | XAD50-315/370 50 ot kuchi | SD 50-315/370 58 ot kuchi | SVP8-10/5,5 ot kuchi | CDL(F)8-12/5,5HP |
| ZEDJ 350/7-30-32-4 | 350 | 7 | ZST 50-250/220 30 ot kuchi | XAD50-250/220 30 ot kuchi | SD 50-250/220 32 ot kuchi | SVP8-8/4HP | CDL(F)8-8/4HP |
| ZEDJ 400/6-30-32-4 | 400 | 6 | ZST 65-250/220 30 ot kuchi | XAD65-250/220 30 ot kuchi | SD 65-250/220 32 ot kuchi | SVP8-8/4HP | CDL(F)8-8/4HP |
| ZEDJ 400/7-40-38-5.5 | 400 | 7 | ZST 65-250/300 40 ot kuchi | XAD65-250/300 40 ot kuchi | SD 65-250/300 38 ot kuchi | SVP8-10/5,5 ot kuchi | CDL(F)8-8/4HP |
| ZEDJ 400/8-50-58-5.5 | 400 | 8 | ZST 65-250/370 50 ot kuchi | XAD65-250/370 50 ot kuchi | SD 65-250/370 58 ot kuchi | SVP8-10/5,5 ot kuchi | CDL(F)8-10/5,5 ot kuchi |
| ZEDJ 400/9-60-61-7.5 | 400 | 9 | ZST 65-315/450 60 ot kuchi | XAD65-315/450 60 ot kuchi | SD 65-315/450 61 ot kuchi | SVP12-6/7,5 ot kuchi | CDL(F)8-12/5,5HP |
| ZEDJ 500/7-40-38-5.5 | 500 | 6-7 | ZST 65-250/300 40 ot kuchi | XAD65-250/300 40 ot kuchi | SD 65-250/300 38 ot kuchi | SVP12-4 / 5,5 HP | CDL(F)12-8/7,5 ot kuchi |
| ZEDJ 500/8-50-58-7.5 | 500 | 8 | ZST 65-250/370 50 ot kuchi | XAD65-250/370 50 ot kuchi | SD 65-250 / 37058HP | SVP12-6/7,5 ot kuchi | CDL(F)12-8/7,5 ot kuchi |
| ZEDJ 500/9-60-61-7.5 | 500 | 9 | ZST 65-315/450 60 ot kuchi | XAD65-315/450 60 ot kuchi | SD 65-315/450 61 ot kuchi | SVP12-6/7,5 ot kuchi | CDL(F)12-9/7,5 ot kuchi |
| ZEDJ 500/11-75-75-7.5 | 500 | 10-11 | ZST 65-315/550 75 ot kuchi | XAD65-315/550 75 ot kuchi | SD 65-315/550 75 ot kuchi | SVP12-6/7,5 ot kuchi | CDL(F)12-12/10HP |
| ZEDJ 500/13-100-100-15 | 500 | 12-13 | ZST 65-315/750 100 ot kuchi | XAD65-315/750 100 ot kuchi | SD 65-315/750 100 ot kuchi | - | CDL(F)12-14/15HP |
|
|
Q | H | Elektr | Dizel | Jokey | ||
| Variant 1 | Variant 2 | Variant 1 | Variant 2 | ||||
| Yaqindan bog'langan | Razdelnye sopryajennye | Debriyaj turi | Plastik pervanel | Rabochee koleso SS304 | |||
| GPM | Mavjud |
|
|
|
|
|
|
| ZEDJ 500/14-125-125-15 | 500 | 14 | ZST 65-315/900 125 ot kuchi | XAD65-315/900 125 ot kuchi | SD 65-315/900 125 ot kuchi | - | CDL(F)12-14/15HP |
| ZEDJ 750/7-60-61-10 | 750 | 6-7 | ZST 80-250/450 60 ot kuchi | XAD80-250/450 60 ot kuchi | SD 80-250/450 61 ot kuchi | - | CDL(F)16-8/10HP |
| ZEDJ 750/8-75-75-10 | 750 | 8 | ZST 80-250/550 75 ot kuchi | LIMIT 80-250/550 75HP | SD80-250/550 75 ot kuchi | - | CDL(F)16-8/10HP |
| ZEDJ 750/9-100-100-10 | 750 | 9 | - | LIMIT 80-250/750 100HP | SD 80-250/750 100 ot kuchi | - | CDL(F)16-8/10HP |
| ZEDJ 750/11-100-100-12 | 750 | 10-11 | ZST 80-315/750 100 ot kuchi | XAD 80-315/750 100 ot kuchi | SD 80-315/750 100 ot kuchi | - | CDL(F)16-10/15HP |
| ZEDJ 50/13-125-125-15 | 750 | 12-13 | ZST 80-315/900 125 ot kuchi | LIMIT 80-315/900 125HP | SD 80-315/900 125 ot kuchi | - | CDL(F)16-12/15HP |
| ZEDJ 50/14-150-150-15 | 750 | 14 | - | XAD 80-315/1100 150 ot kuchi | SD 80-315/1100 150 ot kuchi | - | CDL(F)16-14/20HP |
| ZEDJ 1000/8-100-100-10 | 1000 | 8 | ZST 100-250/750 100 ot kuchi | LIMIT 100-250/750 100HP | SD 100-250/750 100 ot kuchi | - | CDL(F))20-8/15HP |
| ZEDJ 1000/9-125-125-12 | 1000 | 9 | ZST 100-250/900 125 ot kuchi | LIMIT 100-250/900 125HP | SD 100-250/900 125 ot kuchi | - | CDL(F)20-10/15HP |
| ZEDJ 1000/11-150-150-12 | 1000 | 10-11 | ZST 100-315/1100 150 ot kuchi | XAD100-315/1100 150 ot kuchi | SD 100-315/1100 150 ot kuchi | - | CDL(F)20-10/15HP |
| ZEDJ 1000/12-180-170-15 | 1000 | 12 | ZST 100-315/1320 180 ot kuchi | XAD 100-315/1320 180 ot kuchi | SD 100-315/1320 170 ot kuchi | - | CDL(F)20-14/20HP |
| ZEDJ 1000/14-220-225-20 | 1000 | 13-14 | ZST 100-315/1600 220 ot kuchi | XAD 100-315/1600 220 ot kuchi | SD 100-315/1600 225 ot kuchi | - | CDL(F)20-14/20HP |
| ZEDJ 1250/8-150-150-12 | 1250 | 8 | - | LIMIT 125-250/1100 150HP | SD 125-250/1100 150 ot kuchi | - | CDL(F)32-60/15HP |
| ZEDJ 1250/9-180-170-15 | 1250 | 9 | - | LIMIT 125-315/1320 180HP | SD 125-315/1320 170 ot kuchi | - | CDL(F)32-60/15HP |
| ZEDJ 1250/11-220-225-15 | 1250 | 10-11 | - | LIMIT 125-315/1600 220HP | SD 125-315/1600 225 ot kuchi | - | CDL(F)32-80/20HP |
| ZEDJ 1250/12-250-270-20 | 1250 | 12 | - | LIMIT 125-315/1850 250HP | SD 125-315/1850 270 ot kuchi | - | CDL(F) 32-80/20HP |
| ZEDJ 1250/13-270-270-25 | 1250 | 13 | - | XAD 125-315/2000 270 ot kuchi | SD 125-315/2000 270 ot kuchi | - | CDL(F)32-100/25HP |
| ZEDJ 1500/8-180-170-15 | 1500 | 8 | - | XAD 125-250H/1320 180HP | SD 125-250H/1320 170HP | - | CDL(F))32-80/20HP |
| ZEDJ 1500/9-180-170-20 | 1500 | 9 | - | LIMIT 125-315/1320 180HP | SD 125-315/1320 170 ot kuchi | - | CDL(F)32-80/20HP |
| ZEDJ 1500/10-220-225-20 | 1500 | 10 | - | LIMIT 125-315/1600 220HP | SD 125-315/1600 225 ot kuchi | - | CDL(F)32-80/20HP |
| ZEDJ 1500/12-250-270-25 | 1500 | 11-12 | - | LIMIT 125-315/1850 250HP | SD 125-315/1850 270 ot kuchi | - | CDL(F))32-100/25HP |
| ZEDJ 1500/13-270-270-25 | 1500 | 13 | - | XAD125-315/2000 270 ot kuchi | SD 125-315/2000 270 ot kuchi | - | CDL(F)32-100/25HP |
| ZEDJ 2000/8-220-225-25 | 2000 | 8 | - | LIMIT 150-250/1600 220HP | SD 150-250/1600 225 ot kuchi | - | CDL(F)45-50/25HP |
| ZEDJ 2000/9-270-270-25 | 2000 | 9 | - | XAD 150-250/2000 270 ot kuchi | SD 150-250/2000 270 ot kuchi | - | CDL(F)45-50/25HP |
| ZEDJ 2000/10-340-340-30 | 2000 | 10 | - | XAD 150-315/2500 340 ot kuchi | SD 150-315/2500 340 ot kuchi | - | CDL(F)45-60/30HP |
| ZEDJ 2000/13-430-410-40 | 2000 | 11-13 | - | LIMIT 150-315/3150 430HP | SD 150-315/3150 410 ot kuchi | - | CDL(F)45-70/40HP |
| ZEDJ 2500/8-220-225-30 | 2500 | 8 | - | LIMIT 150-250/1600 220HP | SD 150-250/1600 225 ot kuchi | - | CDL(F)64-40/30HP |
| ZEDJ 2500/9-270-270-40 | 2500 | 9 | - | XAD 150-250/2000 270 ot kuchi | SD 150-250/2000 270 ot kuchi | - | CDL(F)64-50/40HP |
| ZEDJ 2500/10-340-340-40 | 2500 | 10 | - | XAD150-315/2500 340 ot kuchi | SD 150-315/2500 340 ot kuchi | - | CDL(F)64-50/40HP |
| ZEDJ 2500/12-430-410-40 | 2500 | 11-12 | - | XAD150-315/3150 430 ot kuchi | SD 150-315/3150 410 ot kuchi | - | CDL(F)64-60-2/40HP |

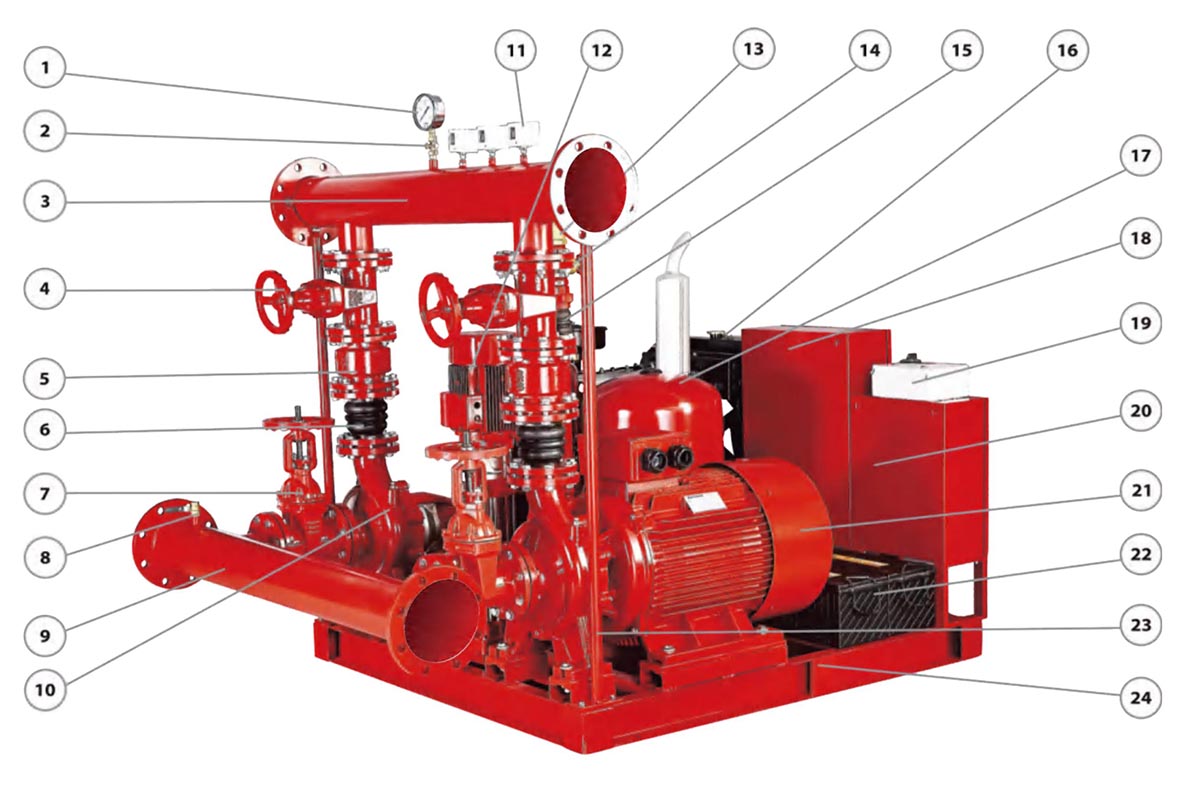

| YO'Q. | Tavsif | Material |
| 1 | Bosim o'lchagich | 0 dan 16 gacha |
| 2 | Xavfsizlik valfi | Guruch |
| 3 | Bosim quvur liniyasi | Karbonli po'lat |
| 4 | Eshik valfi | Egiluvchan temir |
| 5 | Tekshirish valfi | Egiluvchan temir |
| 6 | Moslashuvchan ulanish | Kauchuk |
| 7 | OS&Y klapan | Egiluvchan temir |
| 8 | Xavfsizlik valfi | Guruch |
| 9 | So'rish liniyasi | Karbonli po'lat |
| 10 | Dizel nasos | Zaxira quvvat manbai |
| 11 | Bosim kaliti | 0 dan 16 gacha |
| 12 | Jokey nasosi | Zaxira quvvat manbai |
| 13 | Jokey nazorat valfi | Guruch |
| 14 | Jokey o'chirish valfi | Guruch |
| 15 | Moslashuvchan ulanish | Kauchuk |
| 16 | Dizel dvigatel | Ichki yonish |
| 17 | Bosim tanki | Quyma temir / EPDM diafragma |
| 18 | Elektr boshqaruvchisi | To'g'ridan-to'g'ri boshlash/Yulduzli uchburchak |
| 19 | Jokey boshqaruvchisi | To'g'ridan-to'g'ri boshlash |
| 20 | Dizel boshqaruvchisi | To'g'ridan-to'g'ri boshlash |
| 21 | Elektr nasos | Asosiy manba |
| 22 | Akkumulyator | Asosiy/zaxira |
| 23 | Qo'llab-quvvatlash tayog'i | Quyma temir |
| 24 | Baza | Quyma temir |
| Nasosning oqim tezligi | Quvurning minimal diametrlari (nominal) | ||
| GPM | m³/soat | So‘rish | Rad etish |
| 25 | 6 | 1"-DN25 | 1"-DN25 |
| 50 | 11 | 11/2"-Dn40 | 11/4"-DN32 |
| 100 | 23 | 2"-DN50 | 2"-DN50 |
| 150 | 34 | 21/2"-DN65 | 21/2"-DN65 |
| 200 | 45 | 3"-DN80 | 3"-DN80 |
| 250 | 57 | 4"-DN100 | 3"-DN80 |
| 300 | 68 | 4"-DN100 | 4"-DN100 |
| 400 | 91 | 4"-DN100 | 4"-DN100 |
| 450 | 102 | 5"-DN125 | 5"-DN125 |
| 500 | 114 | 5"-DN125 | 5"-DN125 |
| Nasosning oqim tezligi | Quvurning minimal diametrlari (nominal) | ||
| GPM | m³/soat | So‘rish | Rad etish |
| 750 | 170 | 6"-DN150 | 6"-DN150 |
| 1000 | 227 | 8"-DN200 | 6"-DN150 |
| 1250 | 284 | 8"-DN200 | 8"-DN200 |
| 1500 | 341 | 8"-DN200 | 8"-DN200 |
| 2000 | 455 | 10"-DN250 | 10"-DN250 |
| 2500 | 568 | 10"-DN250 | 10"-DN250 |
| 3000 | 682 | 12"-DN300 | 12"-DN300 |
| 3500 | 795 | 12"-DN300 | 12"-DN300 |
| 4000 | 909 | 14"-DN350 | 12"-DN300 |
| 4500 | 1023 | 16"-DN400 | 14"-DN350 |
| 5000 | 1136 | 16"-DN400 | 14"-DN350 |
