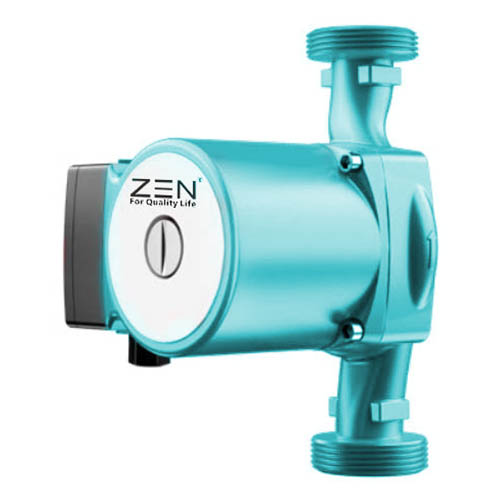

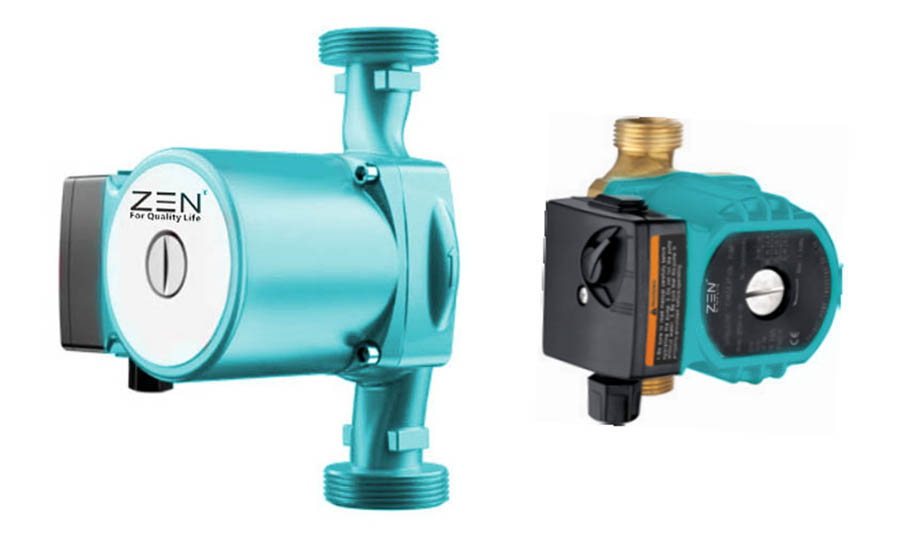

ZEN sirkulyatsiya pompasi yuqori sifatli sirkulyatsiya pompasi isitish va konditsioner tizimlarida suyuqliklarning aylanishi uchun mo'ljallangan. Bronza yoki zanglamaydigan po'latdan yasalgan korpusli nasoslar issiq suv tizimlarida ham foydalanish uchun javob beradi. Oddiy ilovalarga misollar: aralash suvli zamin isitish tizimi, havo energiyasidan foydalanadigan issiq suv aylanish tizimi, quyosh energiyasidan foydalanadigan issiq suv aylanish tizimi va boshqalar.
◎ Suyuqlik harorati: + 2°C - + 110°C
◎ Maksimal muhit harorati + 40 ° C
◎ Maksimal bosim 10 bar.
◎ Himoya klassi: IP44
◎ Quvvat manbaiga ulanish: 220V / 50Hz
◎ Izolyatsiya sinfi: H
◎ Suyuqlikning nasos xususiyatlari: toza, qattiq va mineral moylardan xoli, toksik bo'lmagan, kimyoviy jihatdan neytral, suv xususiyatlariga o'xshash
◎ O'rnatish: Dvigatel o'qi gorizontal yo'nalishda bo'lishi kerak
◎ pH: 6,5 - 8,5
◎ Uch tezlikli tartibga solish
◎ Kam shovqin
◎ Oqish yo'q
Maksimal oqim: 10 m3 / soat
Maksimal suv bosimi: 12 m

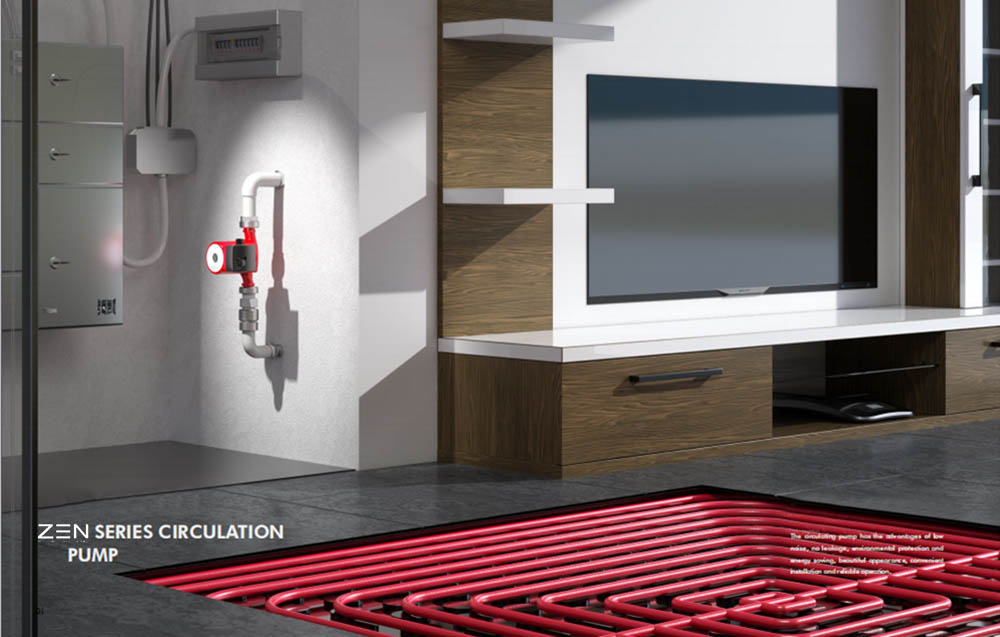

ZEN nasoslari isitish va konditsioner tizimlarida suyuqlikni aylantirish uchun mo'ljallangan. Bronza yoki zanglamaydigan po'latdan yasalgan korpusli nasoslar issiq suv tizimlari uchun ham mos keladi. Odatda gidrotermal/geotermal gibrid isitish tizimlari, havo bilan ishlaydigan issiq suv aylanish tizimlari, quyosh issiq suv aylanish tizimlari va boshqalar kiradi.
◎ Mahsulot mijozning kuchlanishiga va chastotasiga qarab sozlanishi mumkin.

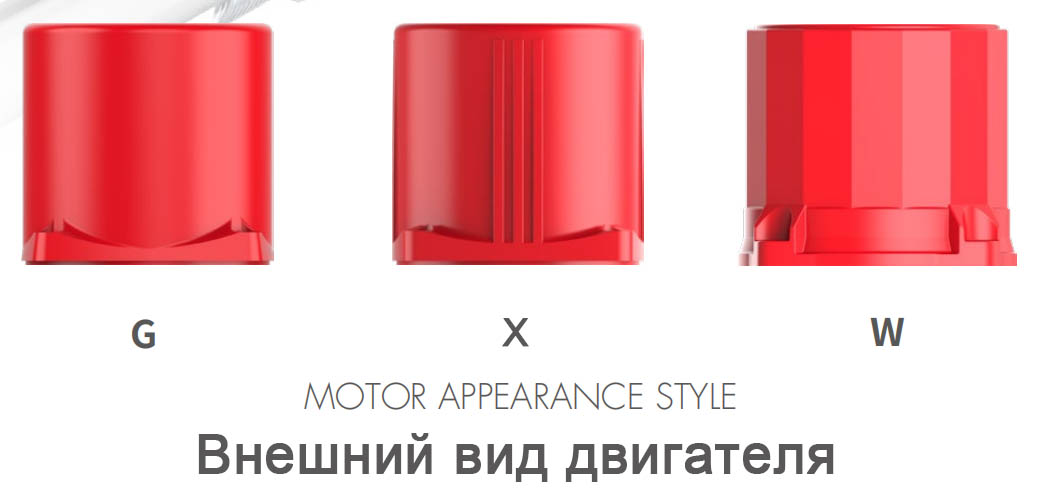

◎ Guruch nasos korpusi, sirlangan nasos tanasi, zanglamaydigan po'latdan yasalgan nasos tanasi

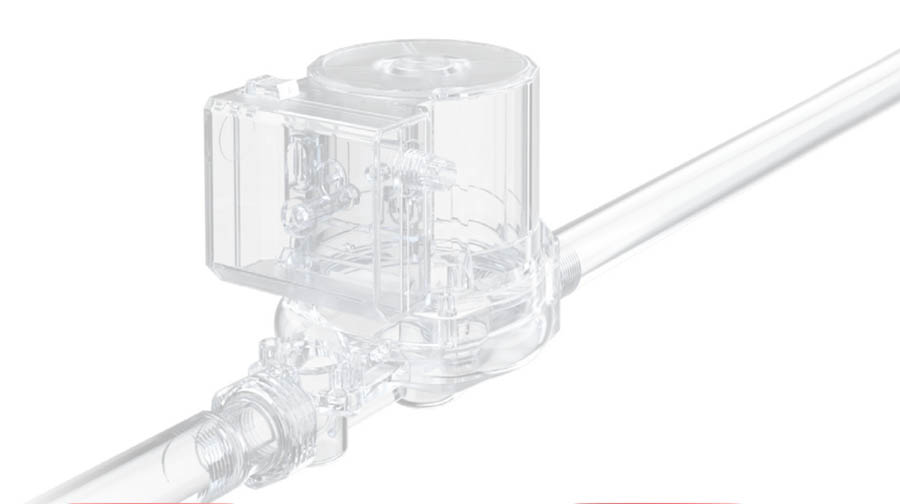

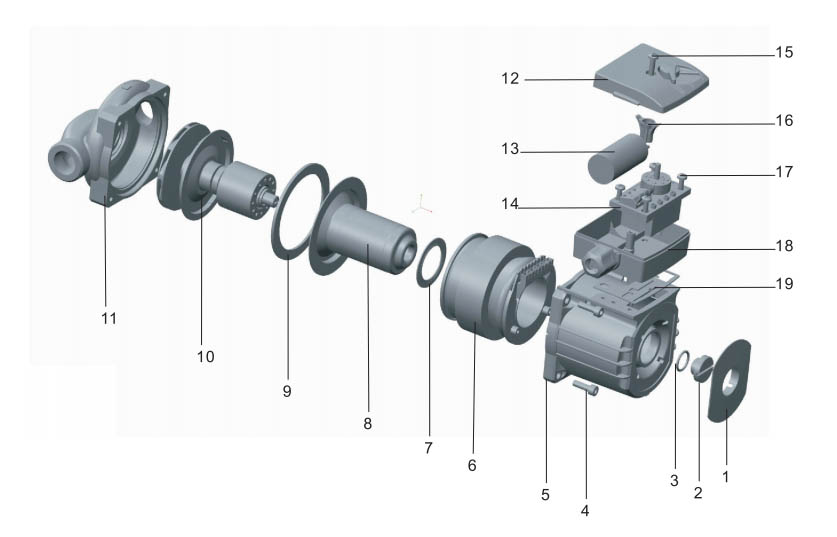

| Pos. |
Komponent | Material |
| 1 | Nom lavhasi | PA6 |
| 2 | Havo valfi | Guruch |
| 3 | O-ring | EPDM |
| 4 | Olti burchakli vintlardek | Chelik |
| 5 | Stator korpusi | alyuminiy |
| 6 | Stator | / |
| 7 | O-ring II | EPDM |
| 8 | Aylanadigan idish | Zanglamaydigan po'lat |
| 9 | O-ring l | EPDM |
| 10 | Pervane Mil Yo'naltiruvchi podshipnik Radial podshipnik |
PESG30 Keramika Grafit Keramika |
| 11 | Nasos korpusi | Quyma temir |
| 12 | Terminal qutisi qopqog'i | ABS |
| 13 | Kondensator | / |
| 14 | PCB | / |
| 15 | O'z-o'zidan tejamkor vint | Zanglamaydigan po'lat |
| 16 | Kondensator qavs | ABS |
| 17 | Vintlar | Chelik |
| 18 | Terminal qutisi bazasi | PA66G30 |
| 19 | Terminal qutisi muhri | EPDM |

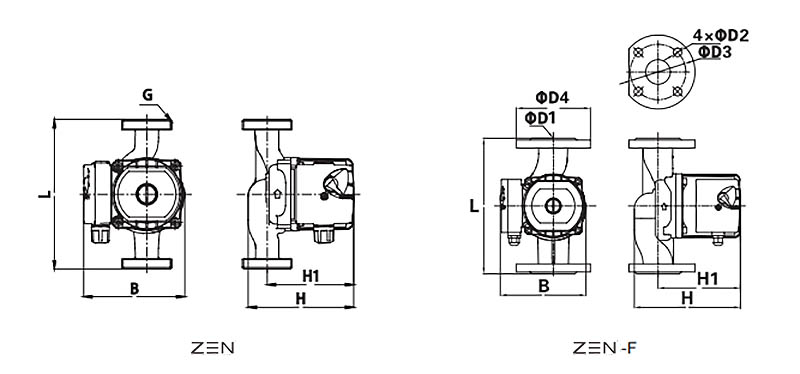

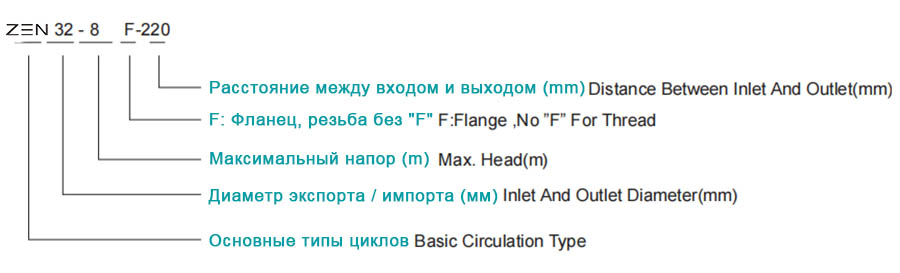

| Model | Hajmi (mm) | Birlashmalar yoki gardish |
N.W (kg) | ||||||||
| H | H1 | L | G | B | D1 | D2 | D3 | D4 | |||
| ZEN15-4-130 | 120 | 105 | 130 | G¾" | 125 | _ | _ | _ | _ | G¾"to G½" | 2.3 |
| ZEN15-6-130 | |||||||||||
| ZEN15-9-140 | 125 | 102 | 140 | G¾" | 105 | _ | _ | _ | _ | G¾"to G½" | 2.6 |
| ZEN20-4-130 | 125 | 105 | 130 | G1" | 130 | _ | _ | _ | _ | G1"dan G¾"gacha | 2.5 |
| ZEN20-6-130 | |||||||||||
| ZEN25-4-130 | 125 | 105 | 130 | G1½" | 130 | _ | _ | _ | _ | G1½"dan G1"gacha | 2.8 |
| ZEN25-6-130 | |||||||||||
| ZEN25-4-180 | 125 | 105 | 180 | G1½" | 130 | _ | _ | _ | _ | G1½"dan G1"gacha | 3 |
| ZEN25-6-180 | |||||||||||
| ZEN32-4-180 | 130 | 105 | 180 | G2" | 130 | _ | _ | _ | _ | G2"dan G 1¼"gacha | 3.4 |
| ZEN32-6-180 | |||||||||||
| ZEN20-12-180 | 160 | 135 | 180 | G1" | 150 | _ | _ | _ | _ | G1"dan G¾"gacha | 4.6 |
| ZEN25-8-180 | 160 | 130 | 180 | G1½" | 150 | _ | _ | _ | _ | G1½"dan G1"gacha | 4.8 |
| ZEN25-12-180 | |||||||||||
| ZEN32-8-180 | 170 | 130 | 180 | G2" | 150 | _ | _ | _ | _ | G2"dan G 1¼"gacha | 5.2 |
| Model | Tezlik | Kirish quvvati P1(W) |
Hozirgi (A) | Kondensator | Masofa quvurlar orasida (mm) |
MAX. SAJAT (m) |
Hammasi lift (m) |
MAX. OQIM (m3/soat) |
Inter boks |
Tashqi quti |
20" Yuklanmoqda Miqdor (dona) |

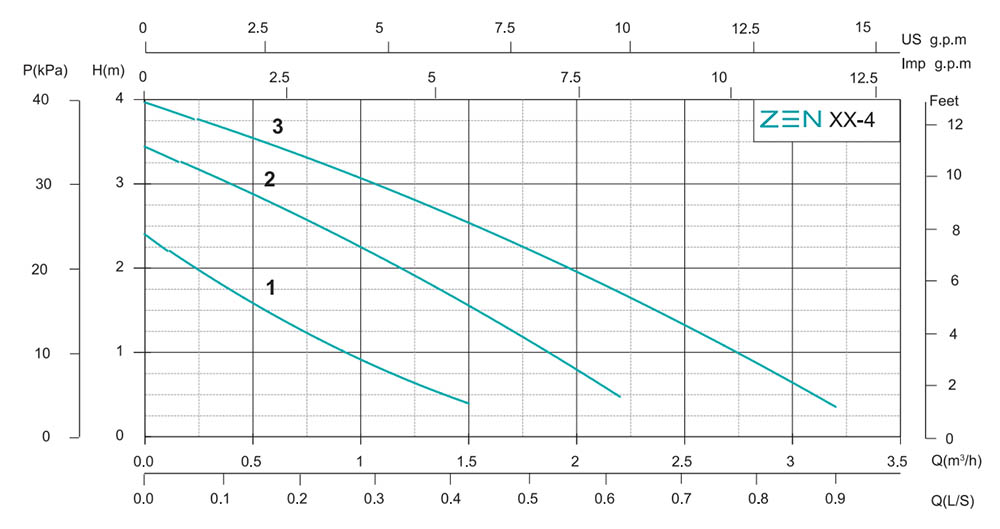

||||||
| mF/450V | mF/250V | ||||||||||||||||
| 220V 50Hz | 220V 60Hz | 127V 60Hz | 220V 50Hz/60Hz | 127V/60Hz | GV (kg) | Xira. (L×W×H) | PCS/CTN | Xira. (L×W×H) | G.V. (kg) | ||||||||
| ZEN15-4-130 |
3 2 1 |
60 45 30 |
0.26 0.20 0.13 |

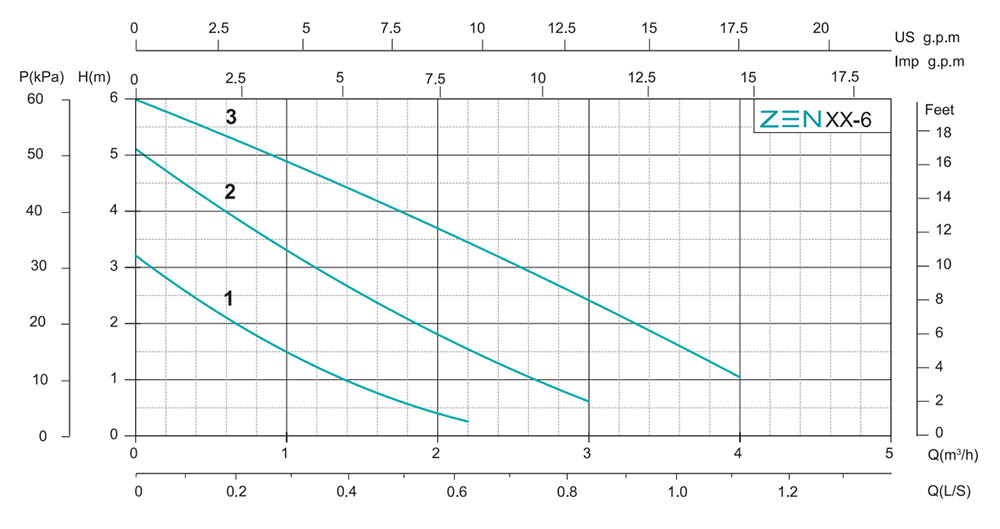

/ | / | 2 | / | 130 | 4 | 0~4 | 2 | 2.5 | 150x130x140 | 8 | 320×280×300 | 21 | 6664 |
| ZEN15-6-130 |
3 2 1 |
90 65 45 |
0.40 0.30 0.20 |
0.40 0.30 0.20 |
0.80 0.65 0.4 |
2.5 | 6 | 6 | 0~6 | 2 | |||||||
| ZEN15-9-140 |
3 2 1 |
120 85 60 |
0.48 0.38 0.26 |
0.48 0.38 0.26 |
0.95 0.66 0.45 |
3 | 10 | 140 | 9 | 0~9 | 1.6 | 2.8 | 180x120x135 | 8 | 380×260×290 | 23 | 5880 |
| ZEN20-4-130 |
3 2 1 |
60 45 30 |
0.26 0.20 0.13 |
/ | / | 2 | / | 130 |
4 6 |
0~4 0~6 |
2.2 2.2 |
2.7 | 150x130x140 | 8 | 320×280×300 | 22 | 6664 |
| ZEN20-6-130 |
3 2 1 |
90 65 45 |
0.40 0.30 0.20 |
0.40 0.30 0.20 |
0.80 0.65 0.4 |
2.5 | 6 | ||||||||||
| ZEN25-4-130 |
3 2 1 |
60 45 30 |
0.26 0.20 0.13 |
/ | / | 2 | / | 130 | 4 | 0~4 | 3 | 3.0 | 150x130x140 | 8 | 320×280×300 | 25 | 6664 |
| ZEN25-6-130 |
3 2 1 |
90 65 45 |
0.40 0.30 0.20 |
0.40 0.30 0.20 |
0.80 0.65 0.4 |
2.5 | 6 | 6 | 0~6 | 3 | |||||||
| ZEN25-4-180 |
3 2 1 |
60 45 30 |
0.26 0.20 0.13 |
/ | / | 2 | / | 180 | 4 | 0~4 | 3 | 3.2 | 200x130x155 | 8 | 415×280×330 | 26 | 4800 |
| ZEN25-6-180 |
3 2 1 |
90 65 45 |
0.40 0.30 0.20 |
0.40 0.30 0.20 |
0.80 0.65 0.4 |
2.5 | 6 | 6 | 0~6 | 3 | |||||||
| ZEN32-4-180 |
3 2 1 |
60 45 30 |
0.26 0.20 0.13 |
/ | / | 2 | / | 180 | 4 | 0~4 | 3.5 | 3.6 | 200x130x155 | 8 | 415×280×330 | 30 | 4800 |
| ZEN32-6-180 |
3 2 1 |
90 65 45 |
0.40 0.30 0.20 |
0.40 0.30 0.20 |
0.80 0.65 0.41 |

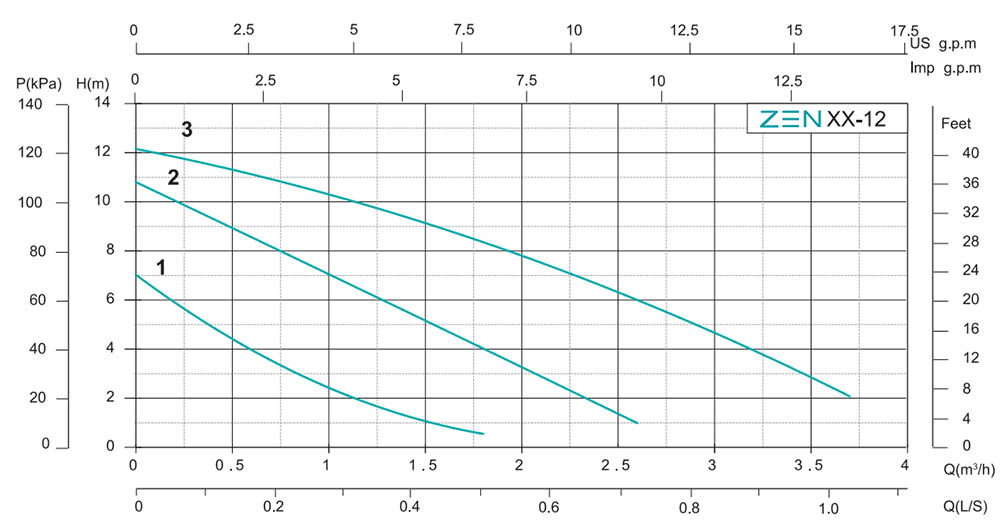

2.5 | 6 | 6 | 0~6 | 3.5 | |||||||
| ZEN20-12-180 |
3 2 1 |
245 210 140 |
1.04 0.92 0.63 |
1.04 0.92 0.63 |
1.80 1.60 1.10 |

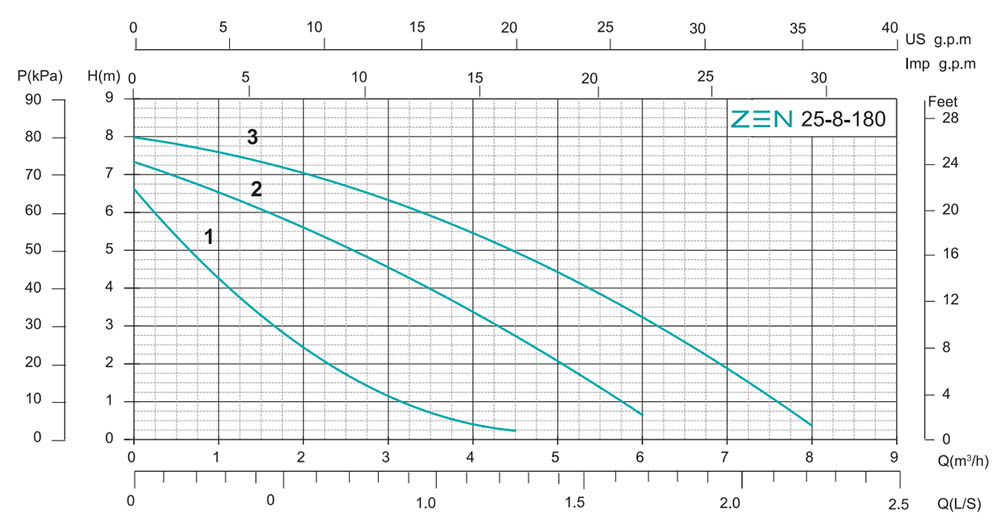

6 | 20 | 180 | 12 | 0~12 | 3 | 4.8 | 200x160x180 | 4 | 415×340×200 | 20 | 3200 |
| ZEN25-8-180 |
3 2 1 |
200 185 145 |
0.83 0.78 0.62 |
0.83 0.78 0.62 |
1.65 1.55 1.45 |
6 | 15 | 8 | 0~8 | 7 | 5.0 | 21 | 3200 | ||||
| ZEN25-12-180 |
3 2 1 |
245 210 140 |
1.04 0.92 0.63 |
1.04 0.92 0.63 |
1.80 1.60 1.10 |

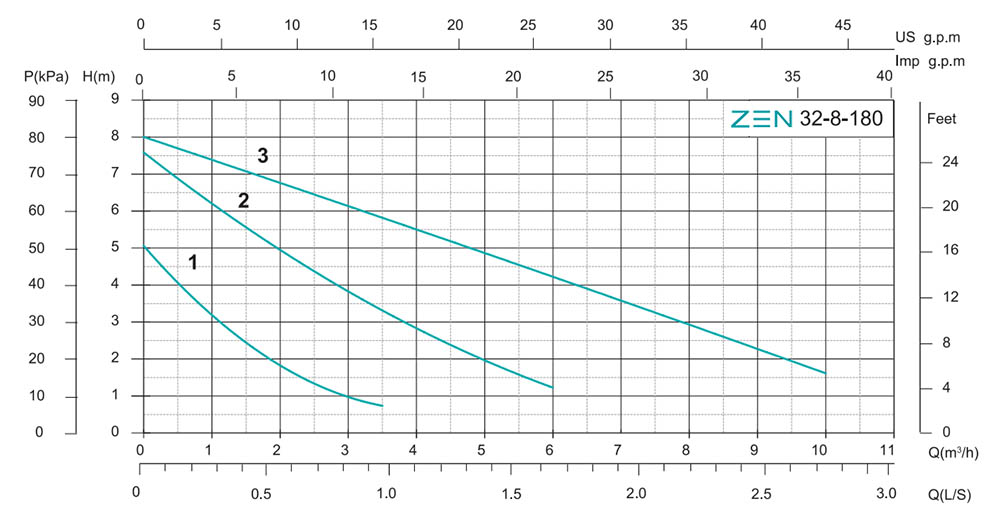

6 | 20 | 12 | 0~12 | 3.5 | |||||||
| ZEN32-8-180 |
3 2 1 |
245 210 140 |
1.04 0.92 0.63 |
1.04 0.92 0.63 |
1.80 1.60 1.10 |
6 | / | 8 | 0~8 | 10 | 5.4 | 22 | 3200 | ||||
