Yangi mahsulotlar

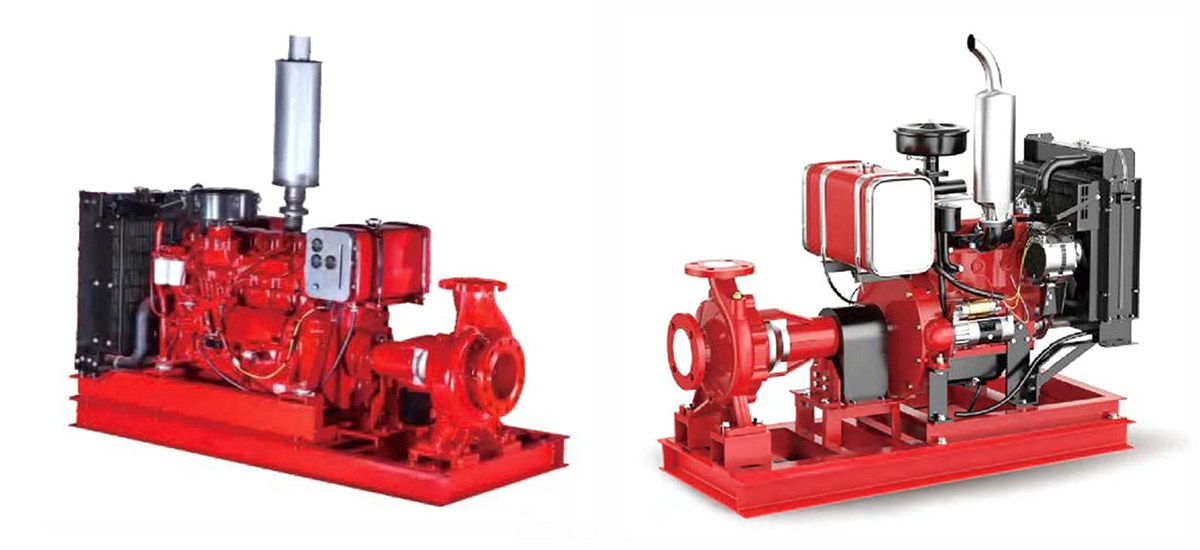

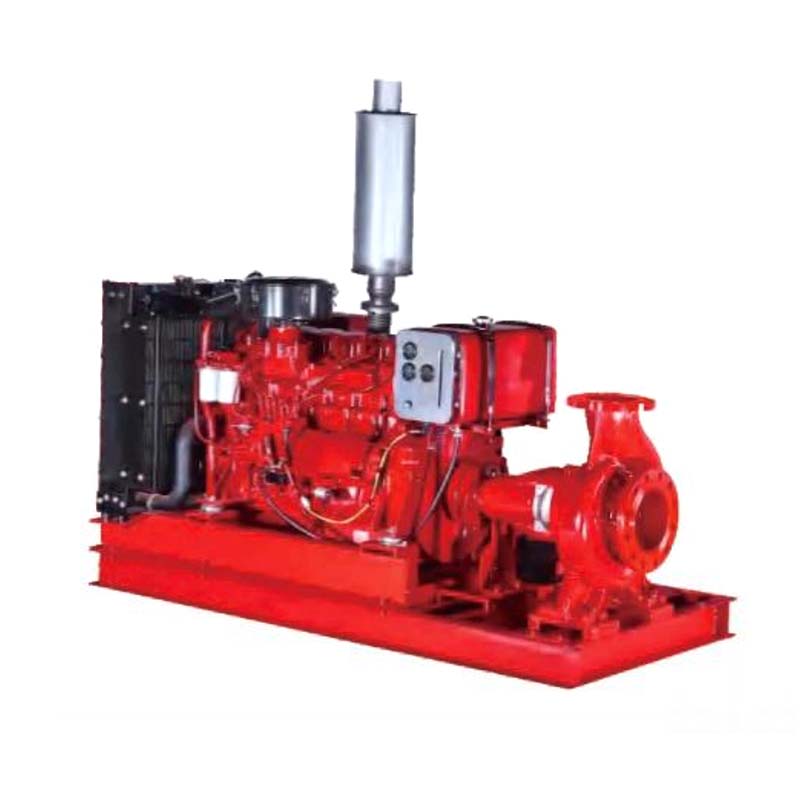

Nasos uchun SD dizel dvigateli

Yong'in pompasi drayverlarining maxsus talablariga javob berish uchun nasos uchun yuqori sifatli ZEN Machinery SD Dizel Dvigatelini tavsiya qilamiz.

So'rov yuborish

Mahsulot tavsifi

Professional ishlab chiqaruvchi sifatida ZEN Machinery sizni nasos uchun yuqori sifatli SD dizel dvigatel bilan ta'minlashga intiladi.

TAVSIF

◆ Dizel dvigatellari yong'inga qarshi nasoslarni haydashda juda ishonchli va samarali ekanligi isbotlangan.

◆ Hozirgi vaqtda dizel dvigatellari NFPA 20 tomonidan ruxsat etilgan ichki yonish dvigatellarining yagona turi hisoblanadi.

◆ Har bir dvigatel NFPA 20 ga muvofiq ikkita akkumulyator bilan jihozlangan boʻlishi kerak.

◆ Yong'in nasoslari uchun dizel dvigatellari siqish ateşlemesidir.

◆ Kengaytirilgan to'g'ridan-to'g'ri quyish va yonish tizimi.

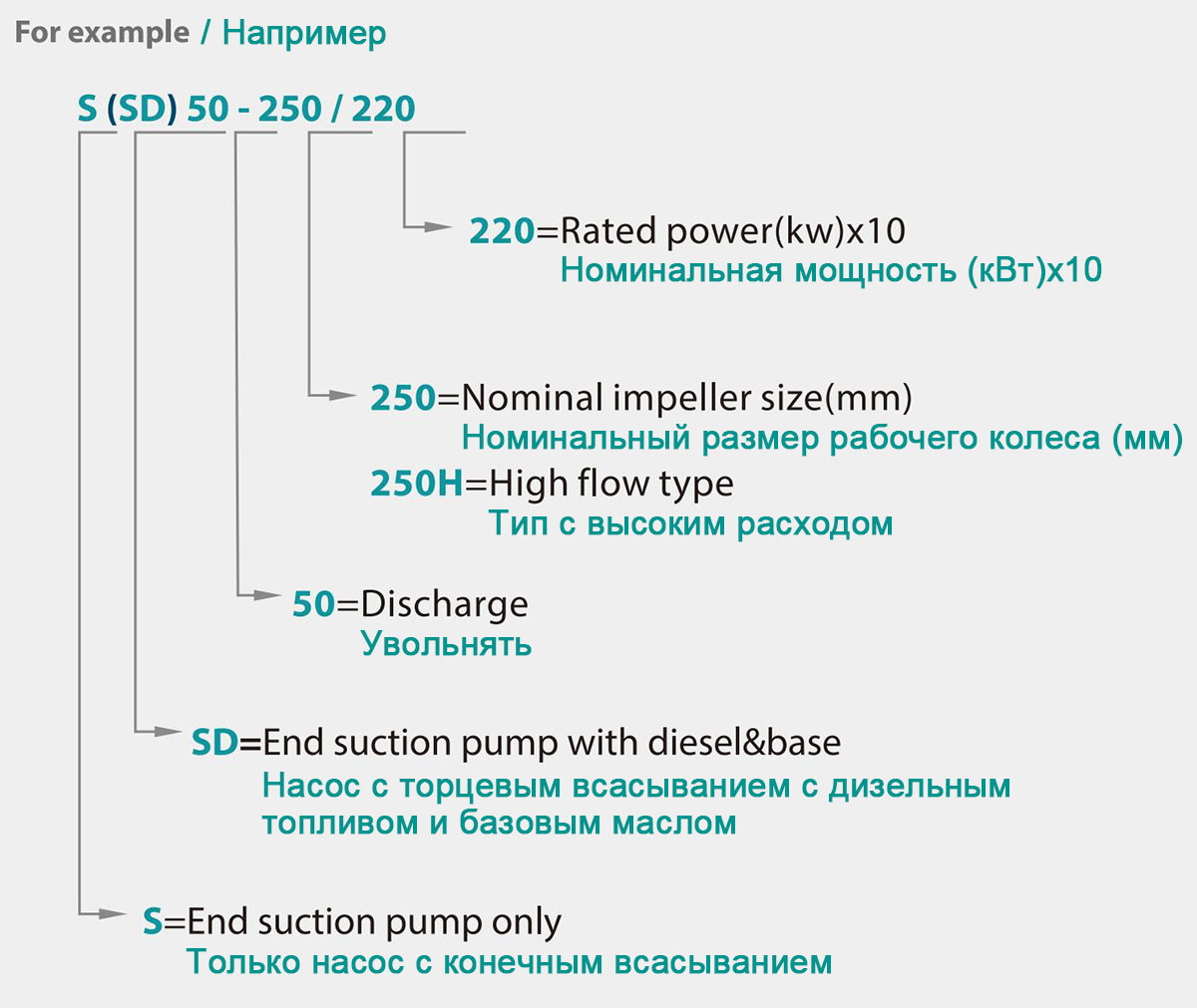

KOD MODELLARI

TEXNIK VARAQAT

MODEL	SD
Ishlash	0-1000 m³/soat
Harakat	0-164 m
DN	32-150 mm
Tezlik	3000 aylanish tezligi
Tmax.	120 ℃
Quvvat	6,3-300 kVt quvvatga ega
Ramka	Kulrang quyma temir
Pervane	AISI 304 / Guruch
Mil	AISI 304
Milya muhri	Mexanik muhr
tashuvchi	Rulmanlarni moylash

TEXNIK MA'LUMOTLAR 50 Hz n=3000 1/min

MODEL	DN	Impl dia.	Quvvat		Q=Etkazib berish
					bizga gpm O	25	50	75	100	120	150	200	250	300	350	400	450	500	600
					l/min O	95	190	283	383	450	567	750	950	1133	1317	1517	1700	1900	2267
					m³/soat O	5.7	11.4	17	23	27	34	45	57	68	79	91	102	114	136
	mm	mm	kVt	hp	H=Bosh(m)
SD 32-250/55	50x32	208	6.3	8.6	60	60	58	52	39	-	-	-	-	-	-	-	-	-	-
SD 32-250/75	50x32	230	7.2	10	69.5	69.5	68	64	56	-	-	-	-	-	-	-	-	-	-
SD 32-250/92	50x32	237	8.2	12	75	75	73.5	70	61	-	-	-	-	-	-	-	-	-	-
SD 32-250/110	50x32	250	8.2	12	90	89	86	80	69	-	-	-	-	-	-	-	-	-	-
SD 32-250/150	50x32	258	20	27	97	96.8	94	88	76	-	-	-	-	-	-	-	-	-	-
SD 40-250/110	65x40	230	8.2	12	72	-	-	68	66	63.5	59	50	-	-	-	-	-	-	-
SD 40-250/150	65x40	250	20	27	84.5	-	-	79.5	77.5	75.2	71.5	63	-	-	-	-	-	-	-
SD 40-250/185	65x40	258	20	27	90	-	-	86	83.5	80.7	77	68	-	-	-	-	-	-	-
SD 50-250/150	65x50	228	20	27	68.5	-	-	-	-	-	65	62	58	53	45	-	-	-	-
SD 50-250/185	65x50	235	20	27	79	-	-	-	-	-	77	74	71	66	59	47	-	-	-
SD 50-250/220	65x50	250	24	32	89.5	-	-	-	-	-	88	85	81.5	76	68	57	-	-	-
SD50-250/300	65x50	258	28	38	95.5	-	-		-	-	92	90	87	81	74	63	-	-	-
SD 65-250/220	80x65	225	24	32	64.8		-	-	-	-	-	-	63.5	62	61	58.5	56	52.5	-
SD65-250/300	80x65	244	28	38	80	-	-	-	-	-	-	-	79	78	77	74.5	72	70	59
SD 65-250/370	80x65	258	42	58	92	-	-	-	-	-	-	-	89.5	88.5	87	85	83	80	69

MODEL	DN	Impl dia.	Quvvat		Q=Etkazib berish
					bizga gpm O	250	400	500	600	750	850	950	1000	1250	1350	1500	1750	2000	2500	3000	3500	4500
					l/min O	950	1517	1900	2267	2833	3217	3600	3783	4733	5100	5683	6617	7567	9467	11350	13250	17033
					m³/soat O	57	91	114	136	170	193	216	227	284	306	341	397	454	568	681	795	1022
	mm	mm	kVt	hp	H=Bosh(m)
SD 65-315/450	80x65	262	45	61	102	98	94.5	90	83	-	-	-	-	-	-	-	-	-	-	-	-	-
SD 65-315/550	80x65	290	55	75	122	120	114.5	111	104	85	-	-	-	-	-	-	-	-	-	-	-	-
SD 65-315/750	80x65	317	75	100	141	141	134.5	132	123	105	86	64	-	-	-	-	-	-	-	-	-	-
SD 65-315/900	80x65	328	90	125	151	150	144.5	141	133	115	95	74	-	-	-	-	-	-	-	-	-	-
SD 80-250/450	100x80	240	45	61	88	86.7	86	84	80	72	62	49	-	-	-	-	-	-	-	-	-
SD 80-250/550	100x80	258	55	75	94.5	94.5	94.5	92	89	82	76	66	-	-	-	-	-	-	-	-	-	-
SD 80-250/750	100×80	276	75	100	108.5	108.5	108.5	106	103	96.5	90	80	-	-	-	-	-	-	-	-	-	-
SD 80-315/550	100x80	270	55	75	98	97	95.6	95	92	86	78	67	-	-	-	-	-	-	-	-	-	-
SD 80-315/750	100×80	295	75	100	124	123	121.6	119	116	110	103	94.5	89	-	-	-	-	-	-	-	-	-
SD 80-315/750	100×80	295	75	100	124	123	121.6	119	116	110	103	94.5	89	-	-	-	-	-	-	-	-	-
SD 80-315/900	100x80	320	90	125	144	143	141.6	140	137	130	122	114	108	-	-	-	-	-	-	-	-	-
SD 80-315/1100	100×80	328	110	150	153	152	150.6	149	146	140	132	123	118	-	-	-	-	-	-	-	-	-
SD 100-250/550	125x100	240	55	75	77	76	75.5	76	75	73	72	70	70	62.3	59	-	-	-	-	-	-	-
SD 100-250/750	125x100	257	75	100	91	91	90.5	89.7	88	86	84	82	81	71.7	68.5	56	-	-	-		-	-
SD 100-250/900	125x100	270	90	125	100	100	99.5	98	97	95	93	91	90	80.7	77.5	65	-	-	-	-	-	-
SD 100-315/1100	125x100	300	110	150	118	-	-	116	115.5	114	112	111	110	104	102	95	-	-	-	-	-	-
SD 100-315/1320	125x100	315	125	170	129	-	-	127	126	124	123	122	121	115	112	105	-	-	-	-	-
SD 100-315/1600	125x100	328	165	225	148	-	-	146	145	144	142	141	140	134	132	125	-	-	-	-	-	-
SD 125-250/750	150x125	255	75	100	80	-	-	77	76	74.5	73	72	71	67	65	60	-	-	-	-	-	-
SD 125-250/900	150x125	265	90	125	87	-	-	84	83	81.5	80	78.5	78	73.5	71.5	67.5	60	-	-	-	-	-
SD 100-315/1600	150x125	274	110	150	97	-	-	94	93	92	90.5	89	88	84	83.5	78.5	71	-	-	-	-	-
SD 125-250H/1100	150x125	240	110	150	74	-	-	74.5	74	74	73	73	72.5	70.8	70.4	69	66	62.5	53	-	-	-
SD 125-250H/1320	150x125	260	125	170	84	-	-	84	84	83.5	83	82.5	82	80.8	80.4	78.5	76	72	63	-	-
SD 125-250H/1600	150x125	280	165	225	98	-	-	97.5	97.5	97.5	97	97	96.5	94.8	94.4	93	90	87	78	66	-	-
SD 125-315/1320	150x125	280	125	170	96	-	-	-	-		-	96	96	94	93.5	92	88.5	84	65	-	-	-
SD 125-315/1600	150x125	295	165	225	106	-	-	-	-	-	-	105.5	105	104	103.5	102	100	96	82	-	-	-
SD 125-315/1850	150x125	310	200	270	122	-	-	-	-	-	-	122	121.7	120	119.5	118.5	116	110	95	-	-	-
SD 125-315/2000	150x125	328	200	270	136	-	-	-	-	-	-	136	135.5	135	133.5	133	130	125	110	-	-	-
SD 150-250/1320	200x150	265	125	170	80.2	-	-	-	-	-	-	-	-	-	78	75	73.5	71	67	61	54	37
SD 150-250/1600	200x150	280	165	225	90	-	-	-	-	-	-	-	-	-	88	87	85	84	79	74	66	47
SD 150-250/2000	200x150	295	200	270	100	-	-	-	-	-	-	-	-	-	97	96	95	93	89	84	76	56
SD 150-315/1850	200x150	287	200	270	92	-	-	-	-	-	-	-	-	-	90	89	87.2	85	80	71	61	-
SD 150-315/2500	200x150	305	250	340	111	-	-	-	-	-	-	-	-	-	110	108	106	104	98	90	82	62
SD 150-315/2800	200x150	315	300	410	124	-	-	-	-	-	-	-	-	-	121	120	118	116	111	104	95	73
SD 150-315/3150	200x150	327	300	410	135	-	-	-	-	-	-	-	-	-	134	133	132	130	124	116	107	84
