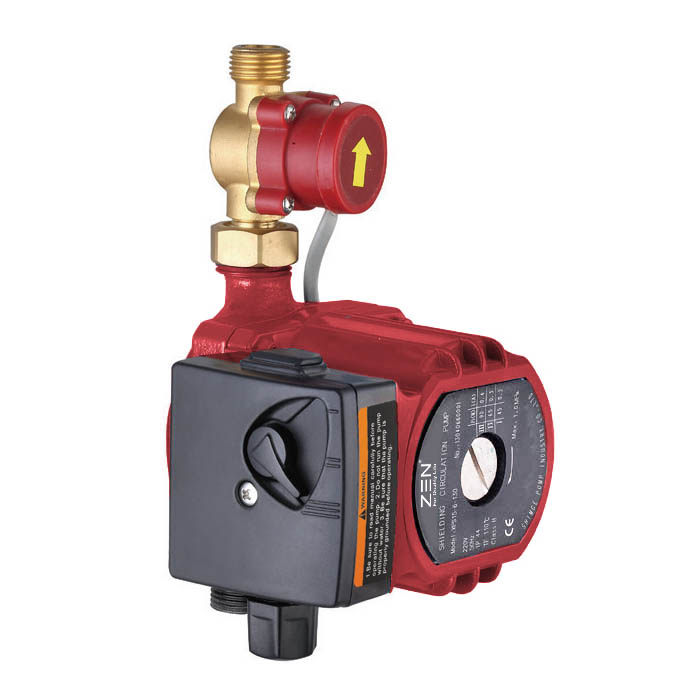

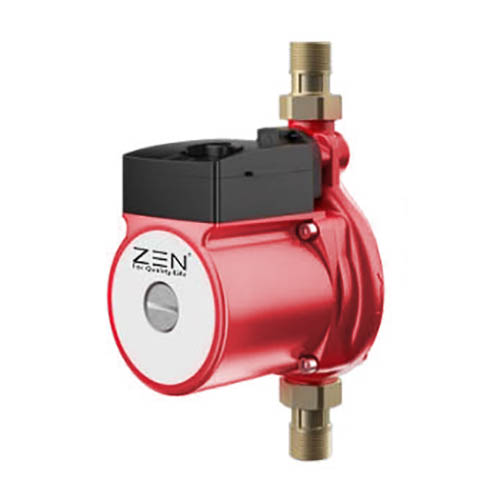

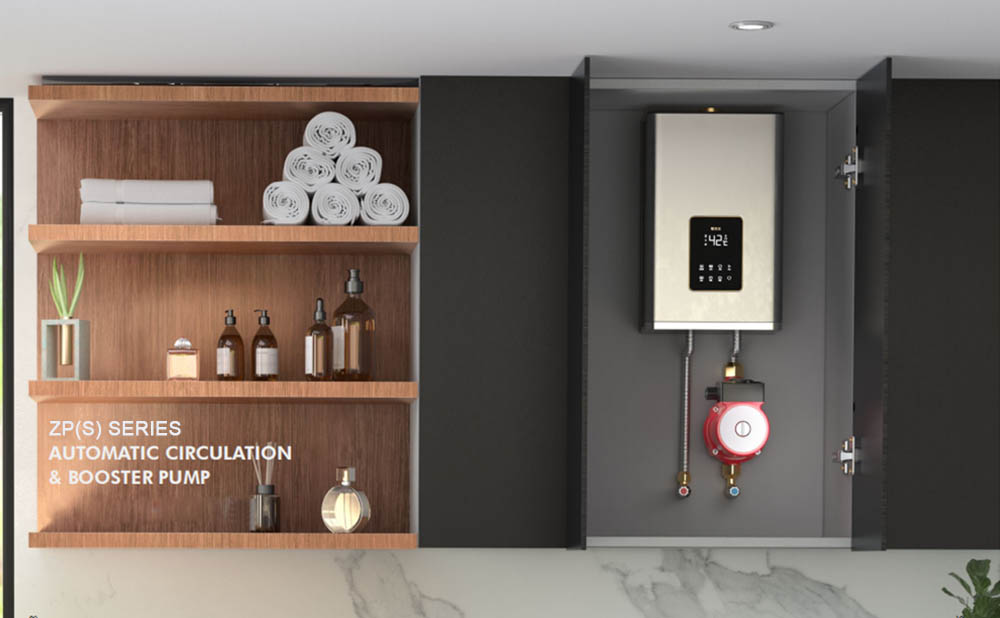

ZEN Machinery yuqori sifatli ZP(S) kuchaytirgich nasosi maishiy musluk suvida avtomatik bosimni oshirish, quyosh tizimlarida bosimni oshirish, issiq yoki sovuq suv quvurlarida bosimni oshirish va hk.
◎ Suyuqlik harorati: + 2°C - + 90°C
◎ Maksimal muhit harorati + 40 ° C
◎ Maksimal bosim 10 bar.
◎ Himoya klassi: IP44
◎ Ulanish: 220V/50Hz, 220V/60Hz, 127V/60Hz
◎ Izolyatsiya sinfi: H
◎ Suyuqlikning nasos xususiyatlari: toza, qattiq va mineral moylardan xoli, toksik bo'lmagan, kimyoviy jihatdan neytral, suv xususiyatlariga o'xshash
◎ O'rnatish: Dvigatel o'qi gorizontal yo'nalishda bo'lishi kerak
◎ pH: 6,5 - 8,5
◎ Avtomatik va qo'lda rejim
◎ Kam shovqin, oqish yo'q
◎ Avtomatik oqim o'tkazgichni boshqarish
Maksimal oqim: 3,5 m3 / soat
Maksimal suv bosimi: 12 m
Maishiy musluk suvi uchun avtomatik bosim, quyosh tizimlaridagi bosim, issiq yoki sovuq suv quvurlaridagi bosim va boshqalar.
◎ Mahsulot mijozning kuchlanishiga va chastotasiga qarab sozlanishi mumkin.

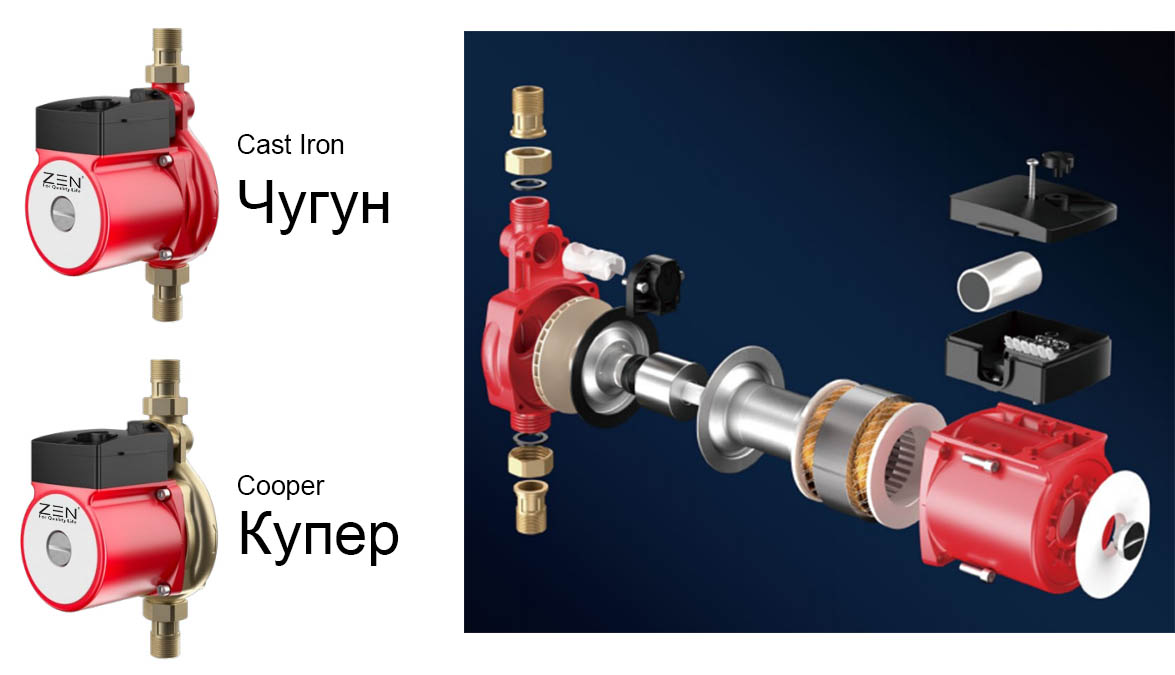

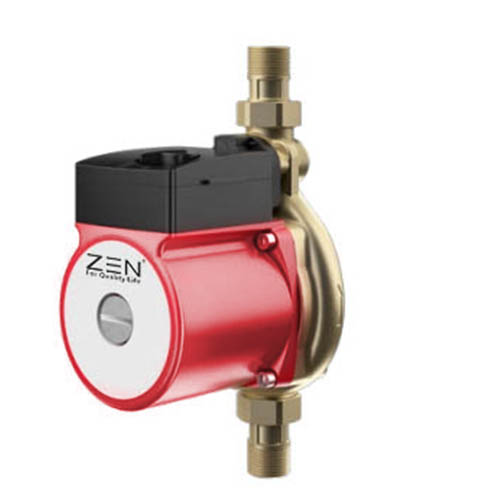

◎ Guruch nasos korpusi, sirlangan nasos tanasi, zanglamaydigan po'latdan yasalgan nasos tanasi

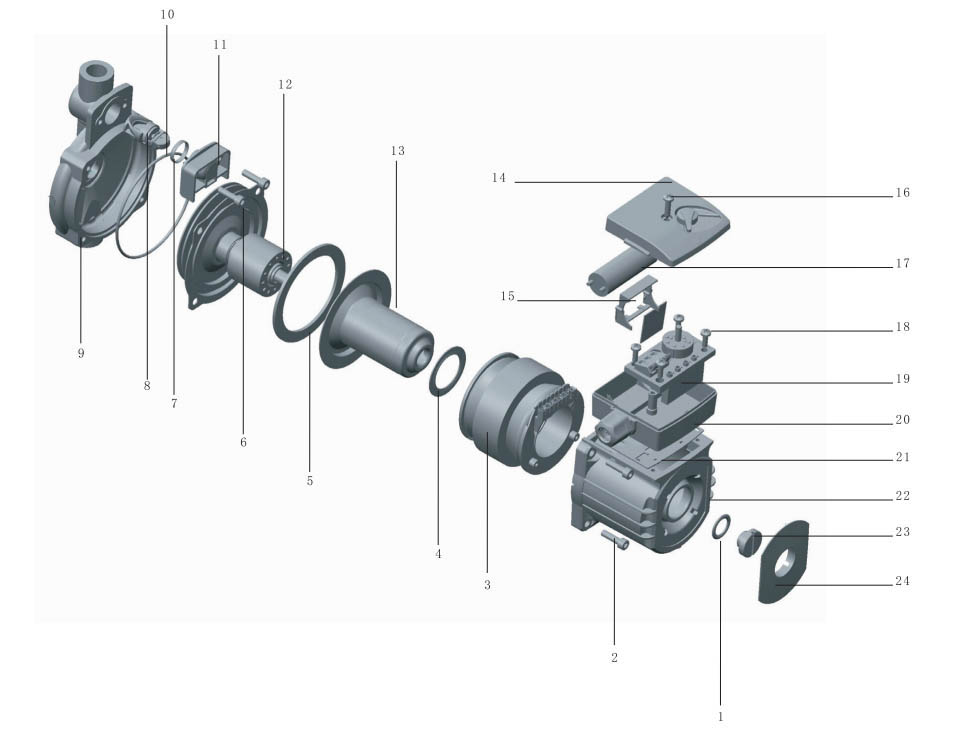

| Pos. |
Komponent | Material |
| 1 | o-ring | EPDM |
| 2 | Olti burchakli vintlardek | Chelik |
| 3 | Stator | / |
| 4 | O-ring I | EPDM |
| 5 | o-ring l | EPDM |
| 6 | Olti burchakli vintlardek | Chelik |
| 7 | o-ring | EPDM |
| 8 | Oqim almashtirish | / |
| 9 | Nasos korpusi | Quyma temir |
| 10 | o-ring | EPDM |
| 11 | Oqim kaliti qopqog'i | PA66G30 |
| 12 | Pervane Mil Yo'naltiruvchi podshipnik Radial podshipnik |
PESG30 Keramika Grafit Keramika |
| Pos. | Komponent | Material |
| 13 | Aylanadigan idish | Zanglamaydigan po'lat |
| 14 | Terminal qutisi qopqog'i | ABS |
| 15 | PCB qavs | PA66G30 |
| 16 | O'z-o'zidan tejamkor vint | Zanglamaydigan po'lat |
| 17 | Kondensator | / |
| 18 | Vintlar | Chelik |
| 19 | PCB | / |
| 20 | Terminal qutisi bazasi | PA66G30 |
| 21 | Terminal qutisi muhri | EPDM |
| 22 | Stator korpusi | alyuminiy |
| 23 | Havo valfi | Guruch |
| 24 | Nom lavhasi | PA6 |

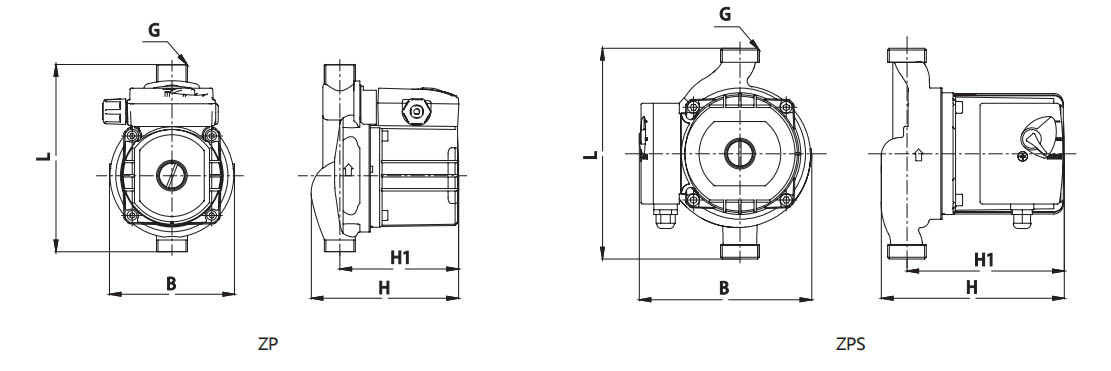

| Model | Hajmi (mm) | ittifoq |
N.W. (kg) | ||||
| H | H1 | L | G | B | |||
| ZP15-9-160 | 125 | 102 | 160 | ¾" | 105 | G¾"dan G½"gacha | 2.6 |
| ZPS15-9-140 | 125 | 102 | 140 | ¾" | 105 | G¾"dan G½"gacha | |
| ZPS20-12-180 | 156 | 135 | 180 | 1" | 145 | G1"dan G¾"gacha | 4.6 |

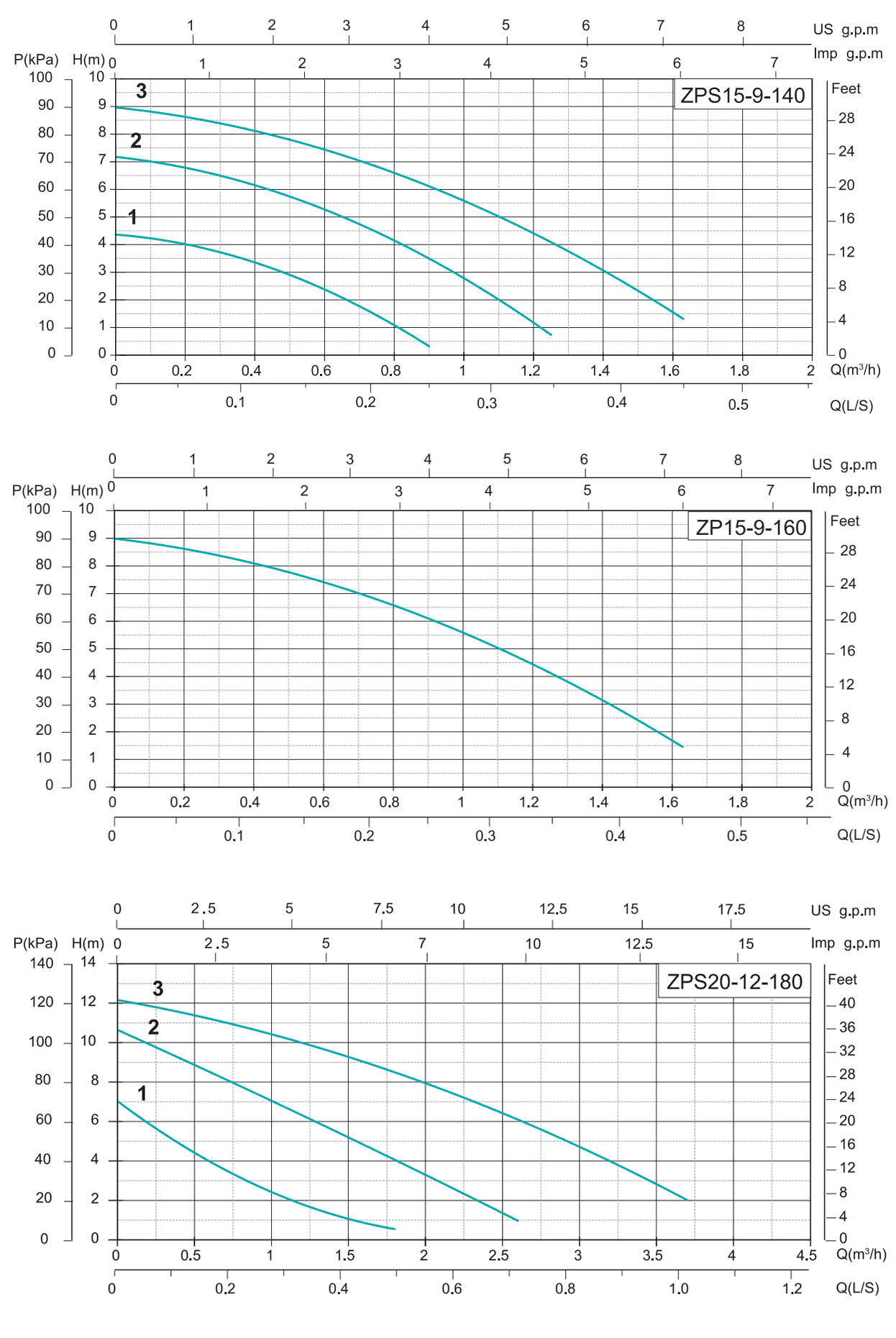

| Model | Tezlik | Kirish kuch P1(W) |
Hozirgi (A) | Kondensator |
Masofa quvurlar orasida (mm) |
Maks. Bosh (m) |
Hammasi lift (m) |
Maks. Oqim (m³/soat) |
Inter boks |
Tashqi quti |
20" Yuklanmoqda Miqdor (dona) |
||||||
| mF/450V | mF/250V | ||||||||||||||||
| 220V/50Hz | 220V/60Hz | 127V/60Hz | 220V/50Hz/60Hz | 127V/60Hz | G.V. (kg) |
Xira. (L×W×H) |
PCS/ CTN |
Xira. (L×W×H) |
G.V (kg) |
||||||||
| ZP15-9-160 | - | 120 | 0.48 | 0.48 | 0.95 | 3 | 10 | 160 | 9 | 0~9 | 1.6 |
2.8 |
180x120x135 |
8 |
380x260x290 |
23 |
5880 |
| ZPS15-9-140 | 3 | 120 | 0.48 | 0.48 | 0.95 | 3 | 10 | 140 | 9 | 0~9 | 1.6 | ||||||
| 2 | 85 | 0.38 | 0.38 | 0.66 | |||||||||||||
| 1 | 60 | 0.26 | 0.26 | 0.45 | |||||||||||||
| ZPS20-12-180 | 3 | 245 | 1.04 | 1.04 | 1.80 | 6 | 20 | 180 | 12 | 0~12 | 3.5 | 5 | 200x160x180 | 4 | 415x340x200 | 21 | 3200 |
| 2 | 210 | 0.92 | 0.92 | 1.60 | |||||||||||||
| 1 | 140 | 0.63 | 0.63 | 1.10 | |||||||||||||
