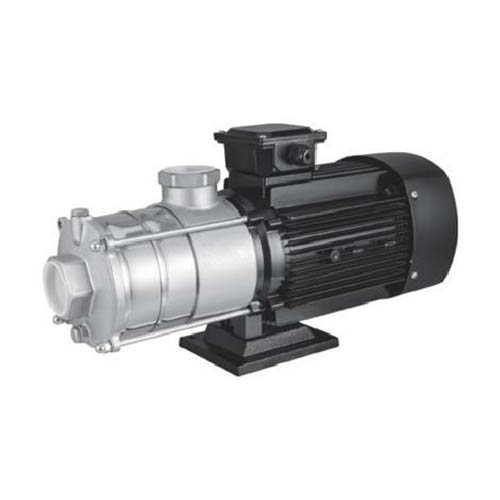

ZEN Machinery brendi Xitoyda BWJ zanglamaydigan po'latdan gorizontal ko'p bosqichli santrifüj nasosning etakchi ishlab chiqaruvchisi.
NasosMaksimal suyuqlik harorati: + 85 ° C
Maksimal assimilyatsiya: 8 m
Maksimal ish bosimi: maksimal ish bosimi bilan cheklangan.
Nasos tanasi: quyma temir / zanglamaydigan po'lat
Pervane: yuqori quvvatli muhandislik plastmassa materiali, korroziyaga qarshi
mis o'rashli elektr motor
Bir fazali vosita o'rnatilgan termal himoyaga ega.
Mana AISI 304
Izolyatsiya sinfi: B yoki F
Himoya klassi: IPX4
Maksimal atrof-muhit harorati: + 40 ° C
Sovutish: tashqi shamollatish
U maishiy suv ta'minoti, asbob-uskunalarni yig'ish, quvurlarni bosim o'tkazish, bog'larni sug'orish, sabzavot issiqxonalarini sug'orish, baliq va parrandachilik, sanoat konlari, korxonalar va ko'p qavatli binolarni suv ta'minoti va kanalizatsiya, markaziy konditsioner va markazlashtirilgan isitish va aylanish tizimi uchun ishlatiladi.
| Model | Quvvat |
Maksimal oqim (Q/m³/soat) |
Maksimal bosh (m) |
Maksimal diapazon (m) |
Chiqishga kiring (dyuym) |
GW (kg) |
To'ldiruvchining o'lchami men (mm) |
|
| KVt | HP | |||||||
| 2M | 0.37 | 0.5 | 4.2 | 13 | 8 | 1"×1" | 8.7 | 385×140x187 |

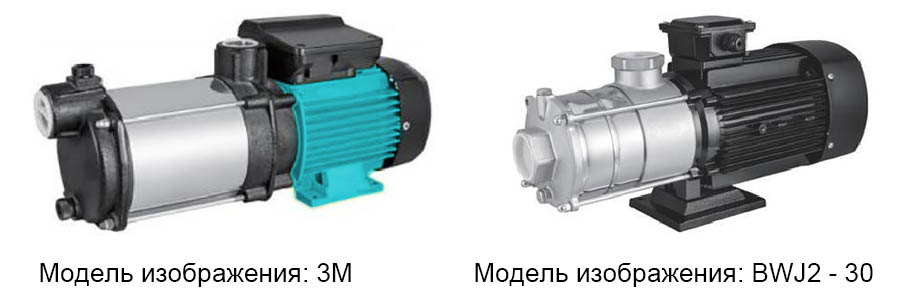

| 3M | 0.55 | 0.75 | 4.2 | 19 | 8 | 1"×1" | 9.5 | 410x140x187 |
| 4M | 0.75 | 1 | 4.2 | 26 | 8 | 1"×1" | 10.3 | 435x140x187 |
| 5M | 1.1 | 1.5 | 4.2 | 49 | 8 | 1"×1" | 455x140x187 | |
| BWJ2-20 | 0.37 | 5 | 2 | 14 | 8 | 1"×1" | 15 | 325×165×210 |
| BWJ2-30 | 0.55 | 0.75 | 2 | 21 | 8 | 1"×1" | 15 | 345×165×210 |
| BWJ2-40 | 0.55 | 0.75 | 2 | 28 | 8 | 1"×1" | 16 | 365x165×210 |
| BWJ2-50 | 0.55 | 0.75 | 2 | 35 | 8 | 1"×1" | 17 | 385×165×210 |
| B7-60 | 0.75 | 1 | 2 | 42 | 8 | 1"×1" | 18.5 | 400x185x230 |
| BWJ4-20 | 0.55 | 0.75 | 4 | 15 | 8 | 1 1/4''×1" | 16 | 360x165×210 |
| BWJ4-30 | 0.55 | 0.75 | 4 | 22 | 8 | 1¼"×1" | 16.5 | 360x165×210 |
| BWJ4-40 | 0.75 | 1.0 | 4 | 30 | 8 | 1¼"×1" | 17 | 440x185x230 |
| BWJ4-50 | 1.1 | 1.5 | 4 | 38 | 8 | 1¼"×1" | 17 | 470x185x230 |
| BWJ4-60 | 1.1 | 1.5 | 4 | 45 | 8 | 1¼"×1" | 17.5 | 500x185x230 |
| BWJ8-10 | 0.75 | 1 | 8 | 8.5 | 8 | 1¼"×1½ | 20 | 410x185x230 |
| BWJ8-20 | 0.75 | 1.0 | 8 | 17 | 8 | 1¼"×1½ | 20.5 | 410x185x230 |
| BWJ8-30 | 1.1 | 1.5 | 8 | 25.5 | 8 | 1¼"×1½ | 25 | 440x185x230 |
| BWJ8-40 | 1.5 | 2.0 | 8 | 34 | 8 | 1¼"×1½ | 28 | 510x205x255 |
| BWJ8-50 | 2.2 | 3 | 8 | 42.5 | 8 | 1¼"×1½ | 30 | 510x205x255 |
| BWJ12-10 | 0.75 | 1.0 | 12 | 9.5 | 8 | 1½"×1½ | 20 | 410x185x230 |
| BWJ12-20 | 1.2 | 1.6 | 12 | 19.5 | 8 | 1½"×1½ | 21 | 410x185x230 |
| BWJ12-30 | 1.8 | 2.4 | 12 | 29.5 | 8 | 1½"×1½ | 25 | 480x220x255 |
| BWJ12-40 | 2.4 | 3.2 | 12 | 39.5 | 8 | 1½"×1½ | 29 | 510x220x255 |
| BWJ12-50 | 3.0 | 3.0 | 16 | 50 | 8 | 1½"×1½ | 34 | 600x240x280 |
| BWJ16-10 | 1.1 | 1.5 | 16 | 10 | 8 | 2"×2" | 18 | 450x240x280 |
| BWJ16-20 | 2.2 | 3.0 | 16 | 21 | 8 | 2"×2" | 27 | 490x185x230 |
| BWJ16-30 | 3 | 4 | 16 | 32 | 8 | 2"×2" | 33 | 590x240x280 |
| BWJ16-40 | 4.0 | 5.5 | 20 | 43 | 8 | 2"×2" | 41 | 655x255x320 |
| BWJ20-10 | 1.1 | 1.5 | 20 | 9.5 | 8 | 2"×2" | 18 | 450x240x280 |
| BWJ20-20 | 2.2 | 3.0 | 20 | 21 | 8 | 2"×2" | 27 | 490x185x230 |
| BWJ20-30 | 4 | 5.5 | 20 | 33 | 8 | 2"×2" | 41 | 610x255x320 |
| BWJ20-40 | 4.4 | 1.6 | 20 | 44.5 | 8 | 2"×2" | 44 | 655x255x320 |
