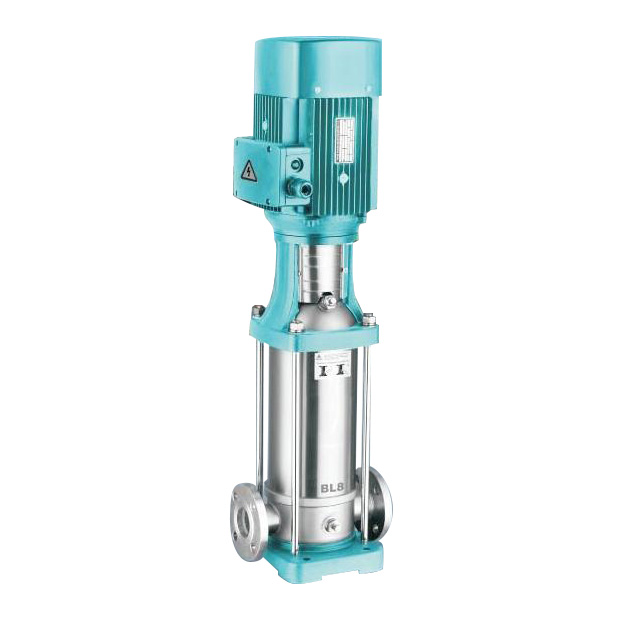

CDL (F) Vertikal ko'p bosqichli santrifüj zanglamaydigan po'latdan yasalgan nasos

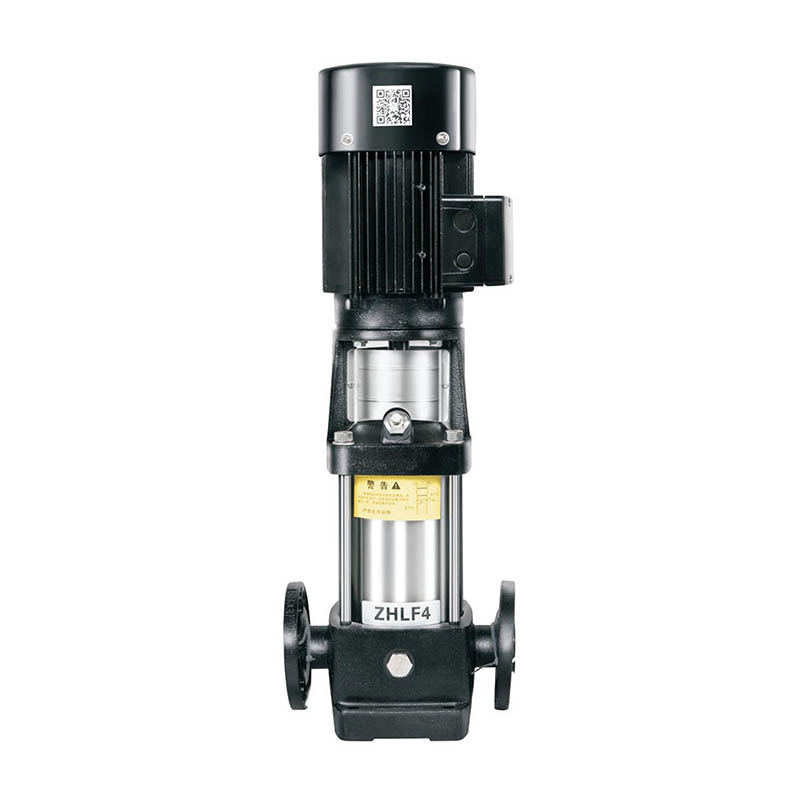

CDL (F) Vertikal ko'p bosqichli santrifüj zanglamas po'latdan yasalgan nasos - bir xil darajadagi assimilyatsiya va tushirish portlari bo'lgan vertikal ko'p bosqichli santrifüj nasos. Nasosi boshi va poydevori quyma temirdan qilingan. Boshqa barcha namlangan qismlar zanglamaydigan po'latdan yasalgan. Zamonaviy payvandlash uskunalari bilan ishlov berilganda, kuchlanishni bartaraf qiluvchi issiqlik bilan ishlov berish cho'zish va bosish paytida oxirgi plastinkada yuzaga keladigan stressni yo'q qiladi. Bu yuqori quvvat, deformatsiyaning yo'qligi, uzoq xizmat muddati va xavfsiz, ishonchli ishlashini ta'minlaydi. Bu past shovqin darajasi, minimal tebranish va chidamlilik bilan ajralib turadi. U B izolyatsiya sinfiga ega, IPX55 himoya darajasiga ega va uzluksiz ishlash uchun javob beradi. Bir fazali modellar xavfsizlik va qulaylik uchun termal himoya bilan jihozlangan. (CDL modellarida quyma temir nasos korpusi mavjud, CDLF modellarida esa zanglamaydigan po'latdan yasalgan nasos korpusi mavjud).

So'rov yuborish

Mahsulot tavsifi

CDL (F) Vertikal ko'p bosqichli santrifüj zanglamaydigan po'latdan yasalgan nasos

Asosiy maqsad

CDL / CDLF ko'p funktsiyali mahsulot bo'lib, turli xil muhitlarni musluk suvidan turli harorat, oqim va bosimga moslashtirilgan sanoat suyuqliklariga, korroziyaga uchramaydigan suyuqliklar uchun CDL va engil korroziyali suyuqliklar uchun CDLFga o'tkazishi mumkin.

Suv ta'minoti: suv tozalash inshootlarida suvni filtrlash va etkazib berish, suv tozalash inshootlarida suv ta'minoti, ob'ektiv vakolatli, ko'p qavatli binolar.

Sanoat quvvati: texnologik suv tizimi, tozalash tizimi, yuqori bosim ostida yuvish tizimi, yong'inni o'chirish tizimi.

Suyuqliklarni sanoat o'tkazish: havo sovutish va havoni tozalash tizimlari, qozonlarni ta'minlash va kondensatsiya qilish tizimlari, uskunalar, kislota va gidroksidi.

Suvni qayta ishlash: ultrafiltratsiya tizimi, teskari osmos tizimi, distillash tizimi, separator, hovuz.

Sug'orish: qishloq xo'jaligi erlarini sug'orish, sug'orish, tomchilatib sug'orish.

foydalanish shartlari

Suyuqlik harorati: doimiy harorat - 15 ° C dan + 70 ° C gacha

Issiq suv turi - 15 ° C dan + 120 ° C gacha

Atrof-muhit harorati: maksimal + 40 ° C

Dengiz sathidan balandligi: 1000 m gacha

qiladi

CDL / CDLF - bu standart dvigatelga o'rnatilgan o'z-o'zidan iste'mol qilmaydigan vertikal ko'p bosqichli santrifüj nasos bo'lib, dvigatel o'qi nasos boshini ulash orqali nasos o'qiga to'g'ridan-to'g'ri ulanadi, surish murvati bosim tsilindrini o'rnatadi, nasos boshi va chiqish qismi o'rtasidagi toshib ketish elementi, kirish va chiqish bir xil chiziqda bir xil to'g'ri chiziqda joylashgan. bir xil to'g'ri chiziq nasos kunida to'g'ri chiziq; Nasos intellektual himoya moslamasi, quruq nasosning aylanishi, fazaning yo'qligi, ortiqcha yuk va boshqalar ehtiyojlariga muvofiq sozlanishi mumkin. Samarali himoya.

Dvigatel:

Elektr dvigateli to'liq yopiq, ikki kutupli standart havo sovutish dvigateli.

Himoya klassi: IP55

Izolyatsiya sinfi: f

Standart kuchlanish: 50 Hz: x220 - 230 /240 V

3x200-220/346-380V

3x220-240/380-415V

3x380-415V

Oddiy tavsif

CDL, CDLF2, 4,8,12, 15,20

CDL F 8 - 2/1

① cdl: engil vertikal ko'p bosqichli santrifüj nasos

② F: oqim elementi - zanglamaydigan po'latdan 304 yoki 316L (oddiy turdagi)

③ 8: nominal iste'mol m³/soat

④ 2: qatorlar

⑤ 1: pervanel miqdori

CDL, CDLF32,42,65

CDL F 32 - 10 - 2

① cdl: engil vertikal ko'p bosqichli santrifüj nasos

② F: oqim elementi - zanglamaydigan po'latdan 304 yoki 316L (oddiy turdagi)

③ 32: nominal iste'mol m³/soat

④ 10: Seriya × 10

⑤ 2: pervanel miqdori

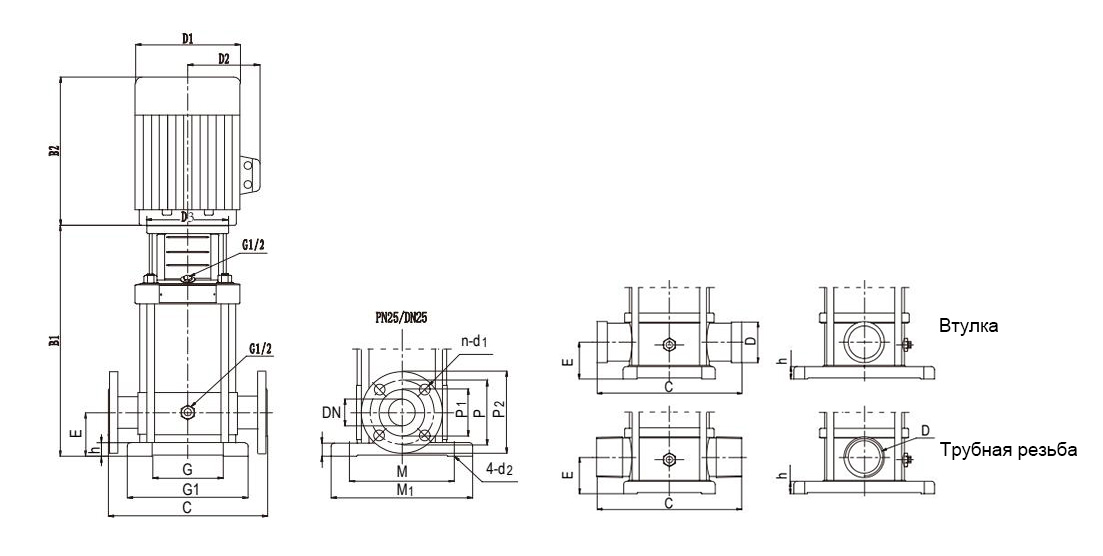

CDL (F) Nasosni o'rnatish hajmi

Nasos turi / hajmi		CD/CDLF
		1	2	3	4	5	8	10	12	15	16	20	32	42	65	85	120	150	200
Dumaloq gardish	DN	25			32		40		50				65	80	100		125		150
	P1	60					80						107	120	150		175		203
	P	85			100		110		125				145	160	180		220		250
	P2	115			140		150		165				185	200	220		270		300
	N-D1	4-F14			4-F18								8-F18				8-F28
	C	250					280		300				320	365		380	380		490
	E	75					80		90				105	140			180		200
	h	32					25		35				30	45			40		40
	Nominal bosim	PN25											PN25-40		PN16		PN25-40
tiqin	D	42					60
	C	210					260
	E	50					80		90
	h	20					25		35
Quvur kesuvchi	D	ZG1¼					ZG2
	C	210					260

	E	50					80		90

	h	20					25		35

Lomber gardish	D	G1			G1¼		G1½
	C	162					200
	E	50					80
	h	20					25
	P	75					100
	N-D1	2-M10×40					2-M12×45
	k	22
Pastki ulanishning o'lchami	G	100					130						170	190		199	275		385
	G1	150					199						225	245		255	340		460


	M	180					215						240	266		280	380		500

	M1	210					247						298	330		348	472		600
	D2	13					14										18		20

Texnik parametrlar

Turi	Tarqatish mashinasi	Nominal iste'mol	Nominal bosim	Hajmi （mm）					Og'irligi
Turi	(kVt)	(m³/soat)	(m)	B1	B2	B1+B2	D1	D2	(kg)
CDL(F)2-2	0.37	2 (DN25)	15	258	225	483	148	117	24
CDL(F)2-3	0.37		22	276	225	501	148	117	24
CDL(F)2-4	0.55		30	294	225	519	148	117	25
CDL(F)2-5	0.55		37	312	225	537	148	117	26
CDL(F)2-6	0.75		45	340	245	585	170	142	30
CDL(F)2-7	0.75		52	358	245	603	170	142	30
CDL(F)2-9	1.1		67	394	245	639	170	142	33
CDL(F)2-11	1.1		82	430	245	675	170	142	34
CDL(F)2-13	1.5		98	476	290	766	190	155	40
CDL(F)2-15	1.5		112	512	290	802	190	155	42
CDL(F)2-18	2.2		136	566	290	856	190	155	46
CDL(F)2-22	2.2		165	638	290	928	190	155	47
CDL(F)4-2	0.37	4 (DN32)	15	276	225	501	148	117	22
CDL(F)4-3	0.55		24	303	225	528	148	117	24
CDL(F)4-4	0.75		32	340	245	585	170	142	30
CDL(F)4-5	1.1		40	367	245	612	170	142	32
CDL(F)4-6	1.1		48	394	245	639	170	142	33
CDL(F)4-7	1.5		56	431	290	721	190	155	39
CDL(F)4-8	1.5		64	458	290	748	190	155	40
CDL(F)4-10	2.2		81	512	290	802	190	155	43
CDL(F)4-12	2.2		95	566	290	856	190	155	44
CDL(F)4-14	3		112	630	345	975	197	165	52
CDL(F)4-16	3		129	684	345	1029	197	165	54
CDL(F)4-19	4		153	765	345	1120	230	188	56
CDL(F)8-2	0.75	8 (DN40)	18	347	245	592	170	142	33
CDL(F)8-3	1.1		27	377	245	662	170	142	35
CDL(F)8-4	1.5		36	417	290	707	190	155	42
CDL(F)8-5	2.2		45	447	290	737	190	155	46
CDL(F)8-6	2.2		54	477	290	767	190	155	47
CDL(F)8-8	3		73	547	345	892	197	165	55
CDL(F)8-10	4		92	607	355	962	230	188	67
CDL(F)8-12	4		111	667	355	1022	230	188	70
CDL(F)8-14	5.5		130	747	390	1137	260	208	85
CDL(F)8-16	5.5		148	807	390	1197	260	208	88
CDL(F)8-18	7.5		167	867	390	1257	260	208	98
CDL(F)8-20	7.5		186	927	390	1317	260	208	99

Turi	Tarqatish mashinasi	Nominal iste'mol	Nominal bosim	Hajmi （mm）					Og'irligi
Turi	(kVt)	(m³/soat)	(m)	B1	B2	B1+B2	D1	D2	(kg)
CDL(F)12-2	1.5	12 （DN50）	20	367	290	657	190	155	40
CDL(F)12-3	2.2		30	397	290	687	190	155	45
CDL(F)12-4	3		40	437	345	782	197	165	55
CDL(F)12-5	3		50	467	345	812	197	165	57
CDL(F)12-6	4		60	497	355	852	230	188	66
CDL(F)12-7	5.5		70	547	390	937	260	208	77
CDL(F)12-8	5.5		80	577	390	967	260	208	78
CDL(F)12-9	5.5		91	607	390	997	260	208	80
CDL(F)12-10	7.5		101	637	390	1027	260	208	88
CDL(F)12-12	7.5		121	697	390	1087	260	208	92
CDL(F)12-14	11		141	845	500	1345	330	255	162
CDL(F)12-16	11		162	905	500	1405	330	255	167
CDL(F)12-18	11		183	965	500	1465	330	255	168
CDL(F)16-2	2.2	16 （DN50）	21.5	397	290	687	190	155	42
CDL(F)16-3	3		33	452	345	797	197	165	51
CDL(F)16-4	4		44	497	355	852	230	188	60
CDL(F)16-5	5.5		55	542	355	897	230	188	62
CDL(F)16-6	5.5		67	607	390	997	260	208	78
CDL(F)16-7	5.5		79	652	390	1042	260	208	80
CDL(F)16-8	7.5		90	697	390	1087	260	208	86
CDL(F)16-9	7.5		103	742	390	1132	260	208	88
CDL(F)16-10	11		114	875	500	1375	330	255	166
CDL(F)16-12	11		138	965	500	1465	330	255	170
CDL(F)16-14	15		160	1055	500	1555	330	255	173
CDL(F)16-14	15		160	1055	500	1555	330	255	173
CDL(F)20-2	2.2	20 （DN50）	23	397	290	687	190	155	42
CDL(F)20-3	4		35	452	355	807	230	188	58
CDL(F)20-4	5.5		47	517	390	907	230	208	74
CDL(F)20-5	5.5		58	562	390	952	260	208	75
CDL(F)20-6	7.5		70	607	390	997	260	208	84
CDL(F)20-7	7.5		82	652	390	1042	260	208	86
CDL(F)20-8	11		94	785	500	1285	330	255	157
CDL(F)20-10	11		118	875	500	1375	330	255	162
CDL(F)20-12	15		142	965	500	1465	330	255	176
CDL(F)20-14	15		166	1055	500	1555	330	255	178
CDL(F)20-17	18.5		202	1190	500	1740	330	255	201
CDL(F)32-10-1	1.5	32 (DN65)	9	505	290	795	190	155	71

CDL(F)32-10	2.2		13	505	290	795	190	155	71
CDL(F)32-20-2	3.0		20	575	315	890	197	165	84
CDL(F)32-20	4.0		27	575	335	910	230	188	84

Turi	Tarqatish mashinasi	Nominal iste'mol	Nominal bosim	Hajmi （mm）					Og'irligi
Turi	(kVt)	(m³/soat)	(m)	B1	B2	B1+B2	D1	D2	(kg)
CDL(F)32-30-2	5.5	32 (DN65)	33	645	430	1075	260	208	95
CDL(F)32-30	5.5		40	645	430	1075	260	208	95
CDL(F)32-40-2	7.5		46	715	430	1145	260	208	104
CDL(F)32-40	7.5		53	715	430	1145	260	208	104
CDL(F)32-50-2	11		60	890	490	1380	330	255	174
CDL(F)32-50	11		67	890	490	1380	330	255	174
CDL(F)32-60-2	11		74	960	490	1450	330	255	178
CDL(F)32-60	11		81	960	490	1450	330	255	178
CDL(F)32-70-2	15		88	1030	490	1520	330	255	190
CDL(F)32-70	15		95	1030	490	1520	330	255	190
CDL(F)32-80-2	15		102	1100	490	1590	330	255	194
CDL(F)32-80	15		109	1100	490	1590	330	255	194
CDL(F)32-90-2	18.5		117	1170	550	1720	330	255	220
CDL(F)32-90	18.5		124	1170	550	1720	330	255	220
CDL(F)32-100-2	18.5		131	1240	550	1790	330	255	224
CDL(F)32-100	18.5		138	1240	550	1790	330	255	224
CDL(F)32-110-2	22		146	1310	590	1900	360	255	261
CDL(F)32-110	22		153	1310	590	1900	360	255	261
CDL(F)32-120-2	22		160	1380	590	1970	360	285	265
CDL(F)32-120	22		167	1380	590	1970	360	285	265
CDL(F)32-130-2	30		174	1450	660	2110	400	310	330
CDL(F)32-130	30		181	1450	660	2110	400	310	330
CDL(F)32-140-2	30		189	1520	660	2180	400	310	337
CDL(F)32-140	30		196	1520	660	2180	400	310	337
CDL(F)42-10-1	3.0	42 （DN80）	16	561	315	876	197	165	86
CDL(F)42-10	4.0		20	561	335	896	230	188	92
CDL(F)42-20-2	5.5		32	641	430	1071	260	208	102
CDL(F)42-20	7.5		41	641	430	1071	260	208	107
CDL(F)42-30-2	11		52	826	490	1316	330	255	175
CDL(F)42-30	11		61	826	490	1316	330	255	175
CDL(F)42-40-2	15		73	906	490	1396	330	255	187
CDL(F)42-40	15		81	906	490	1396	330	255	187
CDL(F)42-50-2	18.5		93	986	550	1536	330	255	208
CDL(F)42-50	18.5		101	986	550	1536	330	255	208
CDL(F)42-60-2	22		113	1066	590	1656	360	285	251
CDL(F)42-60	22		122	1066	590	1656	360	285	251
CDL(F)42-70-2	30		134	1146	660	1806	400	310	315
CDL(F)42-70	30		142	1146	660	1806	400	310	315
CDL(F)42-80-2	30		154	1226	660	1886	400	310	319
CDL(F)42-80	30		162	1226	660	1886	400	310	319

Turi	Tarqatish mashinasi	Nominal iste'mol	Nominal bosim	Hajmi （mm）					Og'irligi
Turi	(kVt)	(m³/soat)	(m)	B1	B2	B1+B2	D1	D2	(kg)
CDL(F)42-90-2	30	42 （DN80）	174	1306	660	1966	400	310	323
CDL(F)42-90	37		183	1306	660	1966	400	310	343
CDL(F)42-100-2	37		194	1386	660	2046	400	310	347
CDL(F)42-100	37		203	1386	660	2046	400	310	347
CDL(F)42-110-2	45		217	1466	700	2166	450	345	413
CDL(F)42-110	45		225	1466	700	2166	450	345	413
CDL(F)42-120-2	45		238	1546	700	2246	450	345	417
CDL(F)42-120	45		247	1546	700	2246	450	345	417
CDL(F)42-130-2	45		259	1626	700	2326	450	345	421
CDL(F)65-10-1	4	65 （DN100）	13	561	335	896	230	188	105
CDL(F)65-10	5.5		20	561	430	991	260	208	110
CDL(F)65-20-2	7.5		26	644	430	1074	260	208	120
CDL(F)65-20-1	11		33	754	490	1244	330	255	155
CDL(F)65-20	11		40	754	490	1244	330	255	155
CDL(F)65-30-2	15		46	836	490	1326	330	255	195
CDL(F)65-30-1	15		53	836	490	1326	330	255	195
CDL(F)65-30	18.5		60	836	550	1386	330	255	205
CDL(F)65-40-2	18.5		66	919	550	1469	330	255	208
CDL(F)65-40-1	22		73	919	590	1509	360	285	260
CDL(F)65-40	22		80	919	590	1509	360	285	260
CDL(F)65-50-2	30		88	1001	660	1661	400	310	345
CDL(F)65-50-1	30		95	1001	660	1661	400	310	345
CDL(F)65-50	30		102	1001	660	1661	400	310	345
CDL(F)65-60-2	30		110	1084	660	1744	400	310	350
CDL(F)65-60-1	37		117	1084	660	1744	400	310	370
CDL(F)65-60	37		124	1084	660	1744	400	310	370
CDL(F)65-70-2	37		132	1166	660	1826	500	310	375
CDL(F)65-70-1	37		139	1166	660	1826	400	310	375
CDL(F)65-70	45		146	1166	700	1866	440	310	435
CDL(F)65-85-2	45		154	1248	700	1948	460	340	440
CDL(F)65-85-1	45		161	1248	700	1948	460	340	440
CDL(F)85-10-1	5.5	85 （DN100）	14	571	430	1001	260	208	120
CDL(F)85-10	7.5		20	571	430	1001	260	208	122
CDL(F)85-20-2	11		30	773	490	1263	330	255	165
CDL(F)85-20	15		41	773	490	1263	330	255	198
CDL(F)85-30-2	18.5		52	865	550	1415	330	255	212
CDL(F)85-30	22		64	865	590	1455	360	285	265
CDL(F)85-40-2	30		75	957	660	1617	400	310	348
CDL(F)85-40	30		86	957	660	1617	400	310	348
CDL(F)85-50-2	37		98	1049	660	1709	400	310	375

Turi	Tarqatish mashinasi	Nominal iste'mol	Nominal bosim	Hajmi （mm）					Og'irligi
Turi	(kVt)	(m³soat)	(m)	B1	B2	B1+B2	D1	D2	(kg)
CDL(F)85-50	37	85 (DN100)	110	1049	660	1709	400	310	375
CDL(F)85-60-2	45		122	1141	700	1841	460	340	438
CDL(F)85-60	45		134	1141	700	1841	460	340	438
CDL(F)120-10	11	120 (DN125)	18.5	840	490	1330	330	255	230
CDL(F)120-20-2	15		28.5	1000	490	1490	330	255	245
CDL(F)120-20-1	18.5		34.5	1000	550	1550	330	255	250
CDL(F)120-20	22		40	1000	590	1590	360	285	285
CDL(F)120-30-2	30		49	1160	660	1820	400	310	360
CDL(F)120-30-1	30		55.5	1160	660	1820	400	310	360
CDL(F)120-30	30		61	1160	660	1820	400	310	360
CDL(F)120-40-2	37		69	1320	660	1980	400	310	400
CDL(F)120-40-1	37		76	1320	660	1980	400	310	400
CDL(F)120-40	45		81	1320	700	2020	460	340	460
CDL(F)120-50-2	45		90	1480	700	2180	460	340	470
CDL(F)120-50-1	45		97	1480	700	2180	460	340	470
CDL(F)120-50	55		101.5	1510	770	2280	540	370	575
CDL(F)120-60-2	55		110	1670	770	2440	540	370	585
CDL(F)120-60-1	55		118	1670	770	2440	540	370	585
CDL(F)120-60	75		123	1670	845	2515	580	410	705
CDL(F)120-70-2	75		130	1830	845	2675	580	410	715
CDL(F)120-70-1	75		137.5	1830	845	2675	580	410	715
CDL(F)120-70	75		145	1830	845	2675	580	410	715
CDL(F)150-10-1	11	150 (DN125)	12.5	840	490	1330	330	255	230
CDL(F)150-10	15		18.5	840	490	1330	330	255	235
CDL(F)150-20-2	18.5		27.5	1000	550	1550	330	255	250
CDL(F)150-20-1	22		35	1000	590	1590	360	285	295
CDL(F)150-20	30		40	1000	660	1660	400	310	350
CDL(F)150-30-2	30		49	1160	660	1820	400	310	360
CDL(F)150-30-1	37		56	1160	660	1820	400	310	360
CDL(F)150-30	37		63	1160	660	1820	400	310	385
CDL(F)150-40-2	45		70.5	1320	700	2020	460	340	460
CDL(F)150-40-1	45		77	1320	700	2020	460	340	460
CDL(F)150-40	55		84	1350	770	2120	540	370	560
CDL(F)150-50-2	55		92	1510	770	2280	540	370	570
CDL(F)150-50-1	75		99	1510	845	2355	580	410	690
CDL(F)150-50	75		106.5	1510	845	2355	580	410	690
CDL(F)150-60-2	75		112	1670	845	2515	580	410	700
CDL(F)150-60-1	75		120.5	1670	845	2515	580	410	700
CDL(F)150-60	75		130	1670	845	2515	580	410	700

Hot Tags: CDL (F) Zanglamaydigan po'latdan yasalgan vertikal ko'p bosqichli santrifüj zanglamaydigan po'lat nasos, Xitoy, ishlab chiqaruvchi, yetkazib beruvchi, zavod, individual, sifat, so'nggi sotuvlar, mavjud, brendlar, Idoralar, TaIZHOU
