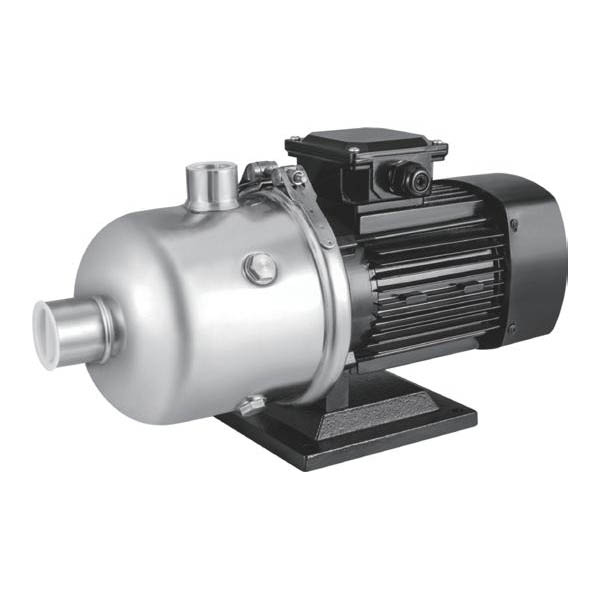

ZEN Machinery turli xil sanoat va tijorat maqsadlarida foydalanish uchun mos keladigan zanglamaydigan po'latdan yasalgan gorizontal santrifüj nasoslarning keng assortimentini ishlab chiqaradi.
Nasos*Suyuqlikning maksimal harorati: + 85°C
* Maksimal assimilyatsiya: 8 m
* Maksimal ish bosimi: maksimal ish bosimi bilan cheklangan.
* Nasos tanasi: quyma temir / zanglamaydigan po'lat
* Pervaneler: Yuqori quvvatli muhandislik plastmassa materiallari, korroziyaga qarshi
1. mis o'rashli elektr motor
2. Bir fazali vosita o'rnatilgan termal himoyaga ega.
3. Mana AISI 304
4. Izolyatsiya sinfi: B yoki F
5. Himoya klassi: IPX4
6. Atrof-muhitning maksimal harorati: + 40 ° C
7. Sovutish: tashqi shamollatish
Maishiy suv ta'minoti, uskunalarni yig'ish, quvurlarni bosim o'tkazish, bog'larni sug'orish, sabzavot issiqxonalarini sug'orish, baliq va parrandachilik, sanoat, tog'-kon sanoati, korxonalar va ko'p qavatli binolarni suv ta'minoti va kanalizatsiyasi, markaziy konditsioner va markaziy isitish va aylanish tizimi uchun javob beradi.
| Model | Quvvat |
Maksimal oqim (Q/m3/soat) |
Maksimal bosh (m) |
Maksimal diapazon (m) |
Chiqishga kiring (dyuym) |
GVt (kg) |
To'ldiruvchining o'lchami (mm) |
|
| kVt | HP | |||||||
| BW2-20 | 0.37 | 0.5 | 2 | 14 | 8 | 1"×1" | 13 | 400×165×230 |
| BW2-30 | 0.55 | 0.75 | 2 | 21 | 8 | 1"×1" | 13 | 400×165×230 |
| BW2-40 | 0.55 | 0.75 | 2 | 28 | 1 | 1"×1" | 13 | 400×165×230 |
| BW2-50 | 0.55 | 0.75 | 2 | 35 | 8 | 1"×1" | 14 | 400×165×230 |
| BW2-60 | 0.75 | 1 | 2 | 42 | 8 | 1"×1" | 15 | 445×165×245 |
| BW4-20 | 0.55 | 0.75 | 4 | 15 | 8 | 1¼"×1" | 13 | 400×165×230 |
| BW4-30 | 0.55 | 0.75 | 4 | 22 | 8 | 1¼"×1" | 15 | 445×165×245 |
| BW4-40 | 0.75 | 1.0 | 4 | 30 | 8 | 1¼"×1" | 15 | 445×165×245 |
| BW8-10 | 0.75 | 1 | 8 | 8.5 | 8 | 2"×2" | 20 | 560×230×265 |
| BW8-20 | 0.75 | 1.0 | 8 | 17 | 8 | 2"×2" | 20 | 560×230×265 |
| BW8-30 | 1.1 | 1.5 | 8 | 25.5 | 8 | 2"×2" | 25 | 560×230×265 |
| BW8-40 | 1.5 | 2.0 | 8 | 34 | 8 | 2"×2" | 25 | 580×230×270 |
| BW8-50 | 2.2 | 3 | 8 | 42.5 | 8 | 2“×2” | 30 | 580×230×270 |
| BW12-10 | 0.75 | 1.0 | 12 | 9.5 | 8 | 2"×2" | 20 | 560×230×265 |
| BW12-20 | 1.2 | 1.6 | 12 | 19.5 | 8 | 2"×2" | 21 | 560×230×265 |
| BW12-30 | 1.8 | 2.4 | 12 | 29.5 | 8 | 2"×2" | 25 | 580×230×270 |
| BW12-40 | 2.4 | 3.2 | 12 | 39.5 | 8 | 2"×2" | 29 | 580×230×270 |
| BW12-50 | 3.0 | 3.0 | 12 | 50 | 8 | 2°×2" | 34 | 610×230×270 |
| BW16-10 | 1.1 | 1.5 | 16 | 10 | 8 | 2“×2” | 20 | 560×230×265 |
| BW16-20 | 2.2 | 3.0 | 16 | 21 | 8 | 2"×2" | 27 | 580×230×270 |
| BW16-30 | 3 | 4 | 16 | 32 | 8 | 2"×2" | 34 | 610×230×270 |
| BW20-10 | 1.1 | 1.5 | 20 | 9.5 | 8 | 2"×2" | 21 | 560×230×265 |
| BW20-20 | 2.2 | 3 | 20 | 21 | 8 | 2"×2" | 28 | 580×230×270 |
| BW20-30 | 4.0 | 5.5 | 20 | 33 | 8 | 2"×2" | 42 | 650×230×270 |
