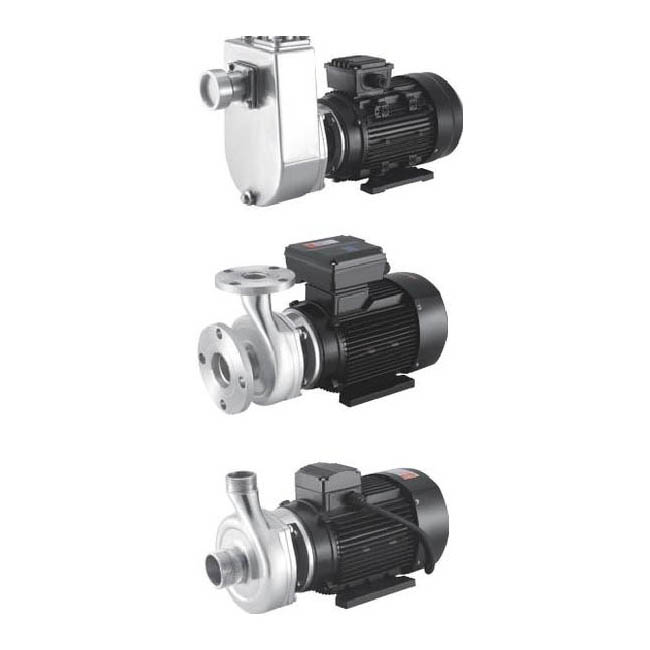

ZBFS o'z-o'zidan ishlaydigan kimyoviy nasoslar Idoralar sertifikatiga ega, bu ishonchli sifatni kafolatlaydi va mijozlarimizning ishonchini qozonadi.
ZBFS seriyali zanglamaydigan po'latdan ixcham quyma nasoslar yuqori sifatli zanglamaydigan po'latdan yasalgan bo'lib, chiroyli ko'rinishga ega, ixcham tuzilishga, kuchli chidamlilikka va boshqa xususiyatlarga ega, ilg'or tuzilishga ega, kam energiya iste'moli, kislota-ishqorga chidamliligi, yaxshi muhrlanish ko'rsatkichlari, qulay parvarishlash va boshqa xususiyatlarga ega. Ular kislotalar, ishqorlar, tuzlar va boshqa korroziv suyuqliklarni etkazib berish uchun keng qo'llaniladi. Ular kimyo sanoati, engil sanoat, chiqindilarni qayta ishlash va boshqa sohalar uchun eng yaxshi tanlovdir. Ushbu seriyadagi ba'zi kirish/rozetkalar mijozning tanlovi uchun tishli va gardishli shakllarga ega.
| Model | Quvvat |
MAX. OQIM (m³/soat) |
MAX. BOSIM (m) |
MAX. BCAC (m) |
NLET/eksport (dyuym) |
GW (kg) |
To'ldiruvchining o'lchami men (mm) |
|
| KVt | HP | |||||||
| 25ZBFS3-8-0,25 | 0.25 | 0.33 | 4.5 | 10 | 8 | 1''×1" | 11 | 360×140×260 |
| 25ZBFS3-8-0.25D | 0.25 | 0.33 | 4.5 | 10 | 8 | 1''×1" | 11 | 360×140×260 |
| 25ZBFS6-10-0,55 | 0.55 | 0.75 | 8 | 13 | 8 | 1''×1" | 14 | 390×150×290 |
| 25ZBFS6-10-0.55D | 0.55 | 0.75 | 8 | 13 | 8 | 1''×1" | 14 | 390×150×290 |
| 25ZBFS6-10-0,55T | 0.55 | 0.75 | 8 | 13 | 8 | 1''×1" | 29 | 655×210×313 |
| 25ZBFS6-10-0.55DT | 0.55 | 0.75 | 8 | 13 | 8 | 1''×1" | 29 | 655×210×313 |
| 25ZBFS6-13-0,75 | 0.75 | 1.0 | 8 | 15 | 8 | 1''×1" | 15 | 390×150×290 |
| 25ZBFS6-13-0.75D | 0.75 | 1.0 | 8 | 15 | 8 | 1''×1" | 15 | 390×150×290 |
| 25ZBFS6-13-0,75T | 0.75 | 1.0 | 8 | 15 | 8 | 1*×1" | 32 | 655×210×313 |
| 25ZBFS6-13-0.75DT | 0.75 | 1.0 | 8 | 15 | 8 | 1''×1" | 32 | 655×210×313 |
| 40ZBFS13-18-1.5 | 1.5 | 2.0 | 18 | 21 | 8 | 1½×1½ | 25 | 500×180×330 |
| 40ZBFS13-18-1.5D | 1.5 | 2.0 | 18 | 21 | 8 | 1½×1½ | 25 | 500×180×330 |
| 40ZBFS13-18-1,5T | 1.5 | 2.0 | 18 | 21 | 8 | 1½×1½ | 53 | 785×262×330 |
| 40ZBFS13-18-1.5DT | 1.5 | 2.0 | 18 | 21 | 8 | 1½×1½ | 53 | 785×262×330 |
| 50ZBFS15-20-2.2 | 2.2 | 3.0 | 21 | 24 | 8 | 2"×2" | 32 | 520×200×350 |
| 50ZBFS15-20-2.2D | 2.2 | 3.0 | 21 | 24 | 8 | 2"×2" | 32 | 520×200×350 |
| 50ZBFS15-20-2.2T | 2.2 | 3.0 | 21 | 24 | 8 | 2*×2" | 60 | 842×262×428 |
| 50ZBFS15-20-2.2DT | 2.2 | 3.0 | 21 | 24 | 8 | 2*×2" | 60 | 842×262×428 |
| 50ZBFS15-25-3 | 3.0 | 4.0 | 21 | 30 | 8 | 2"×2" | 57 | 540×205×360 |
| 50ZBFS15-25-3T | 3.0 | 4.0 | 21 | 30 | 8 | 2"×2" | 86 | 865×288×428 |
| 50ZBFS18-32-5.5 | 5.5 | 7.5 | 21 | 40 | 8 | 2"×2" | 90 | 590×225×390 |
| 50ZBFS18-32-5.5T | 5.5 | 7.5 | 21 | 40 | 8 | 2"×2" | 129 | 954×372×578 |
